TIP122 Darlington NPN Transistor - (Pack of 5)

Regular price
Rs. 27
Sale price
Rs. 27
Regular price
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

  • Low saturation voltage
  • Simple drive requirements
  • High safe operating area
  • For low distortion complementary designs
  • Easy to carry and handle

TIP122 Darlington NPN Transistor - (Pack of 5)

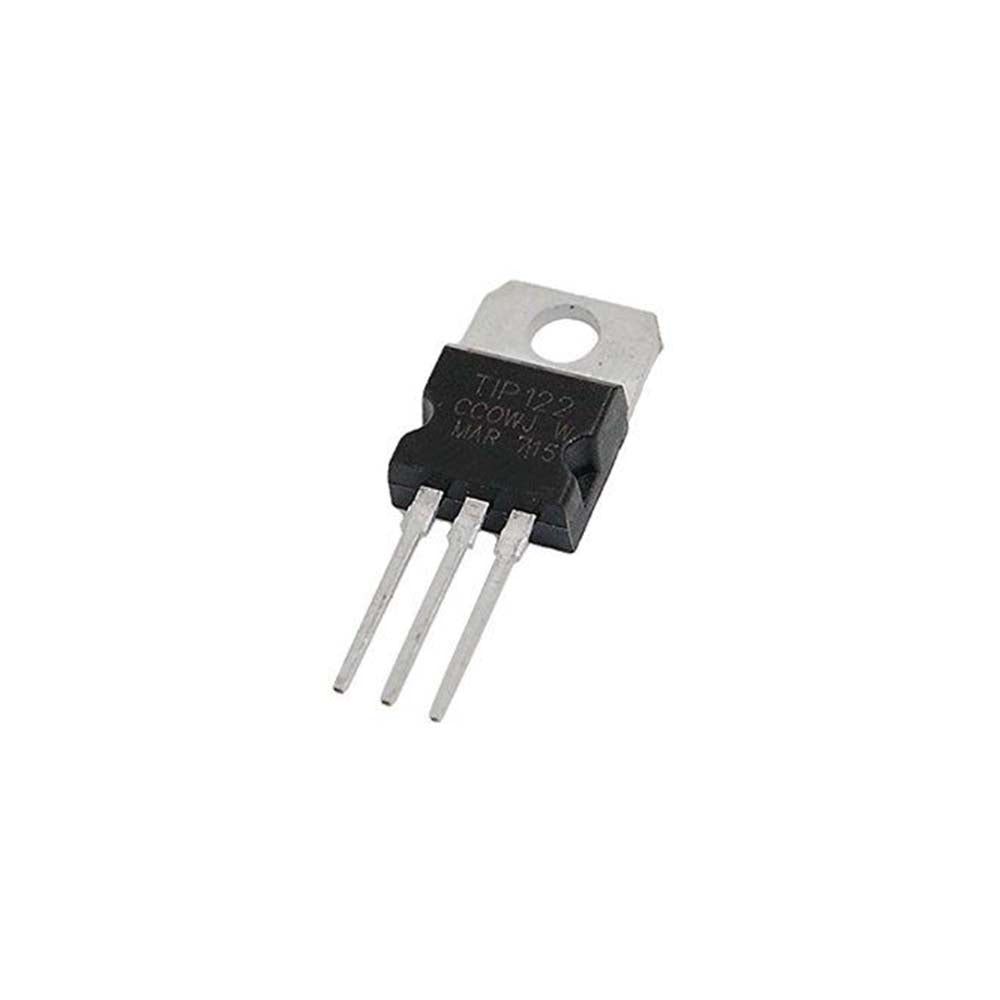

The TIP122(RM0387) is an NPN Epitaxial Darlington Transistor. Mainly used for Medium Power Linear Switching Applications and Complements to TIP125/126/127.

In electronic, the Darlington transistor (often called a Darlington pair) is a compound structure consisting of two bipolar transistors (either integrated or separated devices) connected in such a way that the current amplified by the first transistor is amplified further by the second one.

This configuration gives a much higher common/emitter current gain than each transistor taken separately and, in the case of integrated devices, can take less space than two individual transistors because they can use a shared collector. Integrated Darlington pairs come packaged singly in transistor-like packages or as an array of devices (usually eight) in an integrated circuit.

Package Includes:

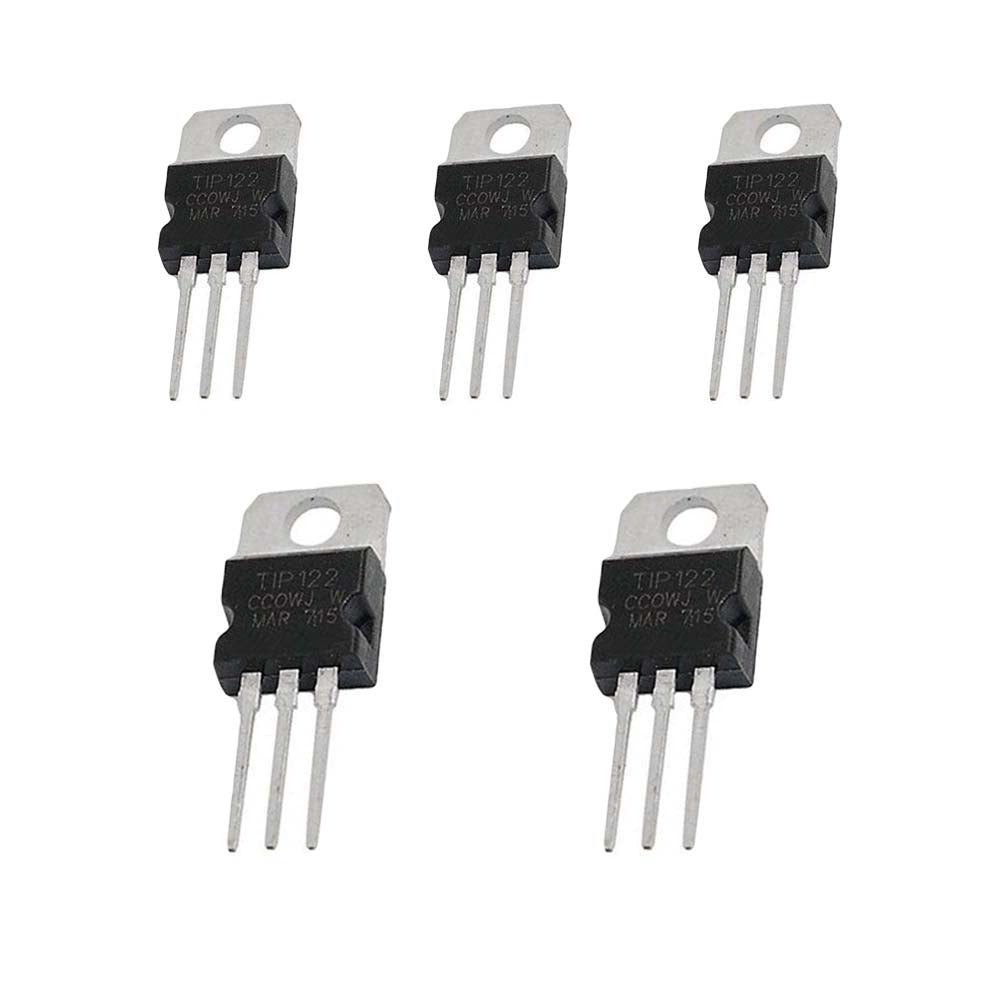

  • 5 x TIP122 Darlington NPN Transistor

Specifications:

Transistor Polarity NPN
Collector−Emitter Voltage (VCEO) 100V
Collector−Base Voltage (VCBO) 100V
Continuous Collector Current (Ic) 5A
Emitter Base Voltage (VEBO) 5V
Power Dissipation (Pd) 65W
Dimensions  5 x 4 x 3cms
Weight  5 grams
