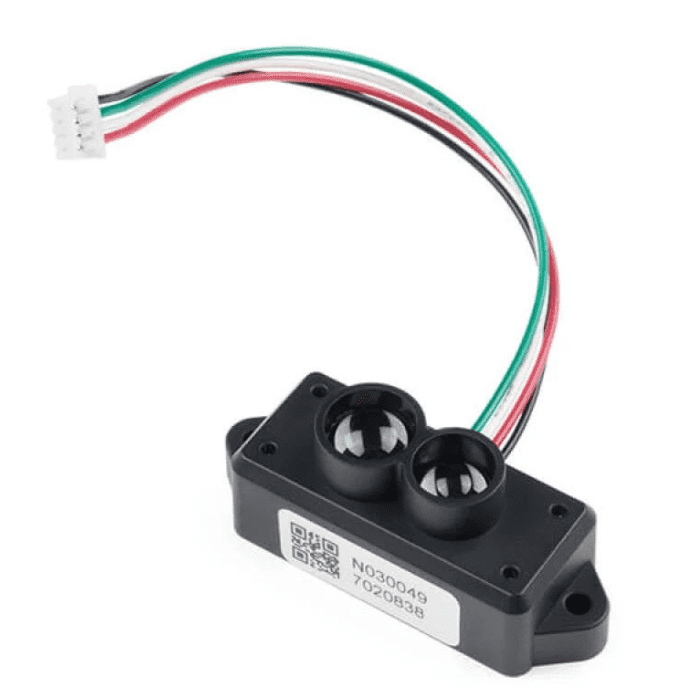

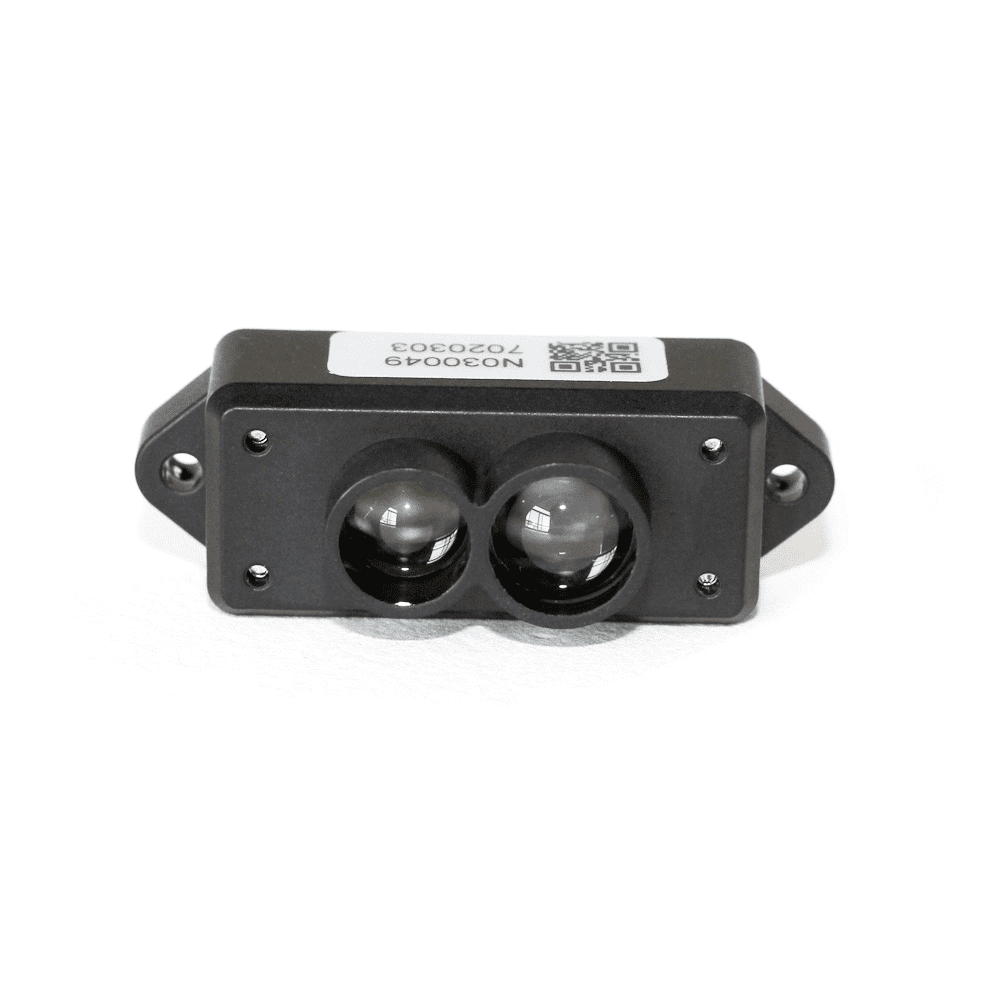

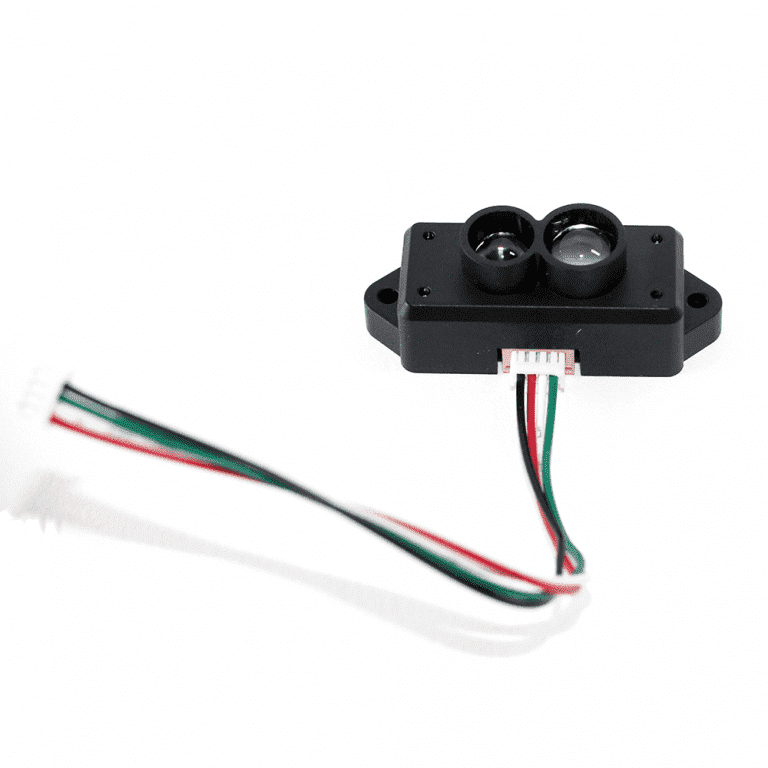

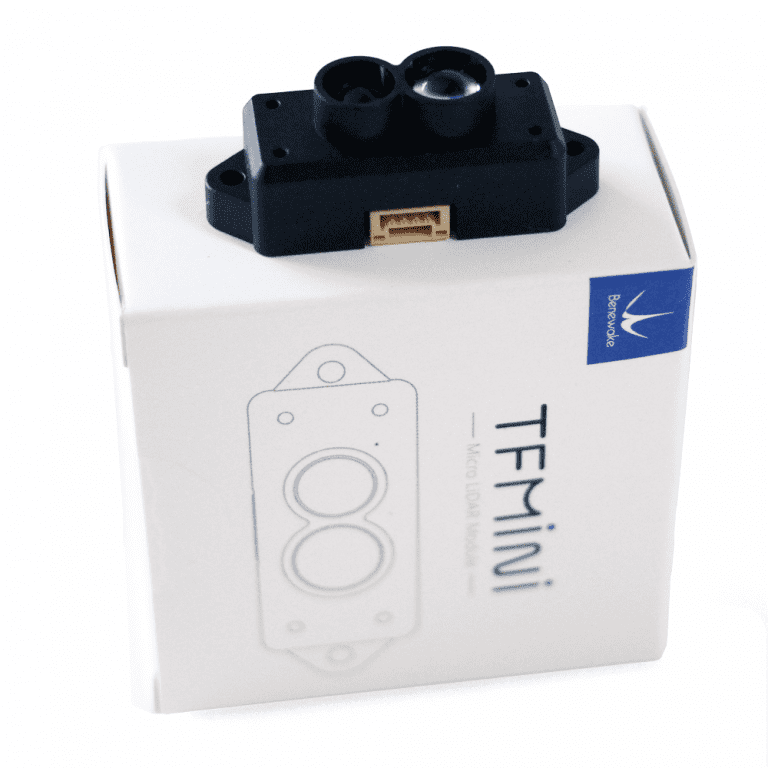

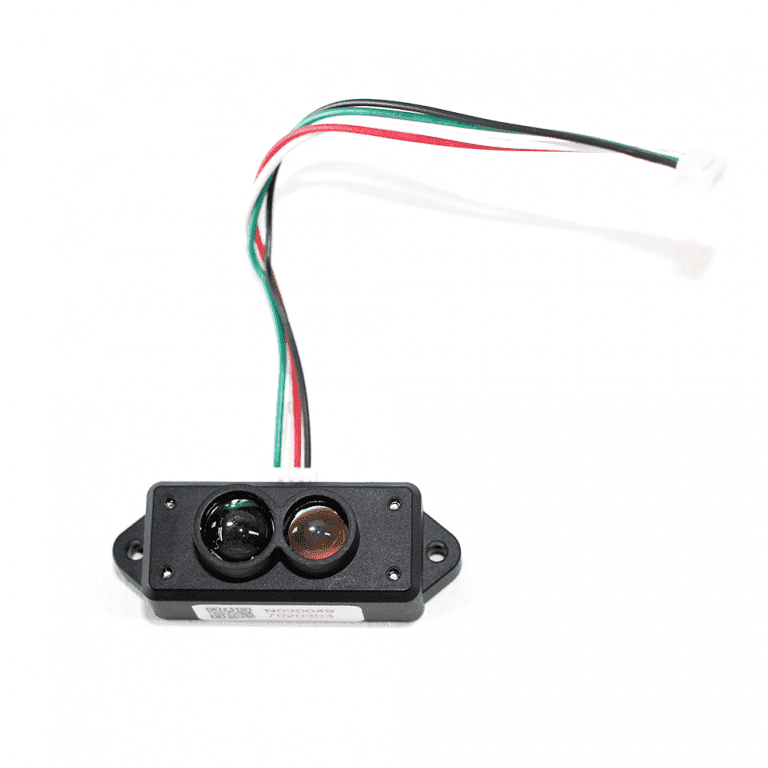

TFMiNi micro LiDAR Sensor Module

TFMiNi micro LiDAR Sensor Module

Regular price Rs. 3,699
Regular price Rs. 5,147 Sale price Rs. 3,699
Sale Sold out 28% off Best Price Guaranteed
You save Rs. 1,448
Incl. GST (No Hidden Charges)
  • TF Mini is a single-point micro ranging module and could be widely used in the integrated application of various drones, UAVs, Robots, and industrial types of equipment.
  • It is integrated with unique optical and electrical designs, to achieve stable, precise, high sensitivity, and high-speed distance detection.
  • Compact size, lightweight. Good performance for height fixing and terrain-following drones.
  • This product is based on the ToF (Time of Flight) principle and integrated with unique optical and electrical designs

TFMiNi micro LiDAR Sensor Module

The TFMini micro LiDAR distance sensor module for drones UAV UAS robots (12m) Laser Range Finder sensor has its unique optical, structural, and electronic designs, the product possesses 3 major advantages, low cost, tiny volume and low power consumption. The sensor has built-in algorithm adapted to indoor and outdoor environments can guarantee an excellent ranging performance at a low cost and in a tiny volume, which highly expands the application fields and scenarios of LiDAR and lays a solid foundation for future “eyes” in the smart era.

Note: This product does not use laser light for ranging. Instead it contains an LED and optics. Many such systems are being marketed under the name "LiDAR," although it may be more appropriate to think of this device as a "Time-of-Flight Infrared Rangefinder". It differs significantly from traditional IR rangefinders in that it uses ToF to determine range and not triangulation

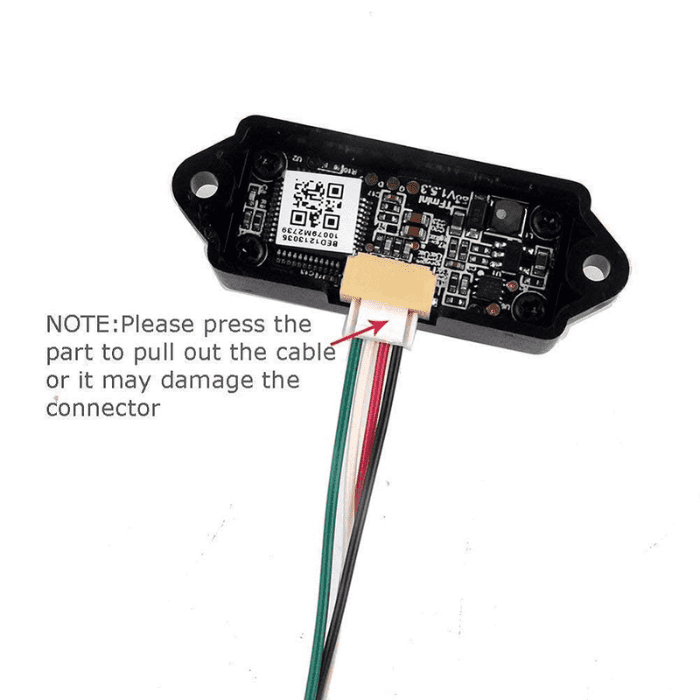

Connection:

Applications:

  • Unidirectional ranging LiDAR. Obstacle avoidance. Assisted landing.
  • Terrain following.
  • Robots outdoor obstacle avoidance.
  • Intelligent parking. Crane operations.
  • Vehicle position sensing.
  • Vehicle detection for barrier gate control.

Package Includes :

  • 1 x TF Mini LiDAR Distance sensor.

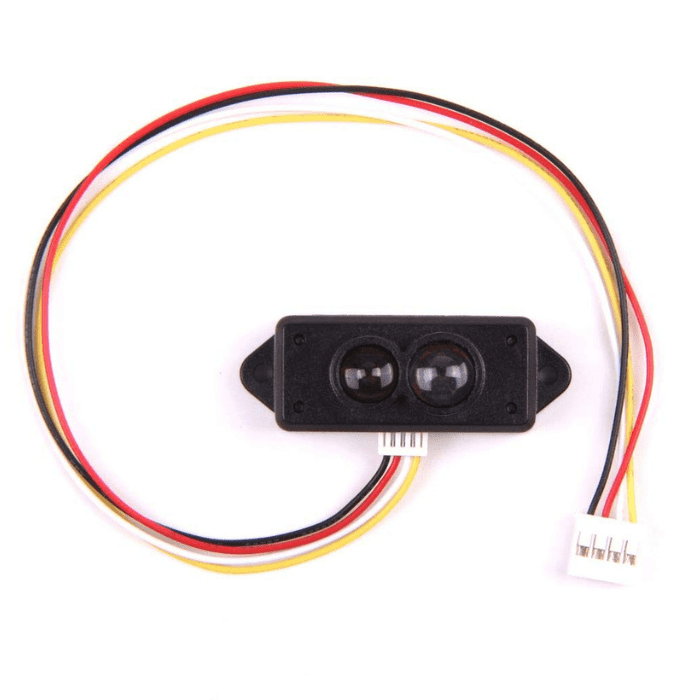

  • 1 x Extension cable.

Specifications

Operating Range 0.3 - 12m
Average Power Consumption 0.12W
Resolution 1cm
Operating Voltage 4.5 - 6V DC
Acceptance Angle 2.3°
Frequency Range 100Hz
Wavelength 850nm
Dimensions 3 x 2 x 1cm
Weight 15gm

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. What is TF Mini LiDAR Sensor? Where is LiDAR sensor used?

  • The TFMini is a ToF (Time of Flight) LiDAR sensor capable of measuring the distance to an object as close as 30 centimeters and as far as 12 meters. As with all LiDAR sensors, your effective detection distance will vary depending on lighting conditions and the reflectivity of your target object.
    The TFMini LiDAR sensor could be widely used in the integrated application of various drones, UAVs, Robots and industrial types of equipment.


2. Does TF Mini LiDAR sensor use Laser to measure the distance?

  • This Sensor does not use laser light for ranging. Instead it contains an LED and optics. Many such systems are being marketed under the name "LiDAR," although it may be more appropriate to think of this device as a "Time-of-Flight Infrared Rangefinder". It differs significantly from traditional IR rangefinders in that it uses ToF to determine range and not triangulation - as is performed by the Sharp GP-series devices
