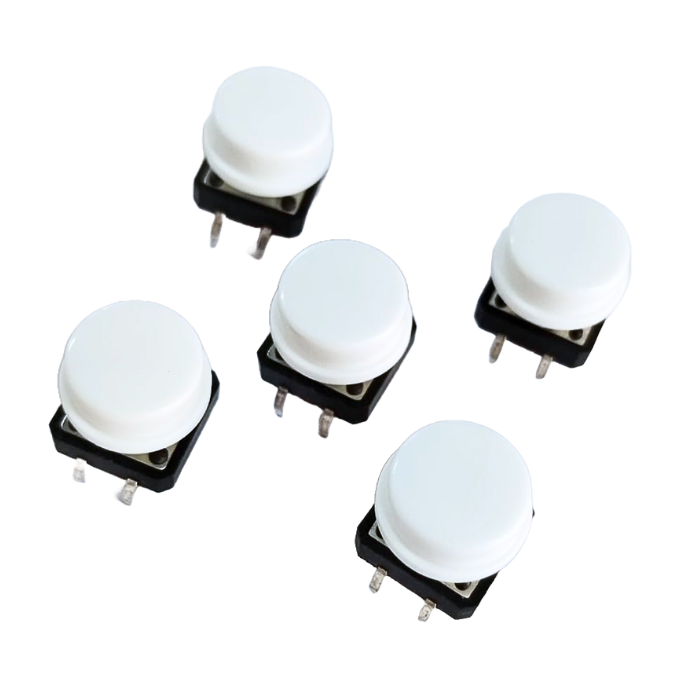

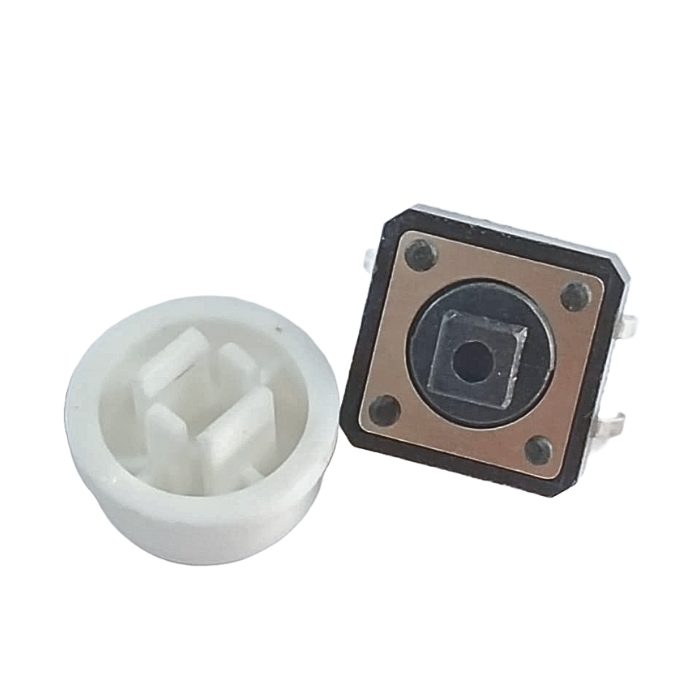

Tactile 4 Pin Push Button Switch - Pack of 5 (12x12x7.3 mm)
Tactile 4 Pin Push Button Switch - Pack of 5 (12x12x7.3 mm)
Regular price
Rs. 56
Regular price
Rs. 84
Sale price
Rs. 56
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 8 hours and 39 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Through-hole design.
- High operating force (1.5N or 2.5N) suited to automotive equipment requirements
- The long life of 300,000 cycles realized despite the high operating force
- Used in the fields of electronic products, household appliances and more.
- This light touch switch is waterproof, prevent oil, anti-pollution, anti-static interference.
- Good electrical conductivity.
Tactile 4 Pin Push Button Switch - Pack of 5 (12x12x7.3 mm)
6x6x6mm Tactile 4 Pin Push Button Switch is widely used as a standard input buttons on electronic projects. These push button switch work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit.
This tact switch also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from.
Applications:
- Can be used in Prototyping
- Can be used in DIY Projects for triggering input.
- Can be used with Arduino for IOT Applications
Explore our broad range of Push Button Switch!
Package Includes:
- 5 x 6x6x6 mm Tactile 4 Pin Push Button Switch
Specifications:
|
Operating Voltage (VDC) |
12 |
|
Max. Operating Current (mA) |
50mA |
|
On/Off Function |
Push to ON |
|
Switch Type |
Momentary |
|
Contact Type |
Through-hole |
|
Contact Resistance |
50mΩ |
|
Insulation Resistance (MΩ) |
100 |
|
Operating Temperature Range (°C) |
-20 to 70 |
|
Operation Stroke |
0.25+0.2/-0.1mm |
|
Operation Force |
1.56 +/- 0.5 N |
|
Dimensions |
12x12x7.3 mm |
| Weight | 1g (each) |
