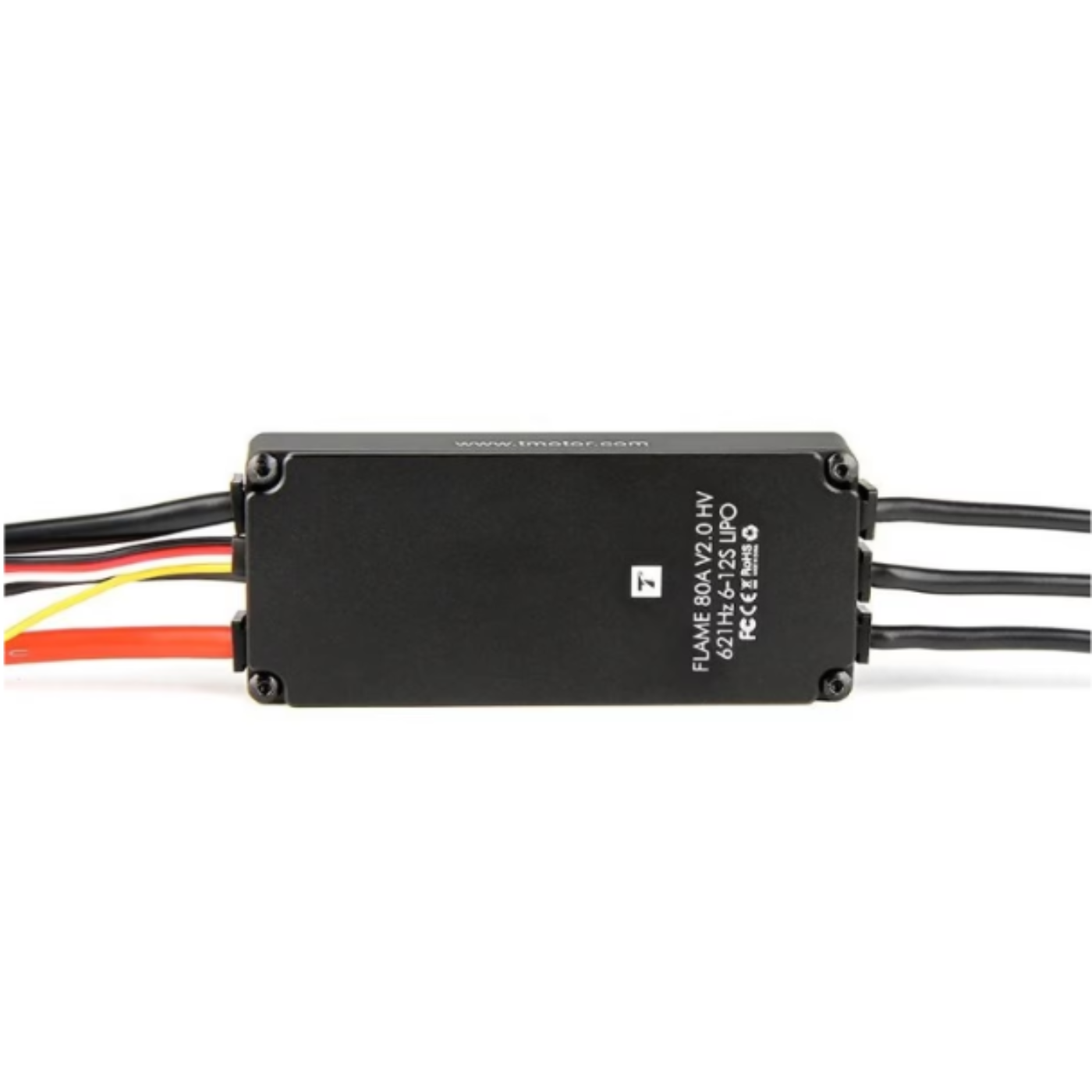

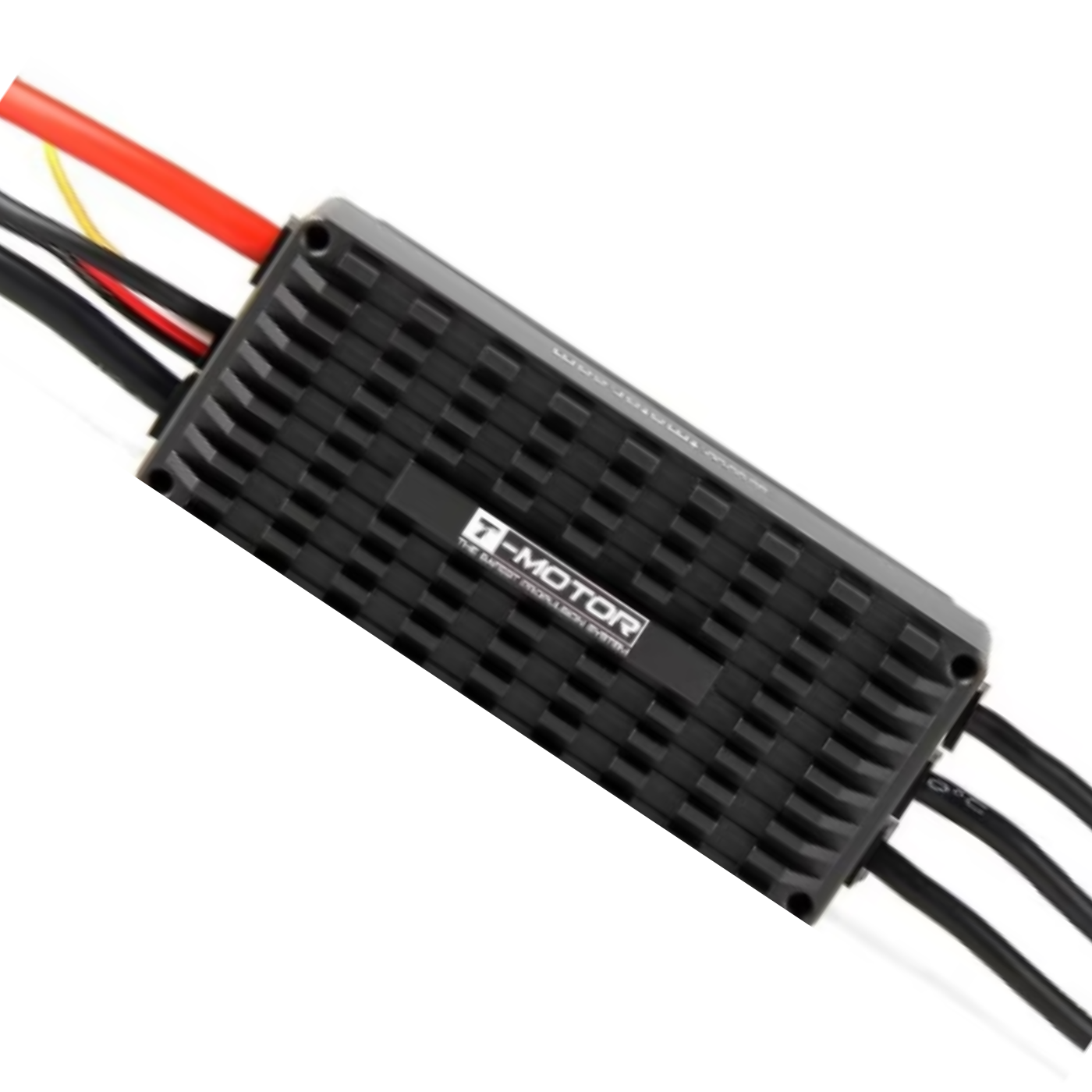

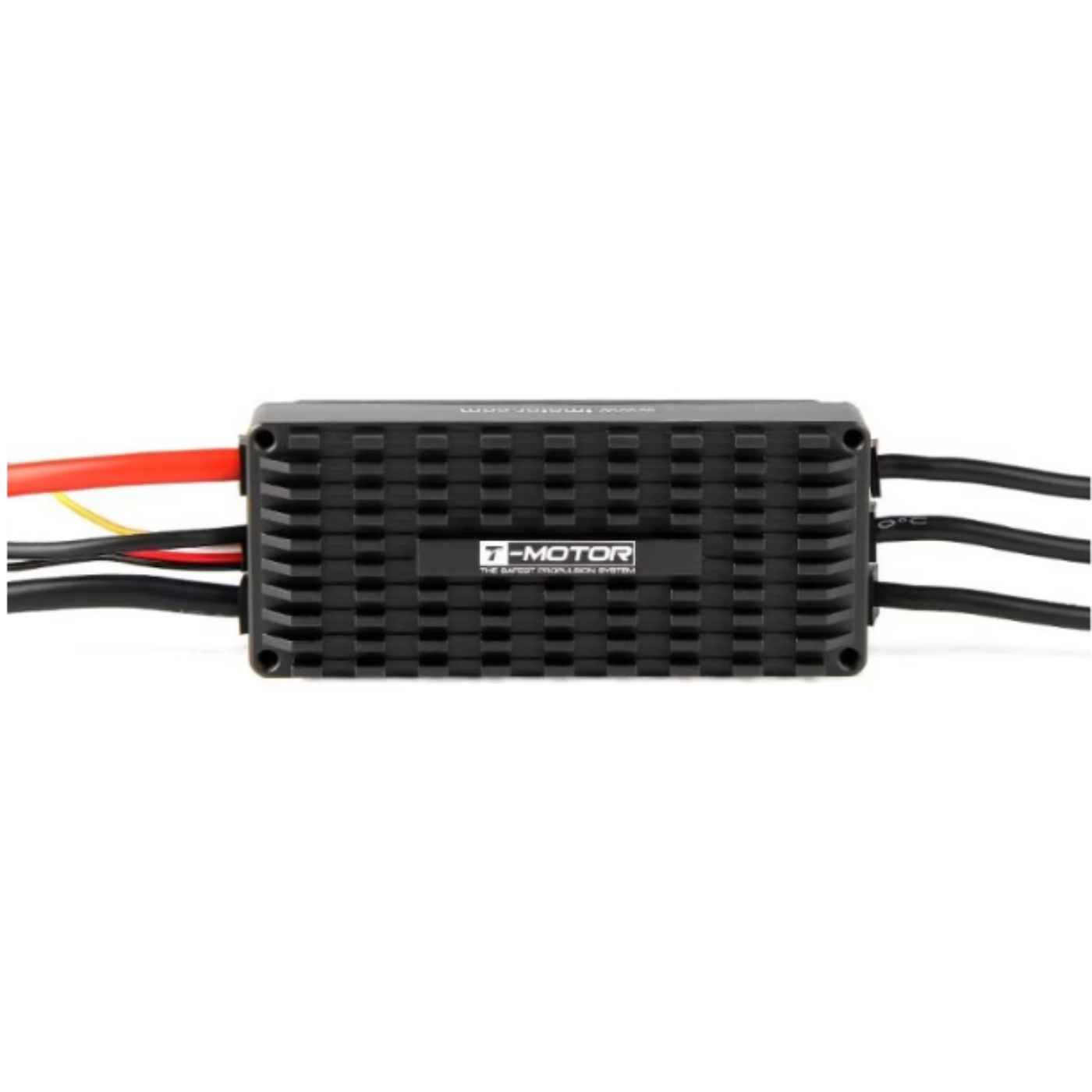

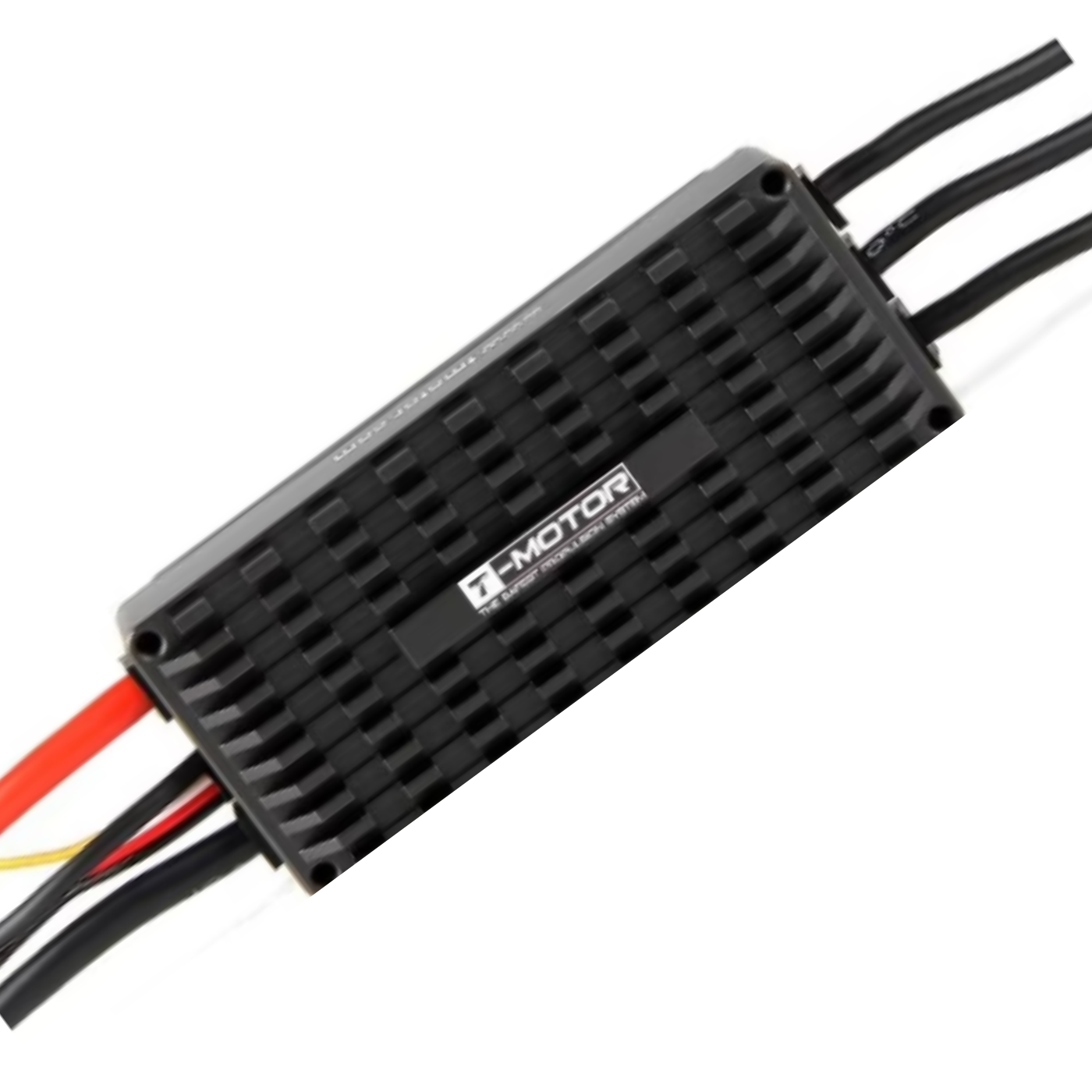

T-MOTOR FLAME 80A 12S V2.0 Electronic Speed Controller (ESC)
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability
The T-MOTOR FLAME 80A 12S V2.0 ESC is a high-performance electronic speed controller engineered for multirotor UAVs and professional drone applications. Designed to operate with 6S to 12S LiPo battery systems, it delivers stable power management and responsive motor control for demanding aerial platforms. Its robust construction and advanced control features make it suitable for industrial, commercial, and heavy-duty drone deployments.

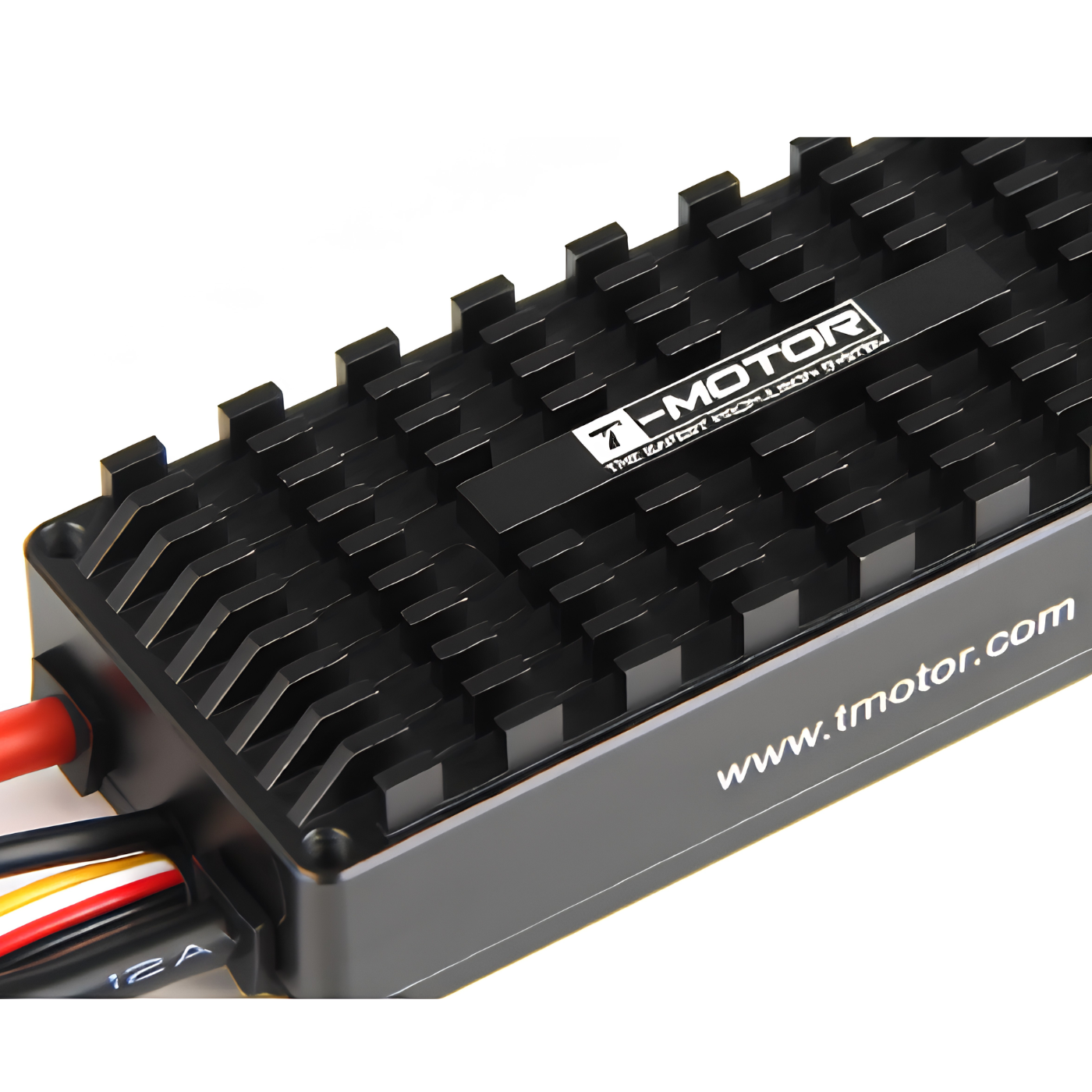

Built with a CNC-machined aluminum enclosure, the ESC offers efficient heat dissipation while providing mechanical protection in challenging operating environments. The layered internal design helps improve cooling performance, and the IP56-rated waterproof and dustproof construction enhances reliability during outdoor use.
The FLAME 80A 12S V2.0 incorporates multiple protection mechanisms, including start-up protection, overload protection, motor lock protection, and throttle signal loss protection. With configurable throttle range and support for firmware updates, it provides flexibility for integration into a variety of UAV propulsion systems while maintaining smooth and precise throttle response.
| Specification | Details |
|---|---|
| Product Name | T-MOTOR FLAME 80A 12S V2.0 ESC |
| Product Type | Electronic Speed Controller (ESC) |
| Continuous Current | 80A |
| Peak Current | 120A (10 seconds) |
| Supported Battery | 6S–12S LiPo |
| Refresh Rate | 600 Hz |
| Enclosure Material | CNC Aluminum Alloy |
| Protection Rating | IP56 |
| Throttle Range | Configurable |
| Protection Features | Start-up Protection, Overload Protection, Motor Lock Protection, Throttle Signal Loss Protection |
This product comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
