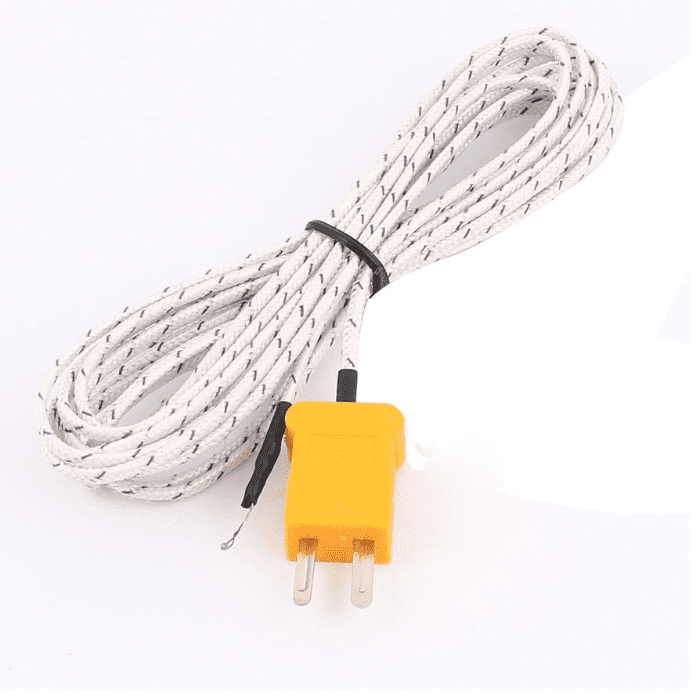

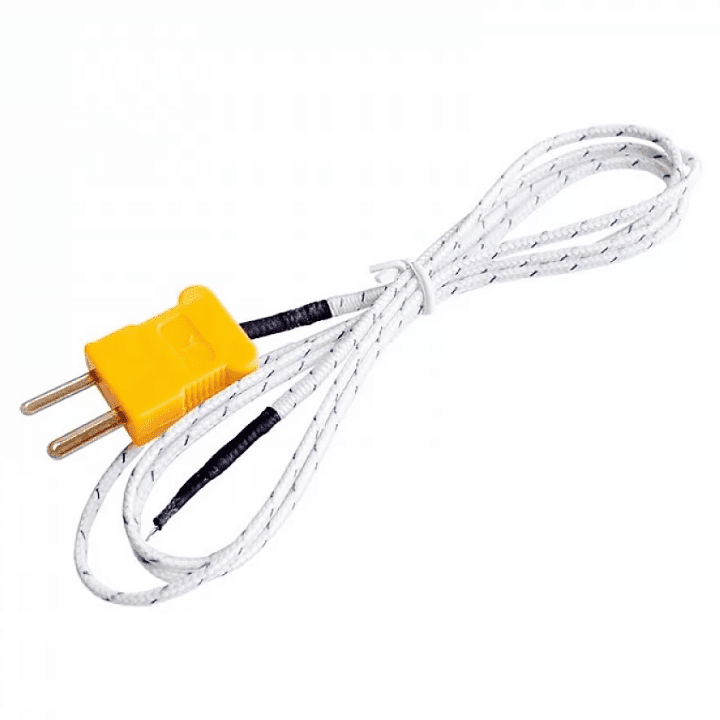

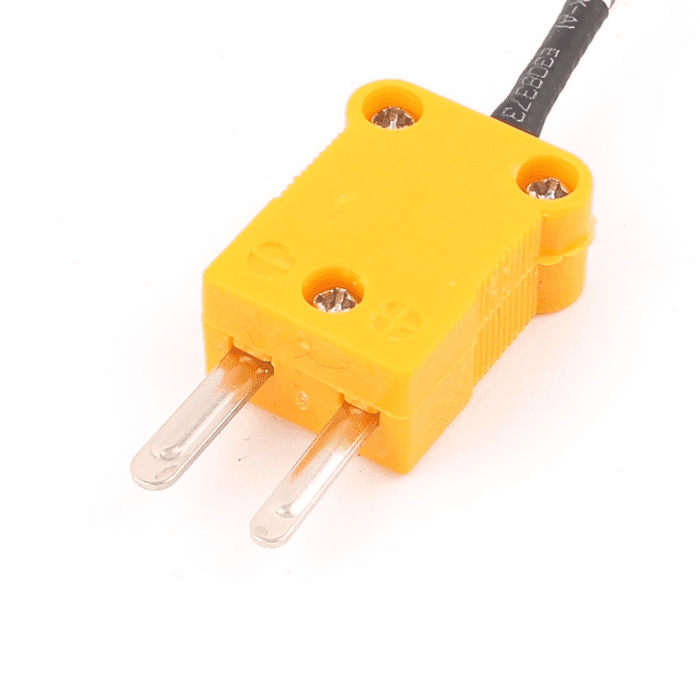

Surface Thermocouple K Type High Temperature Resistance Probe (1 Meter)

1.What is a K type temperature sensor?

• A K-type temperature sensor is a type of thermocouple that is used to measure temperature. A thermocouple is a device that consists of two conductors of different types of metal that are joined at one end. When the junction of the two conductors is heated, a small voltage is produced that is proportional to the temperature at the junction. This voltage can be measured and used to determine the temperature of the junction.
• K-type temperature sensors are commonly used to measure temperatures in a wide range of applications, including industrial, automotive, and scientific settings. They are often used to measure temperatures in high-temperature environments, such as in furnaces or ovens, as they are able to withstand temperatures up to 1200°C (2192°F). K-type temperature sensors are also widely available and relatively inexpensive, which makes them a popular choice for many applications.

2.What are the 3 different types of probes for thermocouples?

• There are many different types of probes that can be used with thermocouples, and the specific type of probe that is best suited for a particular application will depend on the specific requirements of that application. Here are three common types of probes that are used with thermocouples:
  • Point probes: Point probes are small, thin probes with a sharp tip that are designed to be inserted into a specific point in a system or object to measure the temperature at that point. Point probes are often used in applications where it is necessary to measure the temperature of a small or inaccessible area, or where the temperature of a specific point is of particular interest.
  • Surface probes: Surface probes are probes that are designed to be placed on the surface of an object to measure the temperature of that surface. Surface probes typically consist of a flat or slightly curved surface with one or more thermocouples embedded in it. They are often used to measure the temperature of large, flat surfaces, such as the surface of a machine or the top of a heated element.
  • Immersion probes: Immersion probes are probes that are designed to be inserted into a fluid or other substance to measure the temperature of that substance. Immersion probes typically consist of a long, narrow tube with a thermocouple at the end, and are often used to measure the temperature of liquids or gases.

3.What is Type K thermocouple used for?

• A type K thermocouple is a temperature sensing device that consists of two wires made of different types of metal that are joined together at one end. Type K thermocouples are widely used in a variety of applications because they are relatively inexpensive, easy to use, and can withstand high temperatures. Some common uses for type K thermocouples include:
  • Industrial and process control: Type K thermocouples are often used in industrial and process control applications to measure the temperature of gases, liquids, and solids.
  • HVAC: Type K thermocouples are commonly used in heating, ventilation, and air conditioning (HVAC) systems to measure the temperature of air and other gases.
  • Food processing: Type K thermocouples are often used in food processing applications to measure the temperature of cooking oils, ovens, and other equipment.
  • Laboratory testing: Type K thermocouples are often used in laboratory testing and research to measure the temperature of chemical reactions, biological samples, and other materials.
  • Medical devices: Type K thermocouples are sometimes used in medical devices, such as fever thermometers, to measure body temperature.

4.What are the 4 types of thermocouple probes?

• There are four main types of thermocouple probes: type J, type K, type N, and type T. Each type is made of a specific combination of metal wires, and each has its own unique characteristics and applications.
  • Type J: Type J thermocouple probes are made of iron and constantan and are suitable for use in a wide range of temperatures, from -210°C to 1200°C. They are commonly used in industrial and process control applications, as well as in laboratory testing and research.
  • Type K: Type K thermocouple probes are made of chromel and alumel and are suitable for use in a wide range of temperatures, from -270°C to 1372°C. They are widely used in industrial and process control applications, as well as in HVAC systems and food processing.
  • Type N: Type N thermocouple probes are made of nicrosil and nisil and are suitable for use in a wide range of temperatures, from -270°C to 1300°C. They are often used in high-temperature and high-pressure applications, such as in the aerospace and petrochemical industries.
  • Type T: Type T thermocouple probes are made of copper and constantan and are suitable for use in a wide range of temperatures, from -250°C to 400°C. They are commonly used in laboratory testing and research, as well as in medical and pharmaceutical applications.
