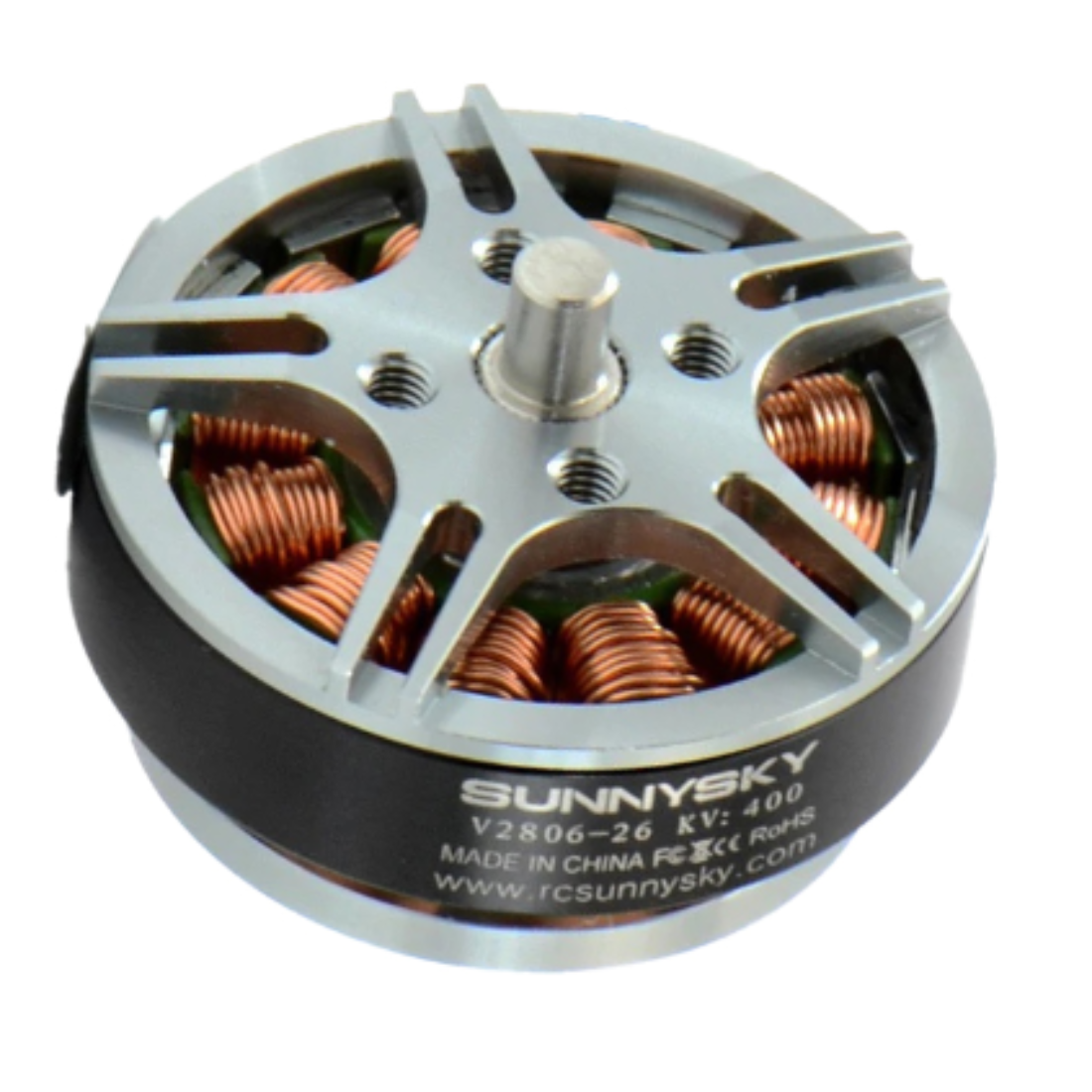

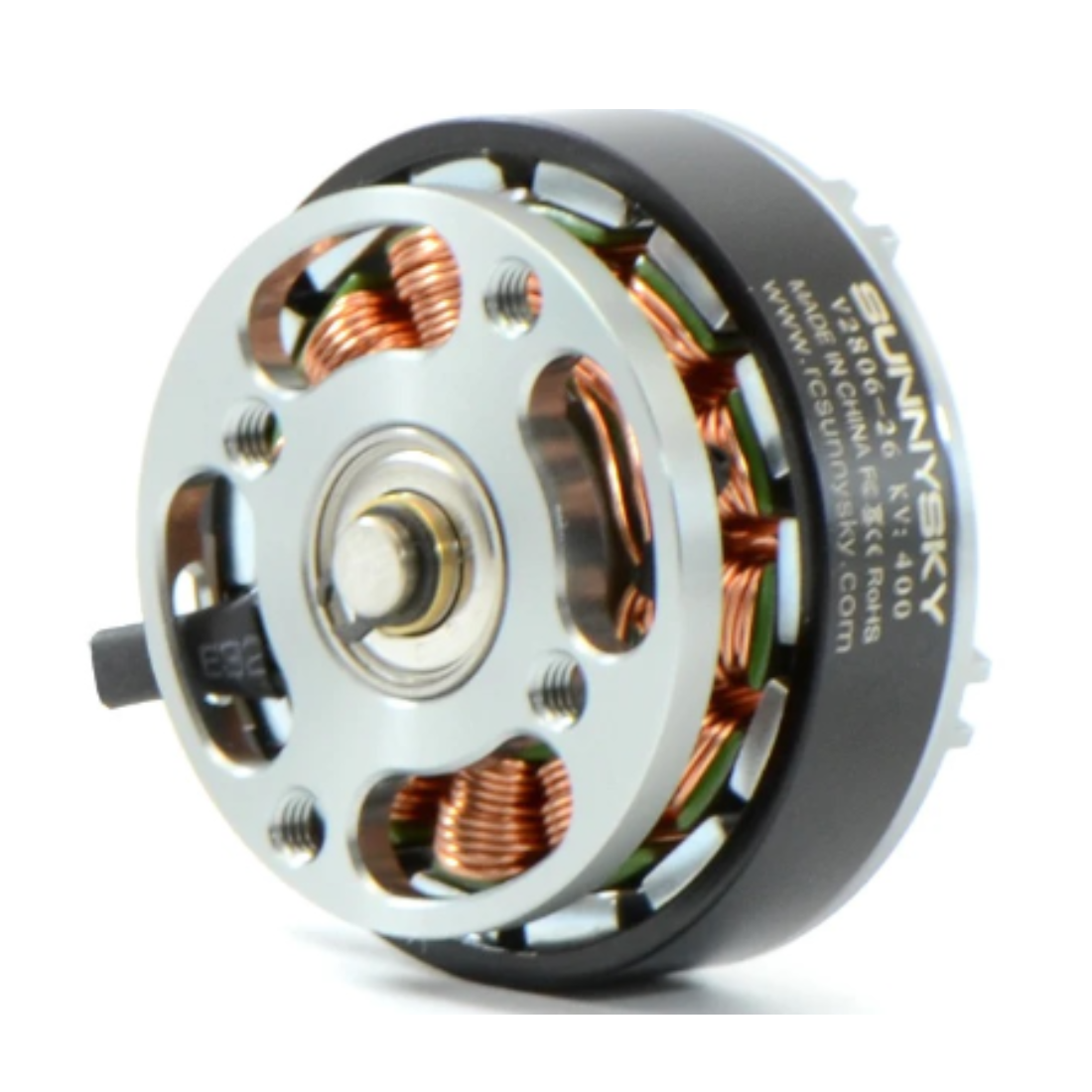

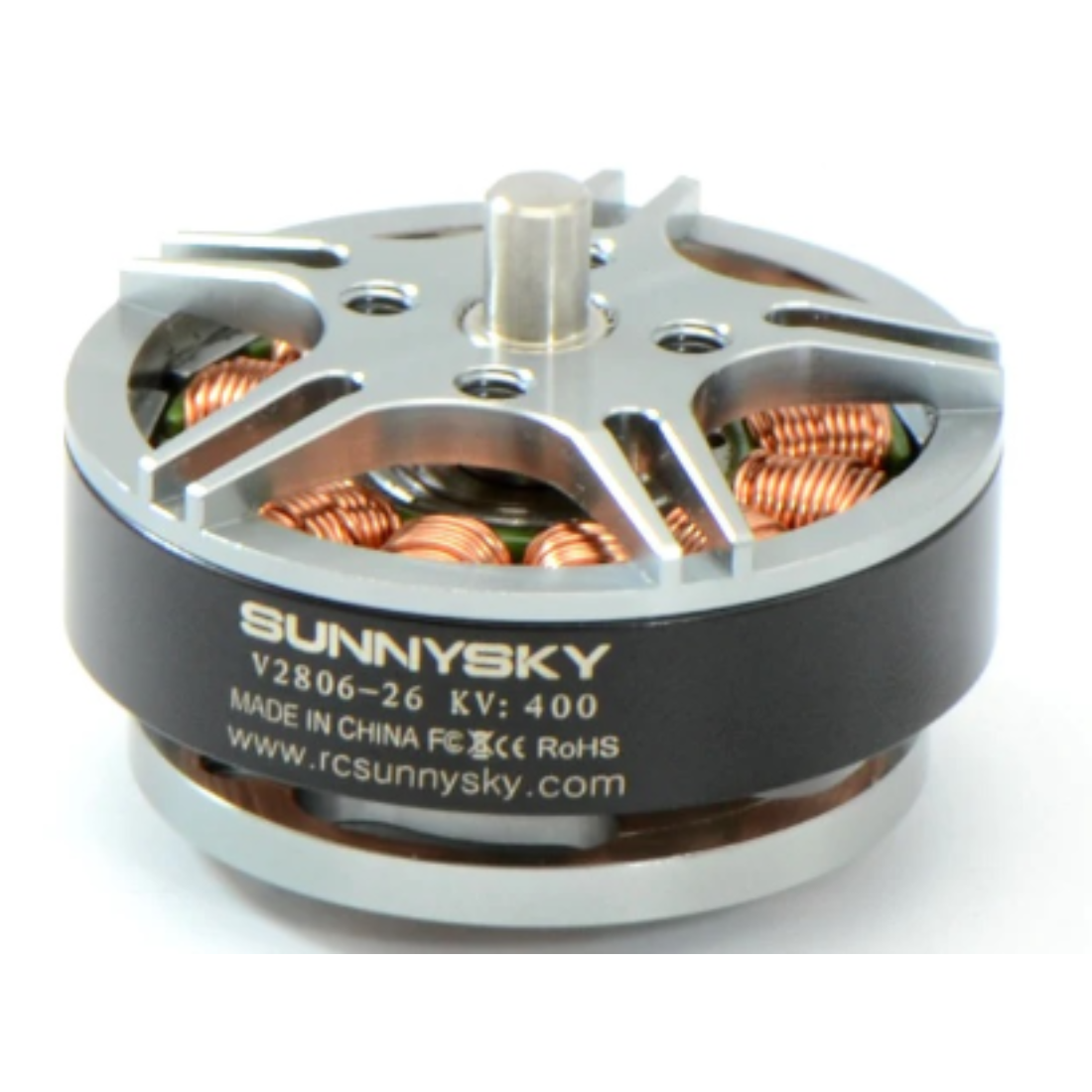

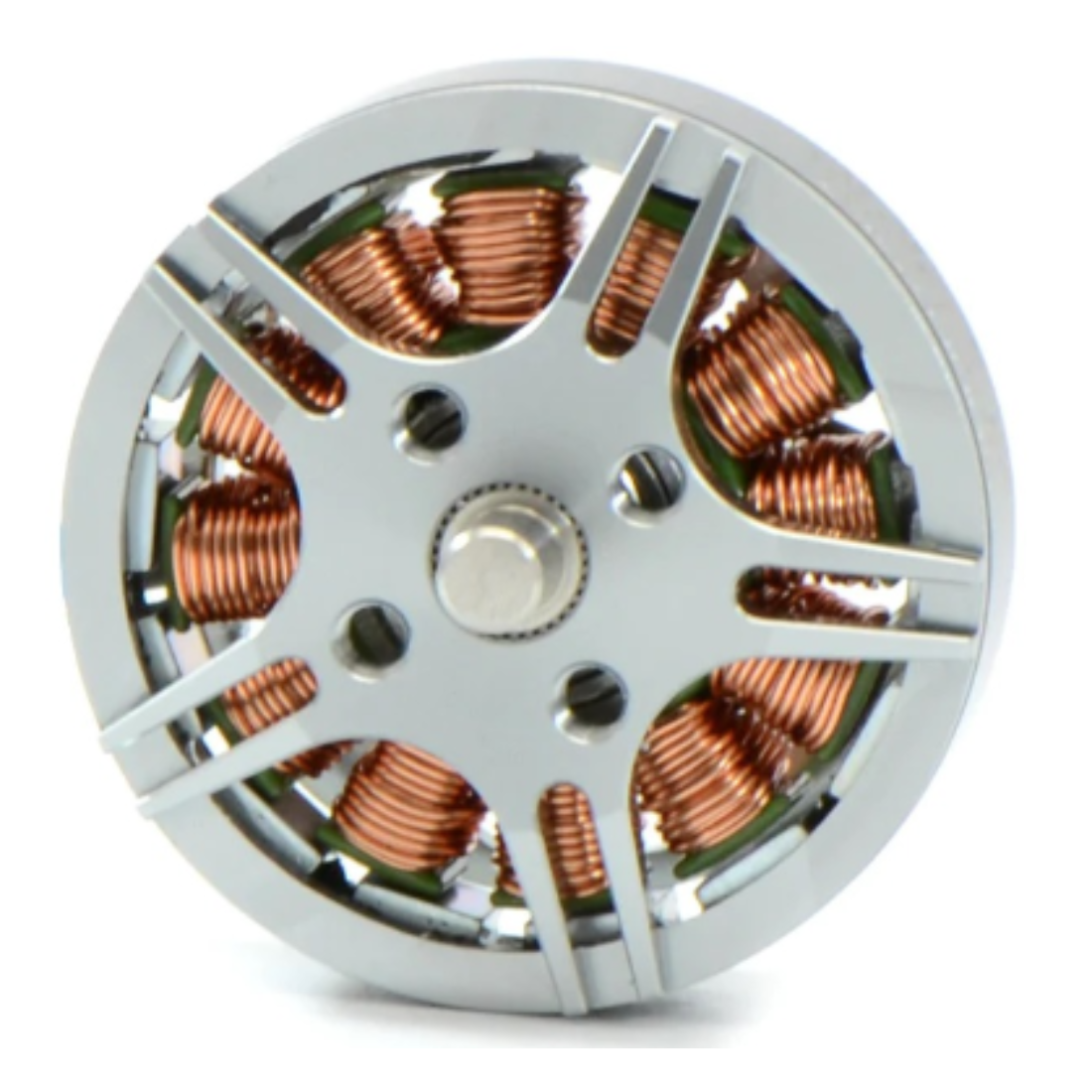

Sunny Sky V2806 KV650 Brushless Motors
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability
Sunnysky V series of motors are specially designed to power long-endurance multirotor aircraft. Design styles of the whole series are high efficiency, stable structure, lightweight, high consistency, etc. These flat Sunny Sky V2806 motors are designed for long-flight time multi-rotors. These motors can produce enough torque at low RPM and work at peak efficiency during flight.
The whole series uses Sunnysky’s patented Stepped and knurled design that not only efficiently prevents motors from getting loose, but also reduces the probability of malfunction and unstable output power. The whole series use original Japanese EZO bearings that provide quiet and stable flight in the air. With the guarantee of strength, the caps of V motors are highly hollow-cutted to save weight, so that these Sunny Sky V2806 motors can reach the maximum thrust-to-weight ratio and gain more flight time.
| Motor KV (RPM/V) | 650 |
| Motor Type | Brushless Motor |
| No. of Stator Arms | 12 |
| Stator Thickness | 6 mm |
| No. of Stator Poles | 14 |
| No-Load Current (A/10V) | 0.4 A / 10V |
| Motor Resistance | 227 mΩ |
| Continuous Current (A) | 16A / 180s |
| Max. Power (W) | 250 W |
| Motor Weight (g) | 47 |
| Diameter (mm) | 35 (Outside) |
| Motor Body Length (mm) | 18 |
