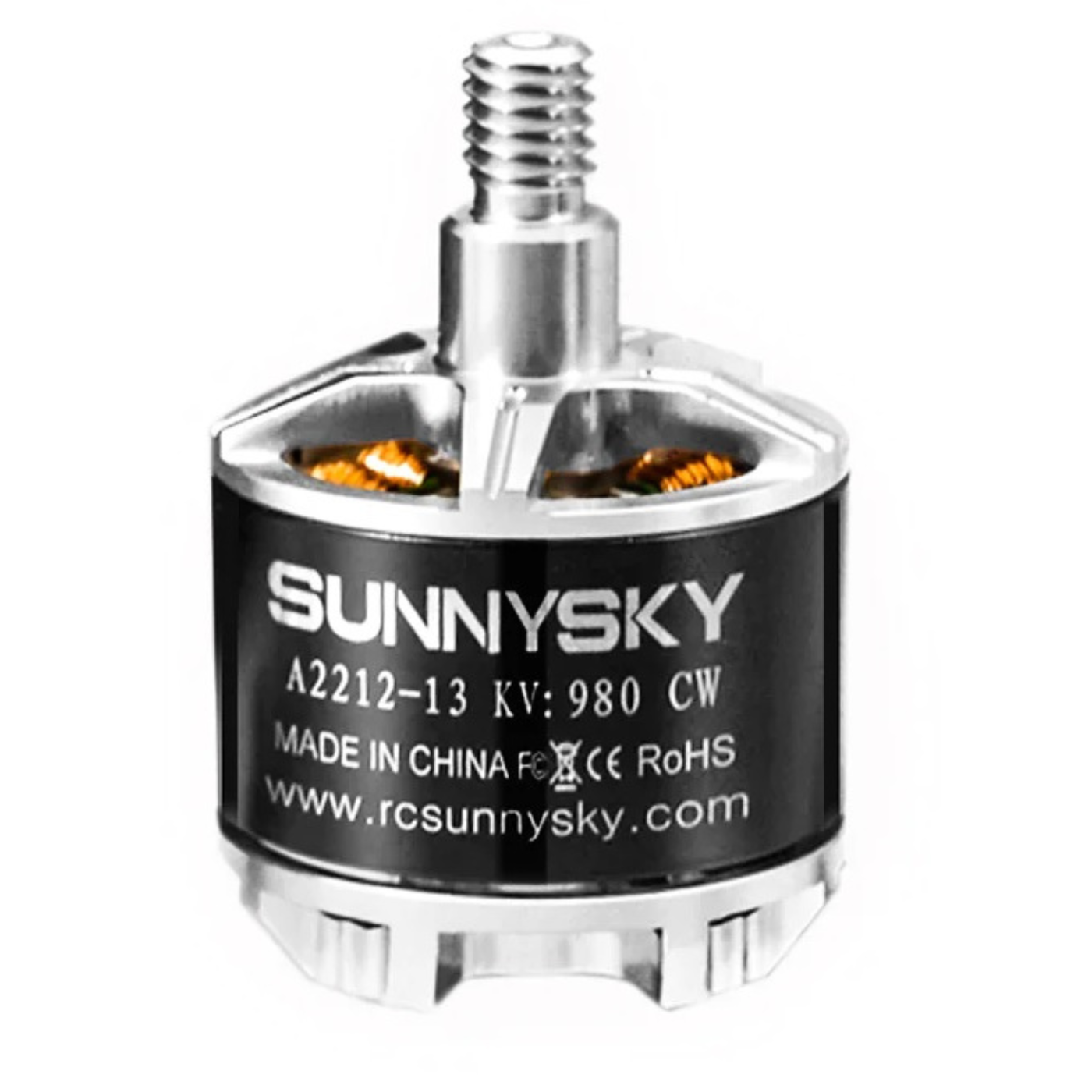

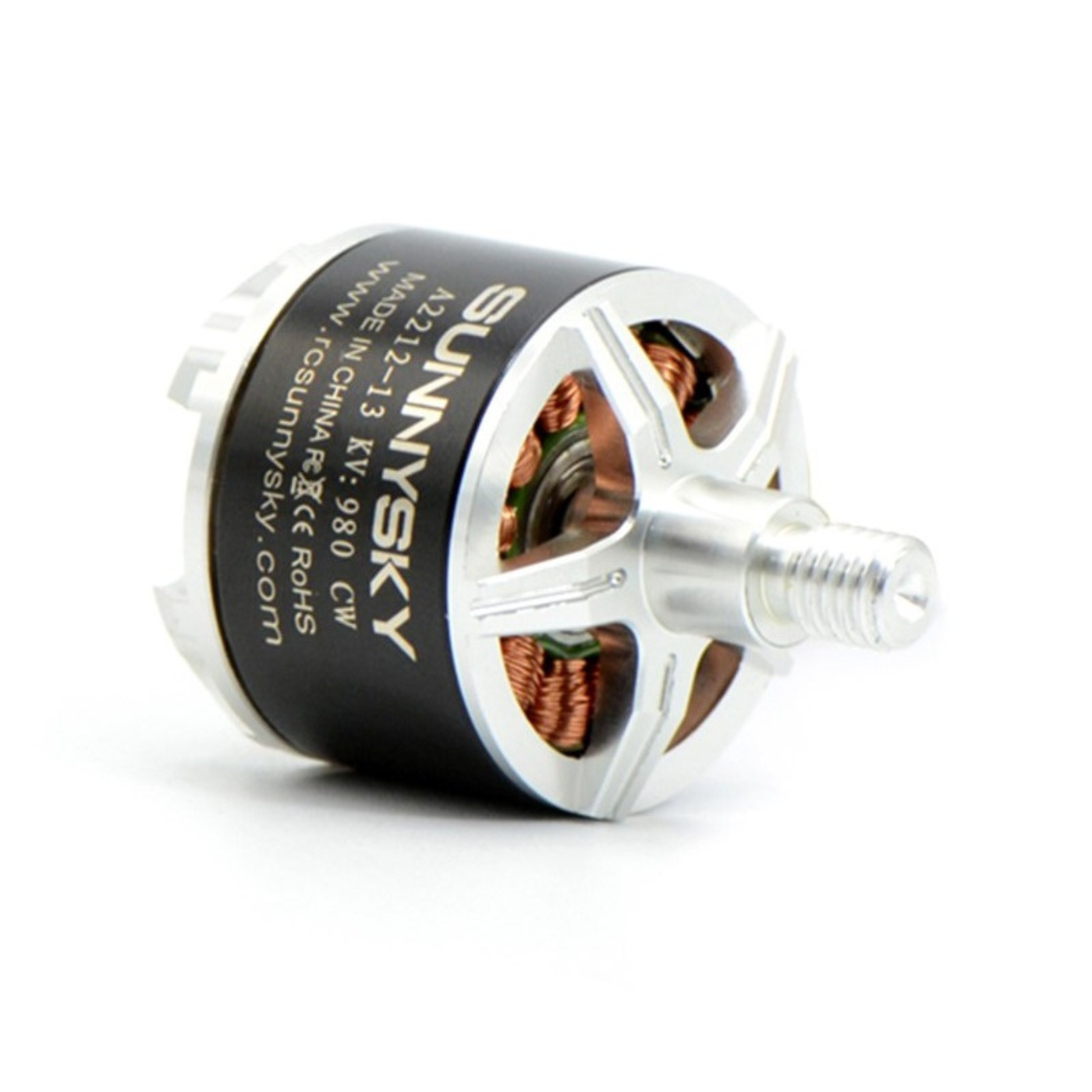

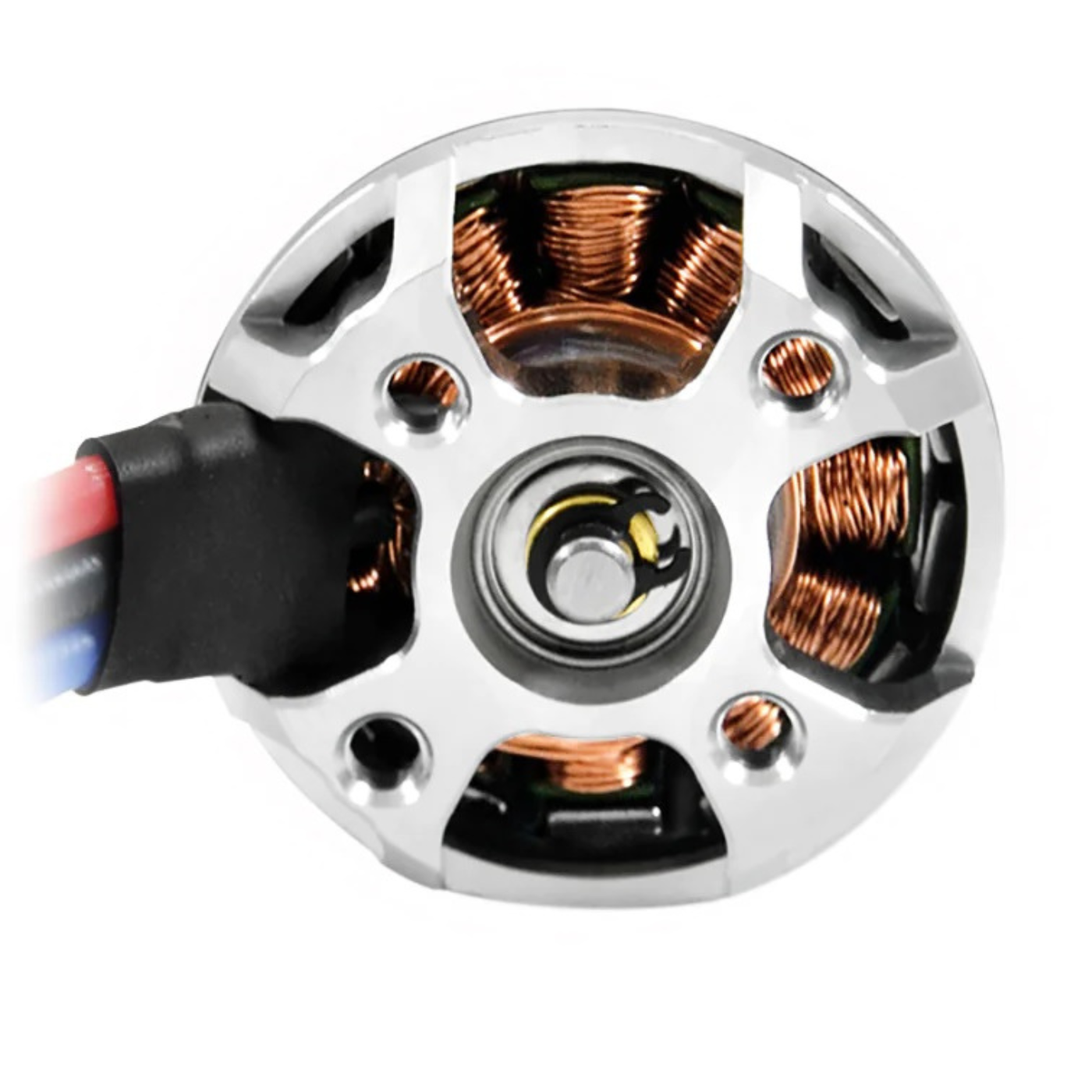

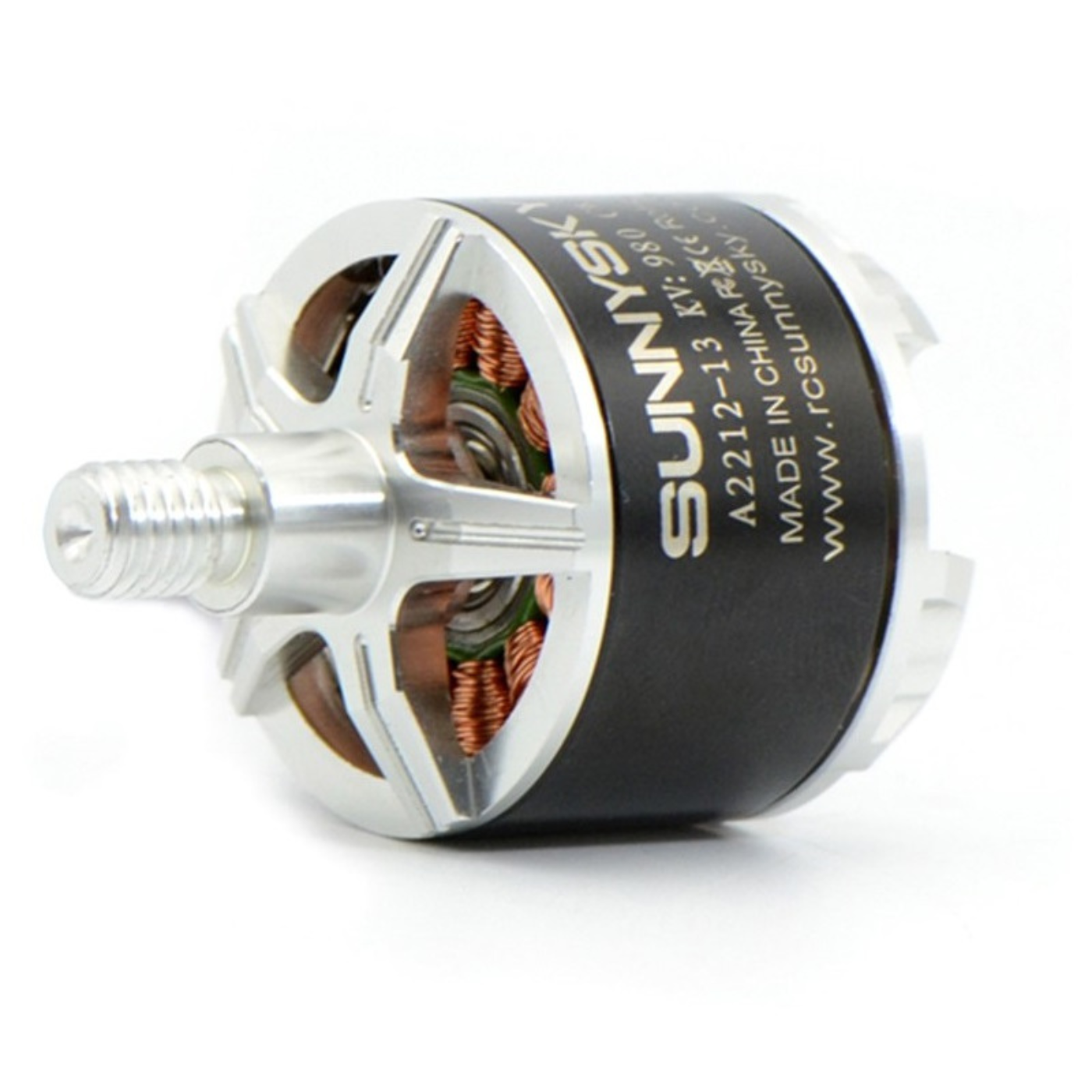

Sunny Sky A2212 980KV Brushless Motors Clockwise
Let us know!
We'll try to match the price for you
Couldn't load pickup availability
The Sunny Sky A2212 980KV Brushless Motor Clockwise is designed to offer a perfect combination of power, efficiency, and reliability for RC enthusiasts. With its precise 980KV rating, this motor delivers consistent thrust while maintaining optimal energy efficiency, making it ideal for both RC planes and multi-rotor drones.
The clockwise (CW) rotation simplifies setup and ensures proper motor alignment in your configuration. Equipped with advanced cooling fins, it effectively dissipates heat, allowing for longer flight durations without performance drops. Built using high-quality materials, this motor ensures durability even under demanding conditions.
Its user-friendly design and compatibility with standard mounting patterns make installation quick and hassle-free, making it a dependable upgrade for improving overall flight performance.
| Parameter | Value |
|---|---|
| Motor KV (RPM/V) | 980 |
| Motor Type | Brushless Motor |
| Stator Thickness | 12 mm |
| Stator Diameter | 22 mm |
| No. of Stator Arms | 12 |
| No. of Stator Poles | 14 |
| No-Load Current (A/10V) | 0.7A/10V |
| Motor Resistance | 123 mΩ |
| Continuous Current | 20A (30s) |
| Max. Power | 330 W |
| Motor Weight | 56 g |
| Outer Diameter | 27.5 mm |
| Motor Body Length | 40 mm |
| Required ESC | 20 A |
| Recommended Prop | 9450 |
| GTIN | 192948270642 |
