- Breakout PCB for SOT23-6, SOT23-3, and SC70-6 SMD packages
- Converts SMD components to DIP format for easy prototyping
- Compatible with standard 0.1" spaced breadboards and tools
- Ideal for engineers and electronics hobbyists
- Speeds up prototyping and testing of circuit designs
- Durable and compact design by 7Semi
SOT23-6 SOT23-3 SC70-6 Adapter PCB Board -7Semi

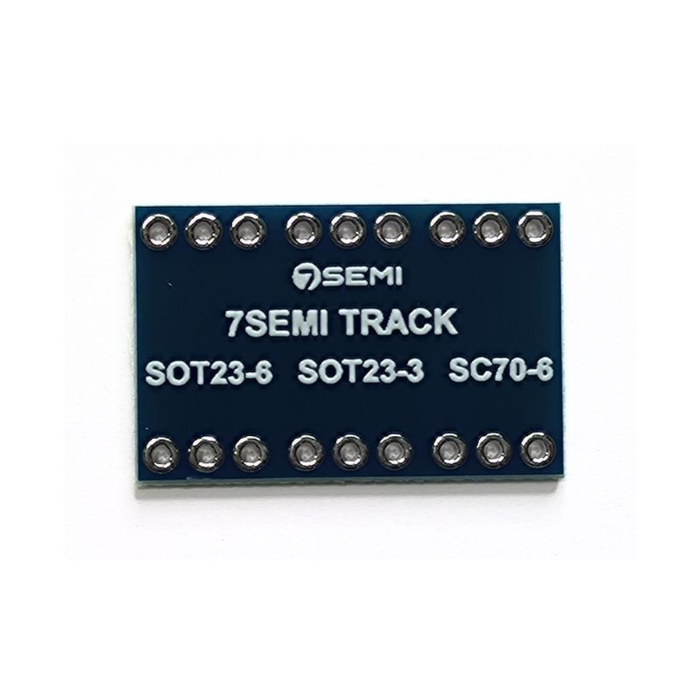

The SOT23-6 SOT23-3 SC70-6 Adapter PCB Board by 7Semi is a highly useful breakout board designed to streamline the prototyping of surface-mount device (SMD) components.
Tailored for three popular SMD packages—SOT23-6, SOT23-3, and SC70-6—this adapter transforms them into a dual in-line package (DIP) format, making them compatible with standard prototyping tools like breadboards.
By exposing the SMD breakout board pins through two rows of 0.1" spaced holes, it simplifies connections and eliminates the hassle of dealing with tiny, hard-to-solder leads.
Whether you're an engineer or a DIY electronics enthusiast, this adapter PCB significantly improves the efficiency and speed of your prototyping workflow, making it an essential tool for developing and testing new circuit designs.
Board Dimensions:
Features:

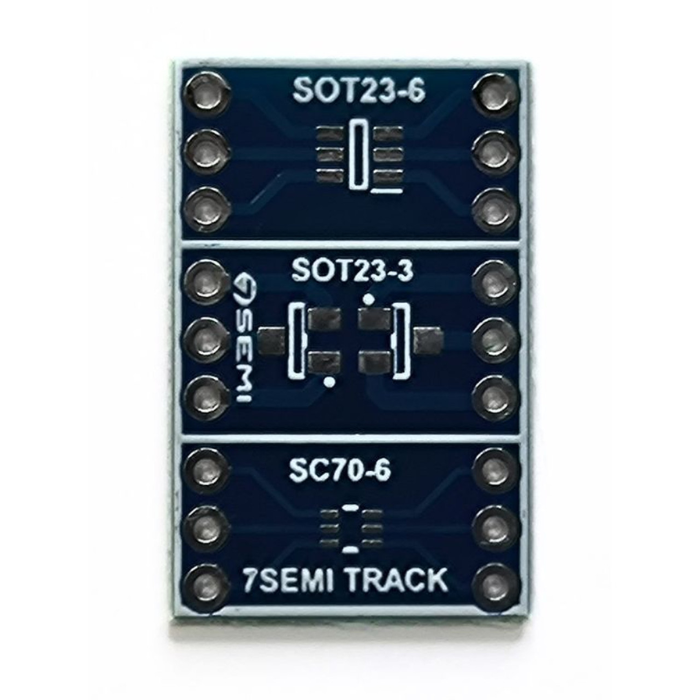

- Pin spacing is suitable with breadboards.
- Pin numbers, including Pin 1, are clearly discernible.
- Pins are removed, and traces lead to two rows of 0.1" spaced holes.
Package Includes:

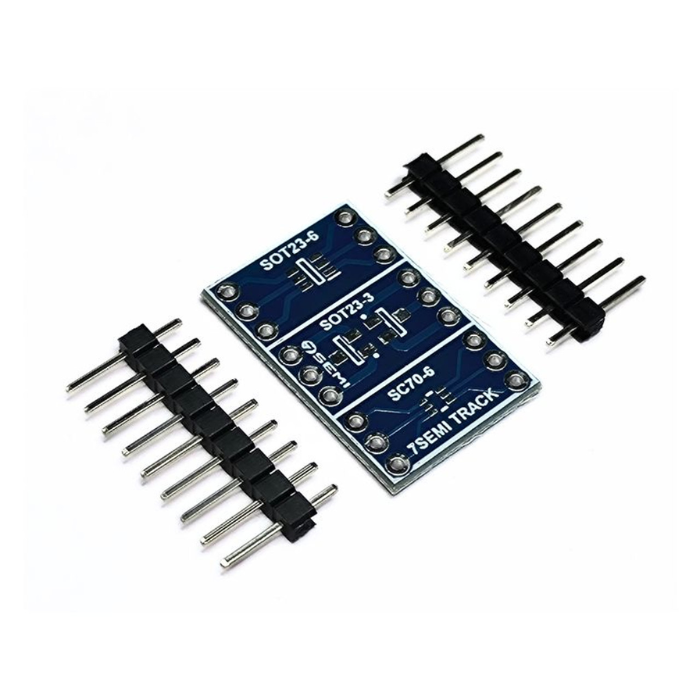

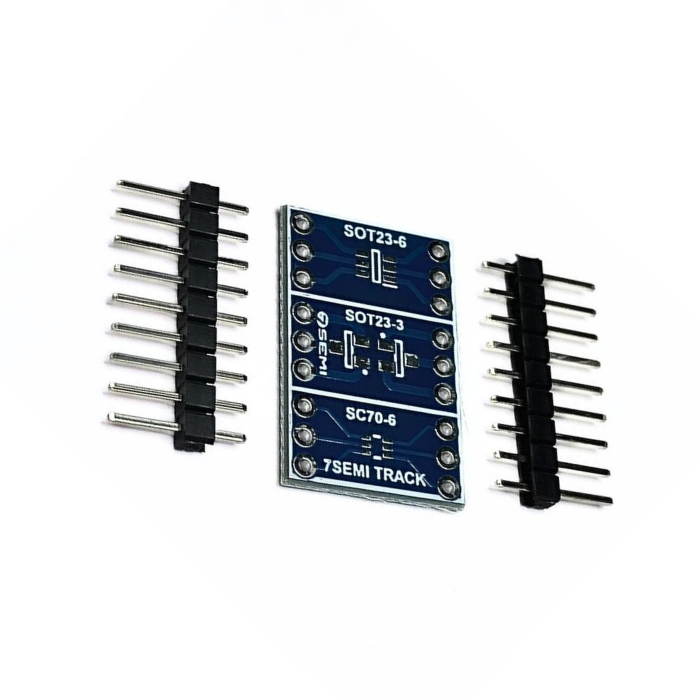

- 1 x SOT23-6 SOT23-3 SC70-6 Adapter PCB Board
Specifications:
Footprint Dimensions
| Parameters | SOT23-6 | SOT23-3 | SC70-6 |
|---|---|---|---|
| Body | SOT23 | SOT23 | SC70 |
| Pitch | 0.95 mm | 1.9 mm | 0.65 mm |
| Thermal Pad | N/A | N/A | N/A |
| No. of Pins/Through-Hole | 6 | 3 | 6 |
General PCB Specifications
| Specification | Value |
|---|---|
| PCB Copper Layers | 2 |
| Surface Finish | HAL |
| Material | FR4 |
| Finished Copper Thickness | 1 oz (35 µm) |
| Maximum Trace Length | <9 mm |
