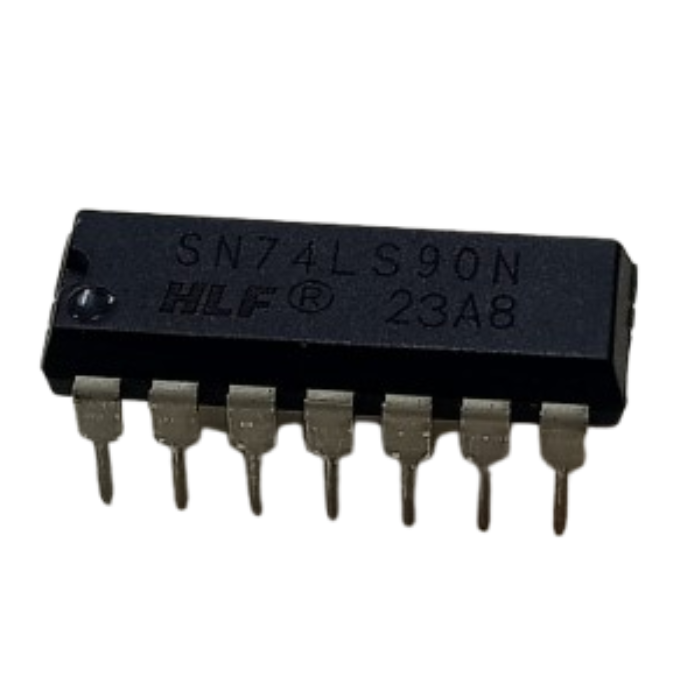

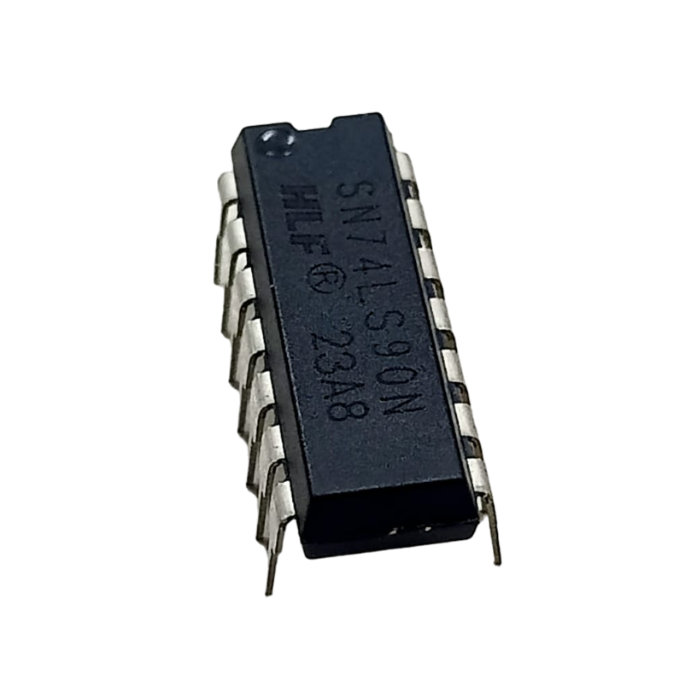

SN74LS90N IC Decade Counter 4-BIT 14DIP
SN74LS90N IC Decade Counter 4-BIT 14DIP
10
Couldn't load pickup availability


Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards

Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- 4-bit decade counter IC, up-counting.
- 42 MHz count rate, negative edge trigger.
- 4.75V to 5.25V supply range.
- Asynchronous reset for control.
- 14-pin DIP, through-hole mounting.
- ROHS3 compliant
SN74LS90N IC Decade Counter 4-BIT 14DIP
The SN74LS90N is a 4-bit counter IC with a 14-pin setup. It has built-in flip-flops and circuits that allow it to count in different ways, like dividing by two or by five. This makes it useful for counting applications where you need different cycle lengths, such as dividing by ten for BCD (Binary-Coded Decimal) counting. It also has reset and set-to-nine options for more control. The SN74LS90N is a good choice for projects that need reliable counting, timing, or frequency division.
Package Includes
1 x SN74LS90N IC Decade Counter 4-BIT 14DIP
Specifications
Specification | Details |
---|---|
Logic Type | Counter, Decade |
Direction | Up |
Number of Elements | 1 |
Number of Bits per Element | 4 |
Reset | Asynchronous |
Count Rate | 42 MHz |
Trigger Type | Negative Edge |
Voltage - Supply | 4.75 V ~ 5.25 V |
Operating Temperature | 0°C ~ 70°C |
Mounting Type | Through Hole |
Package / Case | 14-DIP (0.300", 7.62mm) |
RoHS Status | ROHS3 Compliant |
Weight | 2gms |
Length | 2cm |
Height | 0.8cm |
Width | 0.8cm |
