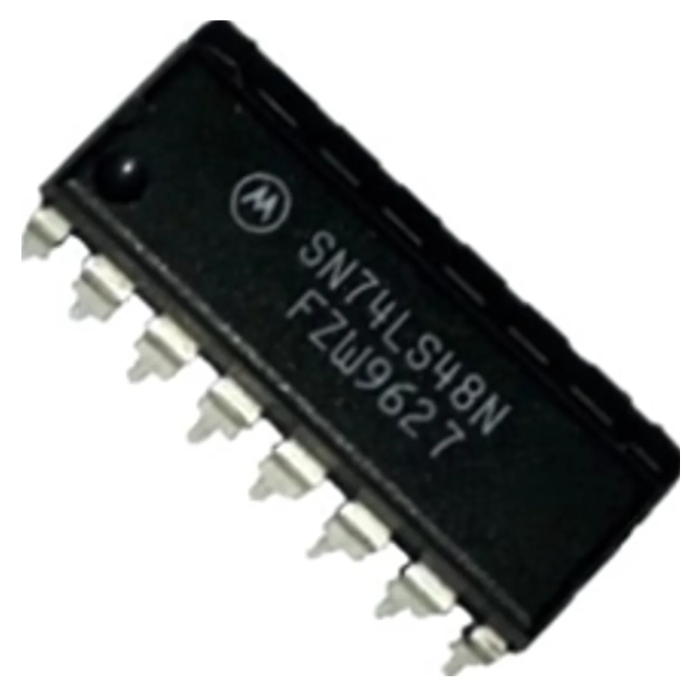

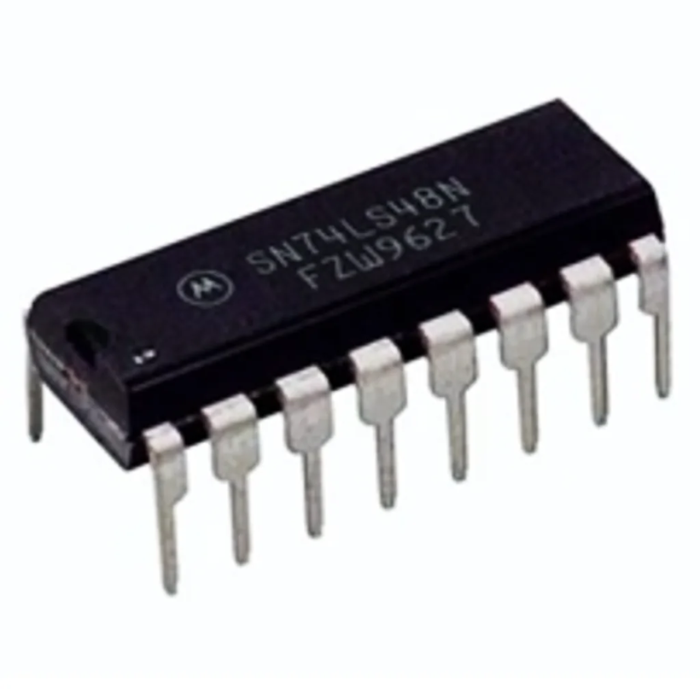

Motorola SN74LS48N IC BCD TO 7-Segment Decoder
Motorola SN74LS48N IC BCD TO 7-Segment Decoder
20
Regular price
Rs. 25
Regular price
Rs. 39
Sale price
Rs. 25
Unit price
/
per
Incl. GST (No Hidden Charges)
Couldn't load pickup availability
Submit your Bulk Enquiry Here
Currently, 20 people are actively viewing.
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
RC100
FLAT ₹ 100/- OFF
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Converts 4-bit BCD to 7-segment output
- Automatic zero-blanking for clarity
- Adjustable lamp intensity control
- Internal pull-up resistors
- Input clamp diodes for high-speed performance
- TTL compatible
- Compact DIP package
Motorola SN74LS48N IC BCD TO 7-Segment Decoder
If you want the best solution for driving 7-segment displays then check out the Motorola SN74LS48N IC BCD to 7-Segment Decoder. This small chip converts 4-bit binary numbers into numbers that can be read on a 7-segment display. It works great and has features like automatic zero-blanking to keep the screen clear.
Because of the built-in resistors, you can also modify the brightness of the lights without the need for additional parts. It's an excellent solution for any project requiring easy-to-read displays.
Package Includes
1 x Motorola SN74LS48N IC BCD TO 7-Segment Decoder
Specifications
| Specification | Details |
|---|---|
| Part Number | SN74LS48N |
| Type | BCD to 7-Segment Decoder |
| Input Format | 4-bit Binary-Coded Decimal (BCD) |
| Output Type | 7-Segment Display |
| Logic Family | TTL (Transistor-Transistor Logic) |
| Operating Voltage Range | 4.75V to 5.25V |
| Input Current | 1.6 mA (max) |
| Output Current | 25 mA (max) |
| Maximum Clock Frequency | 20 MHz |
| Features | Automatic Zero-Blanking, Lamp Intensity Control |
| Package Type | DIP (Dual In-line Package) |
| Temperature Range | 0°C to 70°C (Commercial) |
