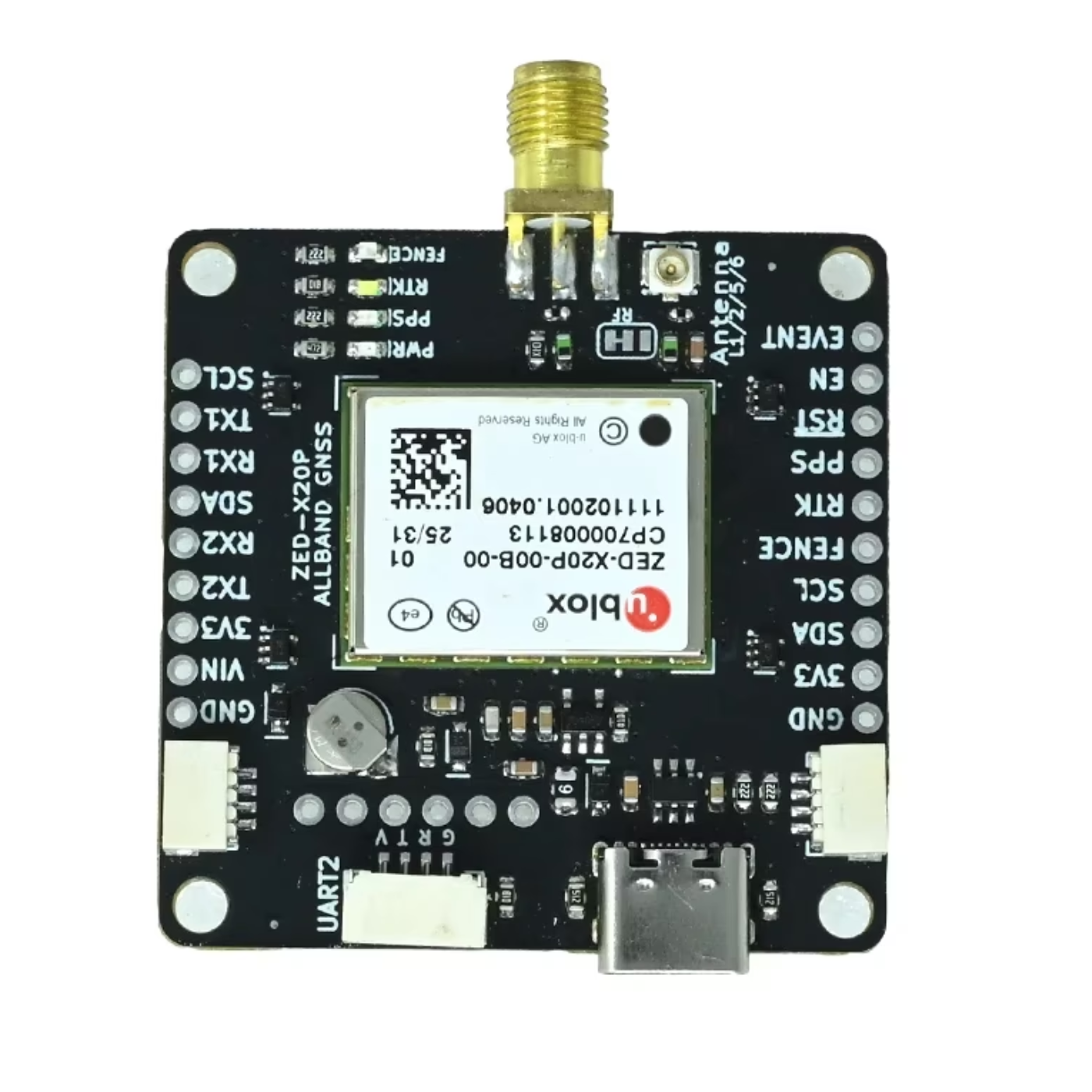

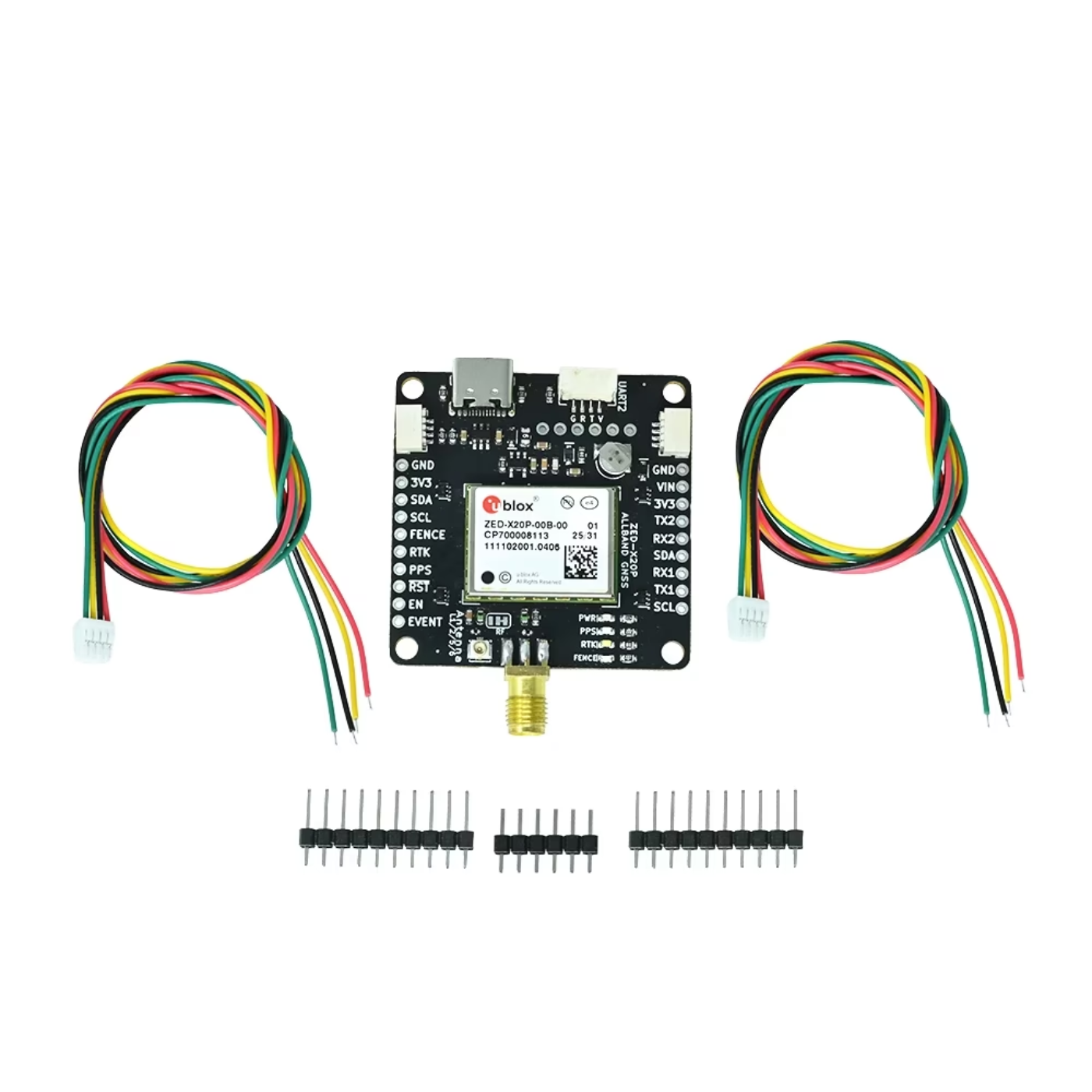

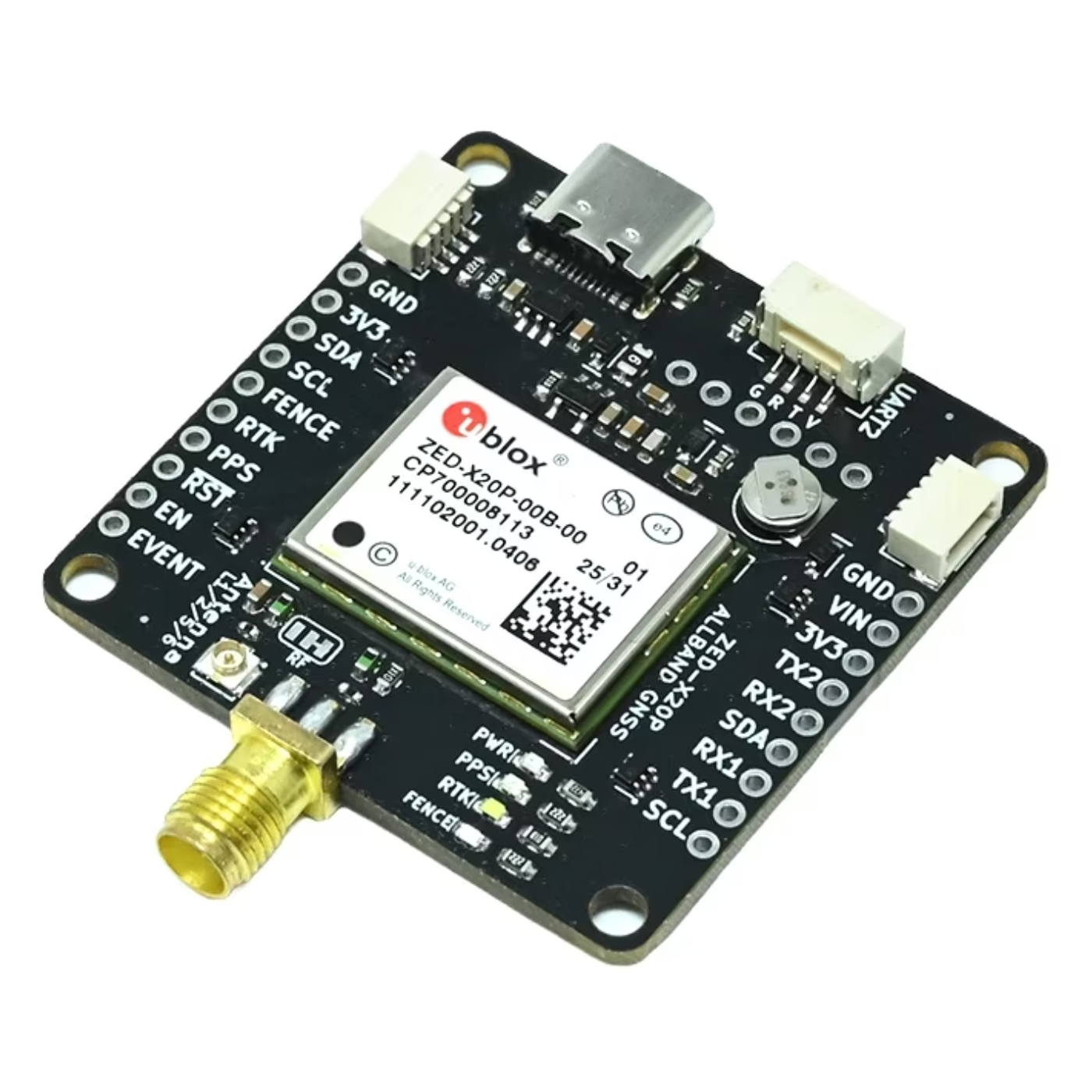

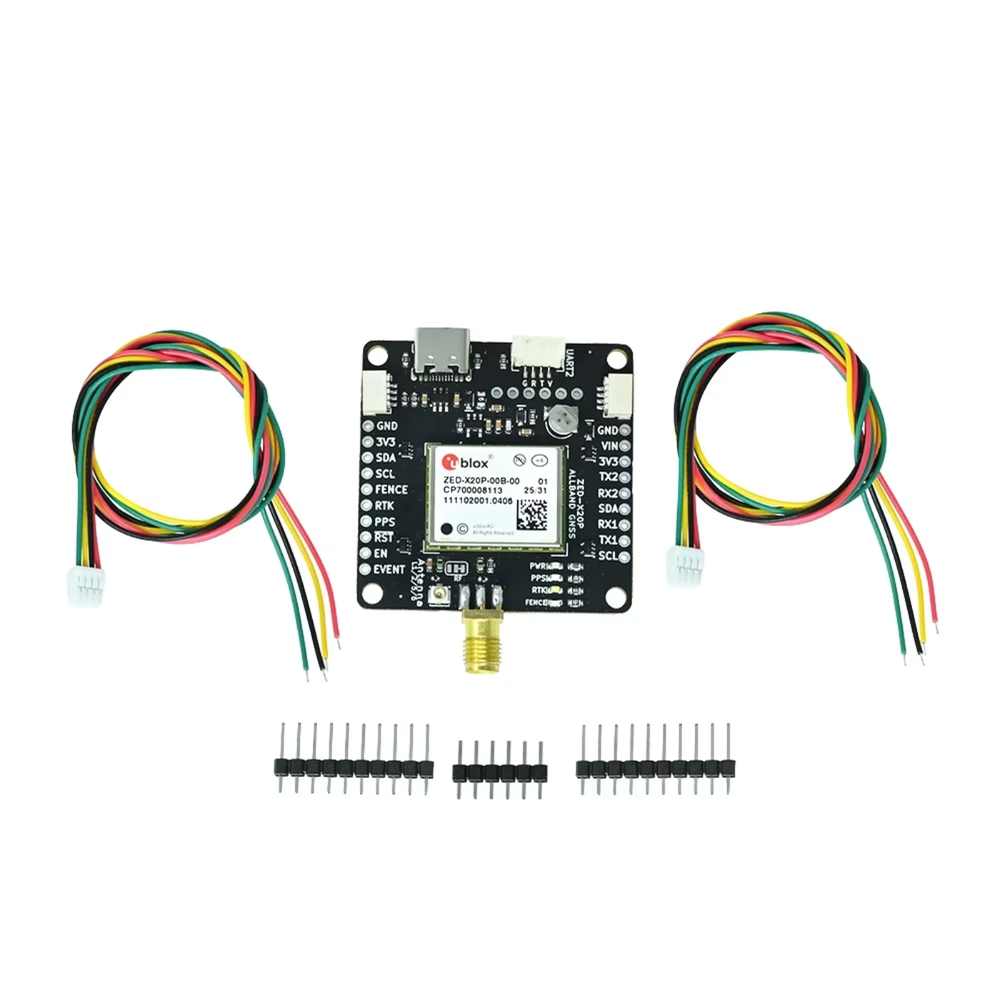

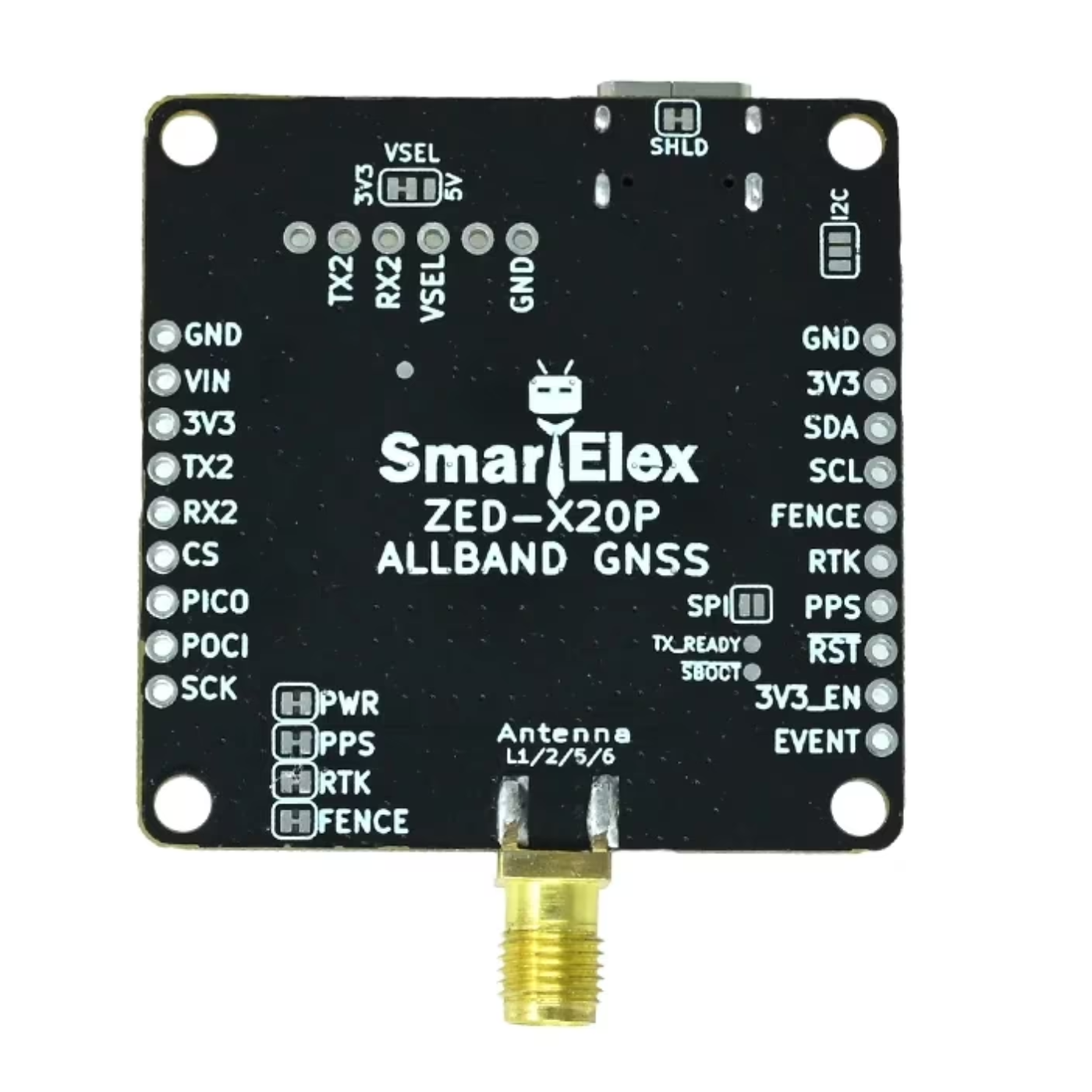

SmartElex ZED-X20P Allband GNSS RTK Breakout Module
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below
Couldn't load pickup availability
The SmartElex ZED-X20P Allband GNSS RTK Breakout Module is a high-performance GNSS RTK receiver built around the latest u-blox ZED-X20P positioning engine, designed as the successor to the popular F9 platform. It simultaneously tracks GPS, Galileo, BeiDou, QZSS, NavIC, and L-band signals across all GNSS frequency bands, delivering highly accurate positioning for demanding applications.
The module supports advanced correction technologies, including Real-Time Kinematics (RTK), PPP-RTK, and Precise Point Positioning (PPP), while accepting standard RTCM corrections from Virtual Reference Stations (VRS) or local base stations. Native L-band correction service support eliminates the need for an external receiver such as the NEO-D9S.
With support for USB, UART, SPI, and I2C interfaces, an exceptionally high update rate, and built-in security features like Root of Trust, jamming and spoofing detection, and Galileo OSNMA cryptographic authentication, this SmartElex GNSS module is an excellent choice for robotics, UAVs, autonomous navigation, surveying, guidance systems, and precision agriculture.
| Specification | Details |
|---|---|
| Module | u-blox ZED-X20P All-band GNSS Receiver |
| GNSS Constellations | GPS (USA), Galileo (EU), BeiDou/BDS (China), QZSS (Japan), NavIC (India) |
| SBAS Support | WAAS (USA), EGNOS (EU), BDSBAS (China), MSAS (Japan), GAGAN (India) |
| Positioning Accuracy | Standard: ~1.2 m, RTK: Centimeter-level accuracy |
| Operating Voltage | 2.7V – 3.6V DC |
| Communication Interfaces | USB, UART, I2C, SPI |
| Connectivity | 19 Plated Through-Hole (PTH) Pins, Dual 4-pin JST Connectors |
| Correction Technologies | RTK, PPP, PPP-RTK |
| Applications | UAVs, Robotics, Surveying, Precision Navigation, Autonomous Systems |
