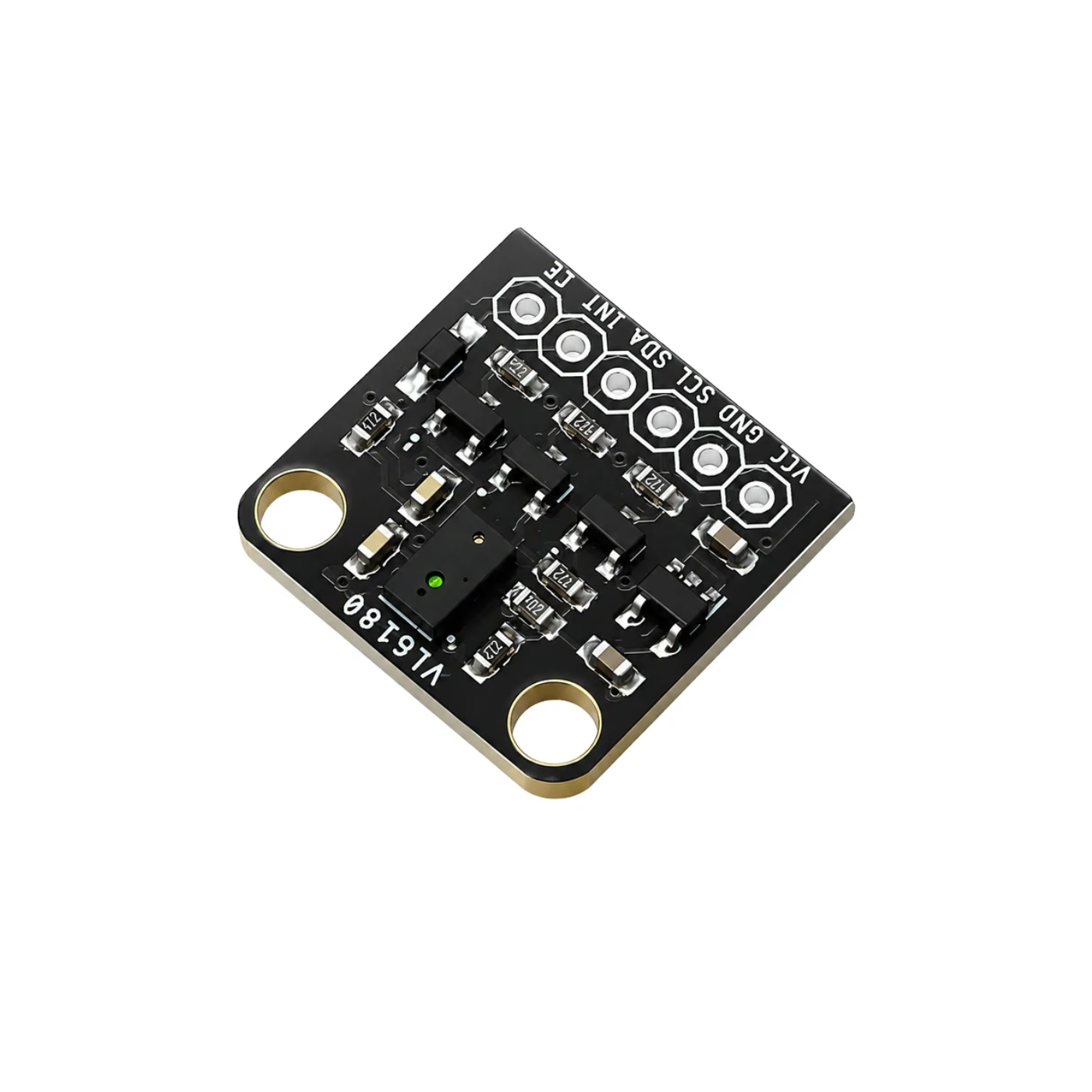

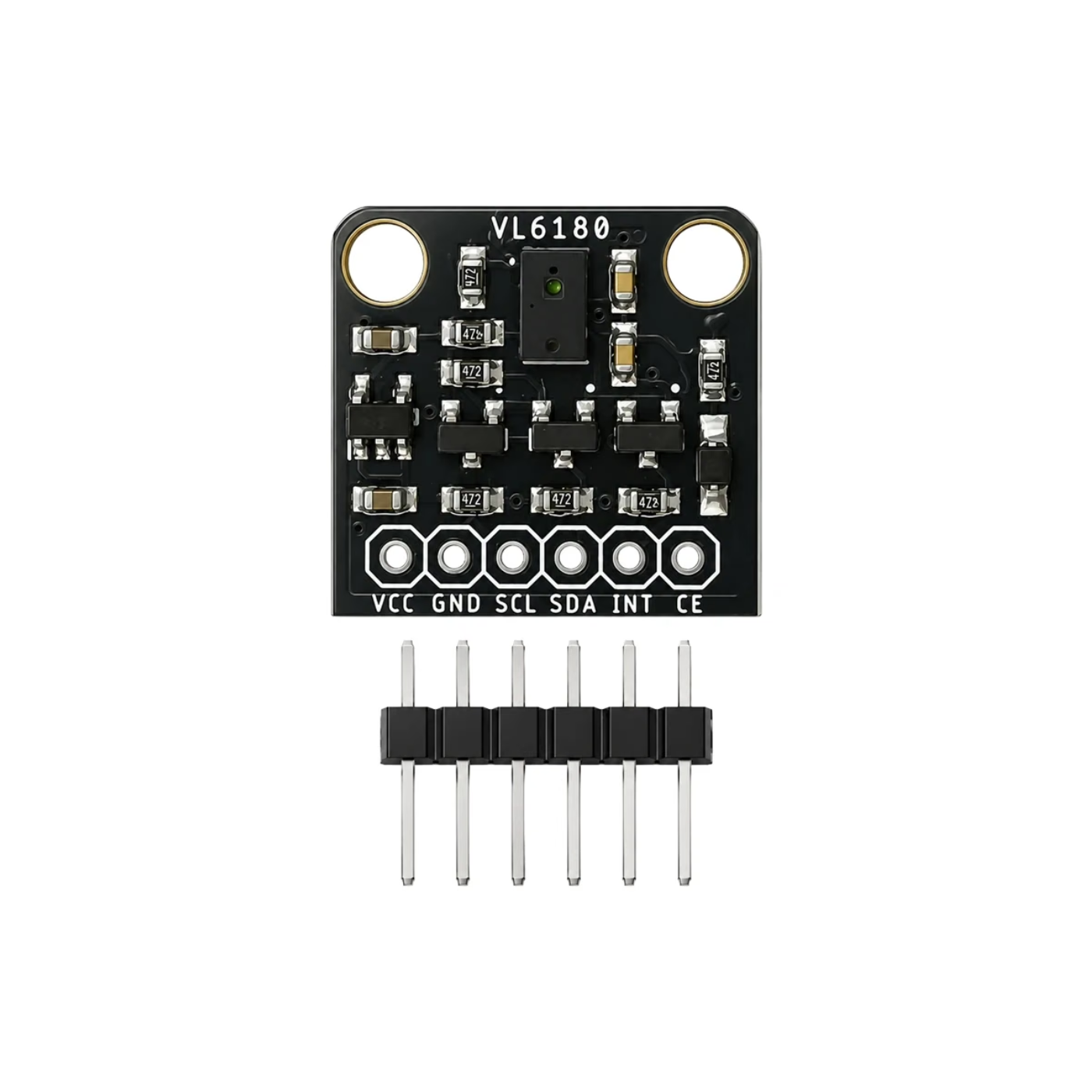

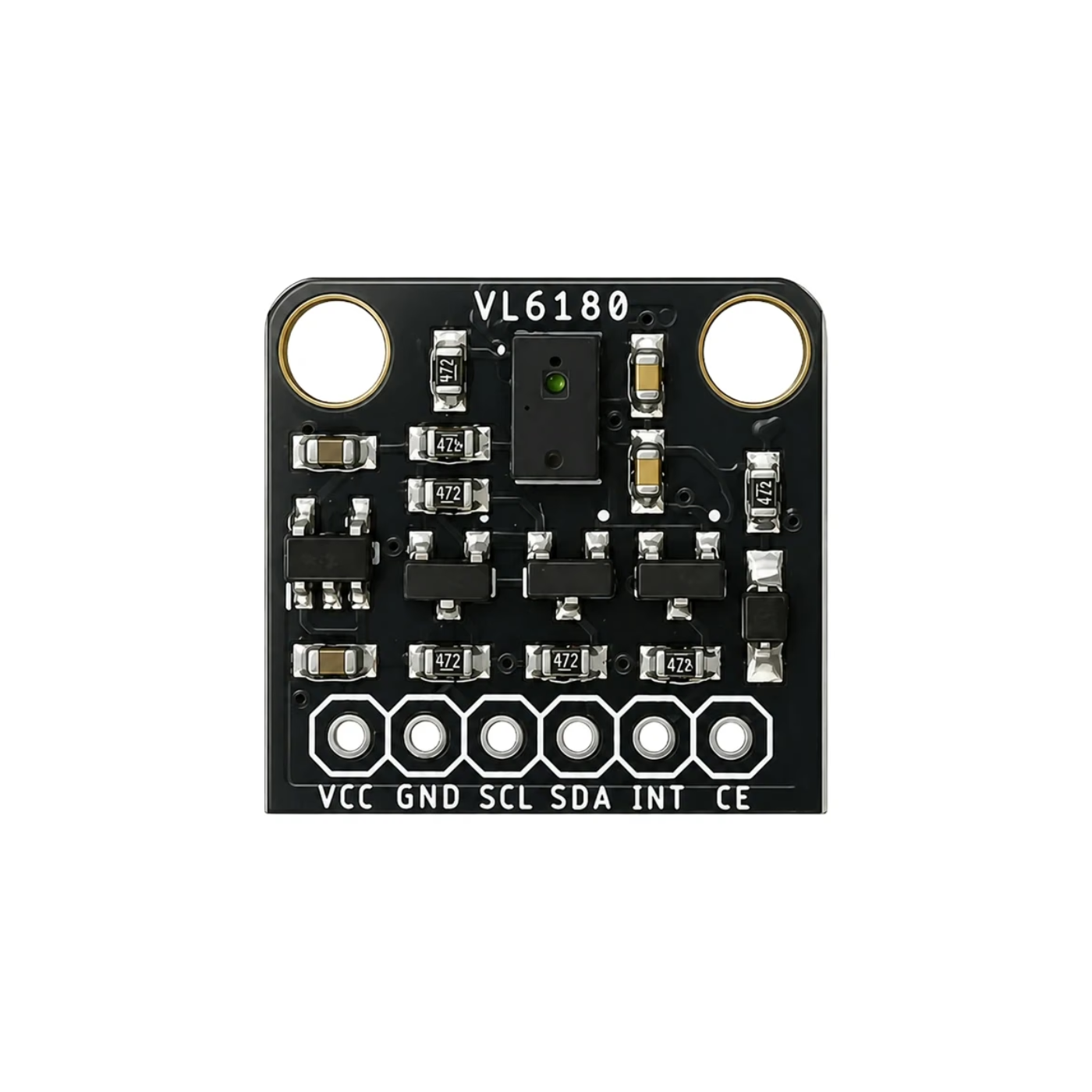

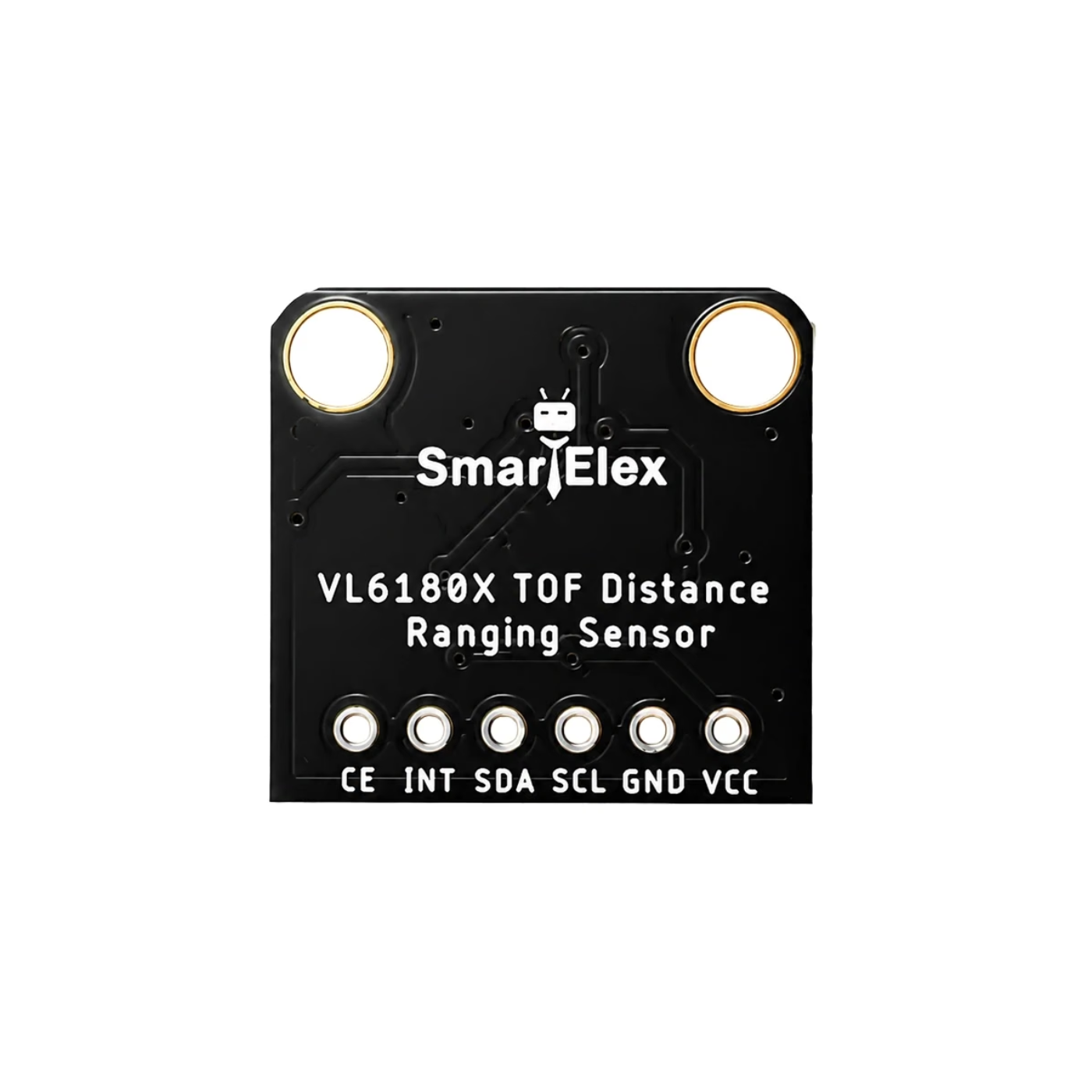

SmartElex VL6180X ToF Distance Ranging Sensor | I2C Time-of-Flight Proximity Module
Let us know!
We'll try to match the price for you
Couldn't load pickup availability
The SmartElex VL6180X ToF Distance Ranging Sensor is a compact Time-of-Flight module for measuring the distance to nearby objects. It uses STMicroelectronicsโ FlightSense technology to measure distance based on the travel time of infrared light, making the measurement less dependent on the targetโs reflectance compared with conventional light-intensity-based sensing.
The VL6180X combines a ToF ranging sensor, infrared VCSEL emitter and ambient light sensor in one module. It supports I2C communication and can be used for proximity detection, distance measurement, gesture recognition, robotics and embedded sensing applications.
| Specification | Details |
|---|---|
| Model No. / Name | VL6180X |
| Interface | I2C Interface |
| Voltage Rating | 3.3 V ~ 5 V |
| Sensor Type | ToF Distance Ranging Sensor (VL6180X) |
| Operating Current | <5 mA |
| Measuring Distance | 5โ100 mm |
| Emitter | 940 nm invisible laser (VCSEL) |
| I2C Address | 0x29 |
| Length | 19 mm |
| Width | 18 mm |
| Height | 2 mm |
| Weight | 2 g |
