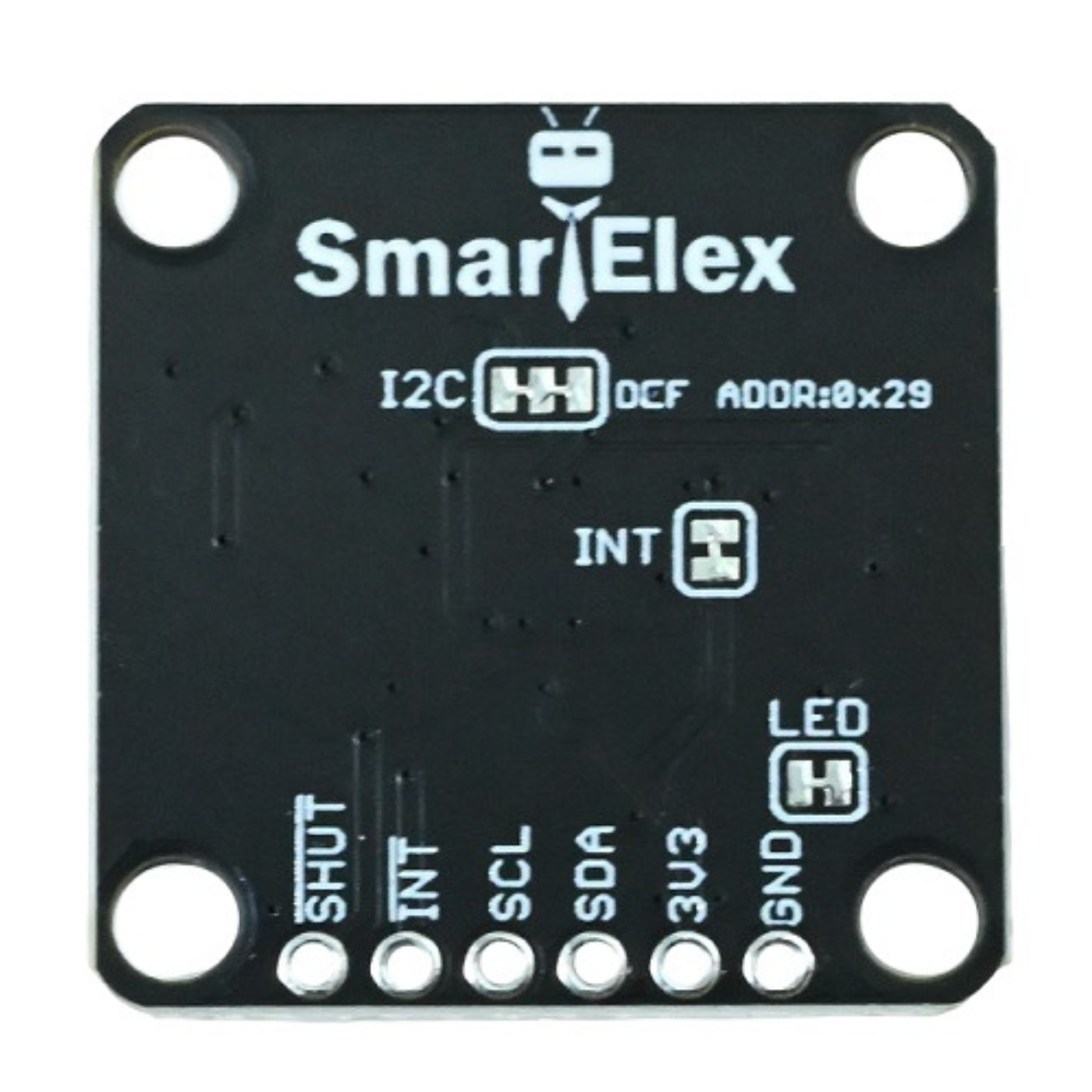

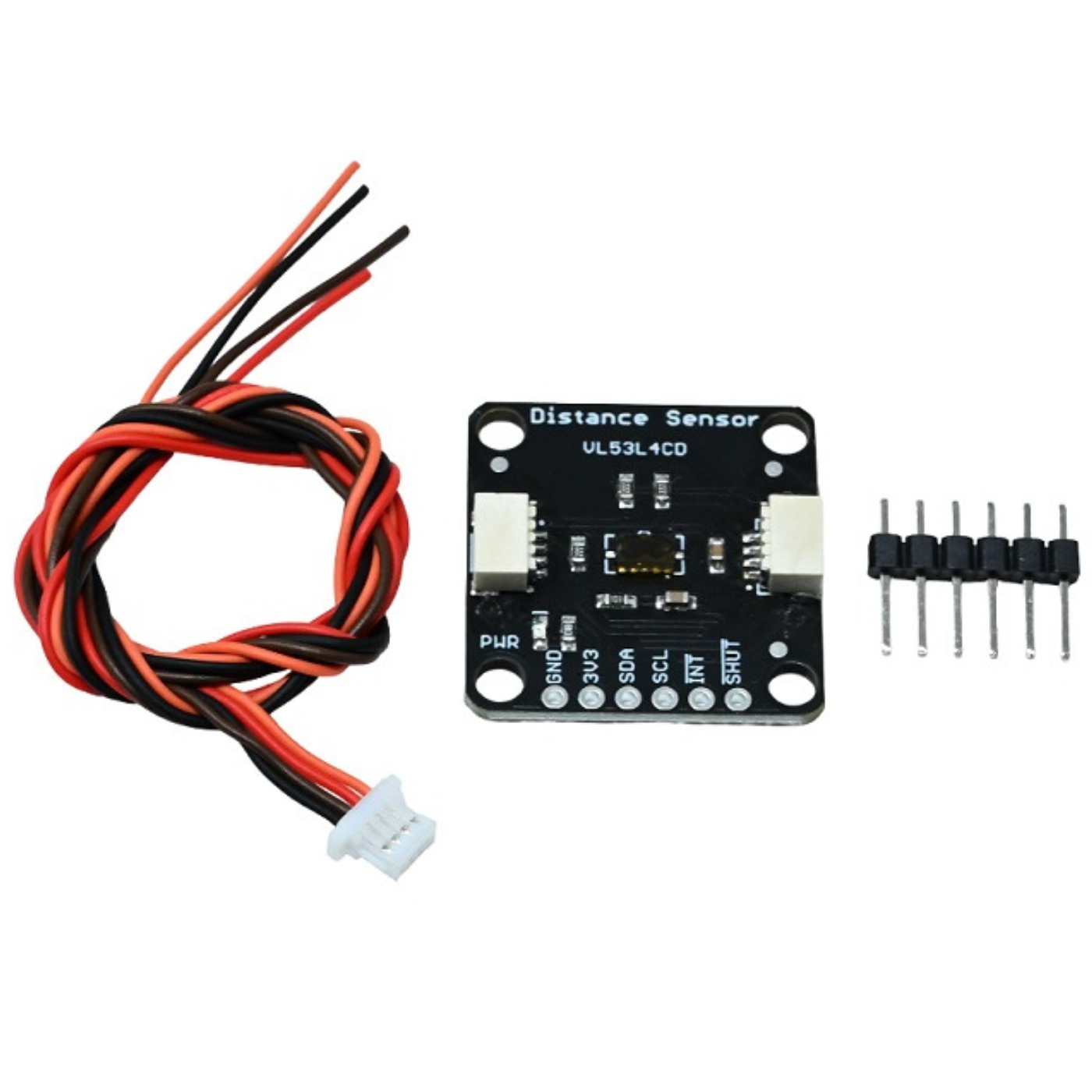

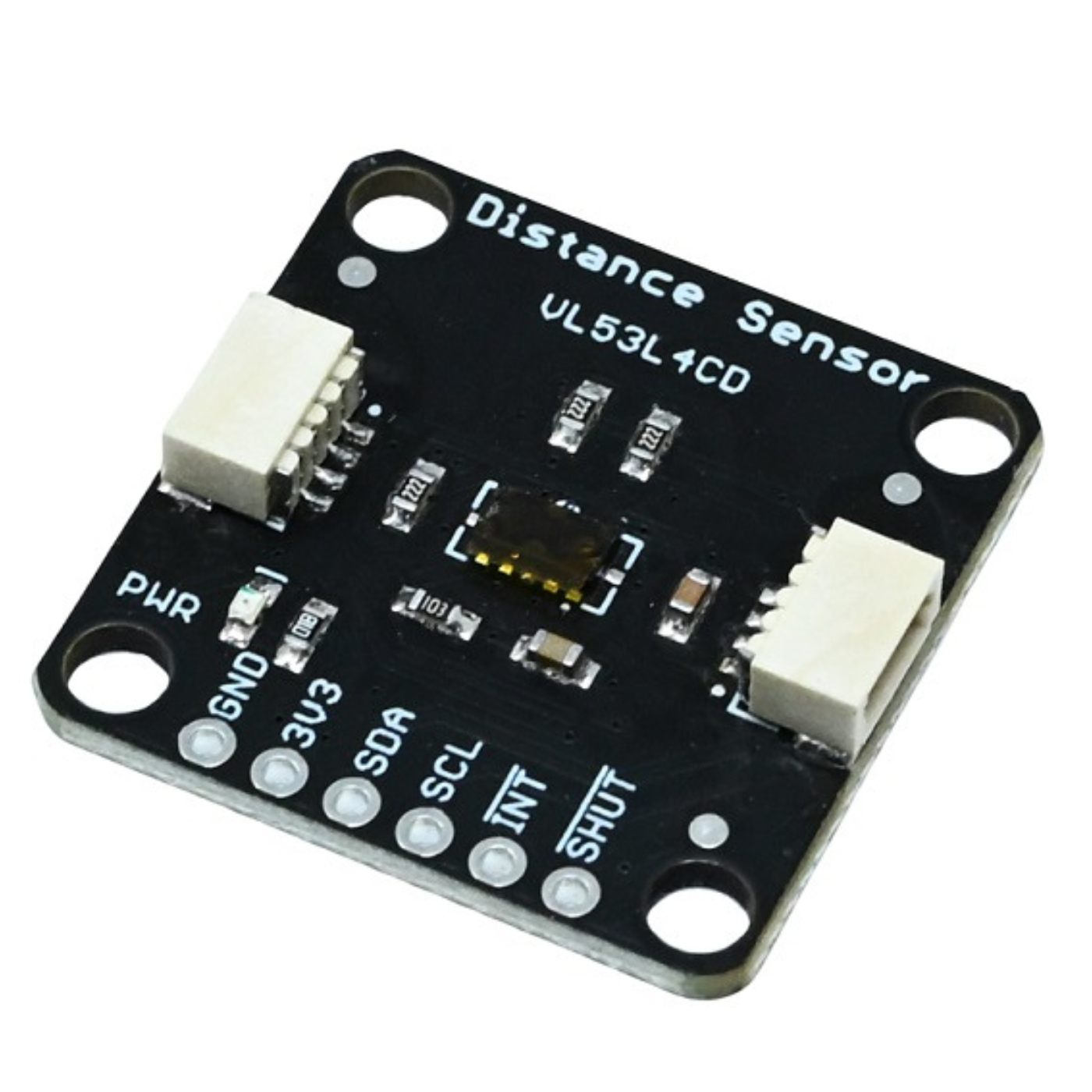

SmartElex VL53L4CD High Accuracy Distance Sensor Breakout
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability
The SmartElex VL53L4CD High Accuracy Distance Sensor Breakout is a compact and precise distance sensor built on STMicroelectronics’ advanced VL53L4CD Time-of-Flight (ToF) technology.
It uses a 940nm VCSEL infrared laser to measure the time it takes for light to reflect off a target, providing accurate distance readings from 1mm to 1300mm with millimeter-level resolution.
Featuring I2C communication, this sensor is easy to interface with microcontrollers and development boards—no soldering required.
Designed to operate between 2.6V and 3.5V, the SmartElex VL53L4CD offers a fast read rate of up to 100Hz and an 18° field of view, making it perfect for applications in robotics, automation systems, and smart IoT devices where reliable short-range distance measurement is essential.
| Specification | Details |
|---|---|
| Model | Distance Sensor |
| Model No. | VL53L4CD |
| Voltage Rating (V) | 2.6 to 3.5 |
| Current Consumption (mA) | 24 |
| Measurement Range (mm) | 1 to 1300 |
| Resolution | ±1mm |
| Light Source | Class 1 940nm VCSEL |
| Read Rate (Hz) | 100 |
| I2C Address | 0x29 |
| Length (mm) | 25.4 |
| Width (mm) | 25.4 |
