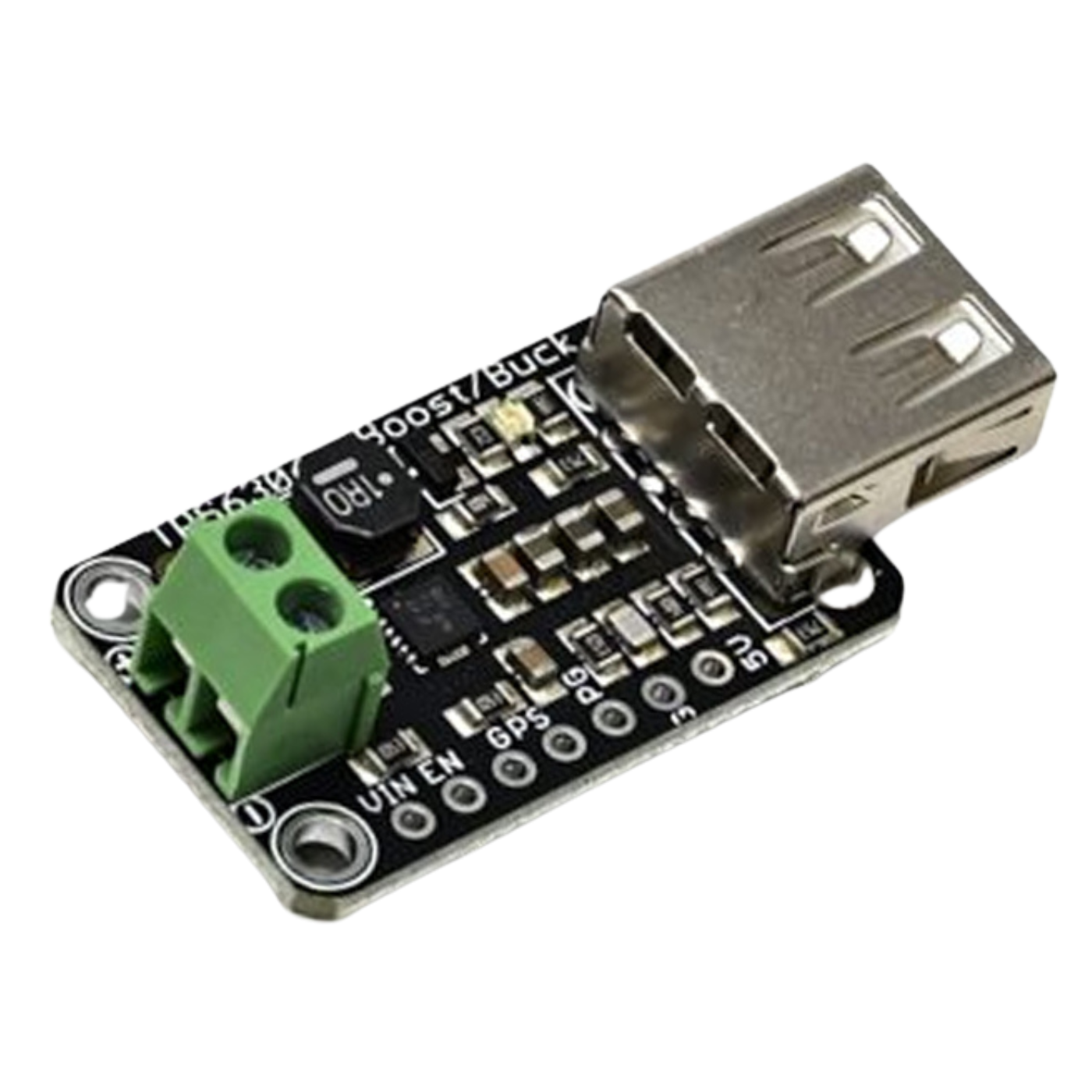

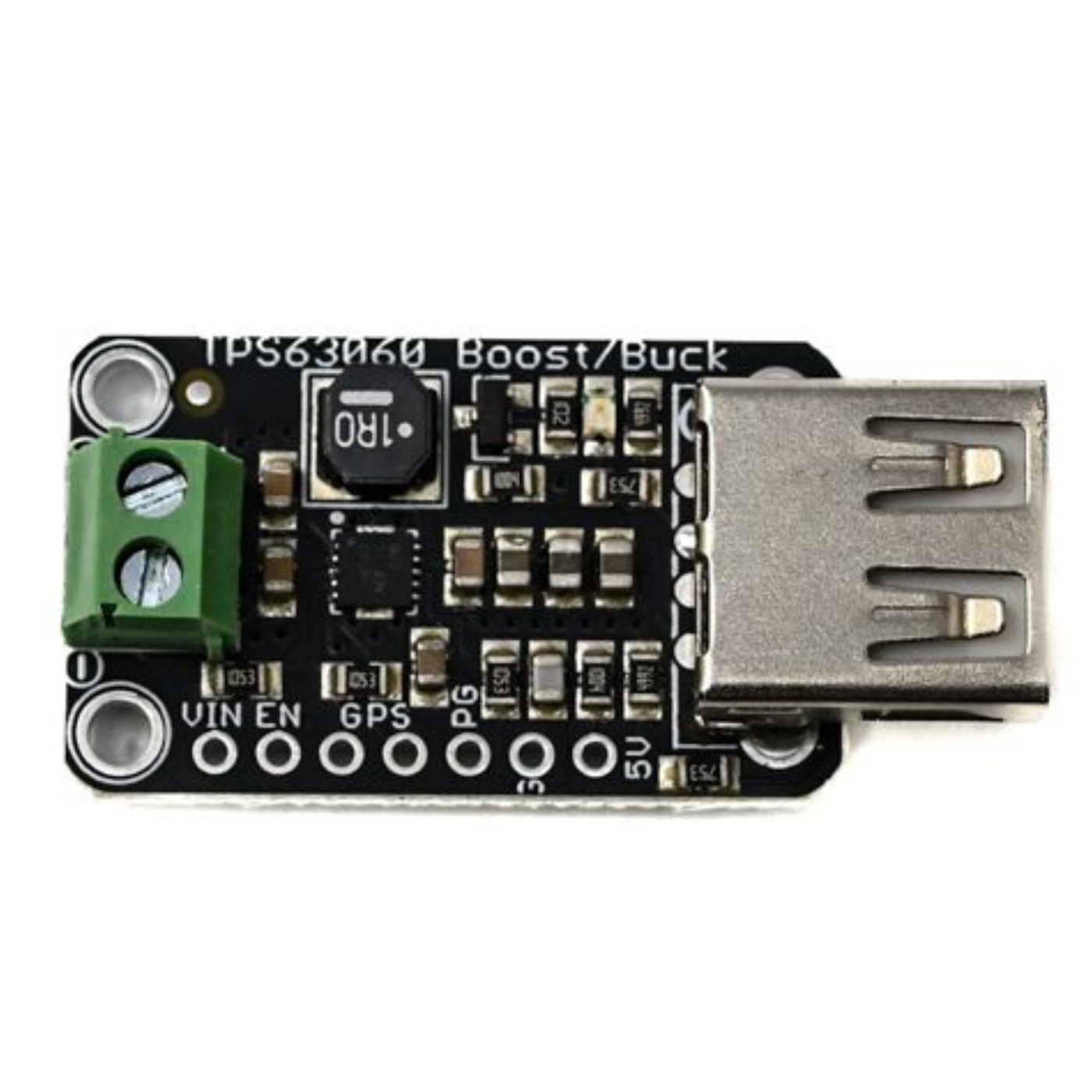

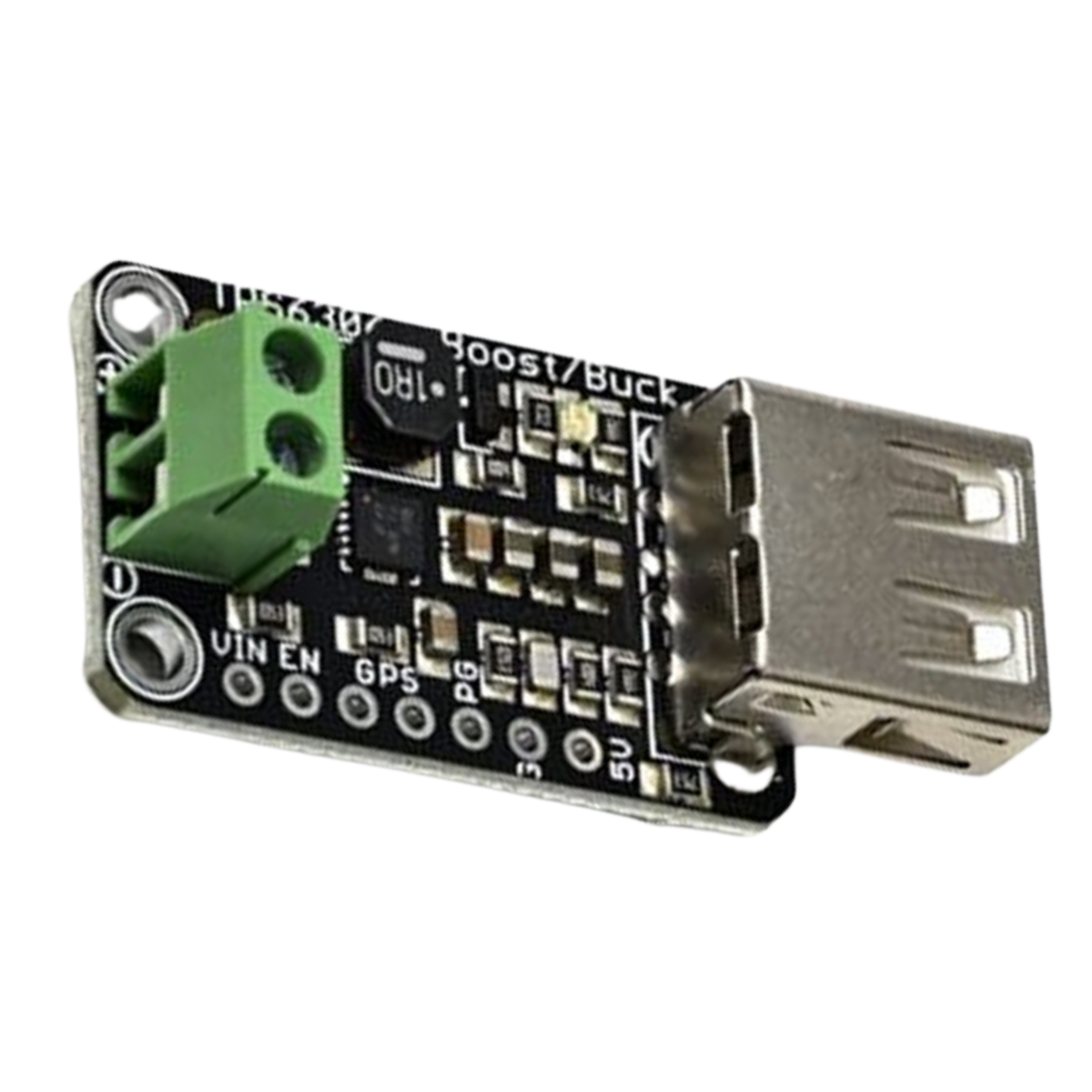

SmartElex TPS63060 5V USB Buck-Boost Module – 500mA
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability
The SmartElex TPS63060 5V USB Buck-Boost Module – 500mA is a compact and high-efficiency buck boost module designed to provide a stable 5V output from input voltages ranging from 3V to 12V.
Powered by a 2A internal switch, this 5V buck boost converter can deliver up to 500mA from a 3V source and at least 1000mA from a 12V source, making it ideal for battery-powered and portable electronics. Its synchronous operation allows complete output disconnection using the Enable pin, ensuring zero output power consumption when disabled.
With over 90% efficiency, low heat generation, and ultra-low quiescent current (5mA enabled, 20µA disabled), it is well-suited for USB-powered DIY projects, embedded systems, and efficient power management applications.
| Parameter | Specification |
|---|---|
| Item Type | Buck-Boost |
| Model | USB Buck-Boost |
| Input Voltage | 3–12V DC |
| Output Voltage | 5V DC |
| Output Current | 1000mA (min) from 12V input, 500mA (min) from 3V input |
| Switch Rating | 2A |
