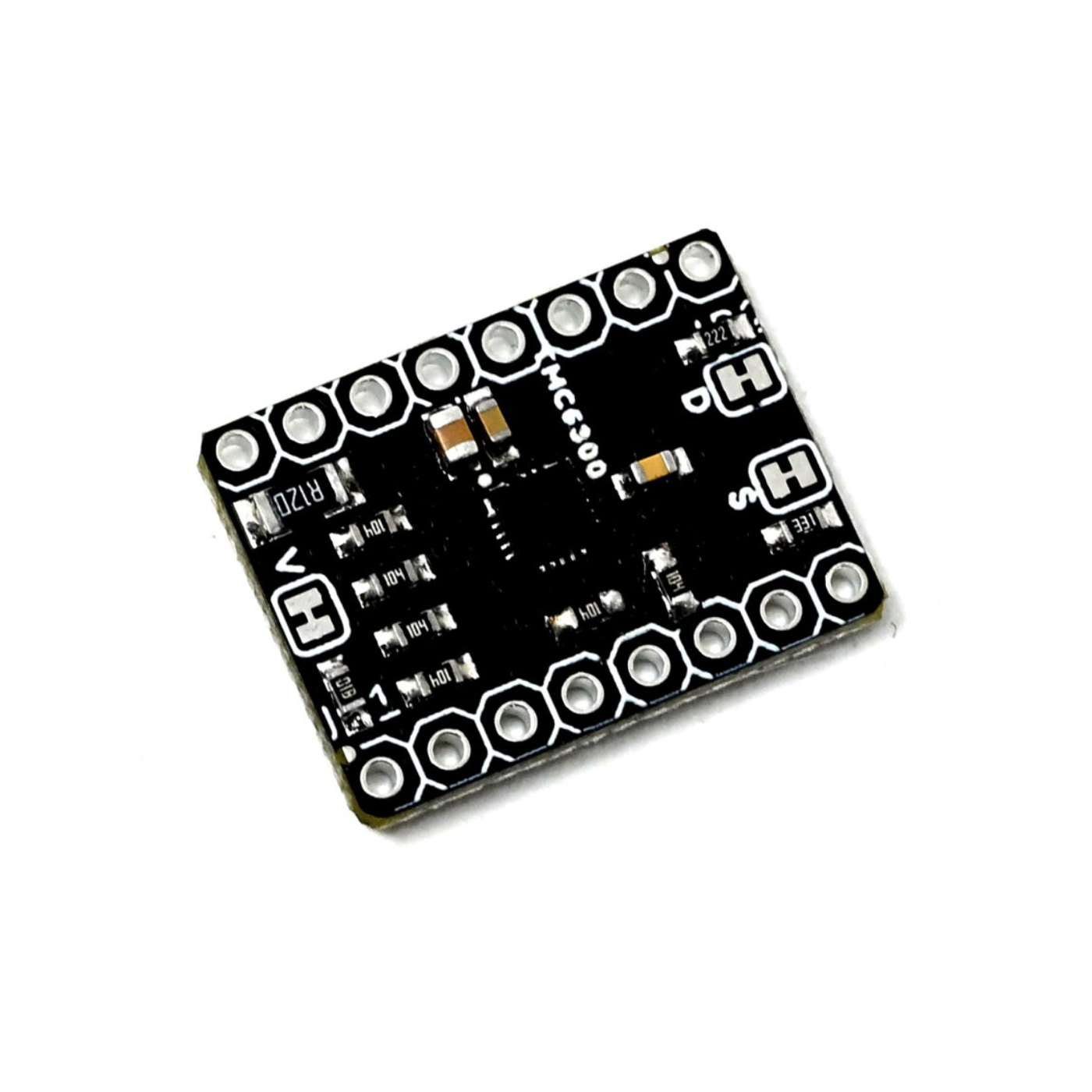

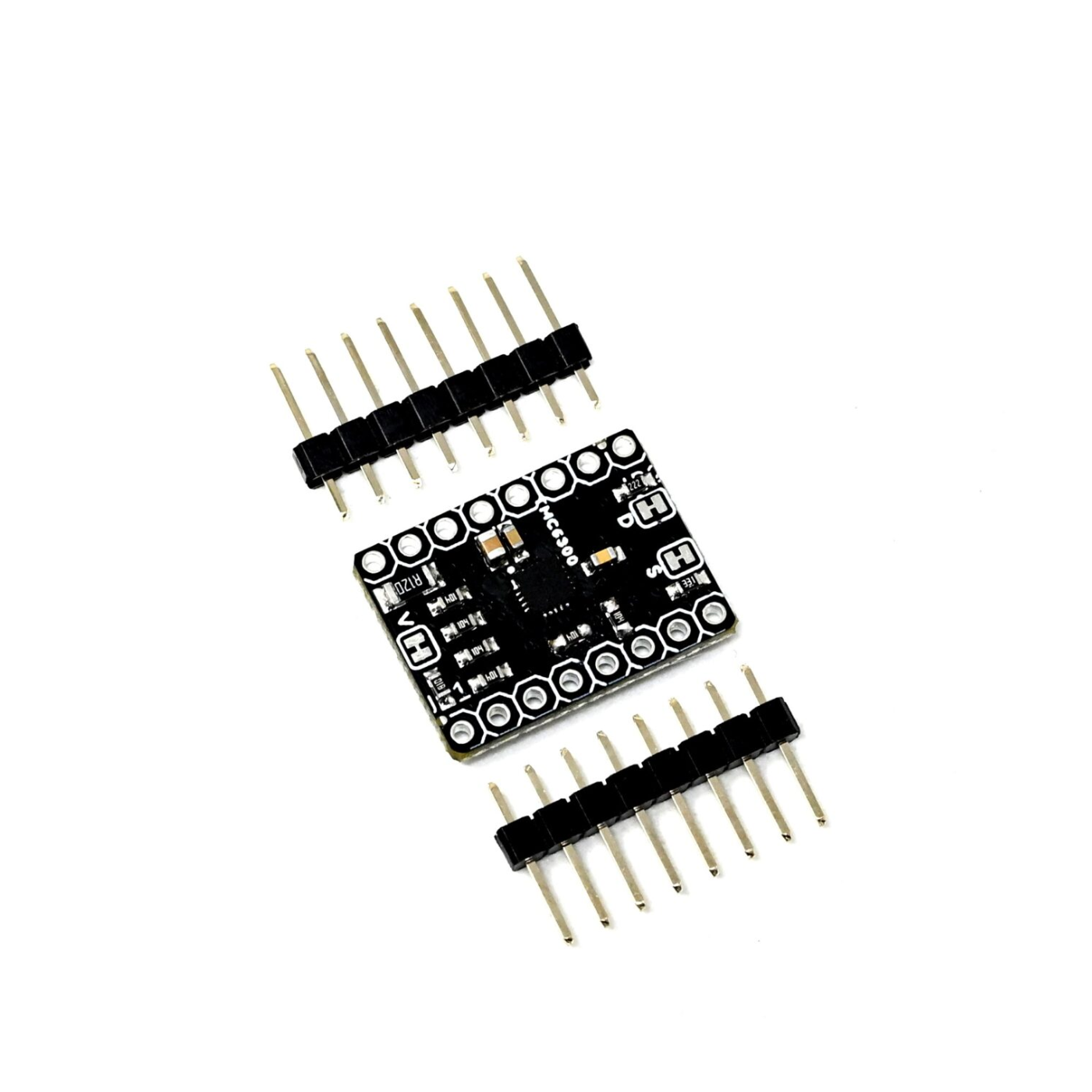

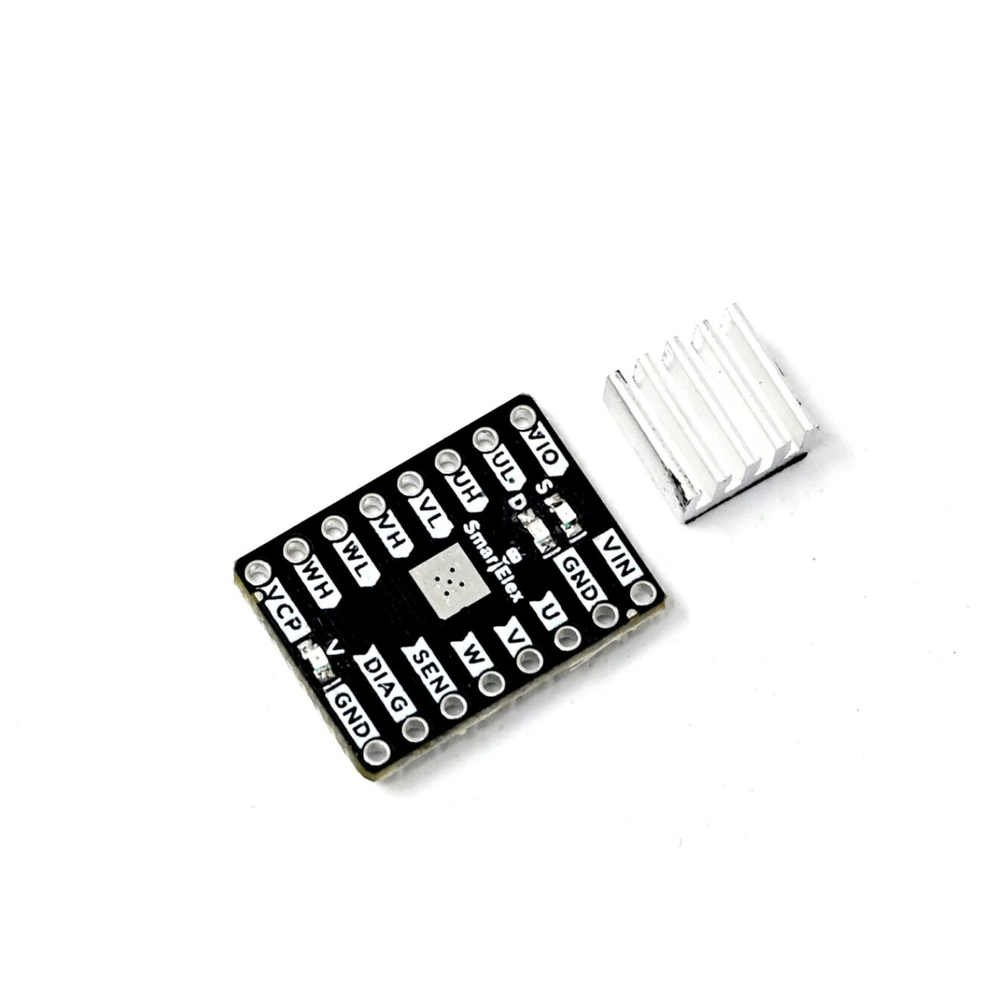

SmartElex TMC6300 3-Phase Brushless Motor Driver Module – High Efficiency 3-Phase BLDC Driver
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability
The SmartElex 3-Phase Brushless Motor Driver Module is designed to deliver smooth, efficient, and reliable control for three-phase BLDC and PMSM motors. Powered by the TMC6300 chip, this driver supports motor voltages from 2V to 11V and delivers up to 2A of current, making it perfect for compact yet powerful motor control systems.
This 3-phase motor driver offers high efficiency and precision, ideal for use in robotics, drones, automation systems, and motor-driven projects. With six PWM control inputs, it enables full three-phase control for accurate speed and direction management.
Compact, durable, and easy to integrate, the SmartElex TMC6300 module includes built-in protection against short circuits and overheating. It’s a dependable choice for makers, engineers, and developers looking for a 3-phase brushless motor driver that combines performance, safety, and ease of use in one small package.
| Voltage Range (V) | 2 to 11 |
|---|---|
| Max. Current (A) | 2A (1.4ARMS) |
| Protection Features | Short circuit, Thermal shutdown |
| Dimensions (L × W × H) mm | 50 × 50 × 21 |
| Weight (g) | 17 |
