SmartElex Serial Bus Servo Driver Board, Integrates Servo Power Supply and Control Circuit - Robocraze

SmartElex FREE SHIPPING BEST PRICE GUARANTEED

SmartElex Serial Bus Servo Driver Board, Integrates Servo Power Supply and Control Circuit - Buy Online in India

Name: SmartElex Serial Bus Servo Driver Board, Integrates Servo Power Supply and Control Circuit
Brand: Robocraze
SKU: TIFPS0618
Price: 499 INR
Availability: InStock
Rating: 4.44 (9 reviews)

SmartElex Serial Bus Servo Driver Board, Integrates Servo Power Supply and Control Circuit

Rs 499/-

- 29%

Rs 499/-

~~Rs 699/-~~

Save Rs 200/-

Incl. GST (No Hidden Charges)

Please hurry! Only 43 left in stock

Quantity:

Free Delivery Above ₹999

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Purchase

Cash on Delivery

SKU: TIFPS0618

Controls multiple serial bus servos using a single board
Built-in servo power supply and control circuit
Provides real-time feedback like position, load, and voltage
Supports UART and USB communication
Compact design, ideal for robotics and automation projects

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

Company

Materials List

File(s) size limit is 20MB.

Enter the Captcha *

Captcha challenge – enter the characters shown in the image

Reload Captcha

SmartElex Serial Bus Servo Driver Board, Integrates Servo Power Supply and Control Circuit

~~Rs 699/-~~ Rs 499/-

Quantity:

SmartElex Serial Bus Servo Driver Board, Integrates Servo Power Supply and Control Circuit

~~Rs 699/-~~ Rs 499/-

Description
Specifications
Shipping & Return

Description

SmartElex Serial Bus Servo Driver Board, Integrates Servo Power Supply and Control Circuit

The SmartElex Serial Bus Servo Driver Board is an advanced Servo Driver Board designed to simplify high-density servo control in robotics applications. It integrates a reliable Servo Power Supply and intelligent Control Circuit, allowing seamless communication with your MCU or host system through a single UART interface

With sufficient external power, the board can manage up to 253 ST/SC-series serial bus servos, each capable of delivering detailed feedback such as position angle, load, operating voltage, temperature, and working mode.

This centralized control approach minimizes wiring, saves space, and ensures precise, synchronized motion, making it an excellent choice for complex robotic systems and professional-grade automation projects.

Features:

Supports a serial UART interface to the MCU/host for servo control.
Drives up to 253 ST/SC series serial bus servos concurrently.
Onboard DC power supply (9V to 12.6V) for the servo rail.
Servo feedback includes angle, load, voltage, mode, temperature, and error.
Integrated control circuit for reliable operation and signal integrity.
Jumper or switch to choose between UART and USB connection modes.
Compact PCB footprint (approx. 42 x 33 mm) for confined places.
Dual power inputs: DC barrel jack and screw terminal choices.

Specifications

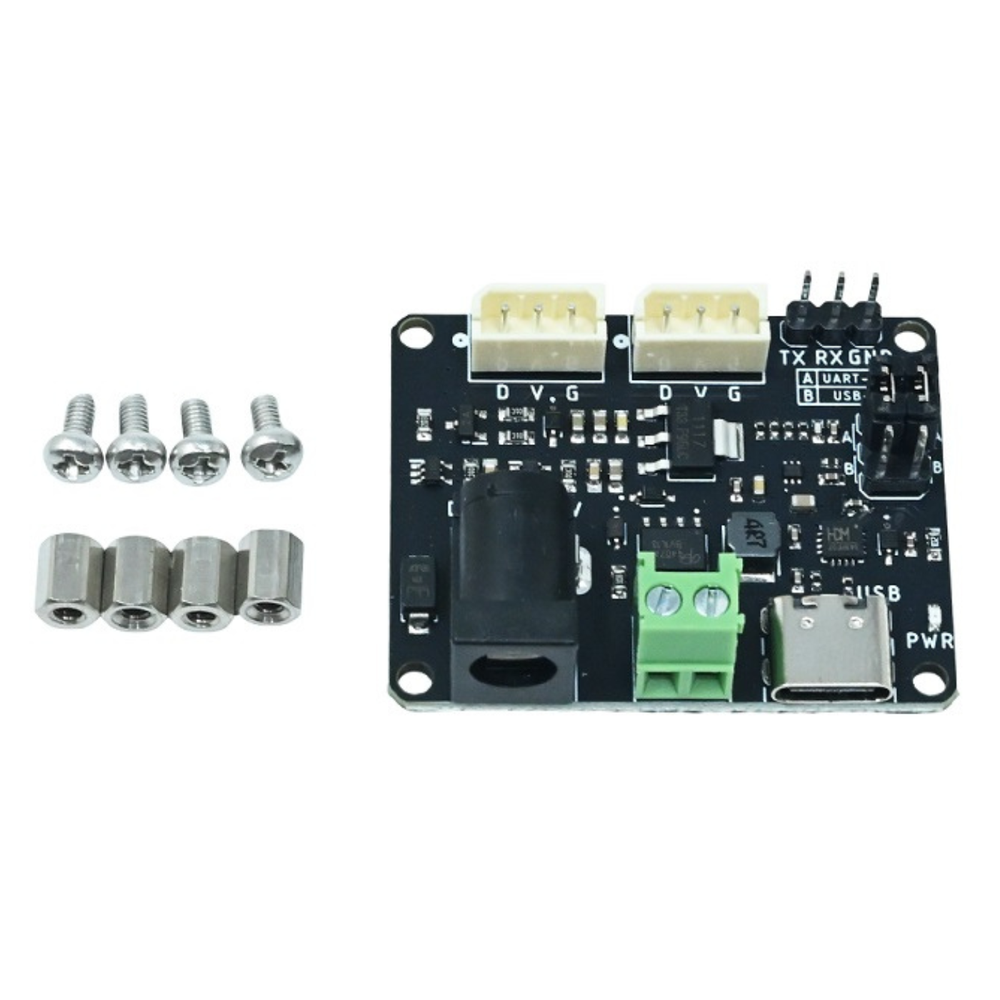

Package Includes:

1 x SmartElex Serial Bus Servo Driver Board
4 x spacers
4 x bolts

Specifications:

Item Type	Servo Driver Board
Model	Serial Bus Servo Driver Board
Input Voltage (V)	9 to 12.6 V
Mounting Holes	Ø 2.5 mm, spacing 37 × 28 mm
Connector	5.5 × 2.1 mm DC jack, Screw terminal
Length	42 mm
Width	33 mm
