SmartElex NanoBeacon IN100 Breakout Board
Couldn't load pickup availability

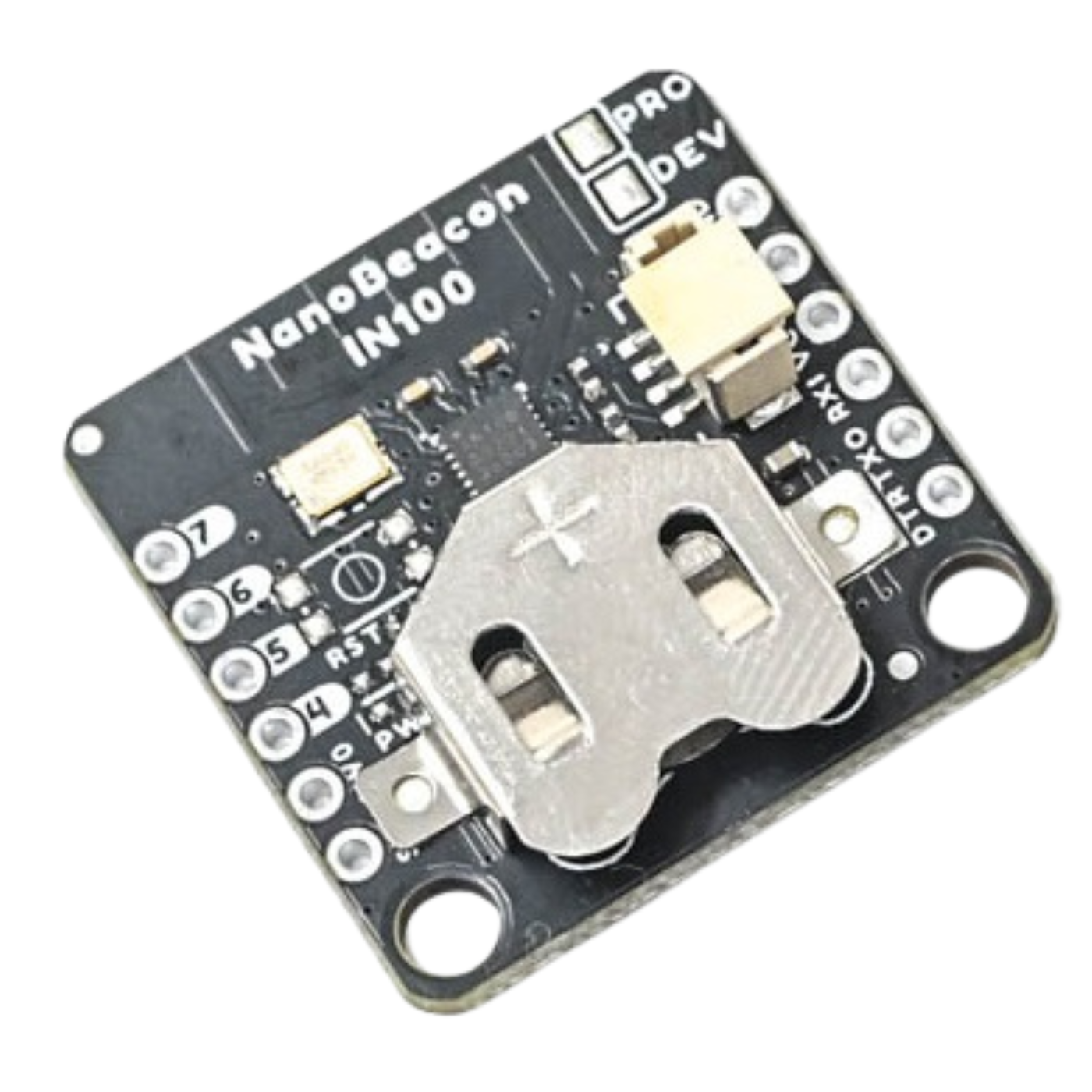

The SmartElex IN100 NanoBeacon Board is a compact and efficient 2.4 GHz Bluetooth Low Energy breakout board designed for effortless wireless applications.
Powered by the InPlay™ IN100 NanoBeacon™, it offers ultra-low power consumption and can operate for years on a single coin cell battery.This makes it ideal for projects such as wireless sensor networks, asset tracking, and retail beacons.

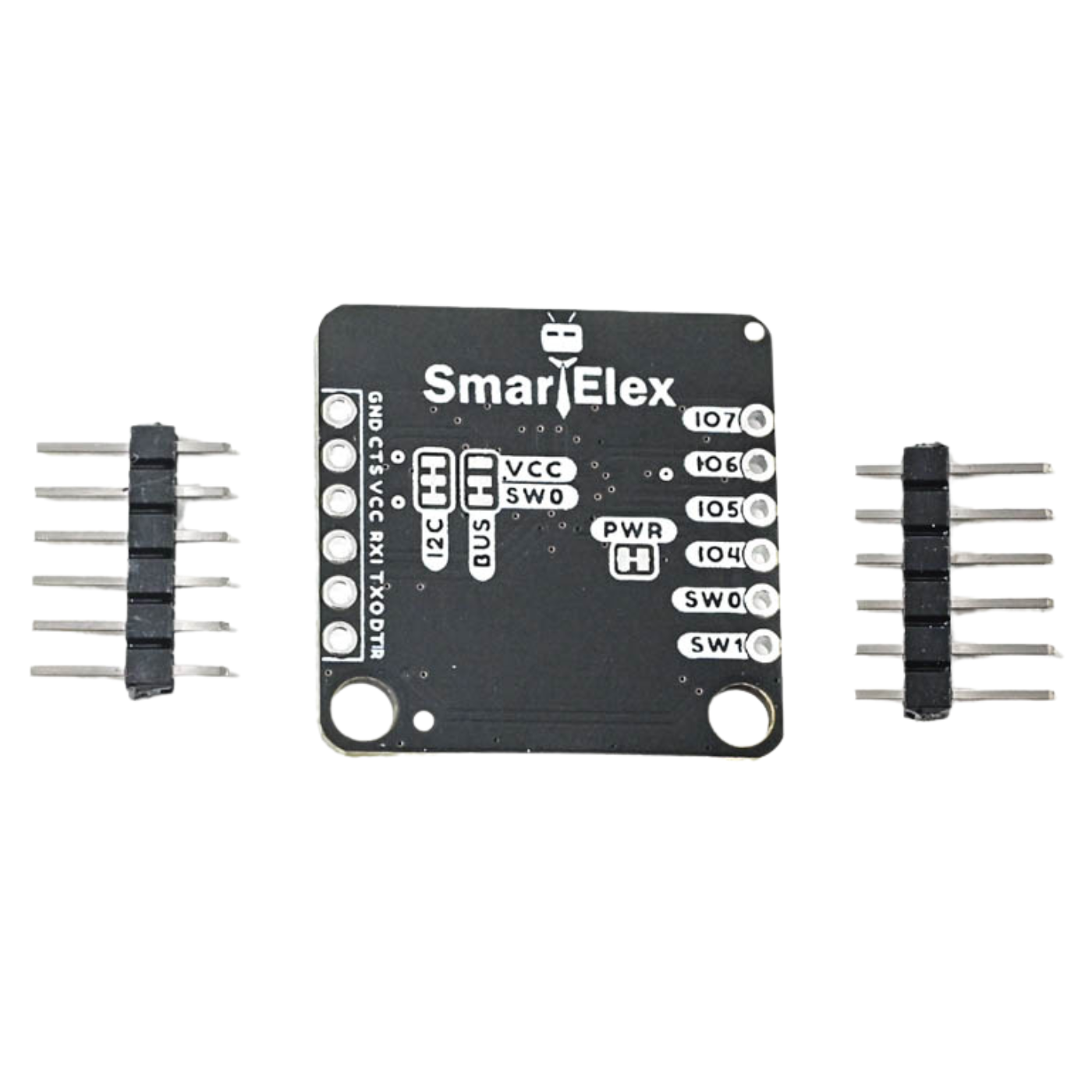

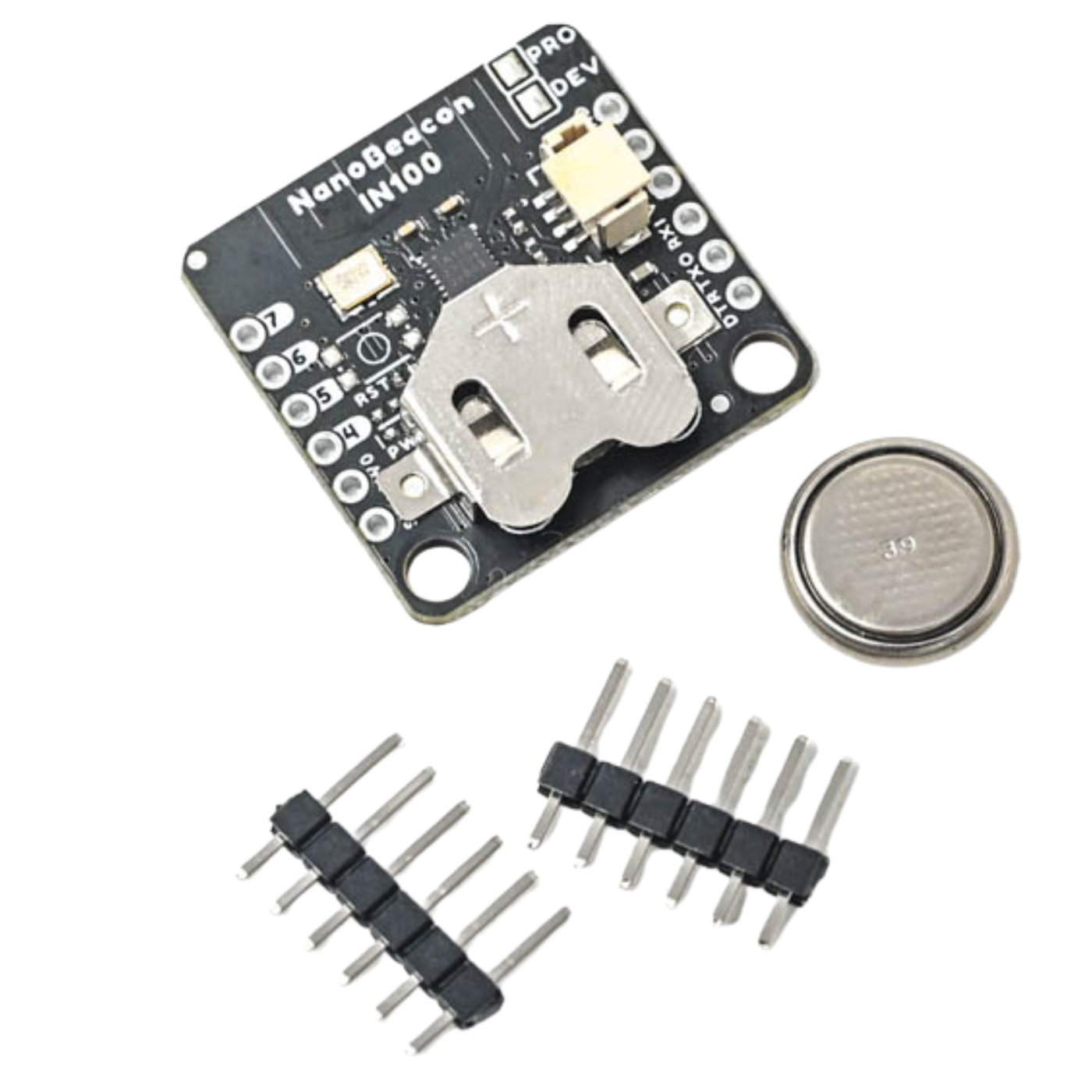

The board comes preassembled with male headers for easy prototyping and integration, featuring a UART interface, GPIO pins, and I/O power switches. It also includes a JSTSH connector for ecosystem compatibility and a dedicated space for labeling.
With the intuitive InPlay NanoBeacon Config Tool, users can configure the board through a simple graphical interface—no coding required—making the SmartElex IN100 NanoBeacon Board a perfect choice for developers seeking a low-power, ready-to-deploy BLE solution.
| Specification | Details |
|---|---|
| Supply Voltage Range | 1.1V – 3.6V |
| GPIO | 4 |
| UART | 3.3V |
| Length | 25 mm |
