  • Non-contact infrared temperature sensor based on the MLX90614 ESF
  • Measures object temperature without requiring physical contact
  • Supports -70°C to +380°C object temperature measurement range
  • Provides 0.02°C temperature resolution with digital I2C communication
  • Suitable for industrial monitoring, automation, HVAC and embedded projects

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
+91

File(s) size limit is 20MB. Max 3 files.

Select Categories
CAPTCHA
Reload Captcha
Robocraze Academy Limited Time Offer
SmartElex MLX90614 ESF IR Non-Contact Temperature Sensor Module
SmartElex MLX90614 ESF IR Non-Contact Temperature Sensor Module
Rs 1,099/- Rs 974/-
SmartElex MLX90614 ESF IR Non-Contact Temperature Sensor Module
SmartElex MLX90614 ESF IR Non-Contact Temperature Sensor Module
SmartElex MLX90614 ESF IR Non-Contact Temperature Sensor Module
SmartElex MLX90614 ESF IR Non-Contact Temperature Sensor Module

SmartElex MLX90614 ESF IR Non-Contact Temperature Sensor Module

Rs 1,099/- Rs 974/-
Description

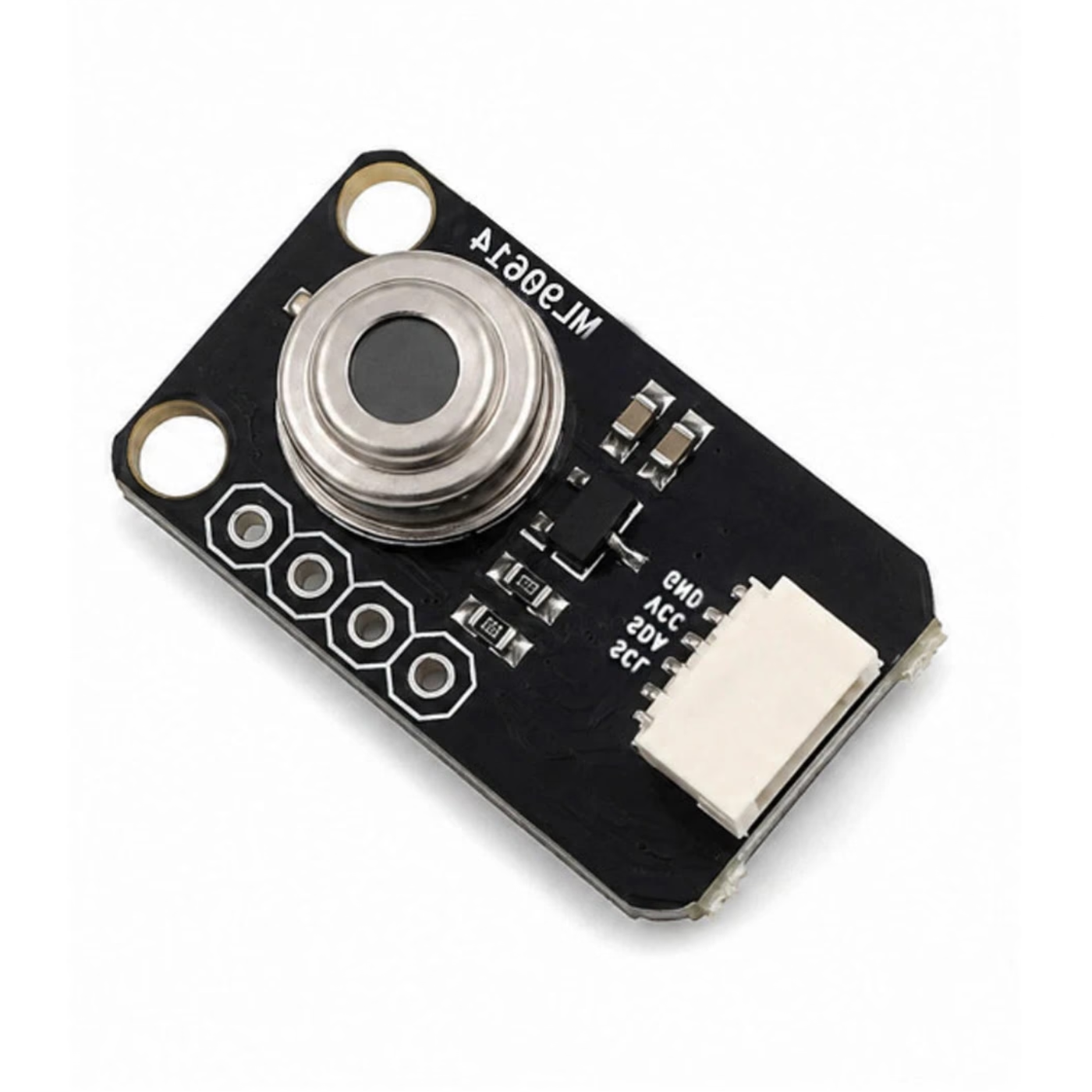

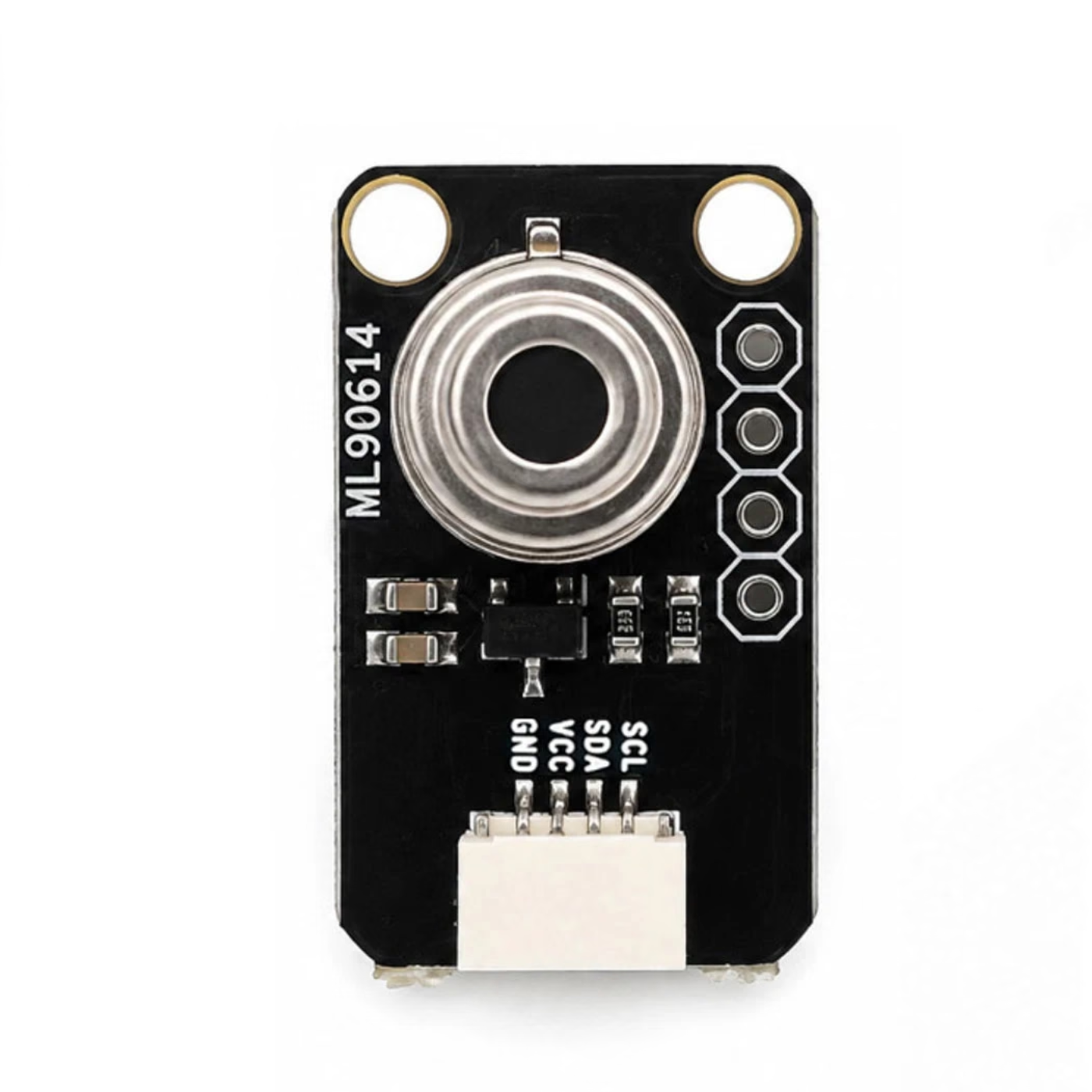

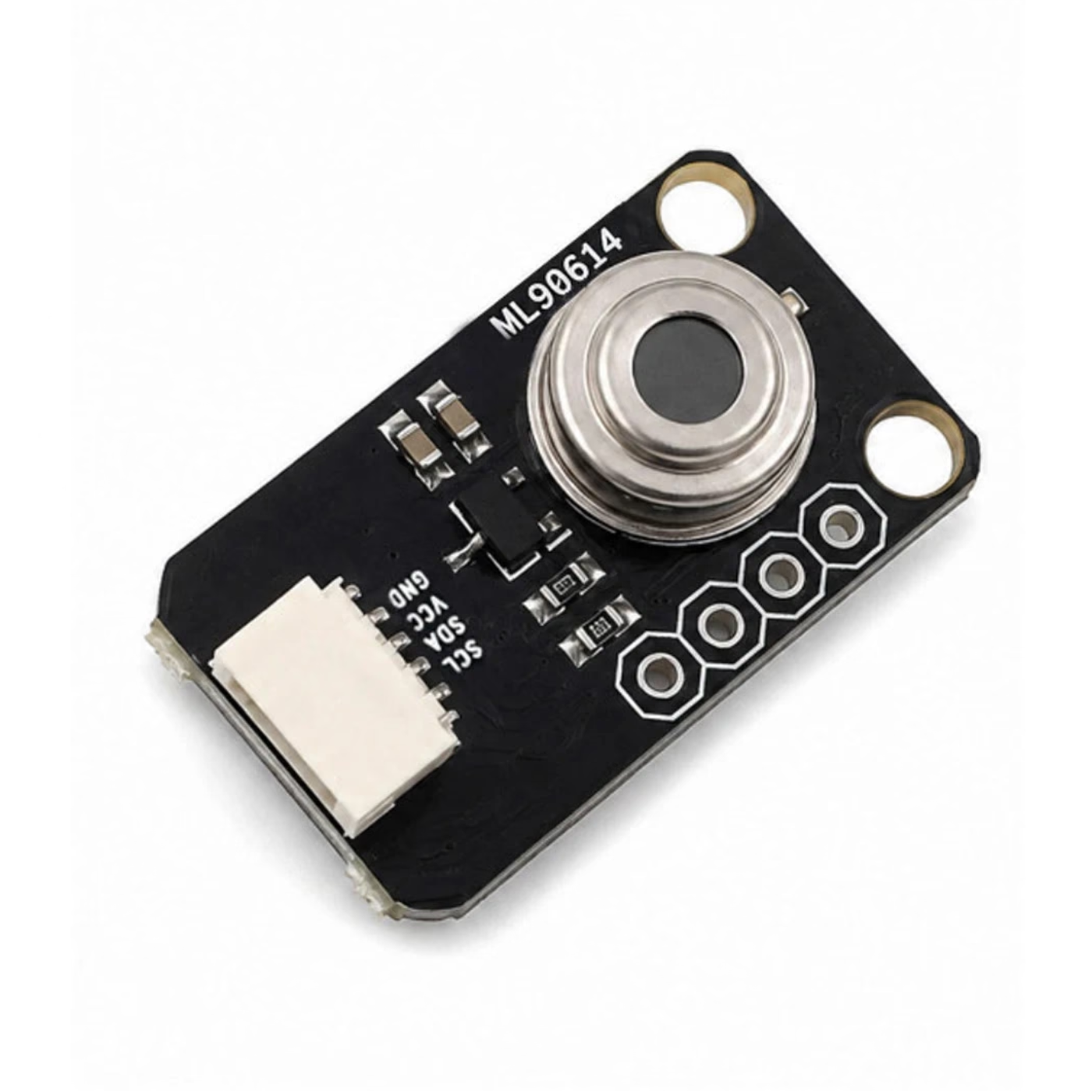

SmartElex MLX90614 ESF IR Non-Contact Temperature Sensor Module

The SmartElex MLX90614 ESF IR Non-Contact Temperature Sensor Module provides temperature measurement without physical contact. Based on the MLX90614 infrared thermometer, it detects the infrared radiation emitted by an object and calculates its temperature using integrated signal processing. The sensor is factory calibrated and supports a wide object-temperature measurement range.

The module uses an SMBus-compatible I2C interface and provides a temperature resolution of 0.02°C. It is suitable for measuring moving or inaccessible objects and can be used in industrial temperature monitoring, automation, HVAC, robotics and other embedded applications.

Features

  • Non-Contact Temperature Measurement: Measures the temperature of objects using infrared radiation without requiring physical contact.
  • Wide Object Temperature Range: Supports object temperature measurement from -70°C to +380°C, depending on the sensor configuration and operating conditions.
  • Ambient Temperature Measurement: Measures the sensor's ambient temperature over a wide operating range.
  • High Resolution: Provides temperature measurement resolution of 0.02°C for detailed temperature monitoring.
  • High Accuracy: Provides typical accuracy of ±0.5°C over a specified range when the sensor and target are under suitable thermal conditions.
  • I2C Communication: Uses an SMBus-compatible digital interface for convenient connection to microcontrollers and development boards.
  • Factory Calibrated: Comes factory calibrated for reliable temperature measurement across its specified operating ranges.
  • Fast Digital Readings: Provides digitally processed temperature data for convenient integration into monitoring and control systems.
Specifications

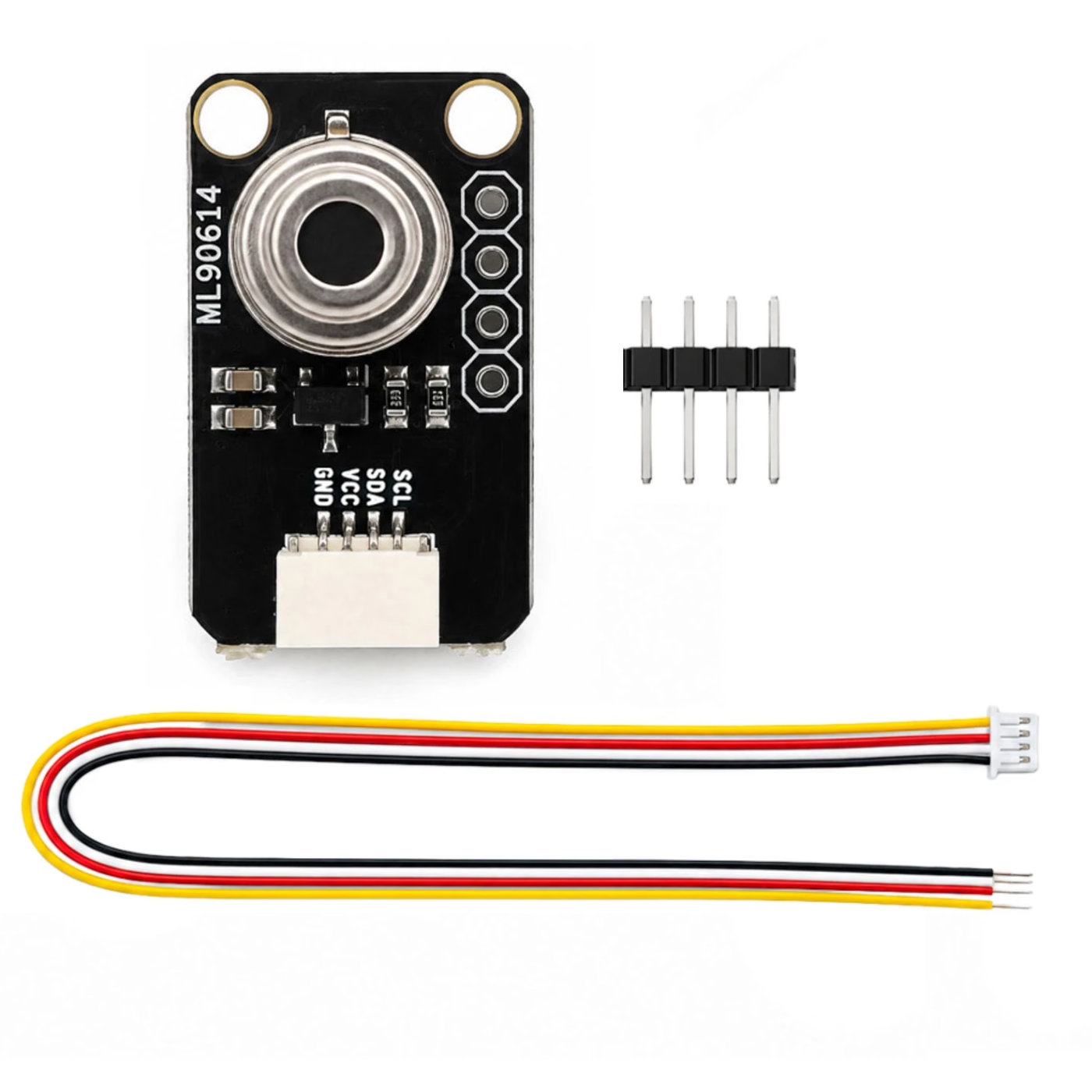

Package Includes:

  •  1 x SmartElex MLX90614 ESF IR Non-Contact Temp Sensor Module
  • 1 x 4 pin male pin header
  • 1 x JST-SH-1MM-4 pin Female Housing Connector with Wire

Specifications

Specification Details
Model No. / Name MLX90614
Interface I2C
Voltage Rating 3.3 V–5 V
Sensor Type Non-contact Infrared (IR) Temperature Sensor
I2C Address 0x5A
Temperature Sensor Accuracy ±0.5°C (around room temperature)
Operating Current 1.2 mA
Field of View (FOV) 35°
Length 23 mm
Width 13 mm
Height 4 mm
Weight 2 g
