SmartElex MLX90393 Triple Axis Magnetometer

SmartElex MLX90393 Triple Axis Magnetometer – High-Precision Magnetic Field Sensor

Rs 299/-
- 47%
Rs 299/-
Rs 559/-
Save Rs 260/-
🪙
RC REWARDS Earn 2 RC Coins on this order
Incl. GST (No Hidden Charges)
Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Why Buy From Robocraze

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000

SKU: TIFCC0273
  • Accurately measures 3-axis magnetic fields for various sensing applications.
  • Easy integration with I2C or SPI communication.
  • Ideal for use in compasses, controllers, and robotic sensors.
  • Compact and lightweight for embedded and IoT use.
  • Energy-efficient design for battery-powered projects.
  • Delivers reliable, noise-free magnetic data output.
Robocraze Academy Limited Time Offer
SmartElex MLX90393 Triple Axis Magnetometer – High-Precision Magnetic Field Sensor -Robocraze
SmartElex MLX90393 Triple Axis Magnetometer – High-Precision Magnetic Field Sensor
Rs 559/- Rs 299/-

SmartElex MLX90393 Triple Axis Magnetometer – High-Precision Magnetic Field Sensor

Rs 559/- Rs 299/-

SmartElex MLX90393 Triple Axis Magnetometer – High-Precision Magnetic Field Sensor

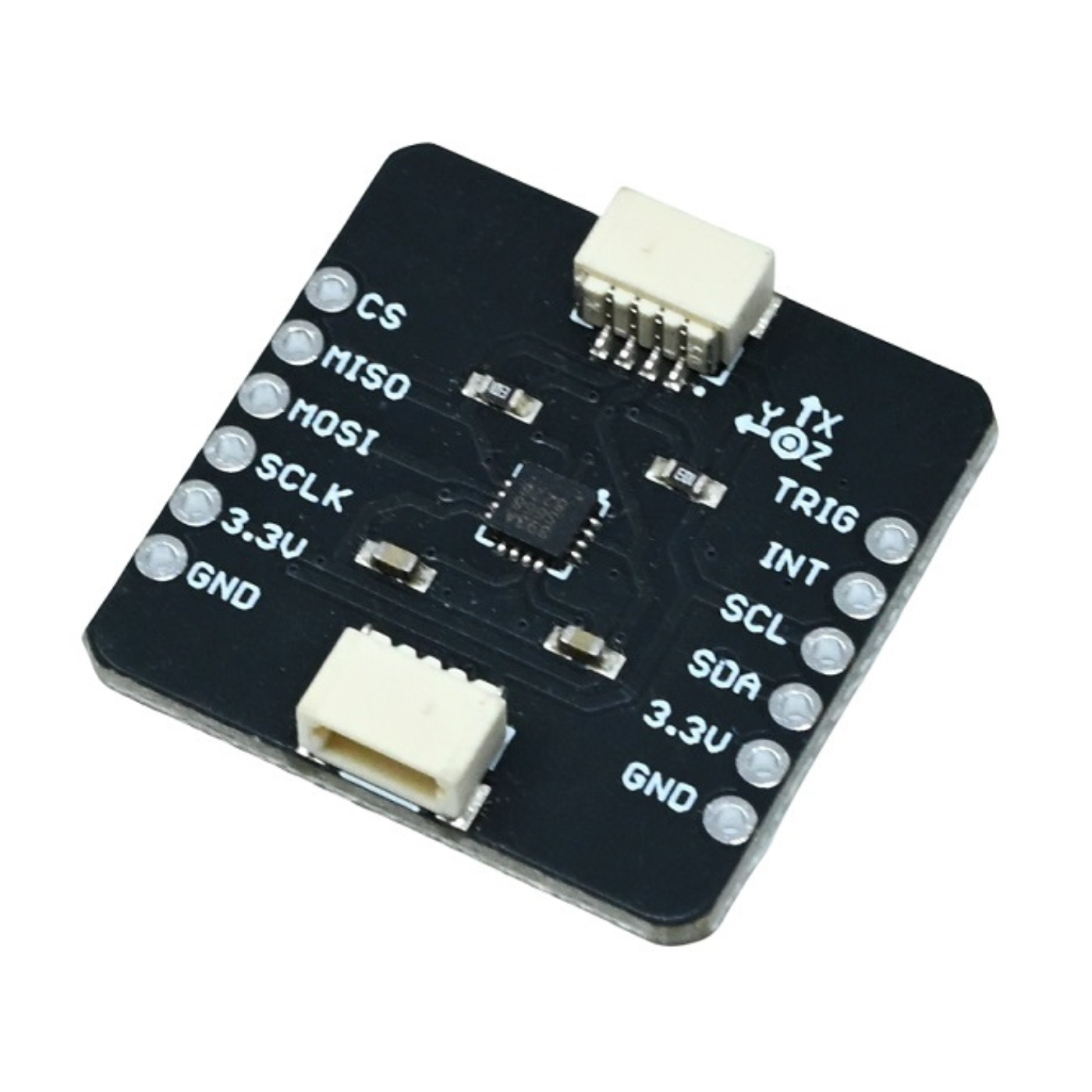

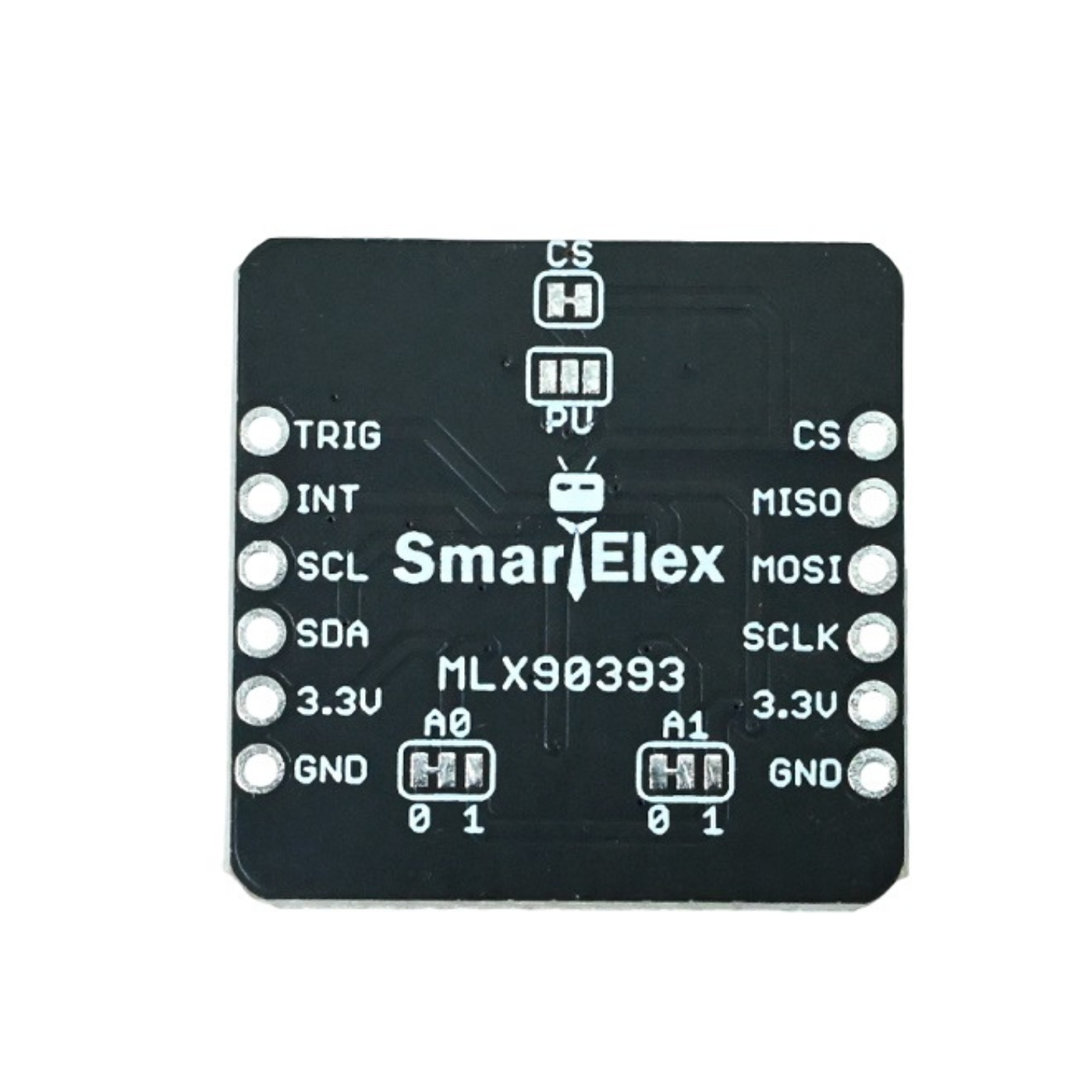

The SmartElex MLX90393 Triple Axis Magnetometer is a highly accurate magnetic field sensor designed to measure magnetic strength and direction across three axes (X, Y, and Z). Built around the MLX90393 sensor, this breakout board can detect even small magnetic fields with excellent precision.

It’s ideal for applications like digital compasses, position detection, flow meters, and non-contact controllers. With I2C communication and Molex PicoBlade connectors, integrating it with your microcontroller or development board is quick and easy.

This magnetometer operates at a voltage range of 2.2V–3.6V and supports both I2C and SPI interfaces, offering flexibility for various hardware setups. Its robust design ensures reliable performance even in environments with stronger magnetic fields.

Compact and energy-efficient, the SmartElex MLX90393 is perfect for embedded systems, robotics, and IoT projects that require stable, real-time magnetic sensing.

Features:

  • Built with the MLX90393 3-axis magnetic field sensor for accurate readings.
  • Measures magnetic fields across X, Y, and Z axes with high precision.
  • Operates on a wide voltage range of 2.2V–3.6V.
  • Supports I2C and SPI communication modes for flexible integration.
  • Features a resolution of 0.161µT for precise magnetic sensing.
  • Compact breakout design with Molex PicoBlade connectors for easy wiring.
  • Low power consumption ideal for continuous monitoring applications.

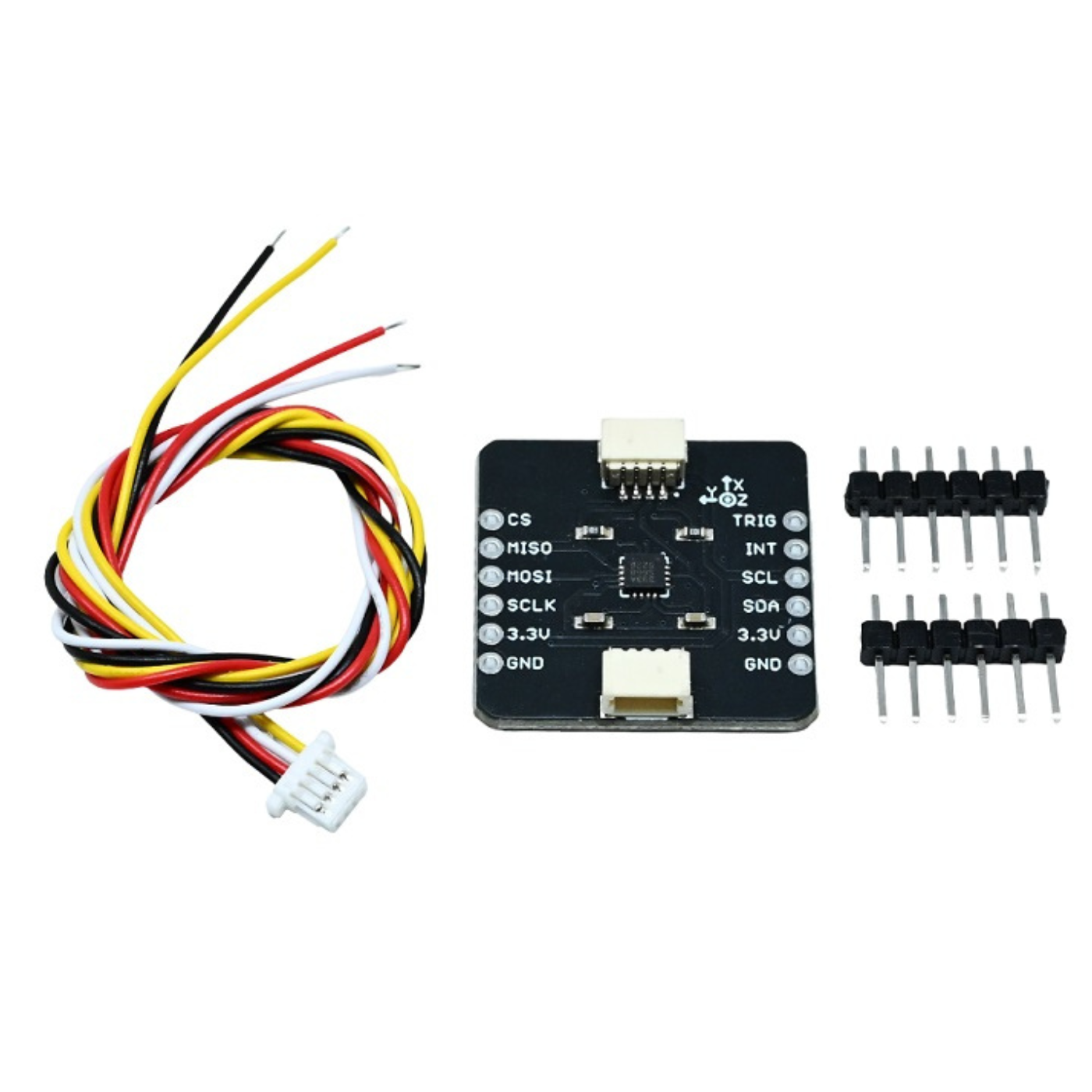

Package Includes:

  • 1 x SmartElex MLX90393 Triple Axis Magnetometer

Specifications:

Specification Details
Model Magnetometer
Model No. MLX90393
Voltage Rating (V) 2.2 to 3.6
Communication Mode I2C
Length (mm) 25.4
Width (mm) 25.4
Weight (g) 1

Warranty Coverage:

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only.

Warranty Void If:

In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
