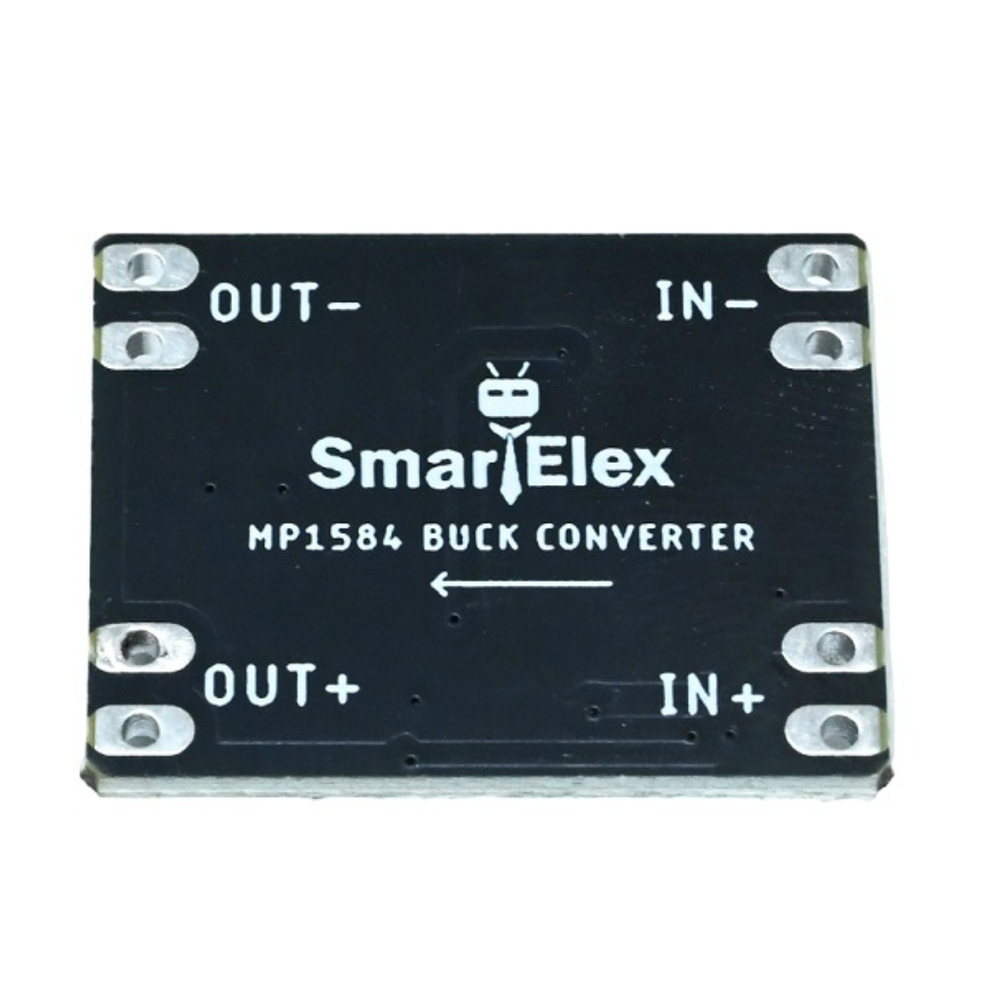

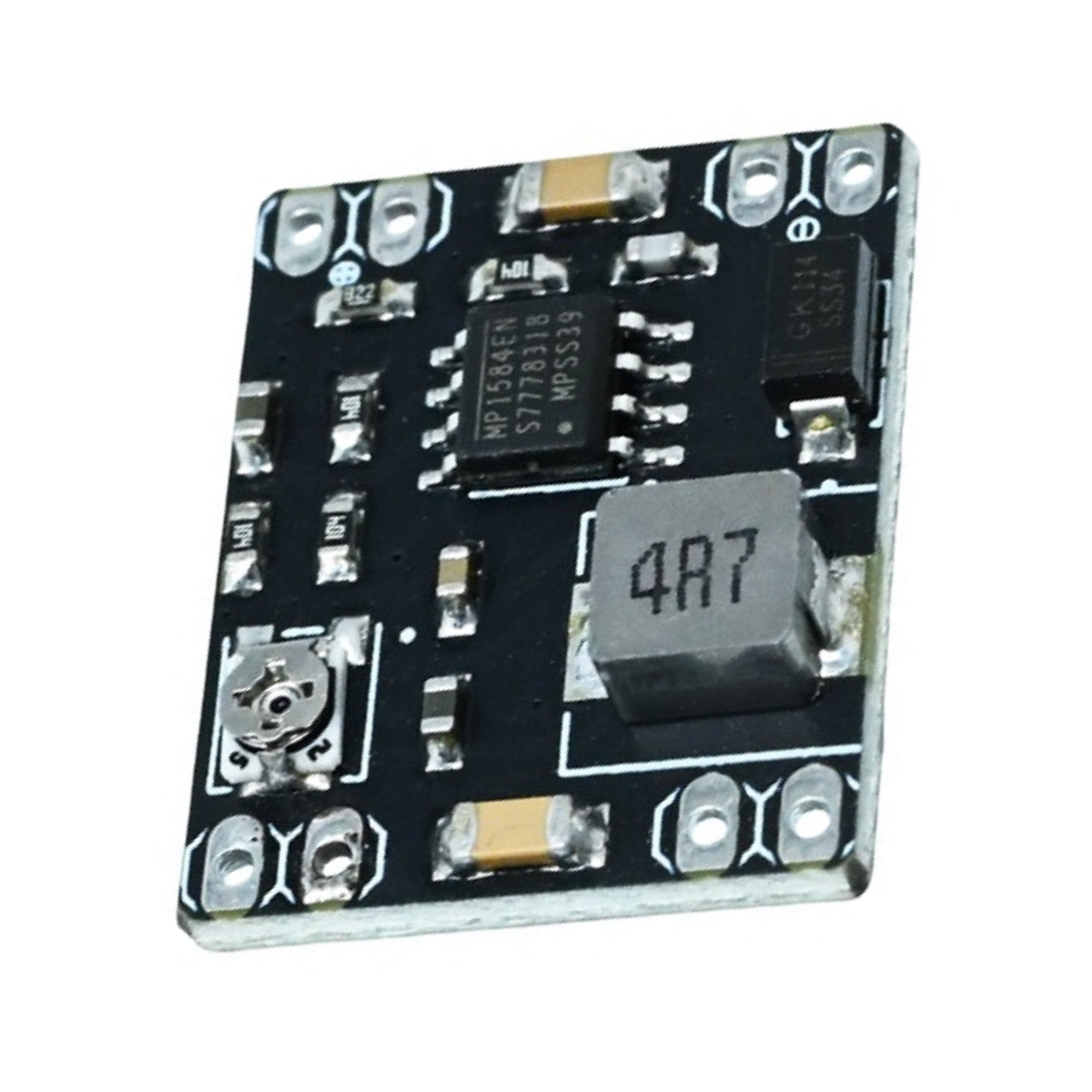

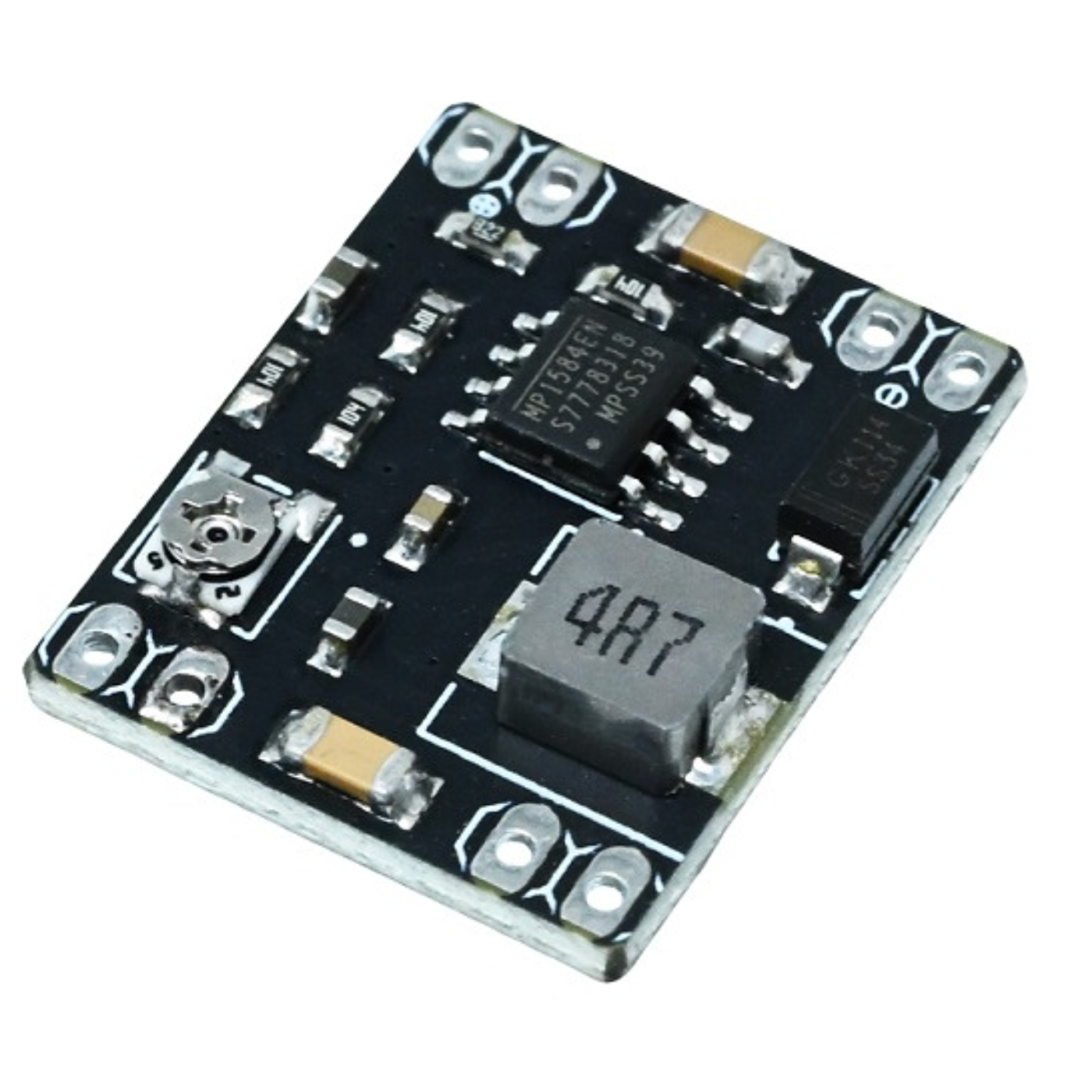

SmartElex Mini MP1584 3A Adjustable Step-Down DC-DC Buck Converter Module
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability
The SmartElex Mini MP1584 DC-DC Buck Converter is a compact and efficient Adjustable Buck module designed for smooth voltage step-down operations.
It allows you to convert a wide input voltage range of 4.5V to 28V into a stable, adjustable output between 0.8V and 20V, making it ideal for powering microcontrollers, sensors, and DIY electronics projects.
This step-down Buck converter uses the MP1584EN high-frequency switching regulator with integrated MOSFETs, ensuring high efficiency and reliable performance.
Built-in protections such as soft-start, thermal shutdown, and under-voltage lockout make it safe and durable for various electronic applications - from robotics and RC vehicles to Arduino and Raspberry Pi projects.
| Specification | Details |
|---|---|
| Model | Buck Converter Module |
| Model No. | MP1584 |
| Output Voltage (V) | 1.8A |
| Switching Frequency | Maximum: 1.5MHz, Typical: 1MHz |
| Conversion Efficiency | 0.96 |
| Accuracy | ±0.5% |
| Operating Temperature (°C) | -50 to 85 |
| Length (mm) | 22 |
| Width (mm) | 17 |
| Height (mm) | 4 |
| Output Ripple | <30mV |
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only.
In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
