SmartElex LSM303AGR Accelerometer/Magnetometer - Buy Online in India

SmartElex LSM303AGR Accelerometer/Magnetometer

Rs 397/-
- 14%
Rs 397/-
Rs 459/-
Save Rs 62/-
🪙
RC REWARDS Earn 3 RC Coins on this order
Incl. GST (No Hidden Charges)
Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Why Buy From Robocraze

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000

SKU: TIFCC0301
  • SmartElex LSM303AGR Accelerometer & Magnetometer digital tilt and compass sensor
  • Combines 3-axis accelerometer + 3-axis magnetometer in a single compact module
  • Accurately detects tilt, orientation, motion, and magnetic north
  • Uses I2C interface for simple and reliable communication
  • Supports 3.3V and 5V logic levels (Arduino, Raspberry Pi, Feather compatible)
  • Pre-assembled breakout board with Molex PicoBlade I2C connectors

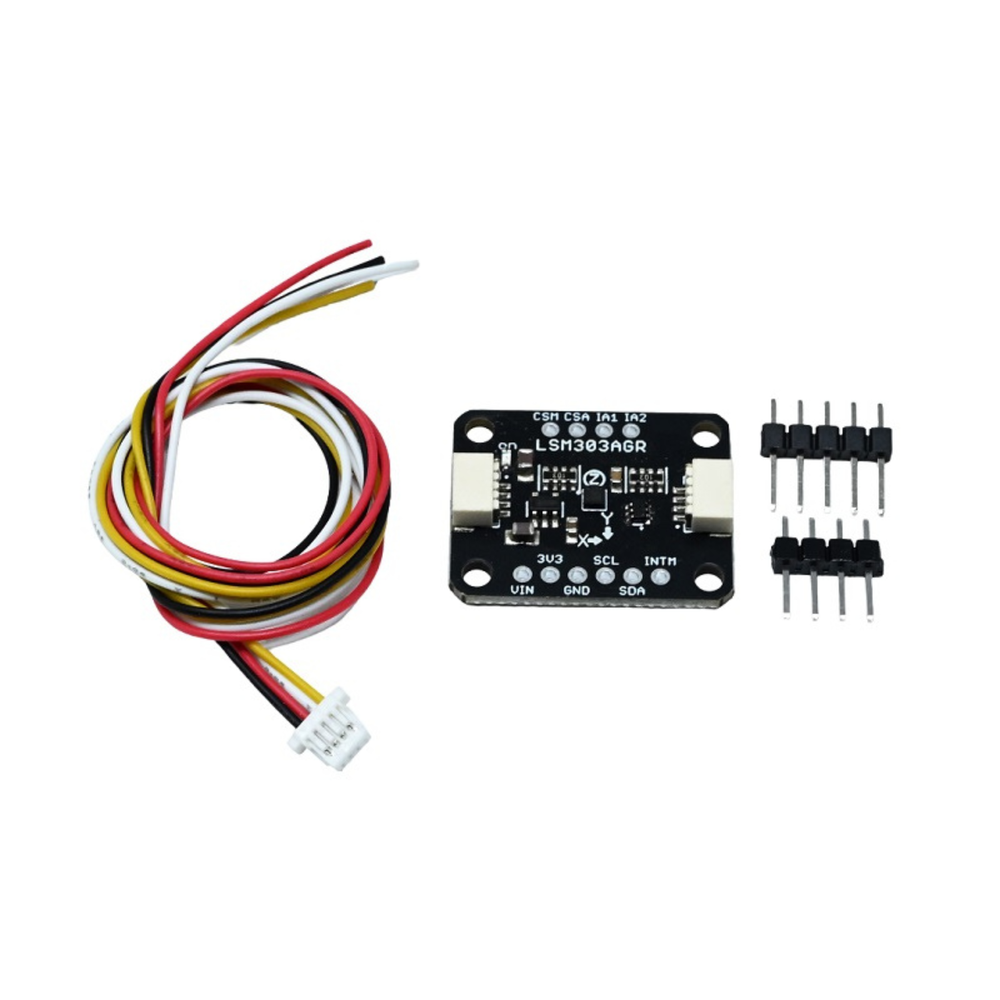

  • Includes 0.1″ header pins and 4 mounting holes for easy integration
Robocraze Academy Limited Time Offer
SmartElex LSM303AGR Accelerometer/Magnetometer -Sensors -Accelerometers & Gyro Sensors -Robocraze
SmartElex LSM303AGR Accelerometer/Magnetometer
Rs 459/- Rs 397/-

SmartElex LSM303AGR Accelerometer/Magnetometer

Rs 459/- Rs 397/-

SmartElex LSM303AGR Accelerometer/Magnetometer

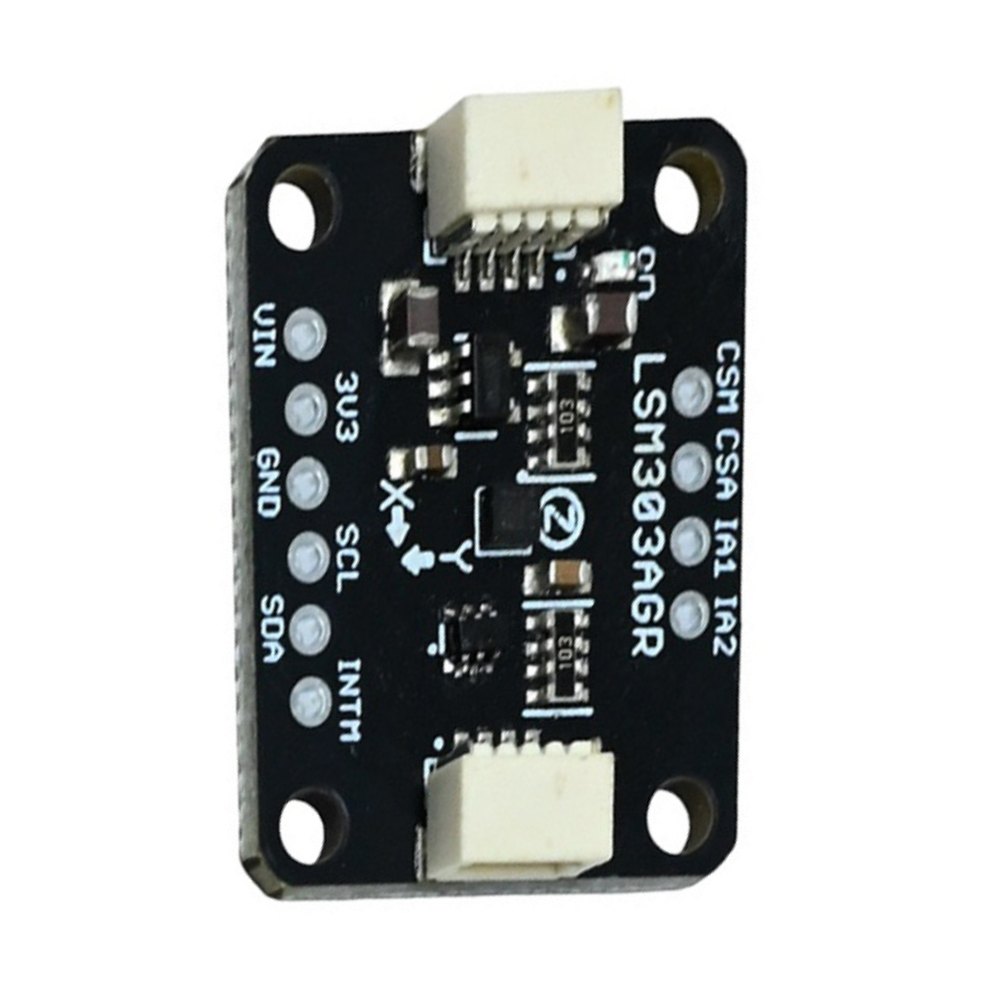

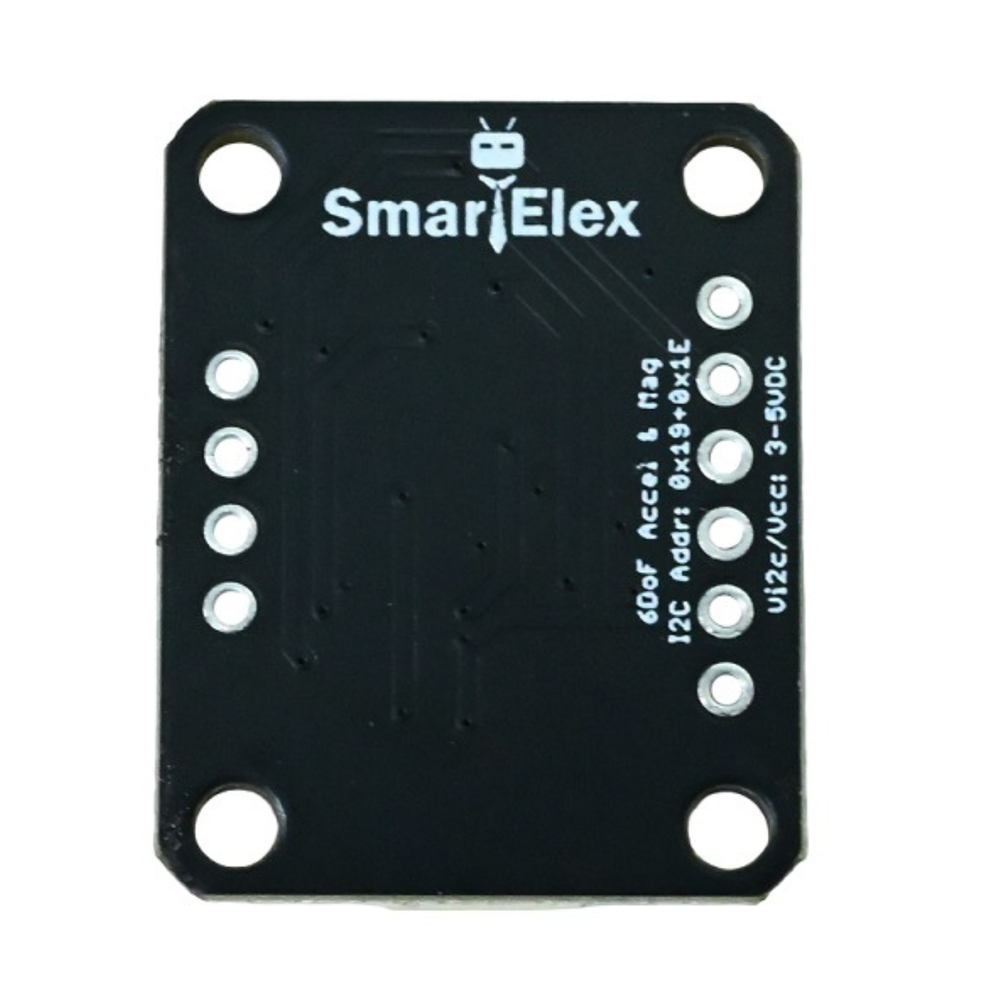

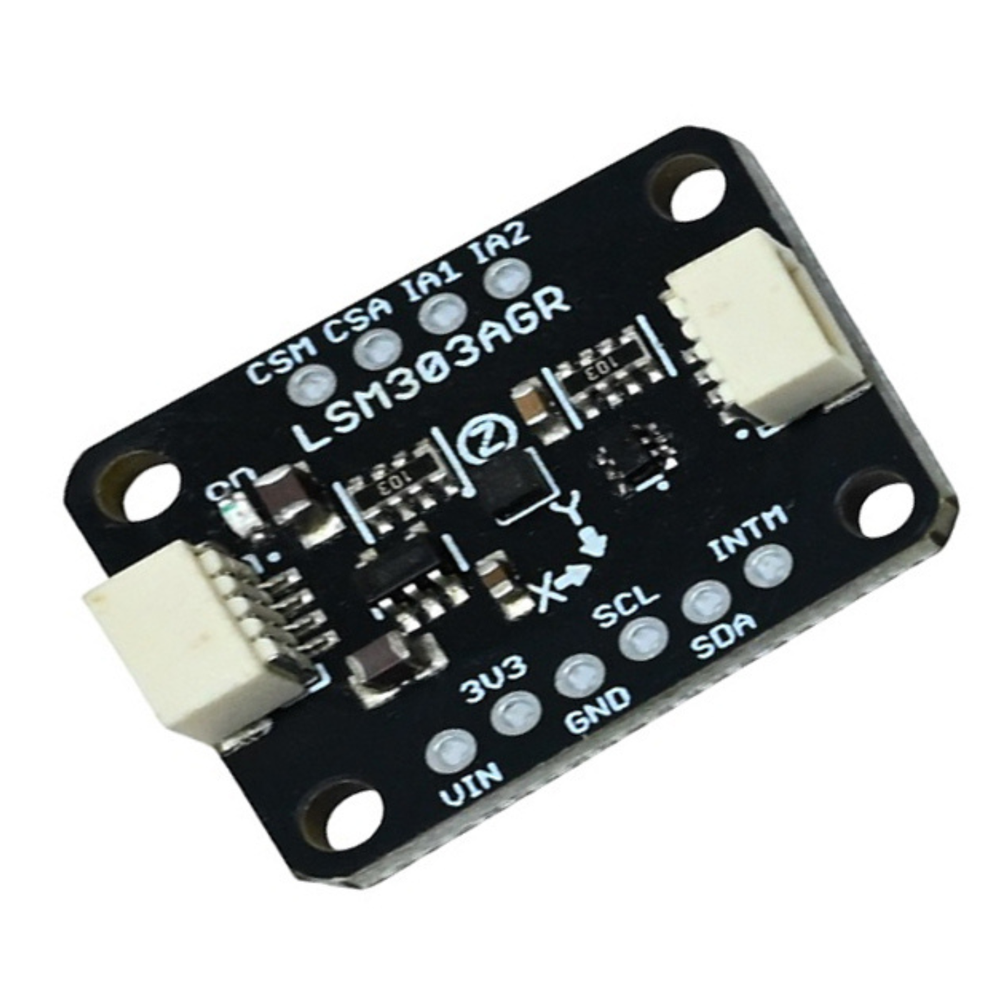

The SmartElex LSM303AGR Accelerometer & Magnetometer digital tilt and compass sensor is a compact, high-precision module designed to measure motion, orientation, and heading in embedded and IoT projects.

It integrates a 3-axis accelerometer to sense tilt and gravity direction, along with a 3-axis magnetometer to detect magnetic fields and determine compass heading. By combining both sensor outputs, the module enables accurate orientation and navigation data for robotics, drones, wearables, and motion-aware systems.

Based on the latest LSM303AGR sensor, it communicates via I2C, works seamlessly with both 3.3V and 5V microcontrollers, and comes fully assembled on a breakout PCB with onboard support circuitry—making it easy to use, solder-free, and ready for real-world applications.

Features:

  • LSM303AGR - Triple-axis accelerometer and magnetometer.
  • I2C Communication Interface.
  • Supply voltage - 3.3V 5V
  • 50 mGauss magnetic dynamic range.
  • 1.5 gauss magnetic sensitivity.
  • Accelerometer ranges: 2/4/8/16g.
  • Accelerometer sensitivity is as low as 1mg

Package Includes:

  • 1 x SmartElex LSM303AGR Accelerometer/Magnetometer

Specifications:

Model Accelerometer & Magnetometer
Model No. LSM303AGR
Voltage Rating 3.3V to 5V
Communication Mode I2C
Length 26.47 mm
Width 20.83 mm

Warranty Coverage:

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only.

Warranty Void If:

In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
