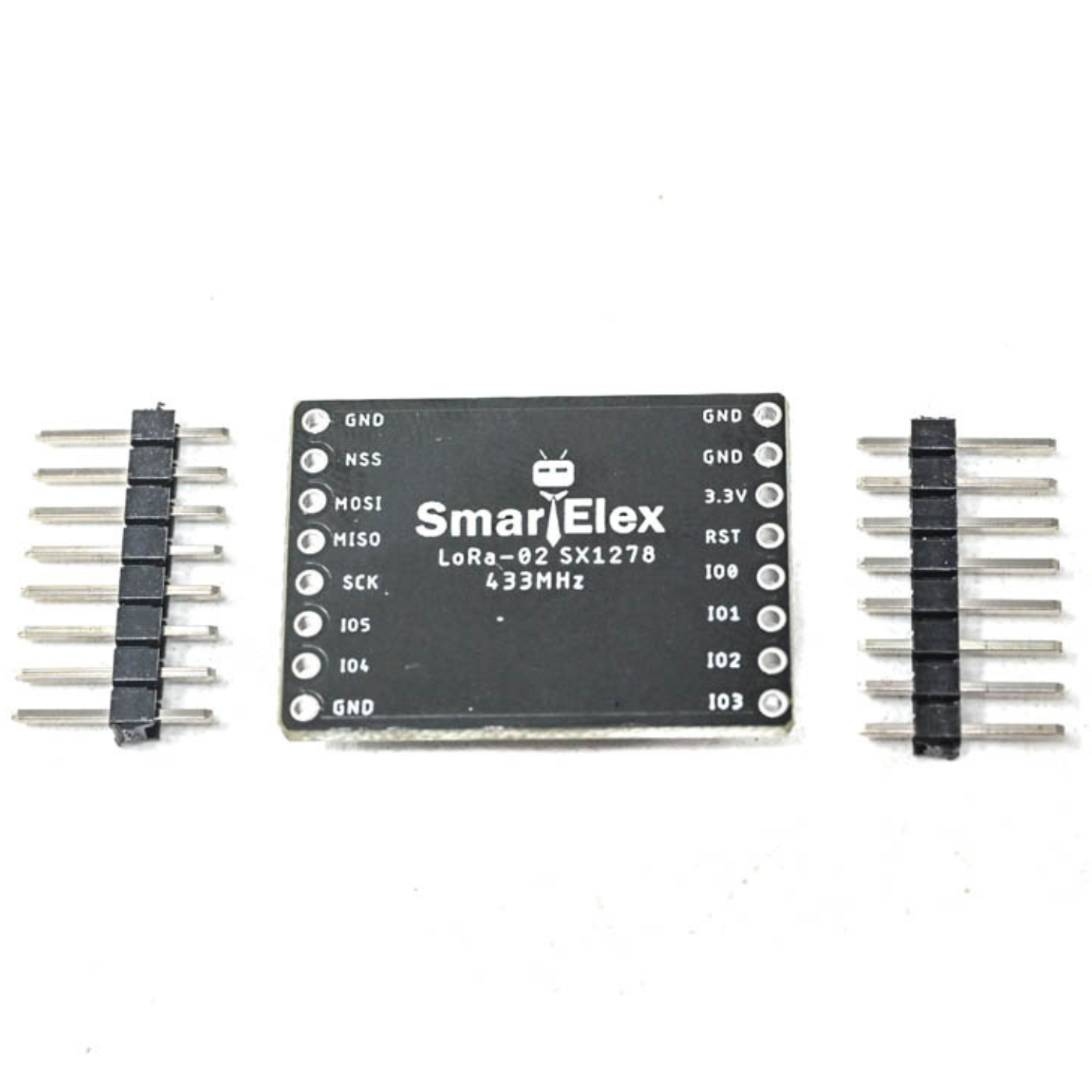

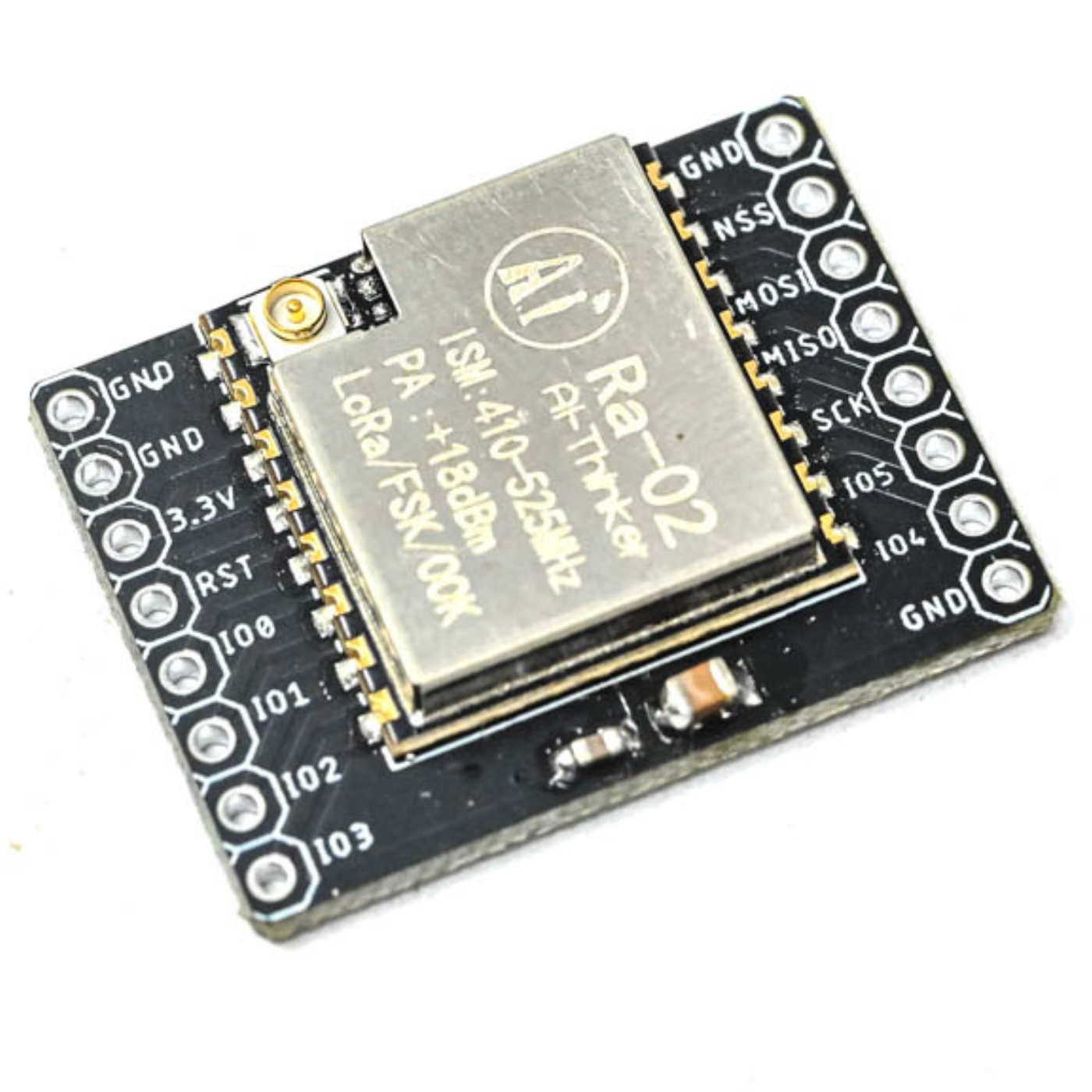

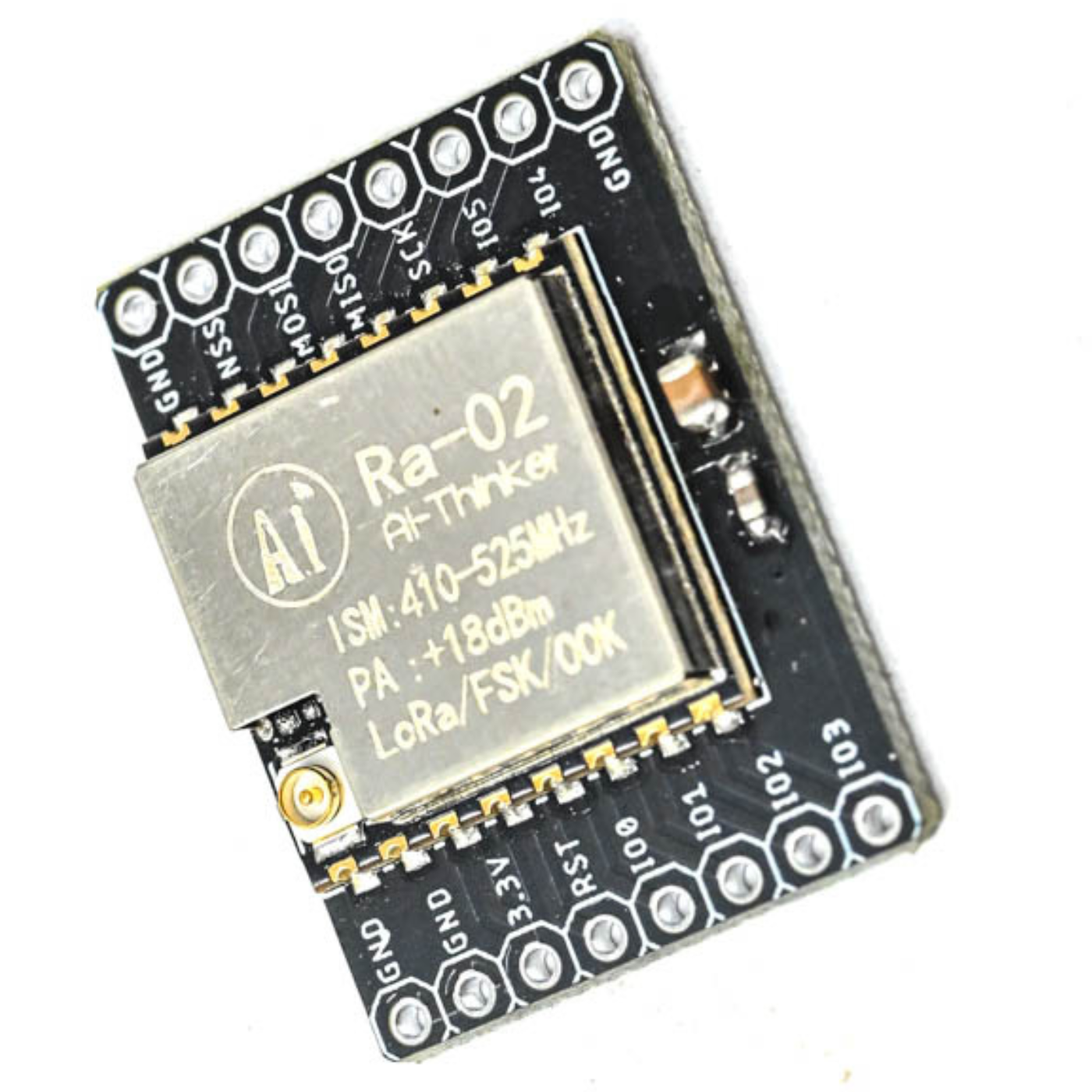

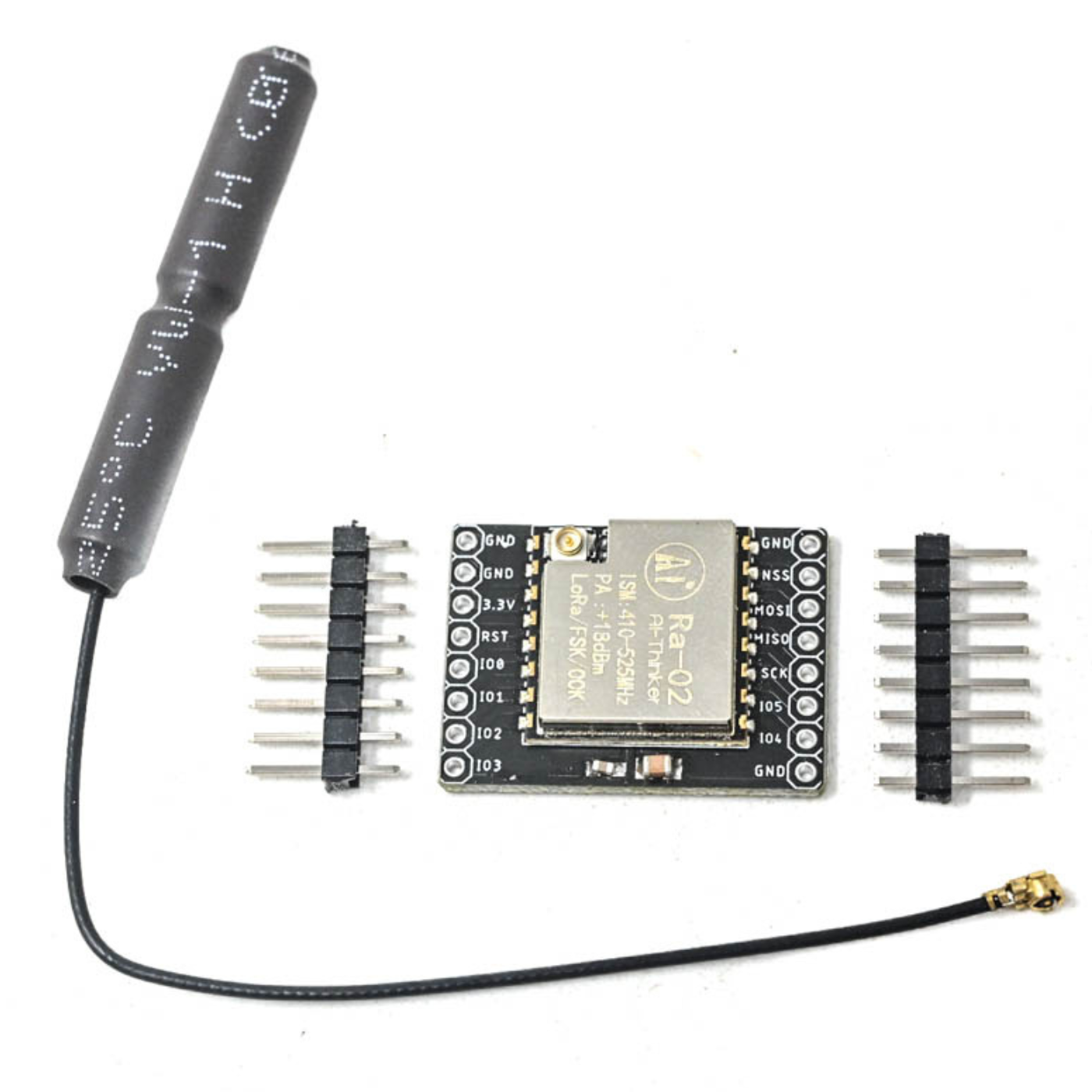

SmartElex LoRa Module Ra- 02 SX1278 433Mhz Wireless Transmission Breakout Board
Couldn't load pickup availability
The SmartElex LoRa Module Ra-02 SX1278 433MHz is a powerful wireless transmission breakout board built around SEMTECH’s advanced LoRa SX1278 transceiver chip.
Utilizing LoRa spread spectrum technology, it delivers an impressive communication range of up to 10,000 meters while maintaining excellent resistance to interference.
Designed for efficiency, the module offers ultra-low power consumption with air wake-up functionality, making it ideal for battery-powered IoT systems.
The LoRa Ra-02 module combines high sensitivity (-148 dBm) and a robust +20 dBm output power, ensuring long-distance, reliable data transmission.
Perfect for smart home networks, remote meter reading, and security monitoring systems, this module provides an exceptional balance of range, stability, and energy efficiency.
| Specification | Details |
|---|---|
| Item Type | Breakout Board |
| Operating Voltage (V) | 1.8 to 3.7 |
| Frequency Rating | 433 MHz |
| Model | Wireless Transmitter Modules |
| Communication Distance | Up to 15 KM |
| Sensitivity (dBm) | Down to -148 dBm |
| Programmable Bit Rate | Up to 300 Kbps |
| RSSI Dynamic Range | 127 dB |
