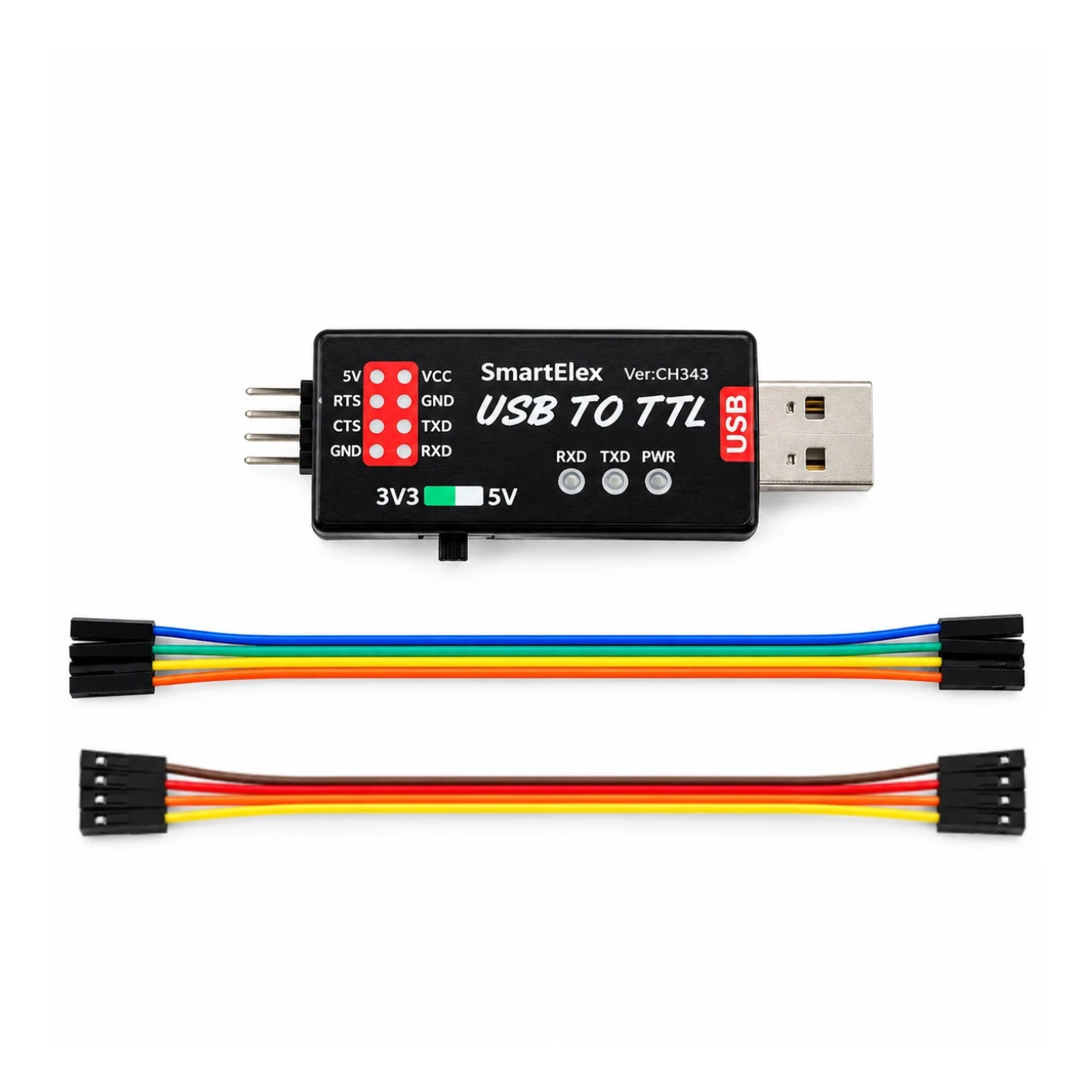

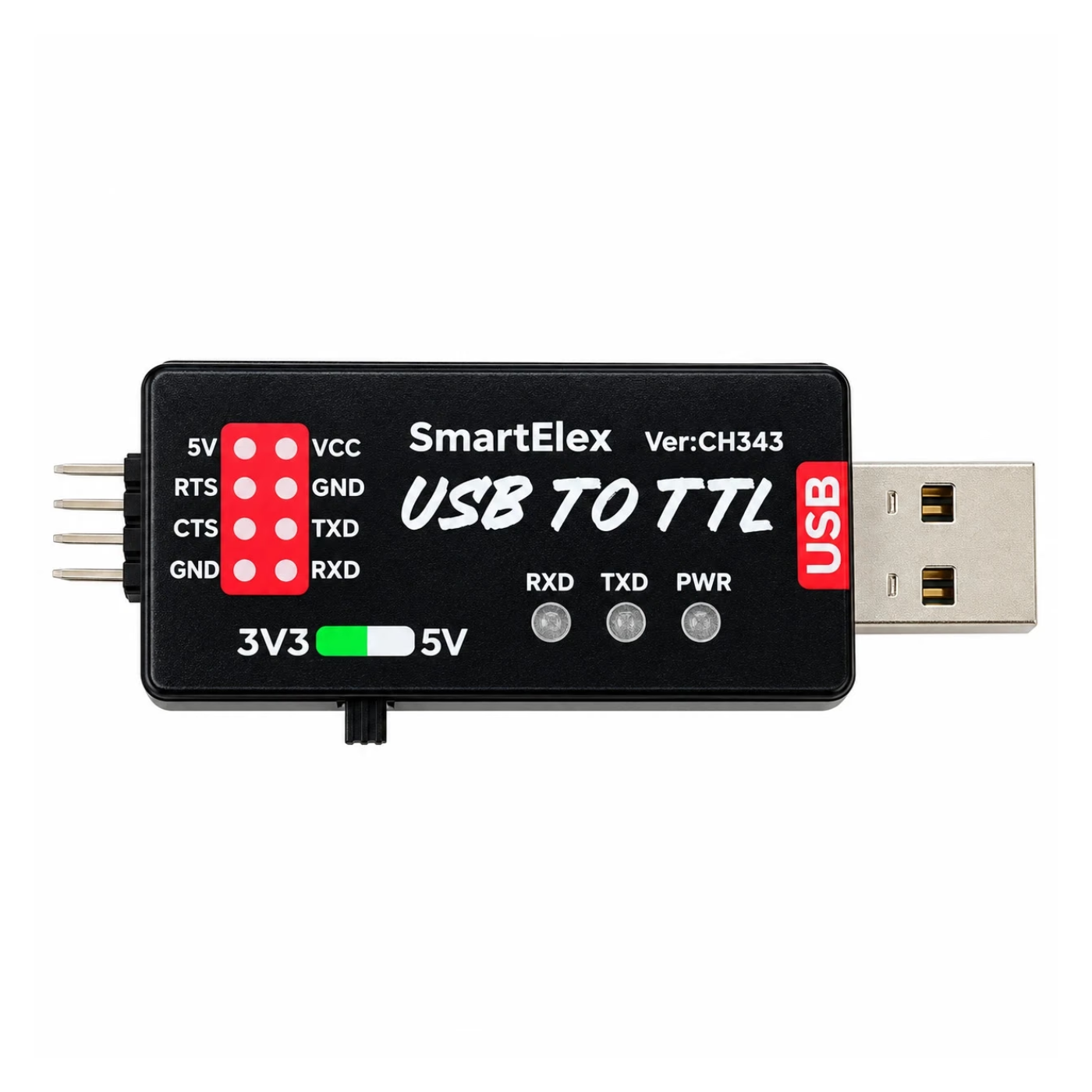

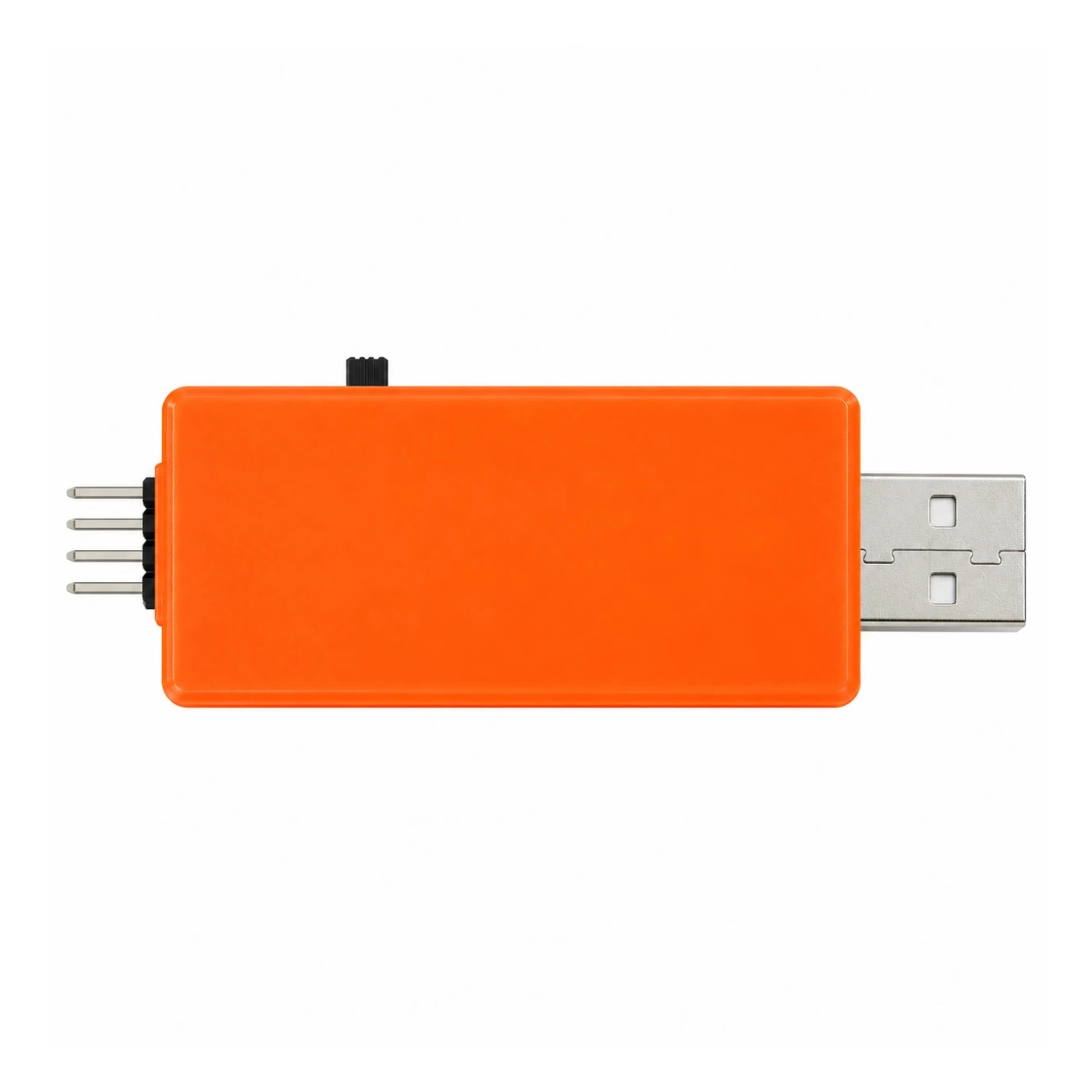

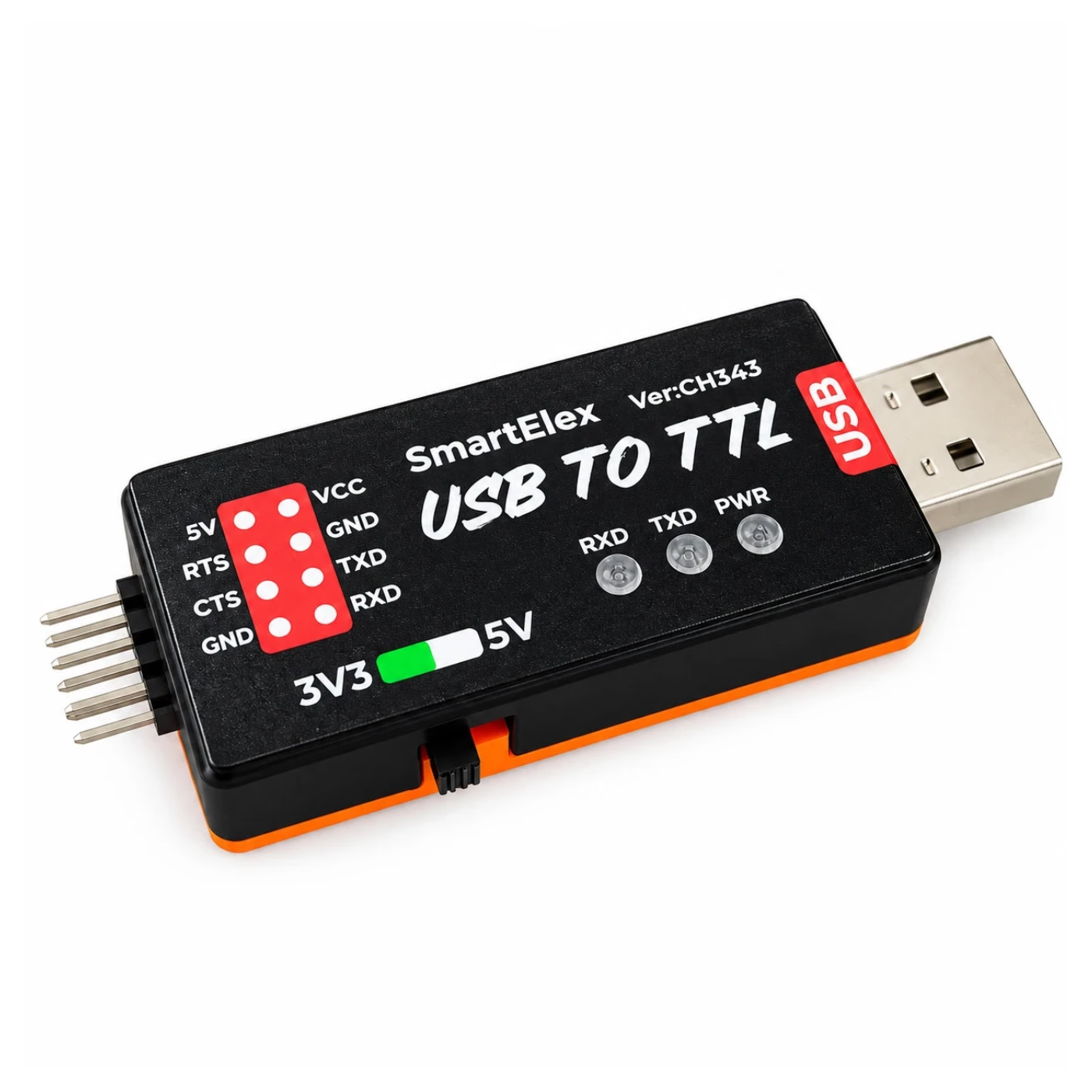

SmartElex Industrial USB to TTL Bidirectional Converter | Original CH343G USB to UART
Let us know!
We'll try to match the price for you
Couldn't load pickup availability
The SmartElex Industrial USB to TTL Bidirectional Converter provides a reliable interface between USB host devices and TTL UART-based electronics. It uses the original CH343G USB-to-serial chip for stable communication and is suitable for microcontrollers, development boards, embedded systems, debugging and industrial applications.
The converter supports communication speeds from 300 bps up to 3 Mbps and provides bidirectional USB-to-TTL data transmission. Its compact industrial design and wide operating-system compatibility make it convenient for programming, serial monitoring, testing and embedded communication applications.
| Specification | Details |
|---|---|
| Model No. / Name | USB TO TTL Bidirectional Converter |
| IC Chip | CH343G |
| Logic Voltage | 3.3 V / 5 V Selectable |
| Interface | USB to TTL UART |
| Max. Baud Rate | 6 Mbps |
| Data Communication Speed | 50 bps |
| Indicators | PWR, TXD, RXD |
| Length | 73 mm |
| Width | 24 mm |
| Height | 14 mm |
| Weight | 16 g |
