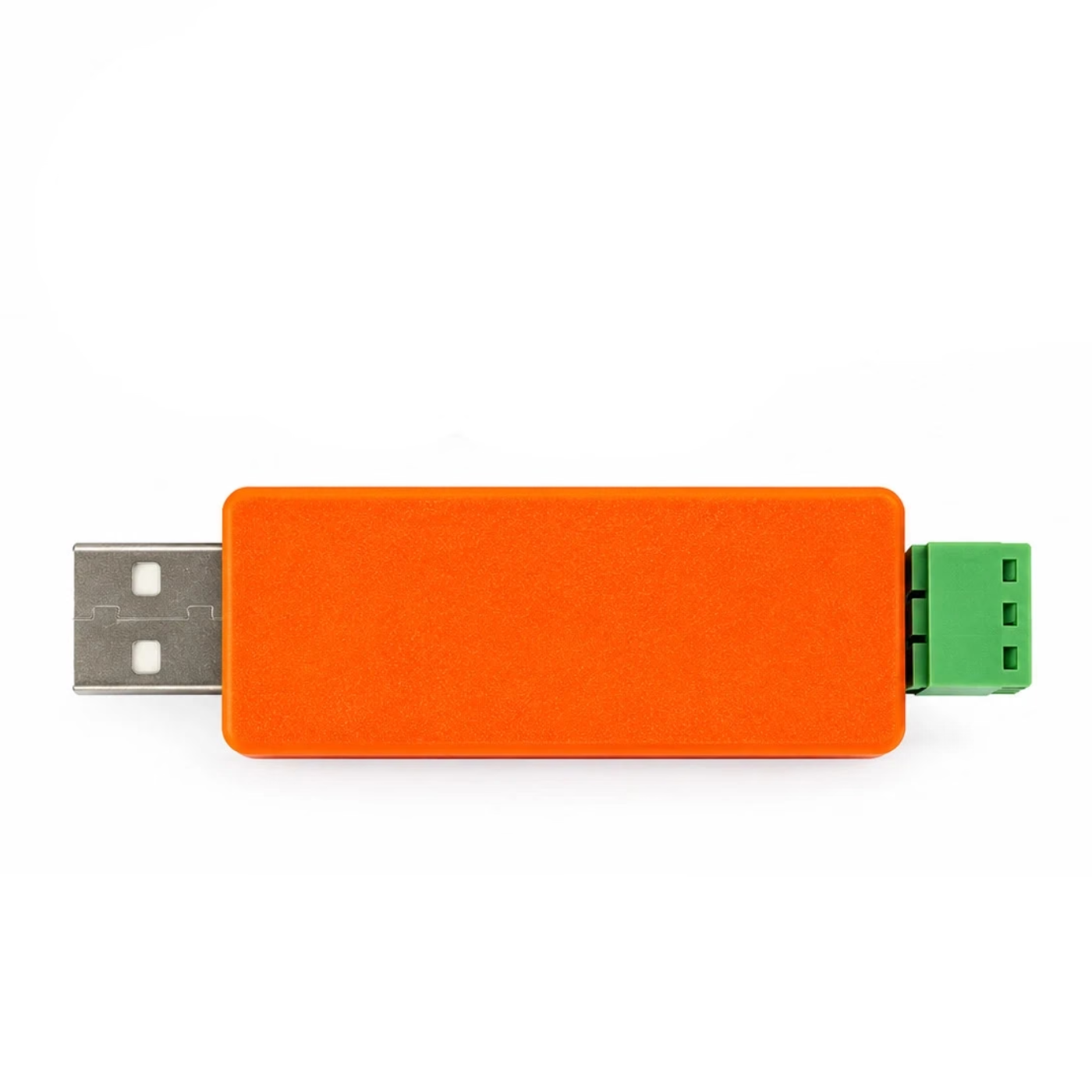

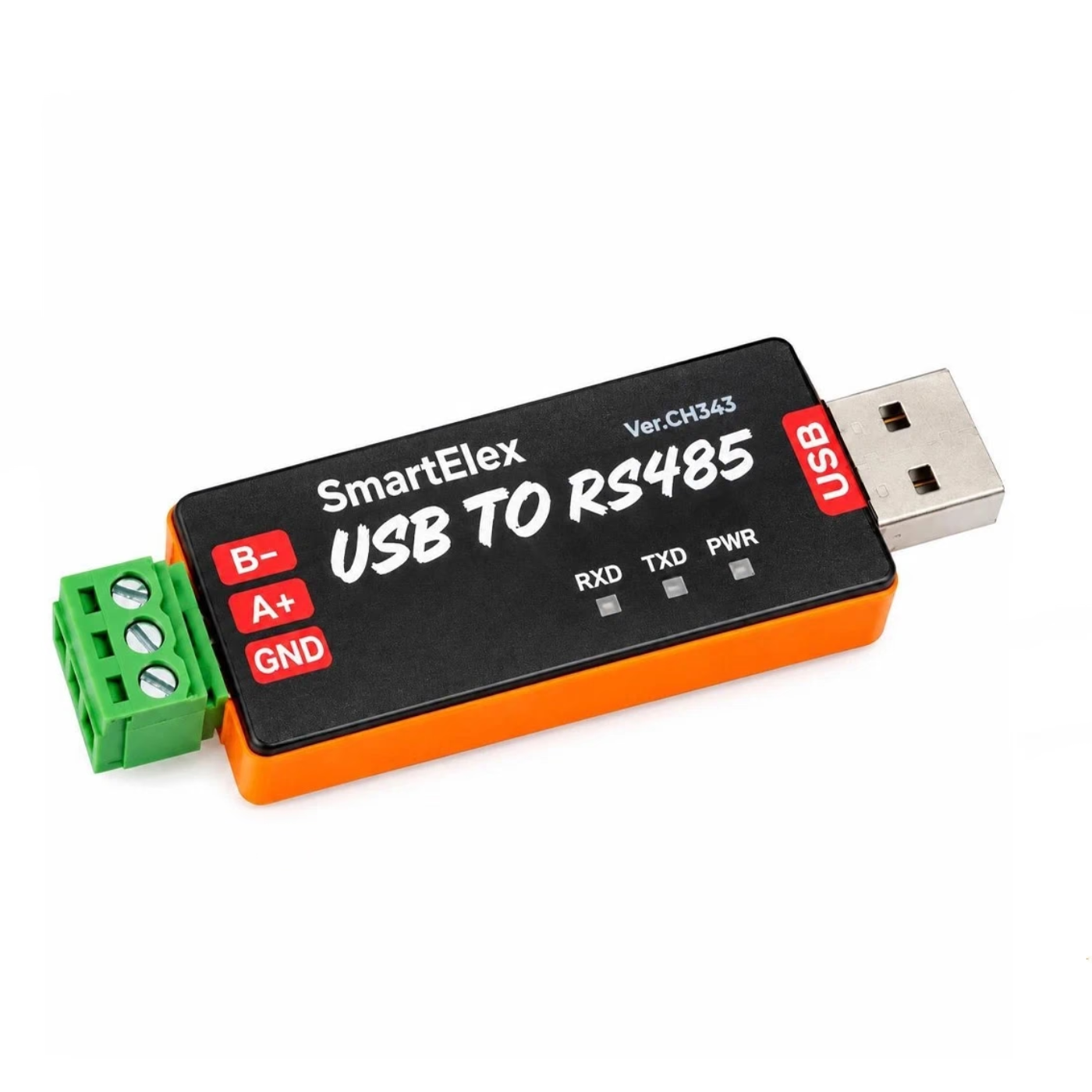

SmartElex Industrial USB to RS485 Bidirectional Converter | CH343G USB-A to RS485
Let us know!
We'll try to match the price for you
Couldn't load pickup availability
The SmartElex Industrial USB to RS485 Bidirectional Converter provides a reliable connection between a computer or USB host and RS485 devices. It uses the CH343G USB-to-serial converter and supports automatic bidirectional data transmission, making it suitable for industrial communication, automation, monitoring and embedded applications.
The converter supports communication speeds up to 3 Mbps and RS485 transmission distances of up to approximately 1.2 km at low data rates. It includes A+, Bโ and GND screw terminals, automatic direction control, three status LEDs and multiple protection circuits including TVS, ESD, surge and resettable-fuse protection.
| Specification | Details |
|---|---|
| Model No. / Name | Industrial USB TO RS485 Bidirectional Converter |
| IC Chip | CH343G |
| Conversion | USB โ RS485 |

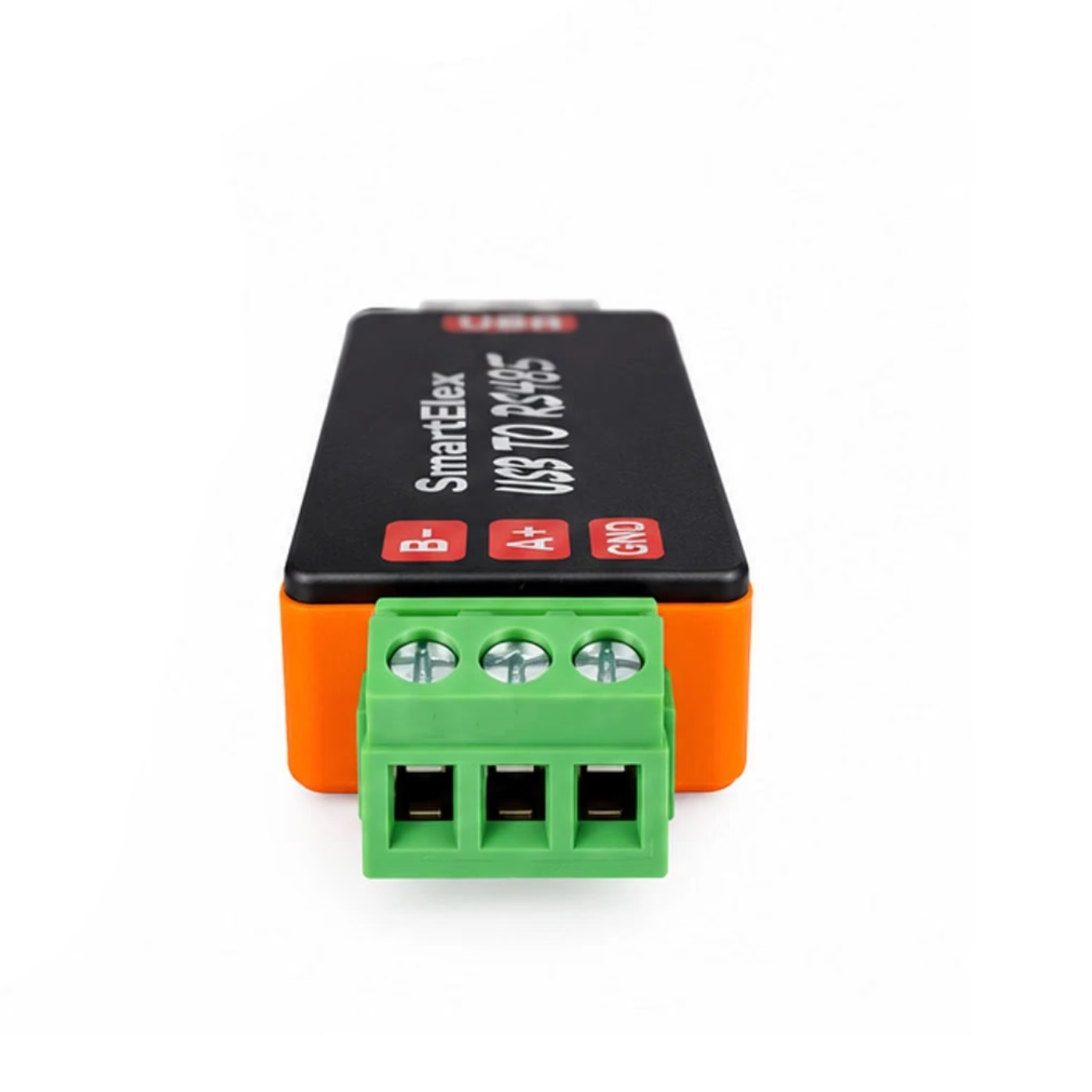

| RS485 Interface | A+, B-, GND |
| RS485 | Half-duplex |
| Baud Rate | 300 bps to 3 Mbps |

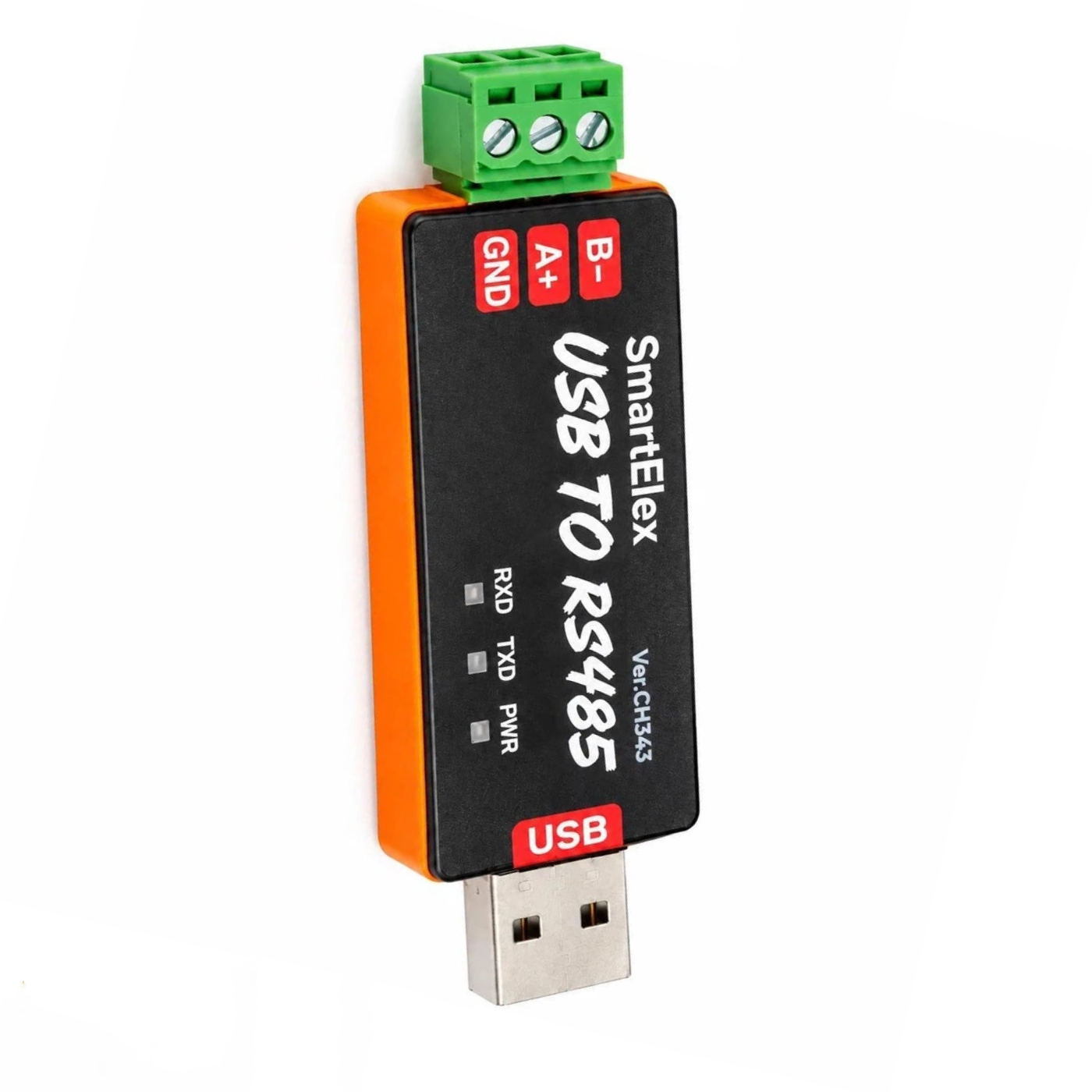

| LED Indicator | TXD, RXD, PWR |
| Communication Distance | Up to approx. 1.2 km (Low Baud Rate) |
| Fuse | Resettable PTC, 6 V, 500 mA Hold, 1 A Trip, 1206 Package |
| Supply Voltage | 5 V |
| Length | 75 mm |
| Width | 23 mm |
| Height | 13 mm |
| Weight | 18 g |
