High-precision ADC HAT designed to add analog input capability to Raspberry Pi projects
ADS1263 provides 10-channel 32-bit ADC with 5 differential input channels
Supports up to 38.4 kSPS sampling rate for high-resolution data acquisition
Programmable gain up to 32× with differential and single-ended input modes
Includes sensor headers, screw terminals and SPI interface for flexible connections

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

+91

Company / Client

GST *

Materials List

File(s) size limit is 20MB. Max 3 files.

Choose Categories * (select one or more)

Select Categories

STEM Kits Development Boards Electronic Components Drone 3D Printers/Pens Sensors Batteries & Power Supply Tools & Instruments

Enter the Captcha *

Reload Captcha

SmartElex High-Precision AD HAT for Raspberry Pi

~~Rs 2,029/-~~ Rs 1,819/-

Quantity:

SmartElex High-Precision AD HAT for Raspberry Pi

~~Rs 2,029/-~~ Rs 1,819/-

Description
Specifications
Shipping & Return

Description

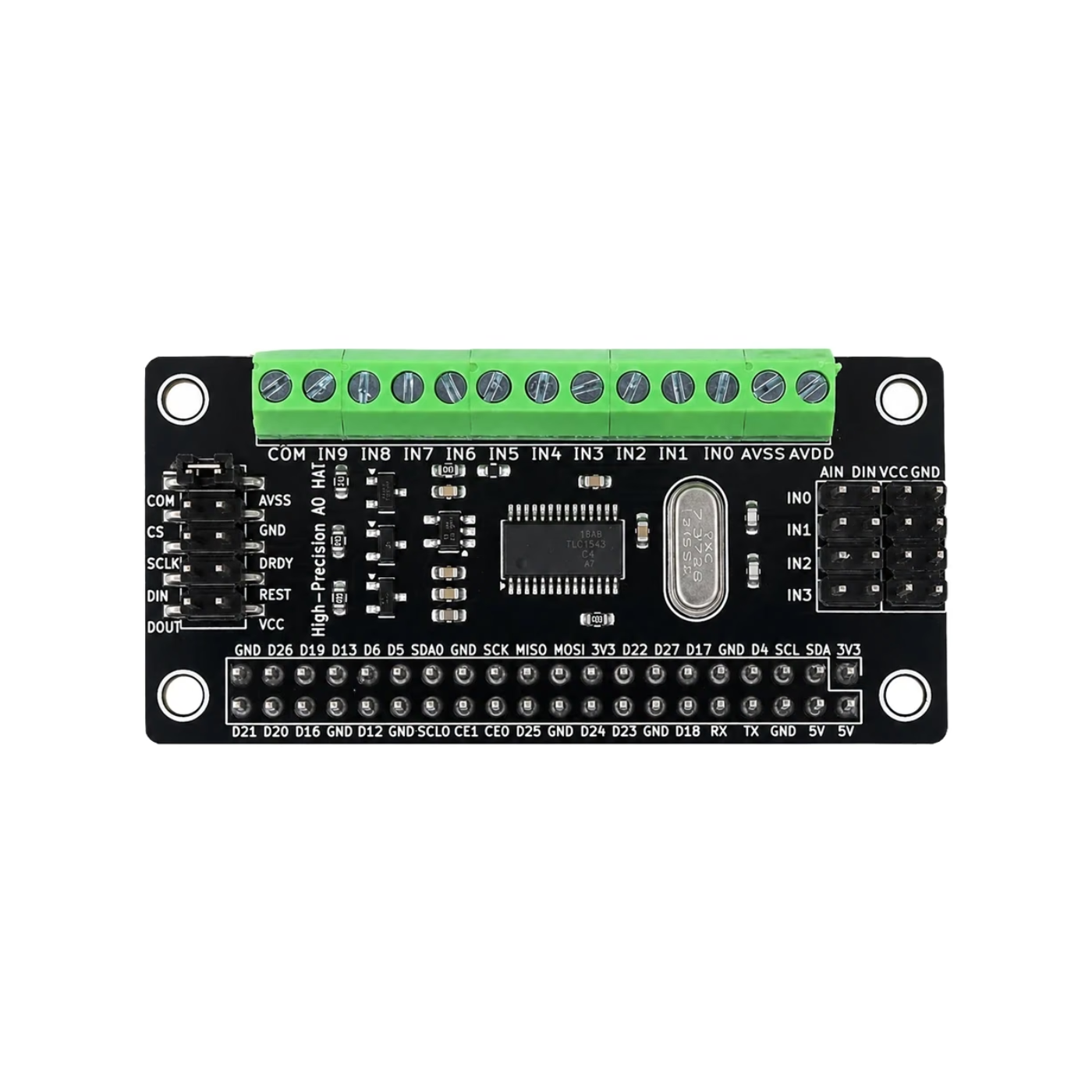

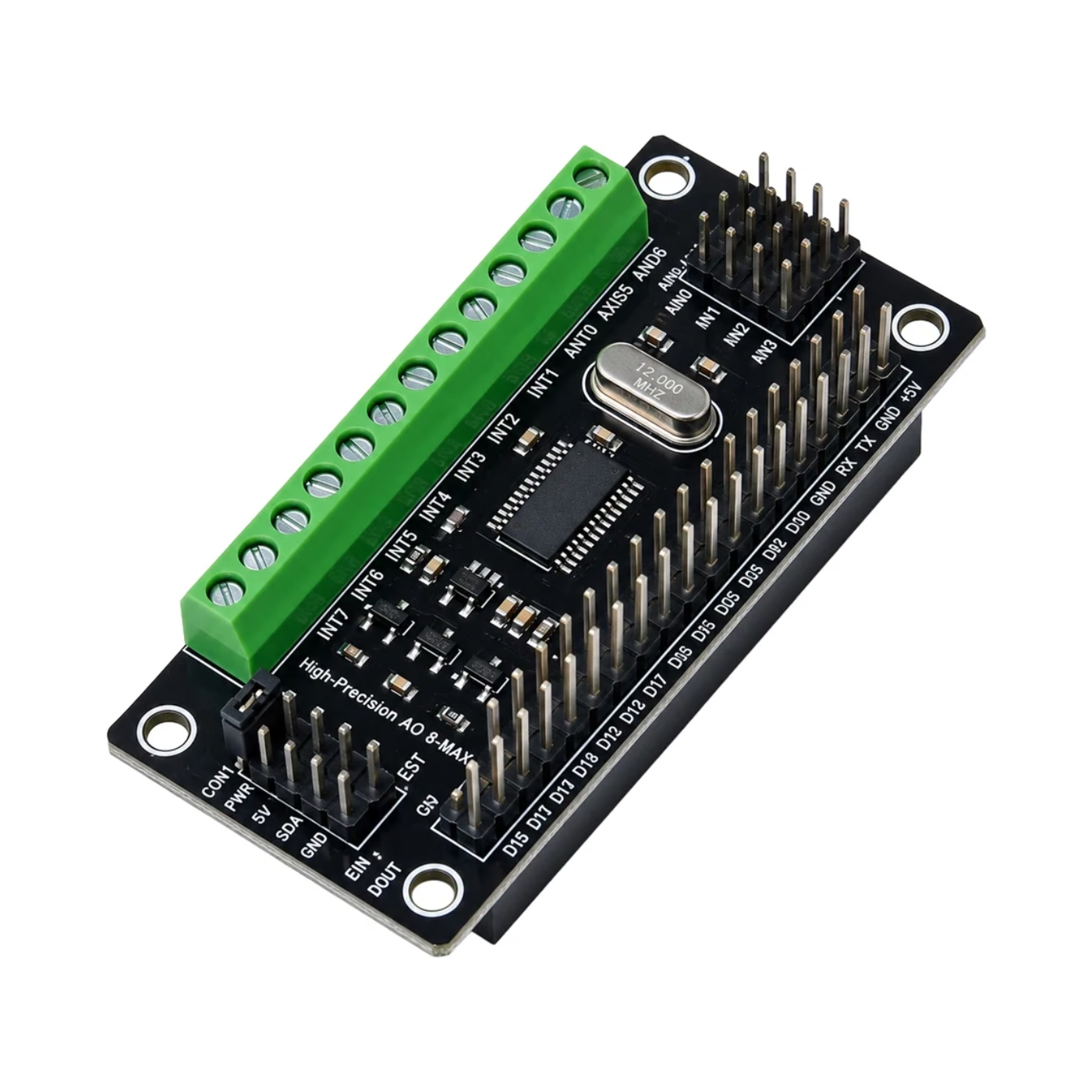

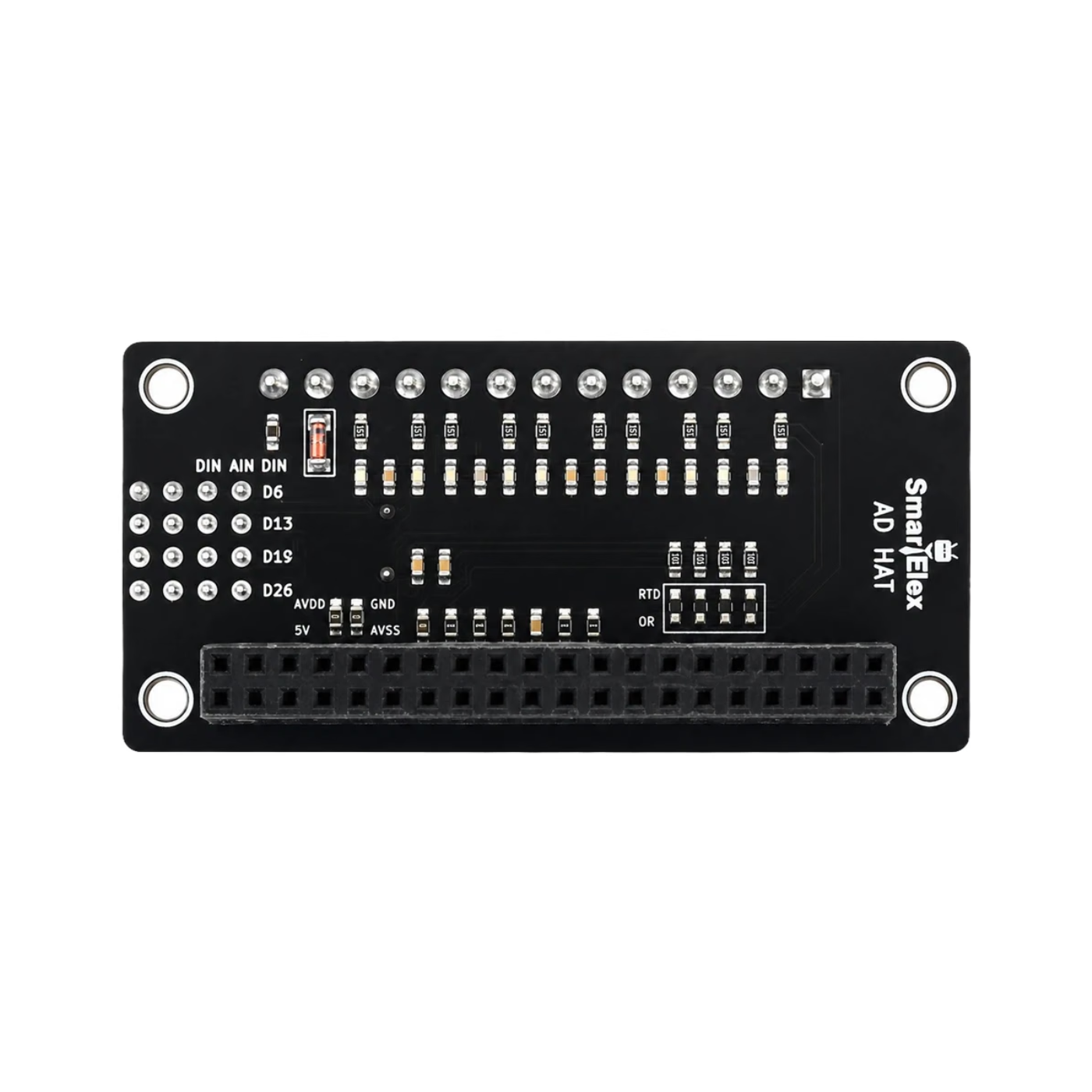

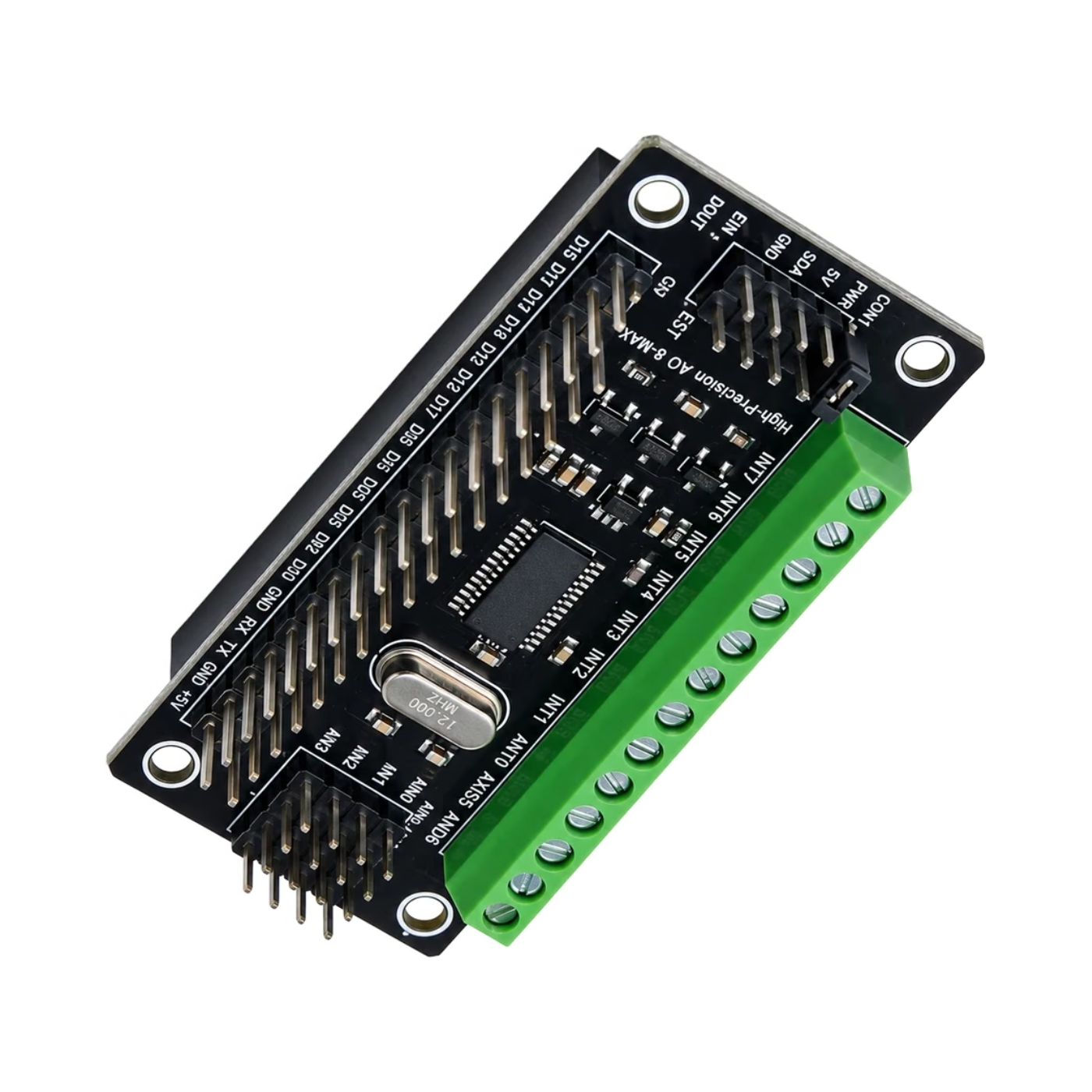

The SmartElex High-Precision AD HAT adds high-resolution analog-to-digital conversion to Raspberry Pi projects using the ADS1263 32-bit ADC. It provides 10 input channels, including 5 differential inputs, with a maximum sampling rate of 38.4 kSPS. The board uses SPI communication and supports both differential and single-ended input modes.

It also features an integrated 24-bit auxiliary ADC, programmable gain up to 32×, internal and external reference voltage options, onboard sensor headers, screw terminals and a control header. These interfaces make it suitable for precision sensor measurement, data acquisition, temperature sensing and other Raspberry Pi-based instrumentation applications.

Features

32-Bit High-Precision ADC: Uses the ADS1263 ADC to provide high-resolution analog signal measurement across 10 input channels.
10-Channel Input: Provides 10 analog input channels, including 5 differential input channels for precision measurements.
38.4 kSPS Sampling: Supports a maximum sampling rate of 38.4 kSPS for responsive analog data acquisition.
24-Bit Auxiliary ADC: Includes an integrated 24-bit auxiliary ADC for additional measurement functions.
Programmable Gain: Supports PGA magnification up to 32× for measuring low-level analog signals.
Differential & Single-Ended Input: Supports both differential and single-ended analog input configurations.
Internal & External Reference: Supports internal and external reference voltage options for flexible measurement setups.
SPI Communication: Uses the SPI bus for communication with Raspberry Pi and other compatible host controllers.

Specifications

Package Includes:

1 x SmartElex High-Precision AD HAT for Raspberry Pi

Specifications

Specification	Details
Product Type	ADC HAT Module
ADC Chip	ADS1263
Resolution	32-bit
Input Channels	10
Differential Inputs	5
Sampling Rate	38.4 kSPS
Interface	SPI
PGA Gain	Up to 32×
Reference Voltage	2.5 V Internal
Measurement Type	Single-Ended & Differential
Compatibility	Raspberry Pi
