SmartElex GPS-RTK Board SMA ZED-F9P-02B
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability

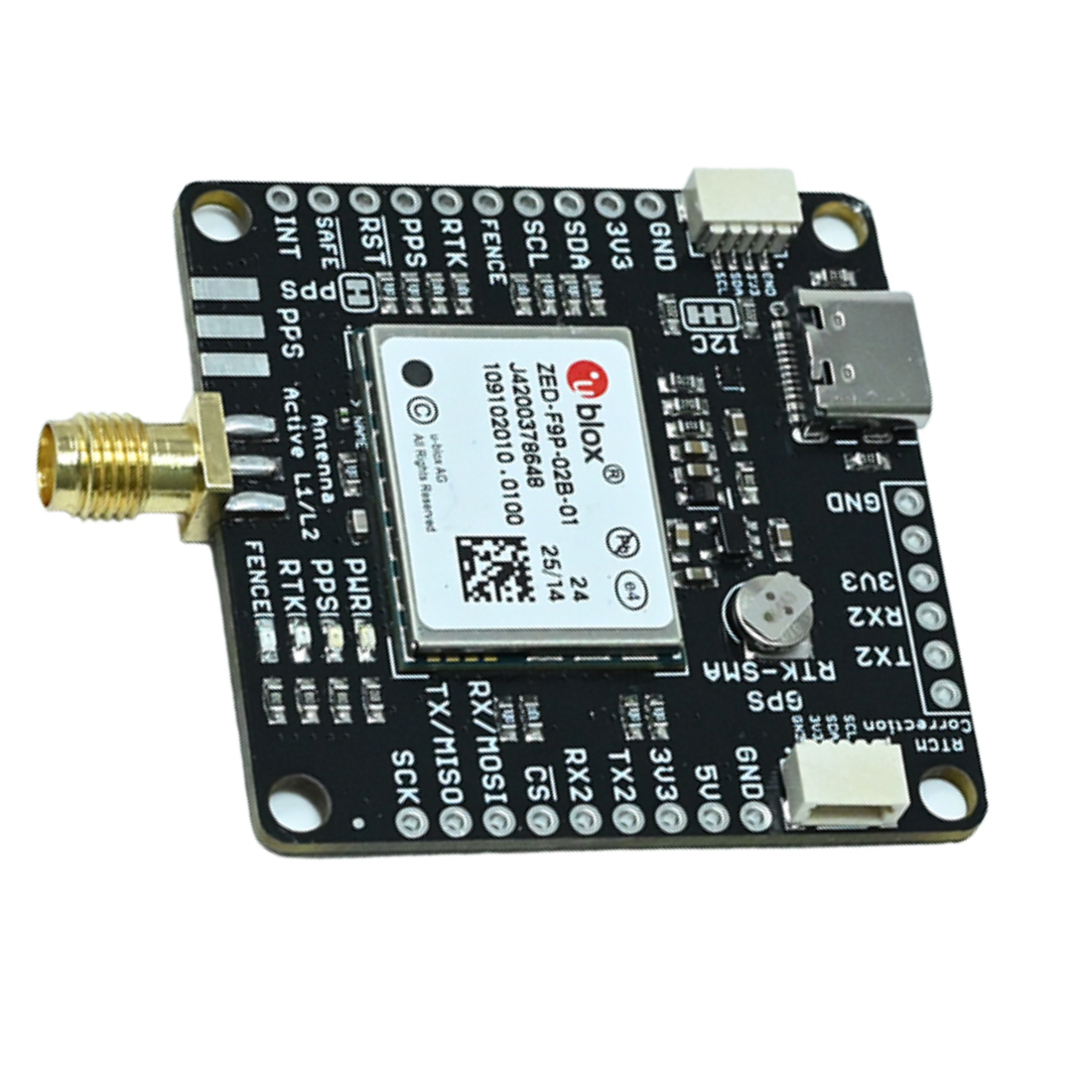

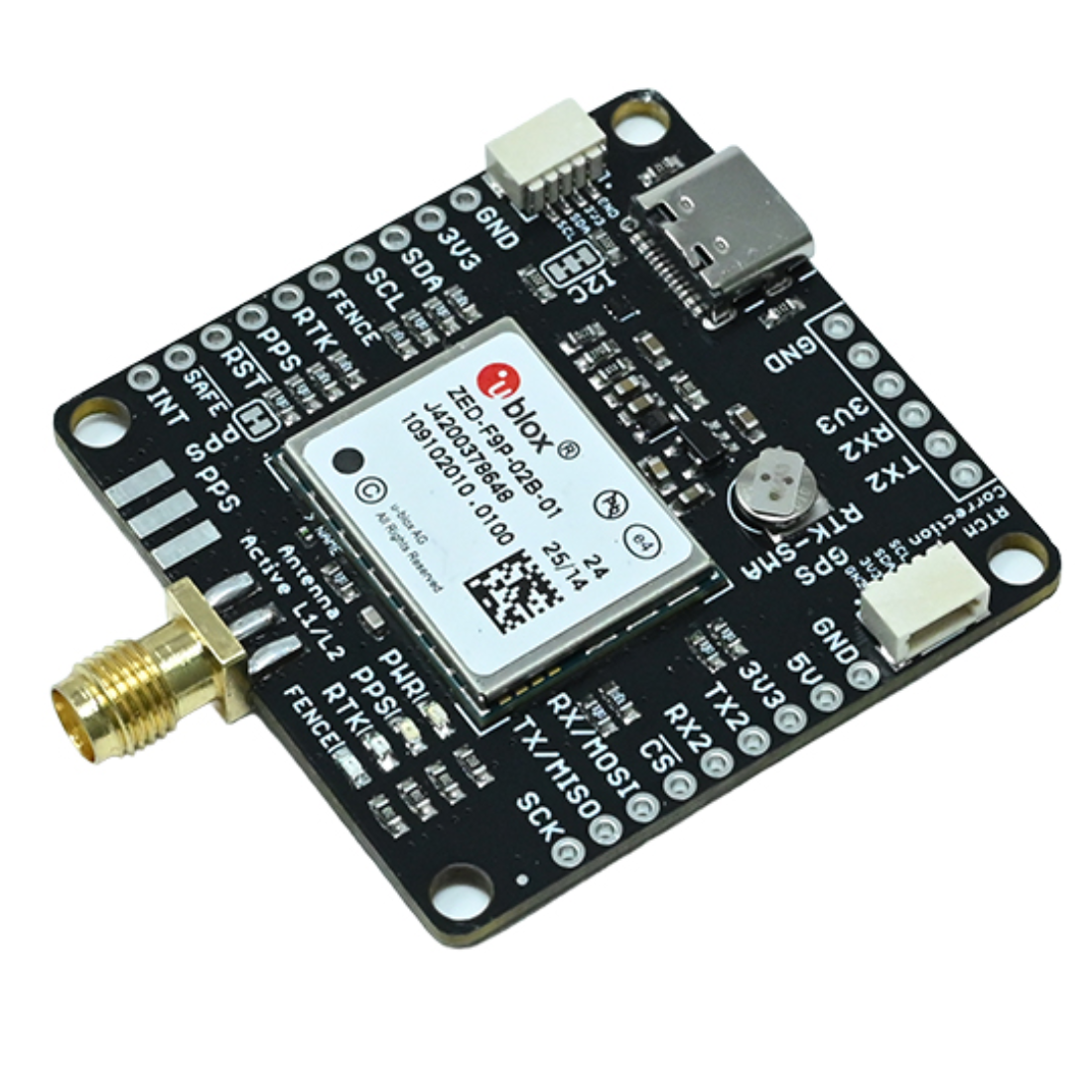

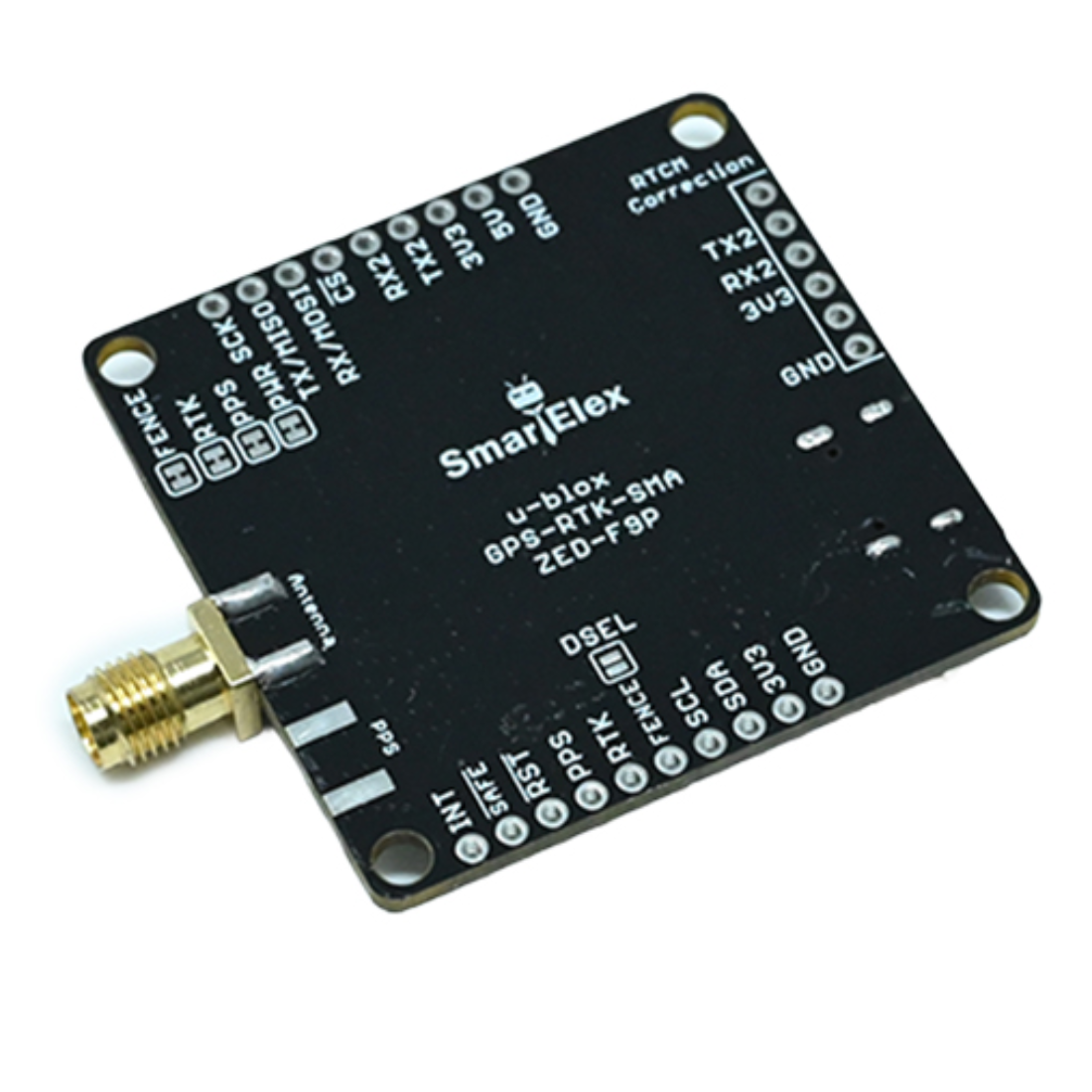

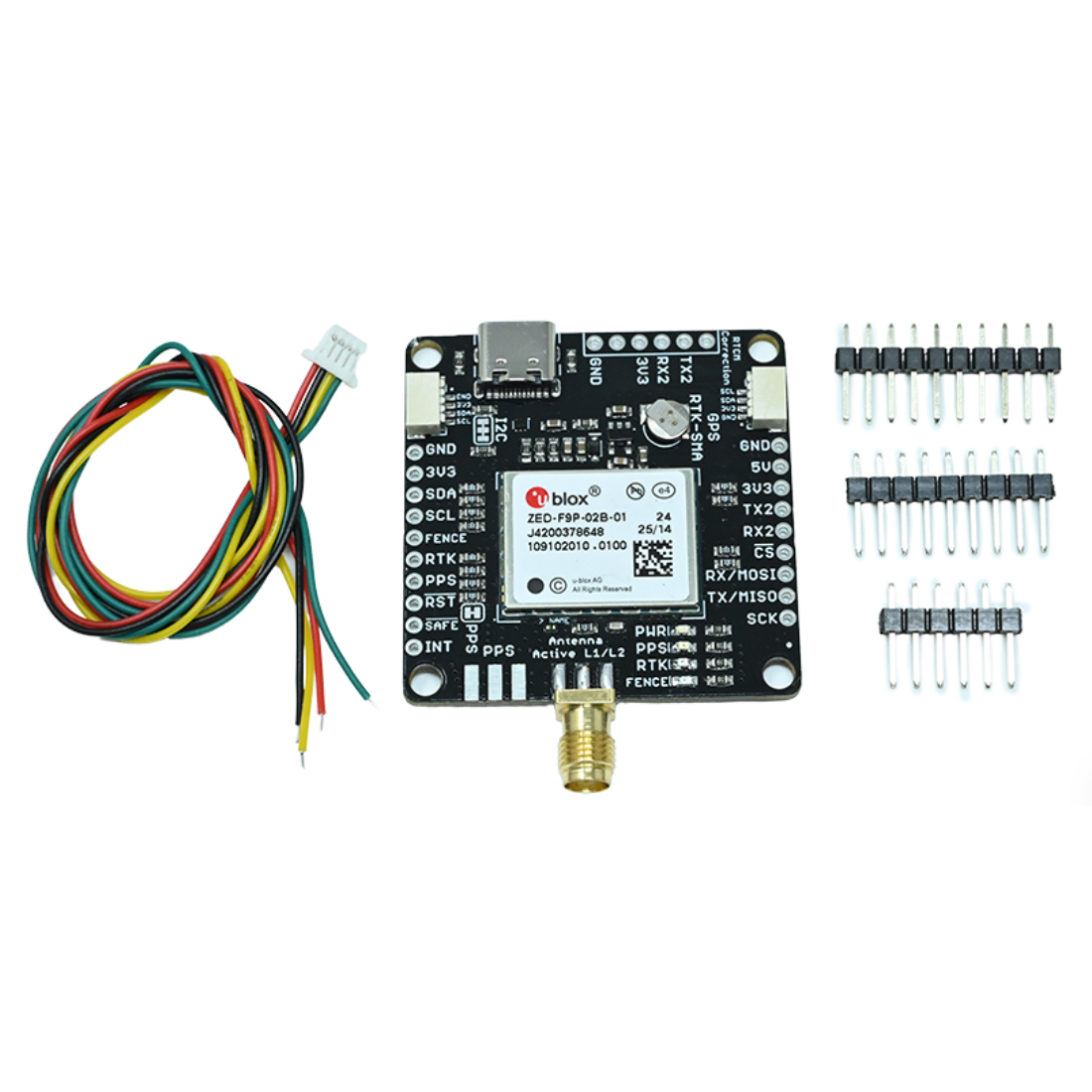

The SmartElex GPS-RTK Board SMA ZED-F9P-02B is a high-precision GNSS module powered by the advanced u-blox ZED-F9P chipset, designed to deliver centimeter-level positioning accuracy using RTK (Real-Time Kinematics) technology. With support for dual-band GNSS (L1 & L2) and multiple satellite constellations including GPS, GLONASS, Galileo, and BeiDou, this board ensures reliable and accurate positioning even in challenging environments. Its robust design and SMA connector make it ideal for use with external antennas, enhancing signal strength and performance.
Built for versatility, the board can function as both a rover and a base station, making it suitable for a wide range of applications such as robotics, surveying, precision agriculture, and autonomous navigation systems. It features multiple communication interfaces including USB-C, UART, I2C, and SPI for seamless integration with development platforms. Additionally, the onboard rechargeable backup battery supports warm starts, while configurable update rates up to 20Hz provide real-time, high-precision tracking.
| Parameter | Specification |
|---|---|
| GNSS Module | u-blox ZED-F9P-02B |
| Positioning Accuracy | ~2.5m (Standard), ~1 cm (RTK) |
| Supported GNSS | GPS, GLONASS, Galileo, BeiDou |
| Frequency Bands | L1C/A, L2C |
| Operating Voltage | 3.3V – 5V |
| Logic Level | 3.3V |
| Current Consumption | 68mA – 130mA |
| Time to First Fix (TTFF) | 25s (Cold Start), 2s (Hot Start) |
| Max Navigation Rate | 25Hz (PVT), 20Hz (RTK) |
| Interfaces | USB-C, UART, I2C, SPI |
| Antenna Connector | SMA |
| Backup Battery | Rechargeable (for warm start) |
| Max Altitude | 50 km |
| Max Velocity | 500 m/s |
| Operating Temperature | -40°C to +85°C |
| Dimensions | ~45 mm × 45 mm × 5 mm |
| Weight | ~10 g |
