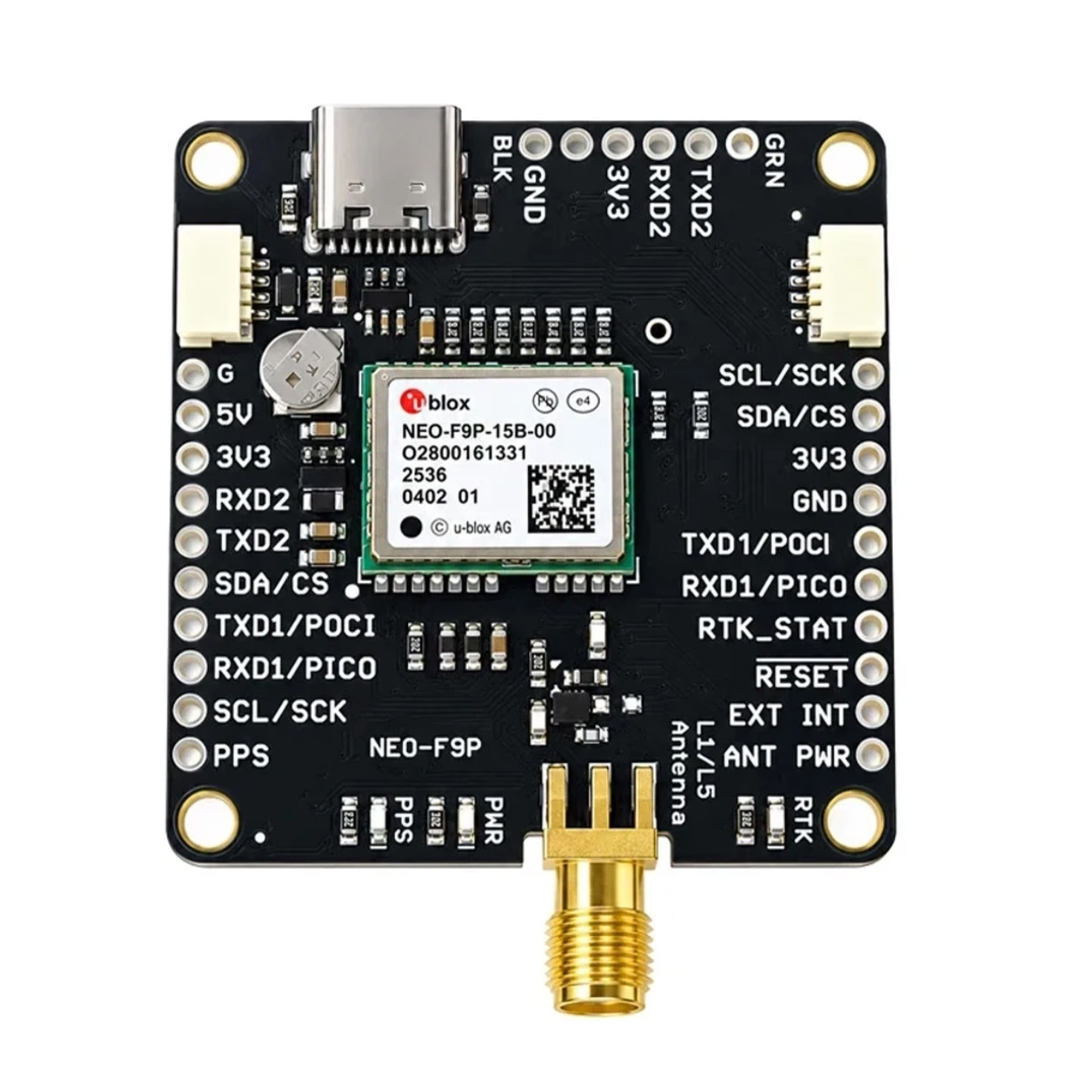

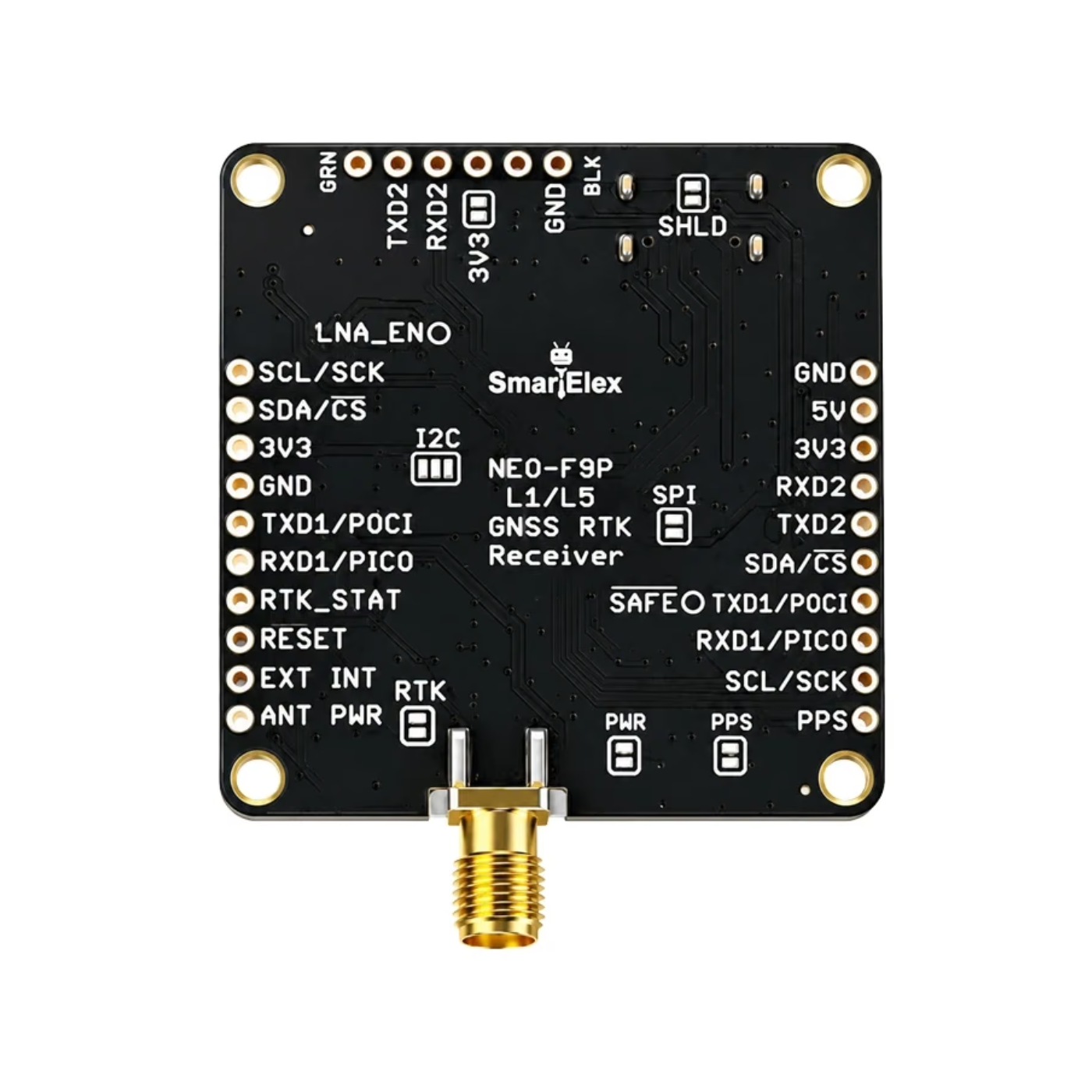

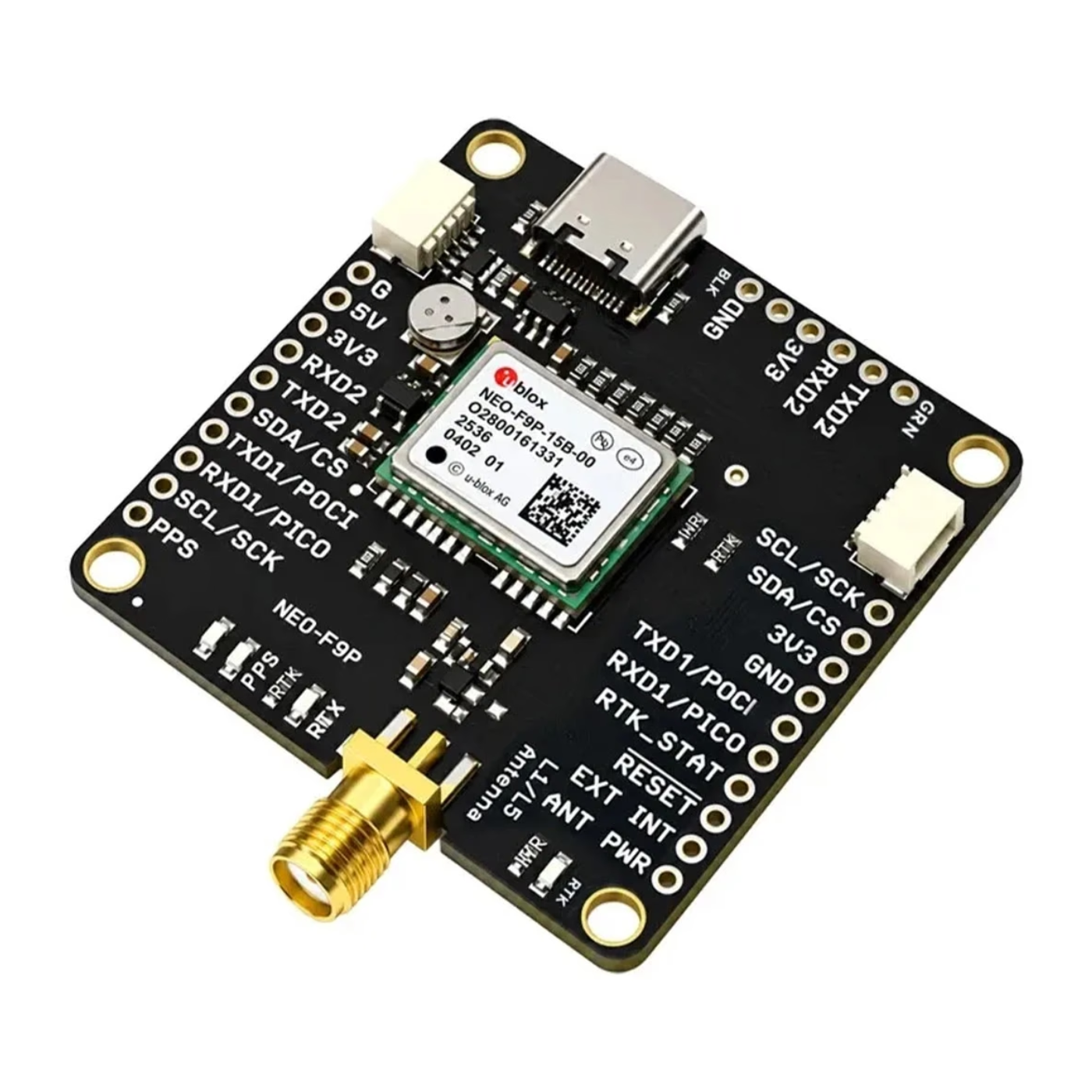

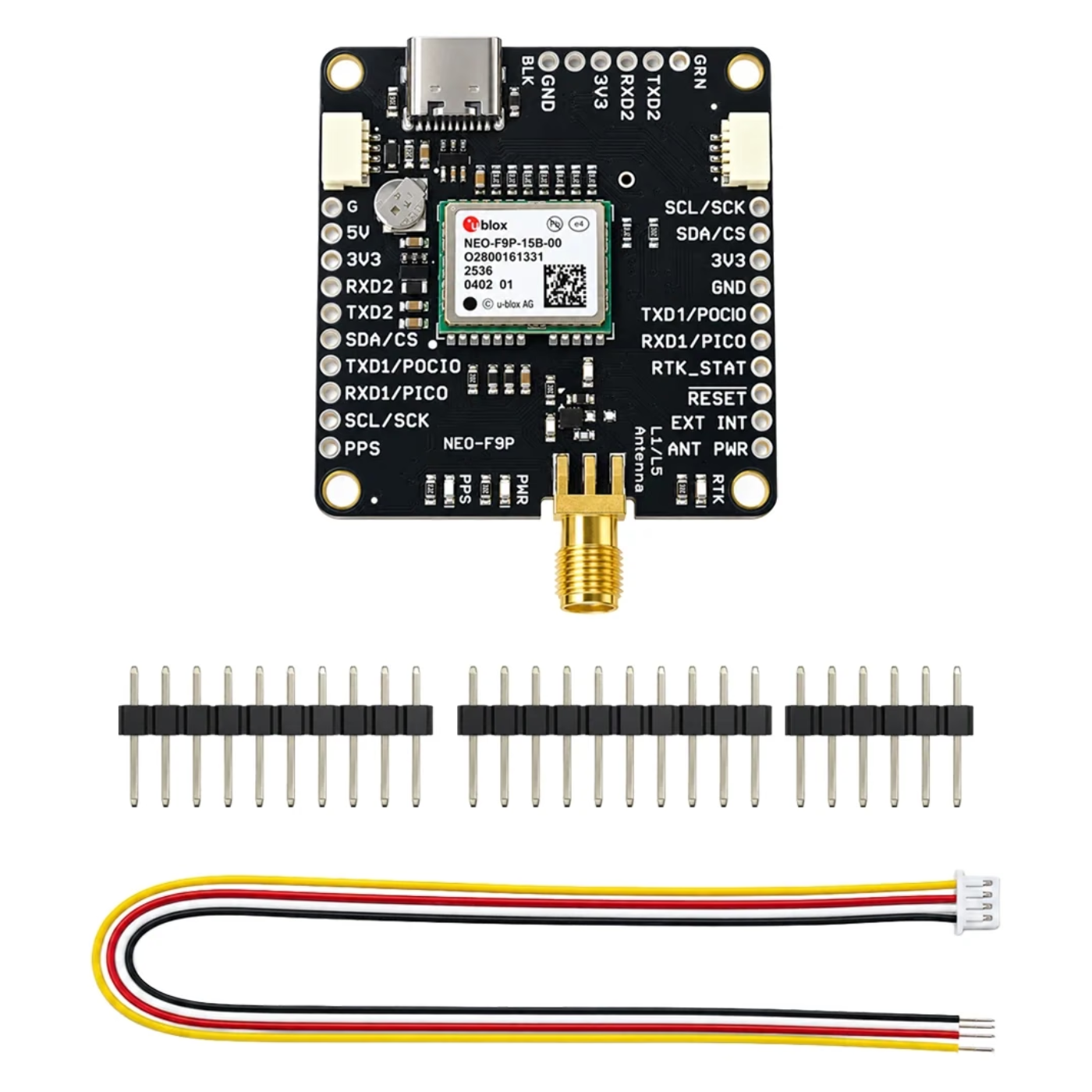

SmartElex NEO-F9P-15B GNSS RTK L1/L5 Breakout

SmartElex GNSS-RTK L1/L5 Breakout

The SmartElex GNSS-RTK L1/L5 Breakout is based on the u-blox NEO-F9P-15B high-precision GNSS receiver, designed for accurate positioning and navigation applications. It supports multi-band L1/L5 reception and concurrent tracking of GPS, GLONASS, Galileo and BeiDou constellations. The module supports RTK technology for centimeter-level positioning accuracy with suitable correction data.

With support for RTK, dual-band GNSS, multiple communication interfaces and external antenna connection, this breakout is suitable for drones, robotics, autonomous systems, surveying, precision agriculture, navigation and other high-precision positioning projects.

Features

• u-blox NEO-F9P-15B: Based on the u-blox F9 high-precision GNSS receiver for accurate positioning and navigation.
• Dual-Band L1/L5: Supports multi-band GNSS reception across L1/L5 frequencies for improved positioning performance and reliability.
• Multi-Constellation GNSS: Supports concurrent reception of GPS, GLONASS, Galileo and BeiDou satellite systems.
• RTK Positioning: Supports Real-Time Kinematic positioning with accuracy of approximately 0.01 m + 1 ppm CEP when suitable RTK correction data is available.
• Fast RTK Convergence: The NEO-F9P platform supports RTK convergence in under 10 seconds under specified conditions.
• High Navigation Update Rate: Supports navigation updates up to 20 Hz depending on the active GNSS constellation and configuration.
• Multiple Interfaces: The NEO-F9P-15B provides UART, USB, SPI and I2C interfaces for flexible system integration.
• RTK Rover Support: Designed for high-precision rover applications including autonomous vehicles, drones and mobile positioning systems.
• External Antenna: Supports connection to an external active or passive GNSS antenna for flexible installation.
• High Dynamic Performance: Supports velocity accuracy of 0.05 m/s and dynamic heading accuracy of 0.3° under specified conditions.
