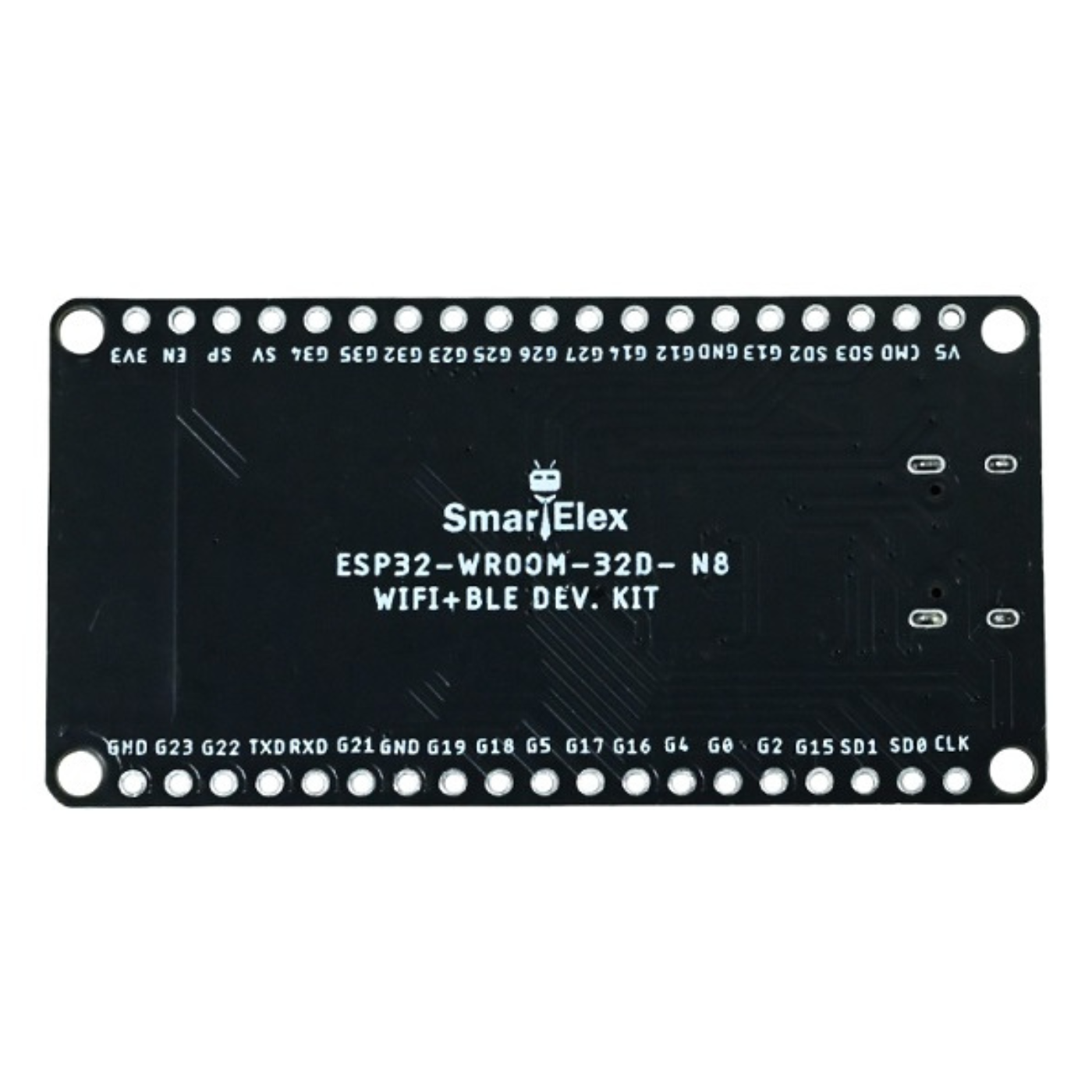

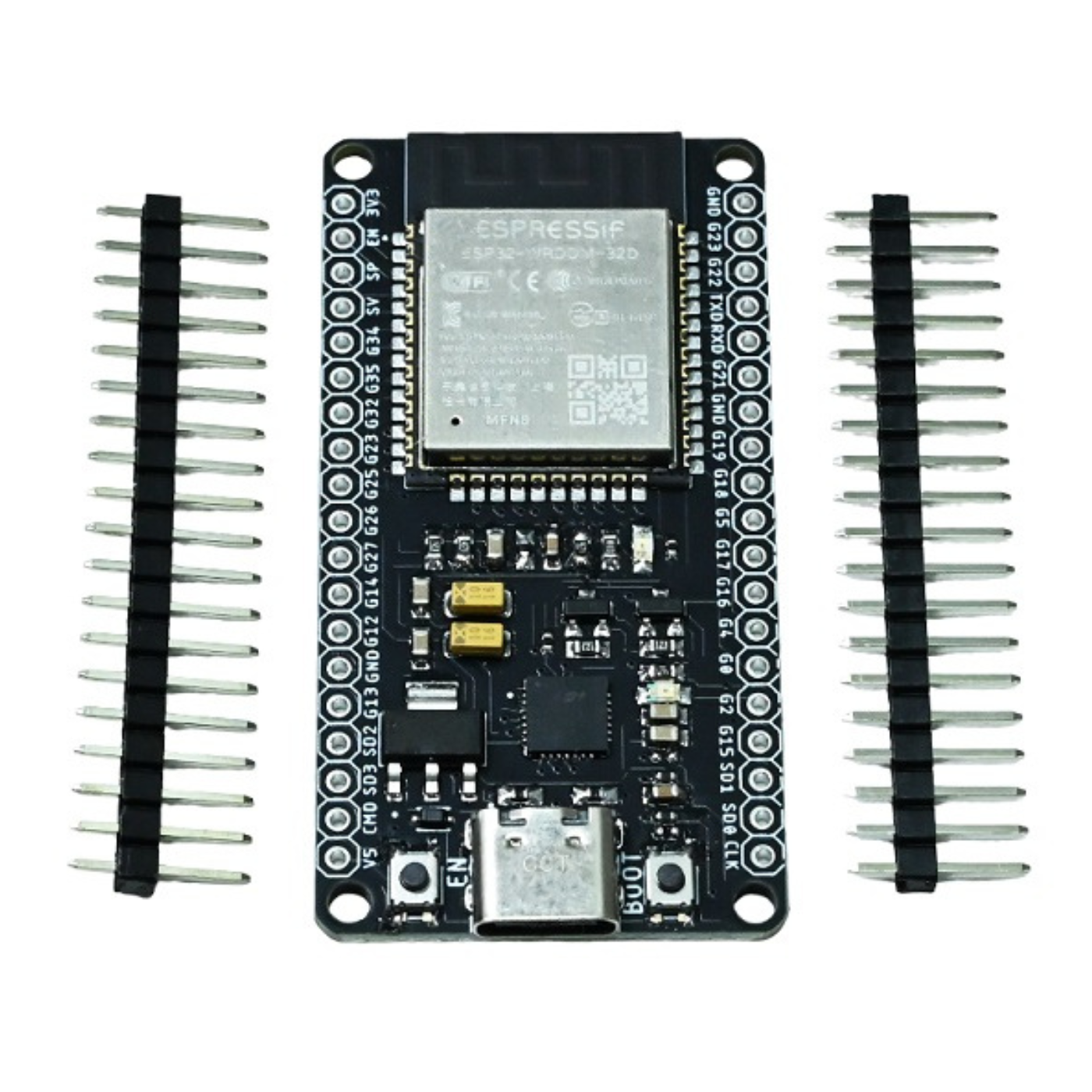

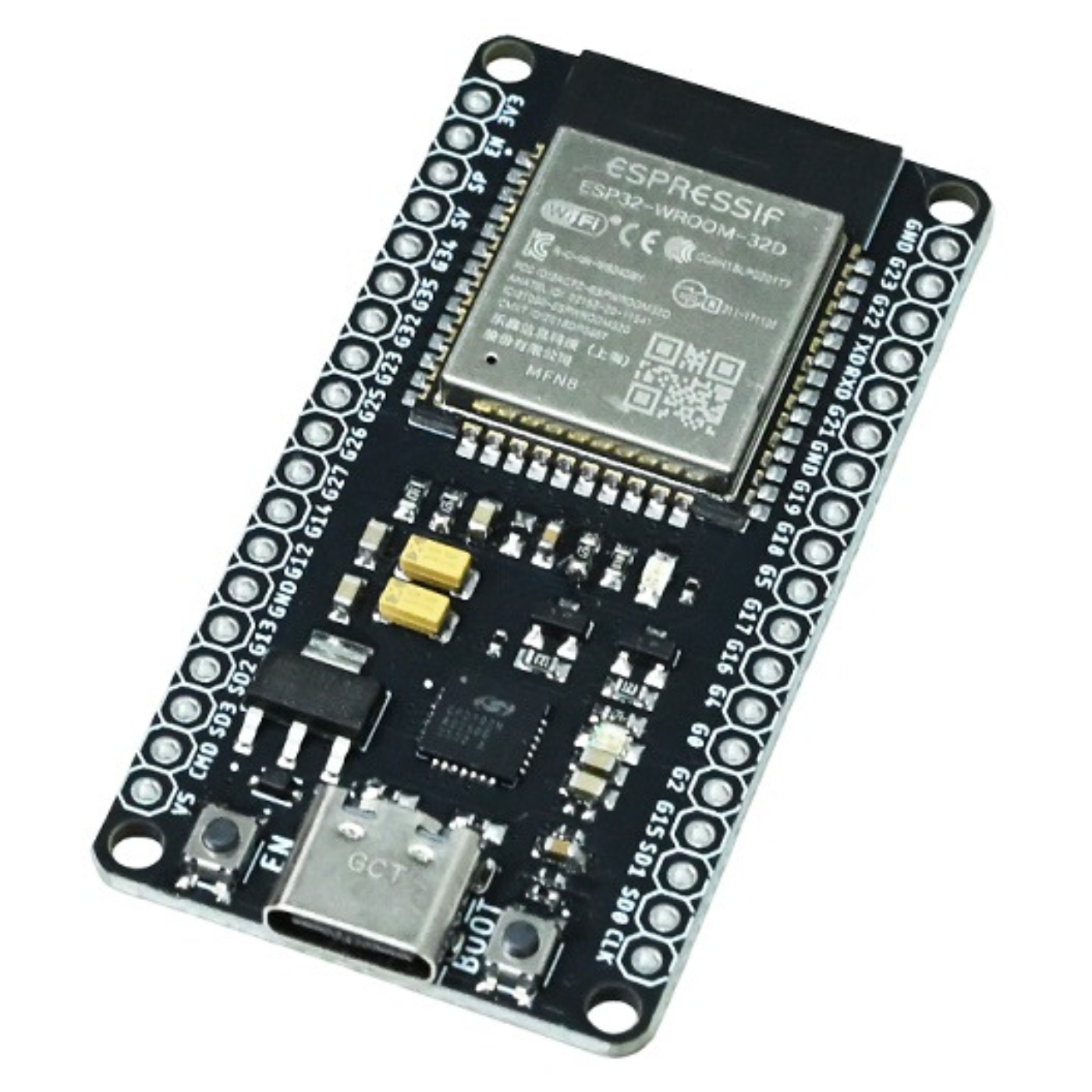

SmartElex ESP32-WROOM-32D-N8 WiFi + BLE DevKit Development Board
Couldn't load pickup availability
The SmartElex ESP32-WROOM-32D-N8 WiFi + BLE DevKit is a high-performance ESP32 development board designed for both low-power and high-demand IoT applications.
Built around the powerful ESP32 module, it features dual-core Xtensa processors that can be independently controlled and clocked between 80 MHz to 240 MHz for maximum flexibility.
This ESP32 DevKit integrates advanced connectivity options like Wi-Fi and Bluetooth (BLE), making it perfect for smart devices, sensor networks, and IoT projects.
It includes a wide range of peripherals such as touch sensors, UART, I²C, SPI, SD card, and Ethernet interfaces for enhanced functionality.
With ultra-low power consumption, high data rates up to 150 Mbps, and robust wireless range, the SmartElex ESP32-WROOM-32D-N8 stands out as an efficient and reliable solution for developers and hobbyists building connected systems.
| Specification | Details |
|---|---|
| Item Type | Kit |
| Operating Voltage (V) | 3 to 3.6 |
| Based On | ESP32 Based, WROOM Type |
| Flash Memory (MB) | 8MB |
| Processor | Two Low-Power Xtensa 32-bit LX6 Microprocessors |
| Operating Current (mA) | 80 |
| Clock Frequency (MHz) | 80 to 240 |
| Data Rate (Mbps) | 150 |
| SRAM Memory (KB) | 520 |
| Length (mm) | 28 |
| Width (mm) | 50 |
| Height (mm) | 14 |
| Weight (g) | 10 |
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only.
In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
