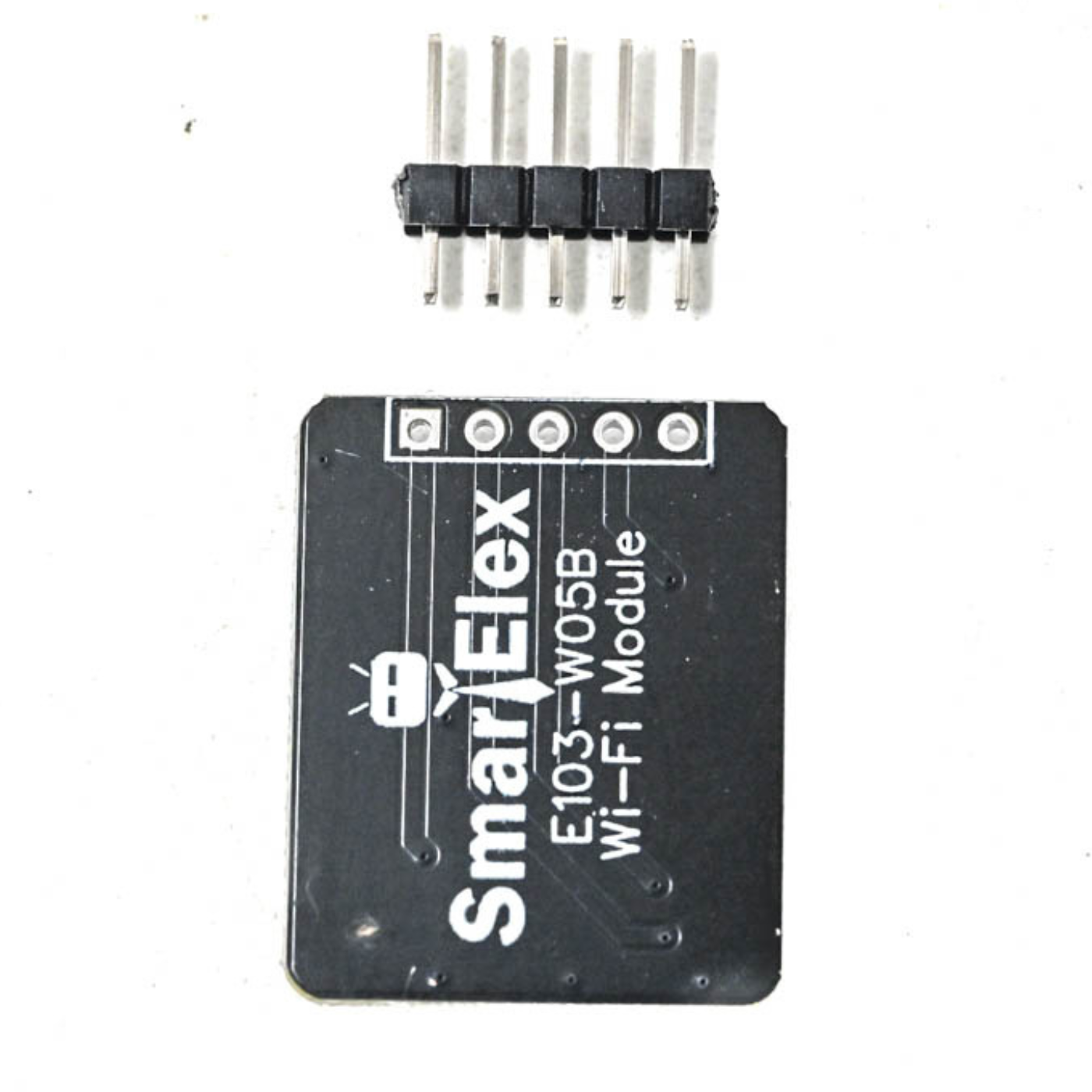

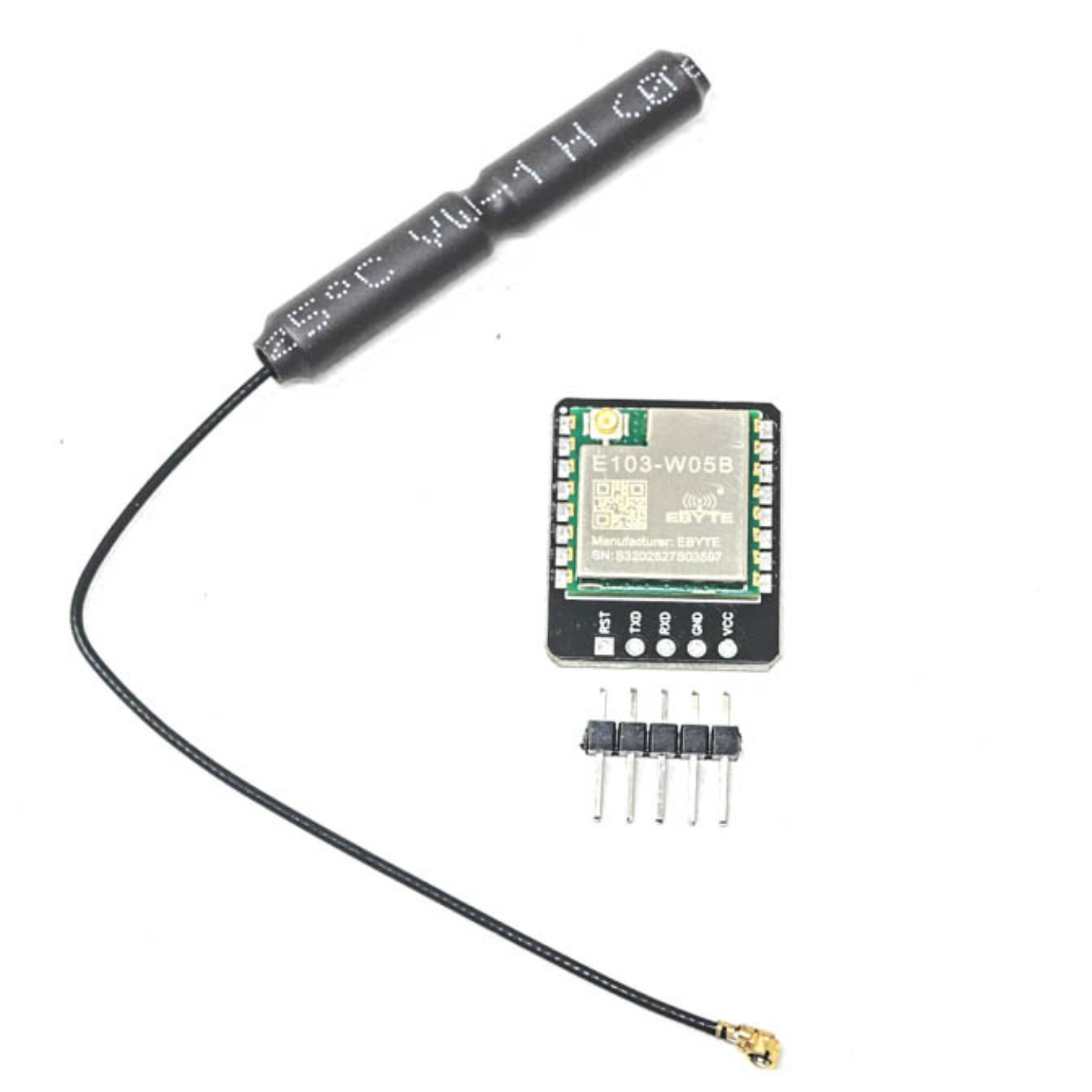

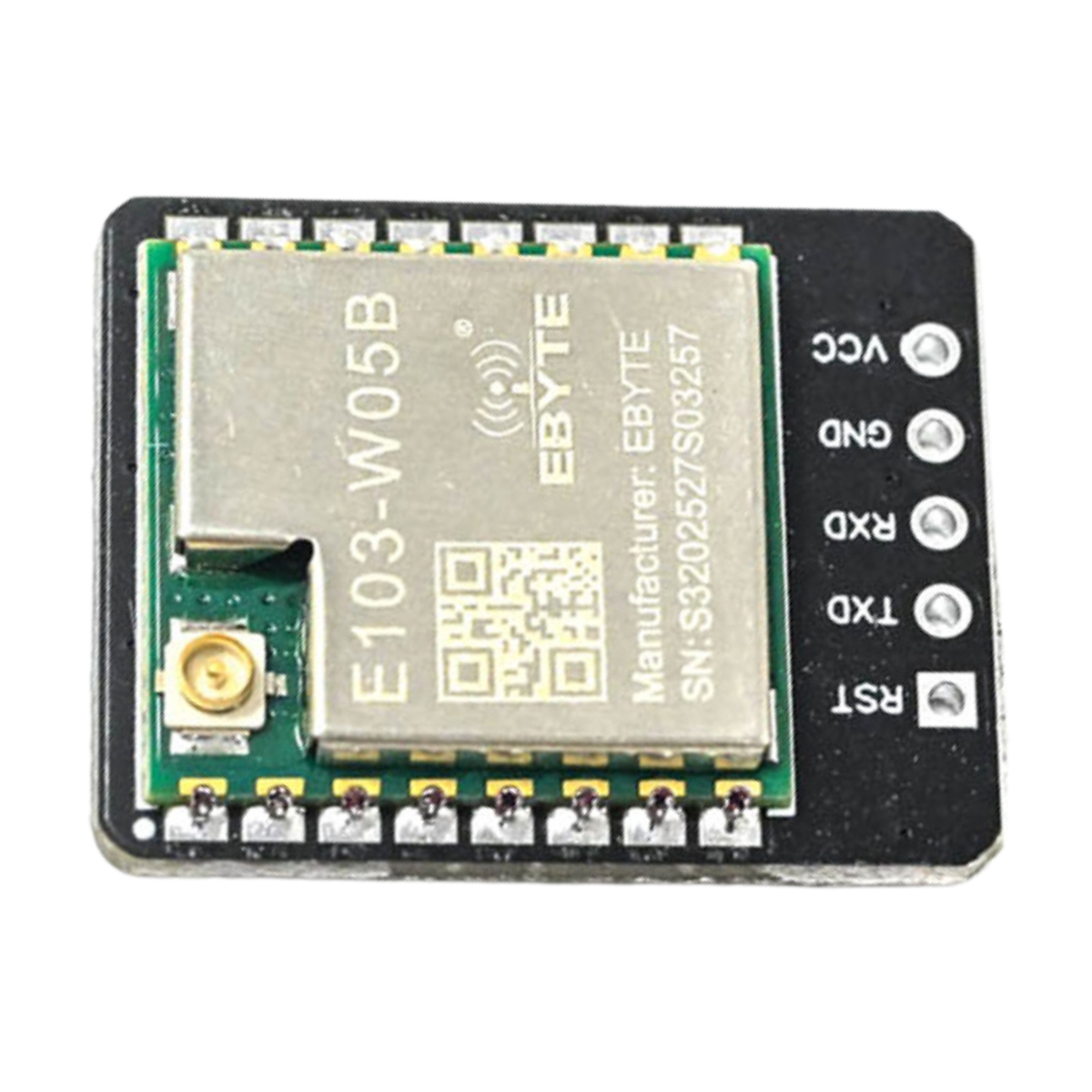

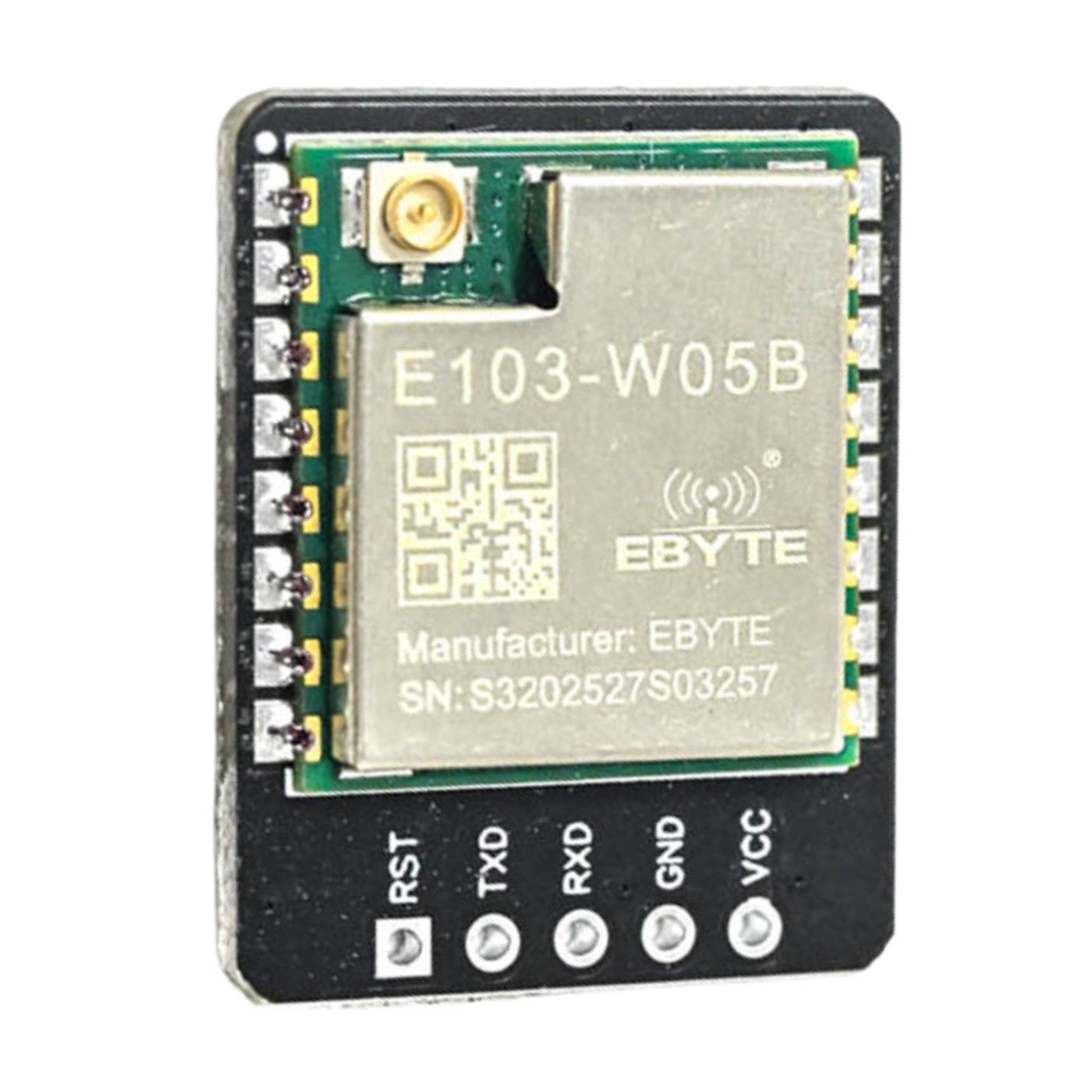

SmartElex E103-W05B Ebyte WIFI SMD Module Breakout
Let us know!
We'll try to match the price for you
Couldn't load pickup availability
The SmartElex E103-W05B Ebyte WiFi SMD Module Breakout is a compact and cost-effective Wi-Fi module built for seamless wireless communication in IoT applications. Based on the W600 chip from Lianshengde, this IoT WiFi Board delivers up to 100 mW (20 dBm) transmission power while operating in the 2.4–2.483 GHz band.
It features transparent data transmission through a serial interface and supports a flexible AT Command WiFi Module architecture for easy configuration, network access, and parameter control.
With low power consumption, fast data transfer, and strong compatibility with existing E103-W01 AT commands, the module is ready to use and ideal for smart homes, industrial control, medical monitoring, wireless audio-video systems, and other Internet of Things applications.
| Specification | Details |
|---|---|
| Item Type | Breakout Board |
| Operating Voltage | 3V – 3.6V |
| Frequency Rating | 2400 – 2484 MHz |
| Communication Level | 3.3V |
| Operating Temperature | -40°C to 85°C |
| Receiving Sensitivity | -89 dBm |
| Sleep Current | 5 µA |
| Emission Current | 230 mA |
| Receiving Current | 95 mA |
| Network Speed | 1.0 Mbps – 54.0 Mbps |
| Serial Port Baud Rate | 600 bps – 2.0 Mbps |
