SmartElex DS3231 RTC Module with EEPROM (I2C, AT24C32)

SmartElex BEST PRICE GUARANTEED

SmartElex DS3231 RTC Module with EEPROM (I2C, AT24C32) - Buy Online in India

SmartElex DS3231 RTC Module with EEPROM (I2C, AT24C32)

Rs. 285; ~~Rs. 425~~; Rs. 285
Unit price: per

Incl. GST (No Hidden Charges)

Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Quantity:

SKU: TIFCC0335

High-accuracy RTC module powered by the DS3231 with built-in TCXO for precise timekeeping
Integrated 32Kbit AT24C32 EEPROM for storing configuration and time-based data
I²C interface for easy communication as an I2C RTC module with Arduino and other microcontrollers
Supports 12-hour and 24-hour time formats with calendar tracking
Wide operating voltage range: 2.2V to 5.5V with battery backup support

BEST COUPON

RC100

COPY CODE

When you shop for ₹ 2,500 required. Applicable at Checkout.
*Coupons are not applicable on Original Boards and Kits

Why Buy From Robocraze

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name*

Last Name*

Email*

Phone*

Quantity*

Company

Comments

Enter the Captcha

Reload

SmartElex DS3231 RTC Module with EEPROM (I2C, AT24C32)

~~Rs. 425~~ Rs. 285

Quantity:

SmartElex DS3231 RTC Module with EEPROM (I2C, AT24C32)

~~Rs. 425~~ Rs. 285

Description
Specifications
Shipping & Return

Description

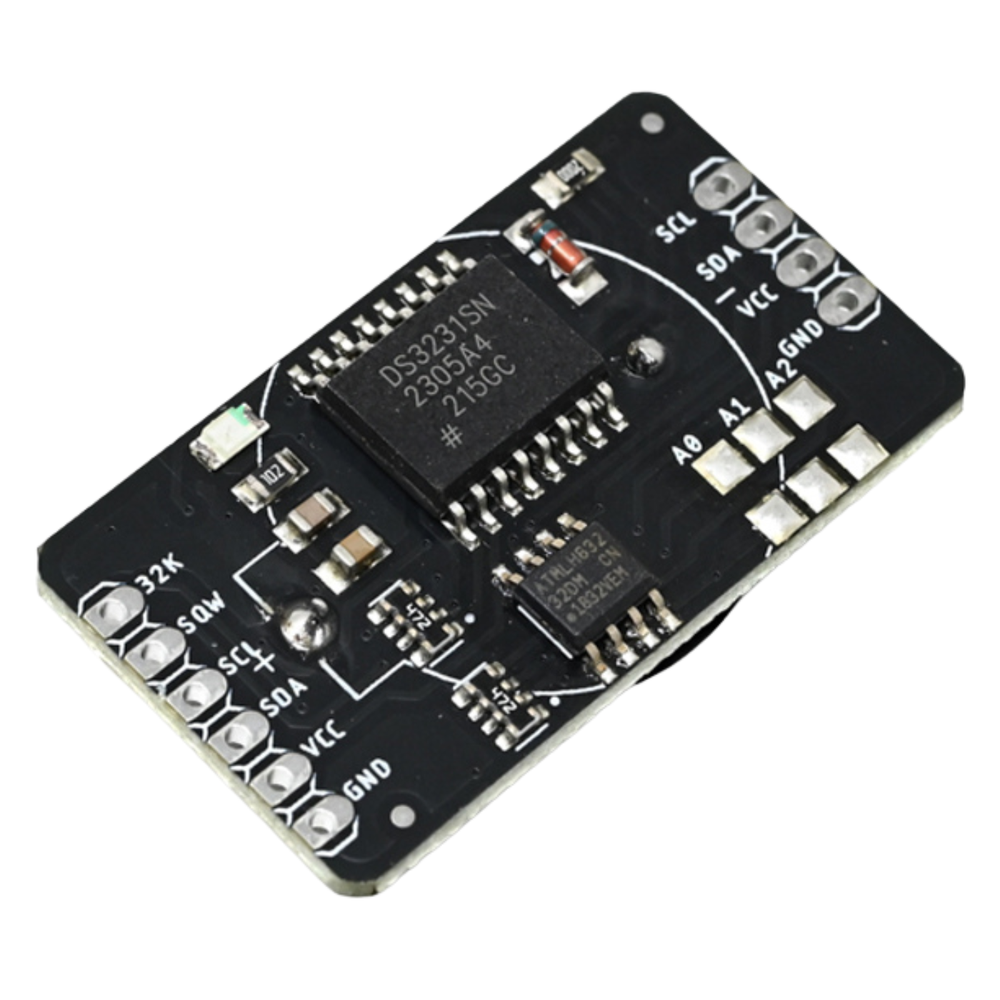

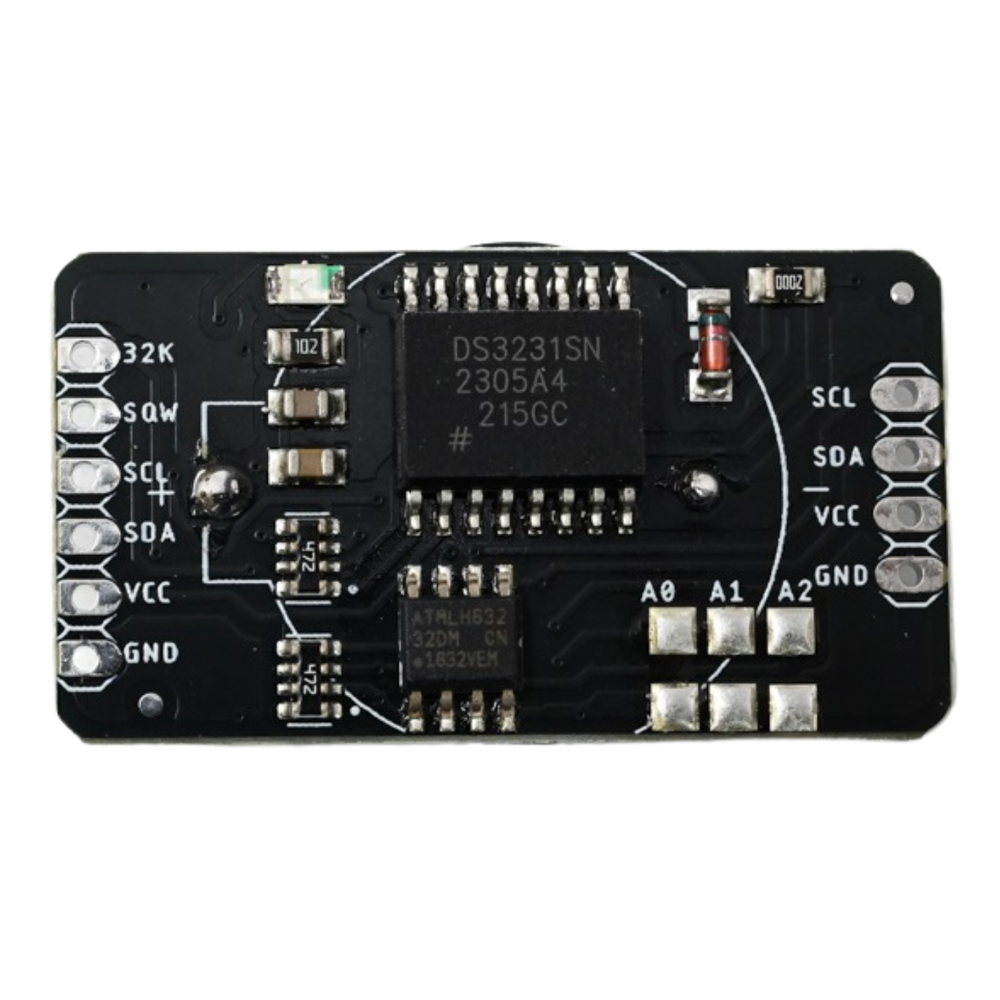

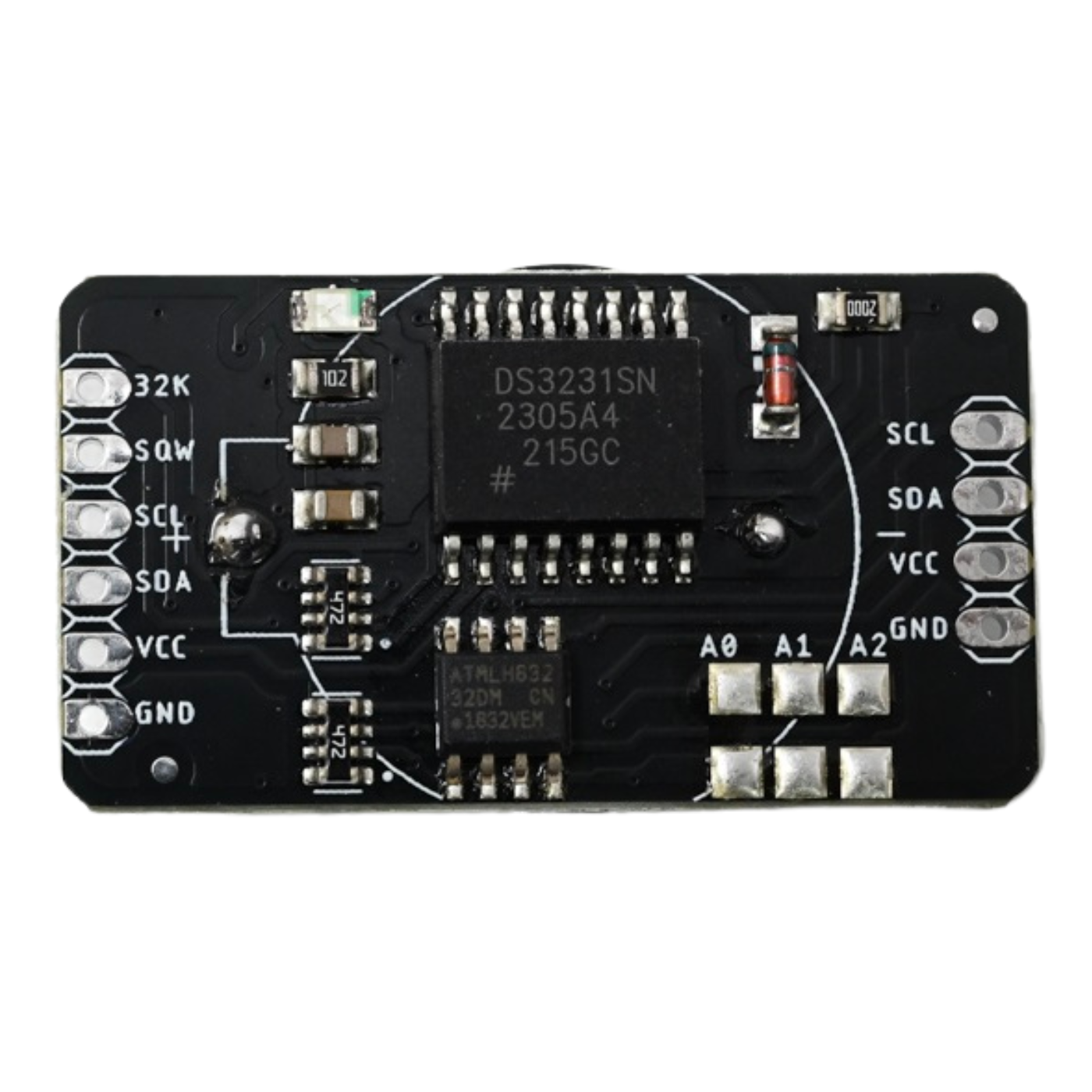

SmartElex DS3231 RTC Module with EEPROM (I2C, AT24C32)

The SmartElex DS3231 RTC Module with EEPROM is a high-precision RTC module designed for accurate date and time tracking in embedded systems and IoT projects. Based on the DS3231 chip with an integrated temperature-compensated crystal oscillator (TCXO), this I2C RTC module ensures stable and reliable timekeeping across temperature variations.

It features an onboard 32Kbit AT24C32 EEPROM for non-volatile data storage, along with 1Hz SQW and 32KHz outputs for timing applications. Operating within an exact voltage range of 2.2V to 5.5V, the module maintains time even during power loss using a backup battery, making it ideal for data loggers, automation systems, and time-critical electronics projects.

Features:

Temperature-compensated crystal oscillator (TCXO) for accurate timing.
Additional data storage is provided by a built-in 32Kbit EEPROM.
1Hz SQW and 32KHz output pins.
Battery backup ensures uninterrupted functioning.
Supports both 12- and 24-hour time types.
It operates with a voltage supply range of 2.2V to 5.5V.

Specifications

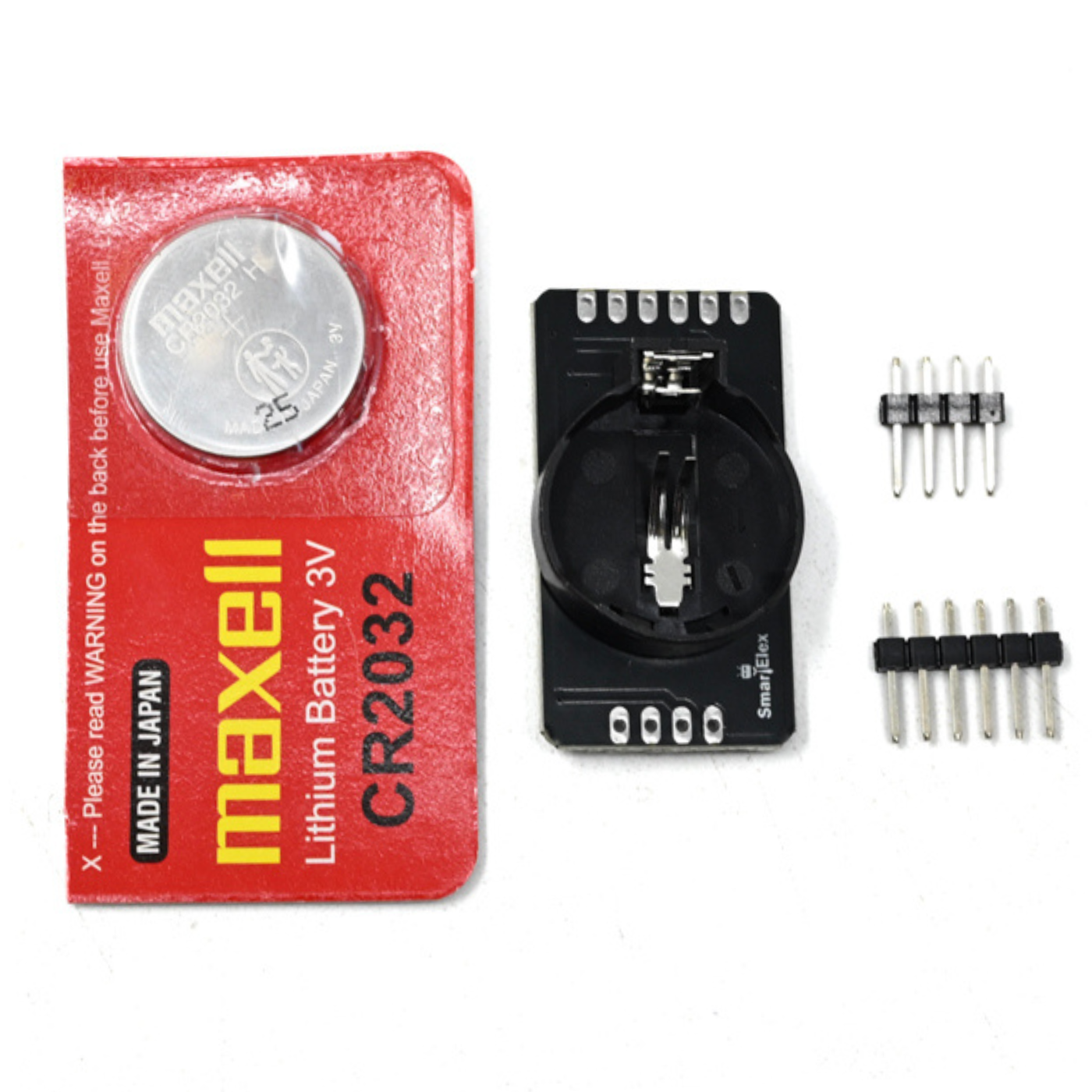

Package Includes:

1 x SmartElex DS3231 RTC Module with EEPROM (I2C, AT24C32)
1 x Pin Berg Connector (6 pin)
1 x Pin Berg Connector (4 pin)
1 x CR2032 Coin Cell

Specifications:

Item Type	RTC Module
Clock Outputs	1Hz SQW, 32KHz
Voltage Supply (RTC)	2.2V – 5.5V
Battery Type	CR2032 Battery Holder
EEPROM	32Kbit Built-in
Interface	I2C
