SmartElex CAP1203 Capacitive Touch Slider
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability

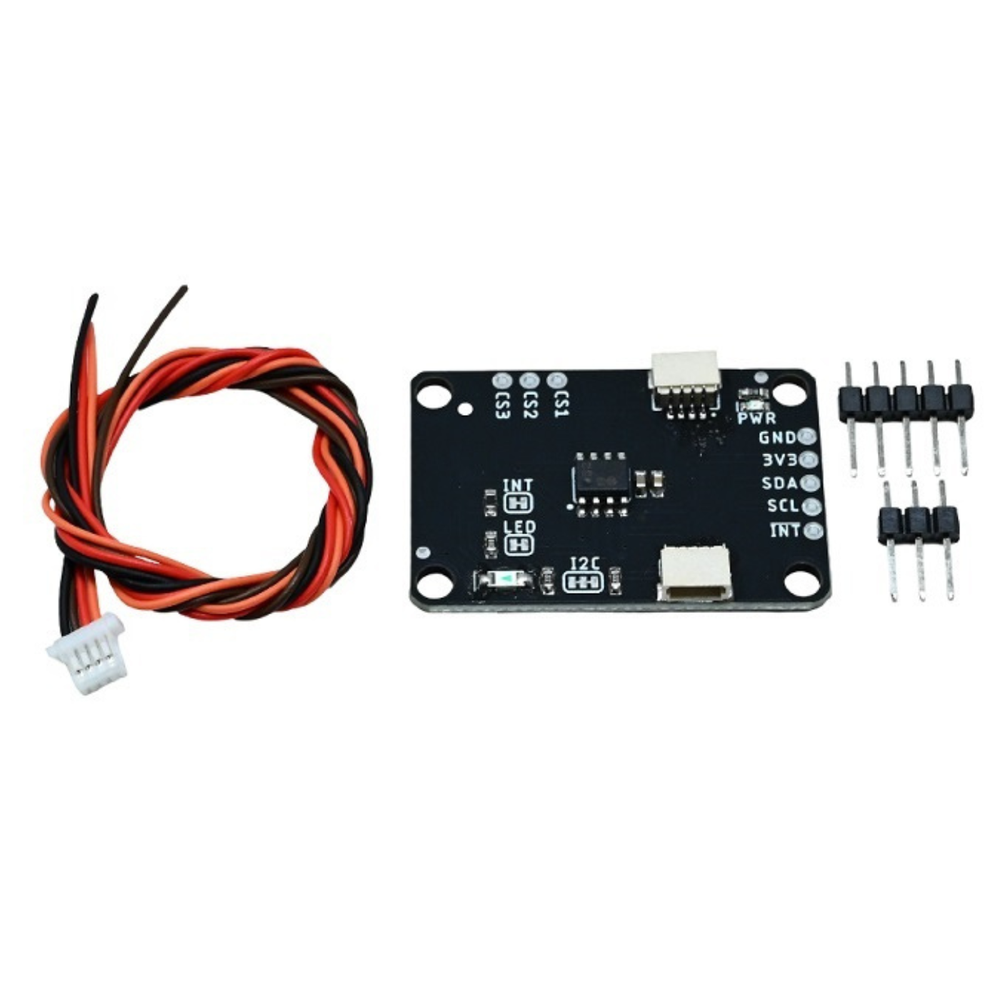

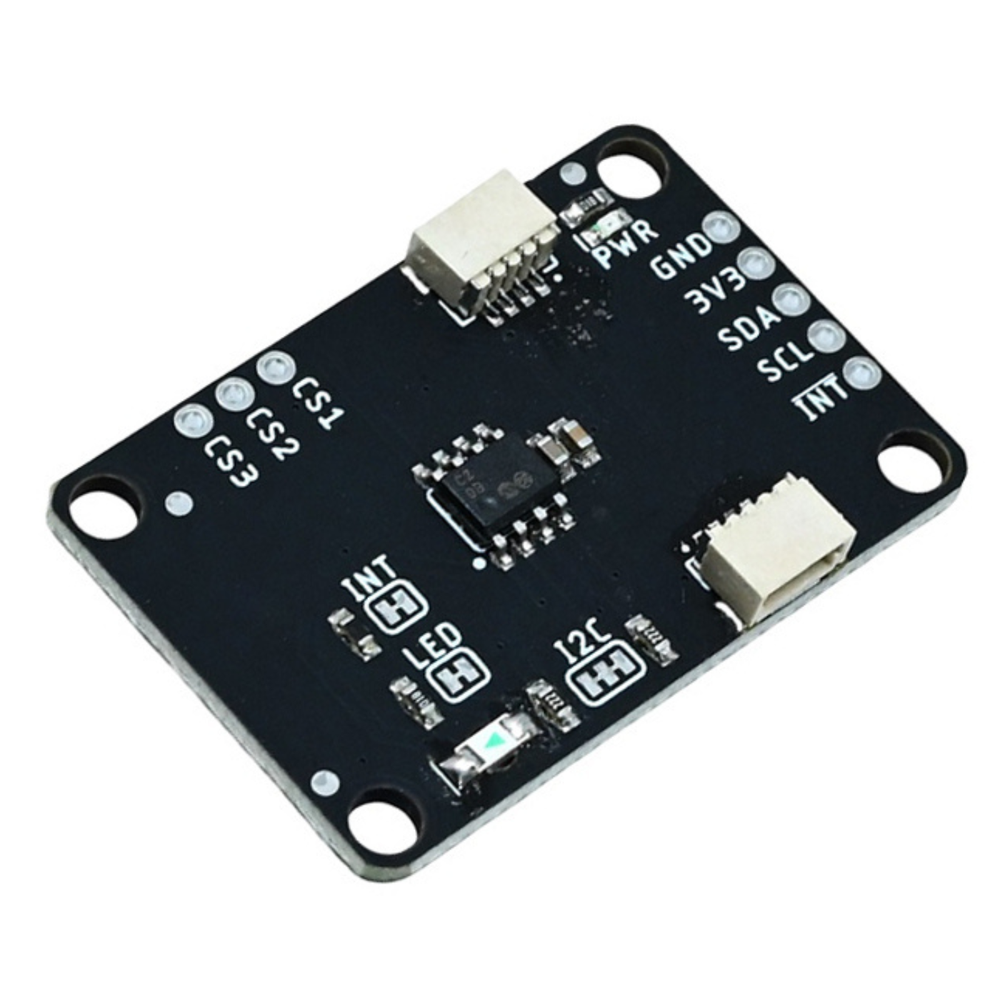

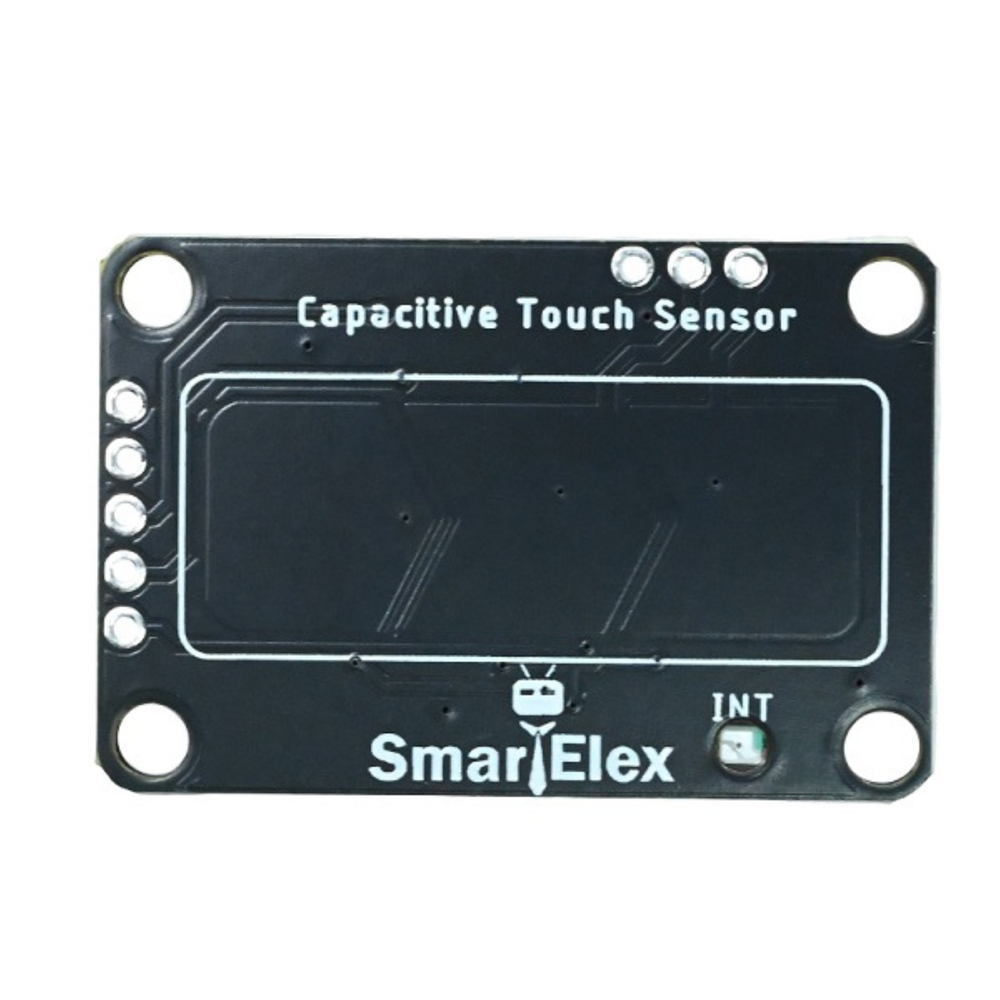

The SmartElex CAP1203 Capacitive Touch Slider is a versatile touch sensor breakout designed to replace traditional mechanical sliders or buttons with a smooth, modern capacitive interface. Powered by the CAP1203 IC, it features three capacitive touch pads arranged in an arrow shape, allowing it to function either as a Capacitive Touch Slider or as three separate touch inputs.
The board communicates via I2C (address: 0x28) and supports adjustable touch sensitivity, power-button functionality, and interrupt-based alerts using the onboard LED. With 0.1″ breakout pins and plated through-holes for external touch pads, it works effortlessly with breadboards and custom designs—no soldering required for basic use.
Perfect for interactive art installations, control panels, and science experiments, this module adds a reliable and intuitive touch interface to any project.
| Model | Capacitive Touch Slider |
| Model No. | CAP1203 |
| Voltage Rating (V) | 3.3V to 5V |
| I2C Address | 0x28 |
