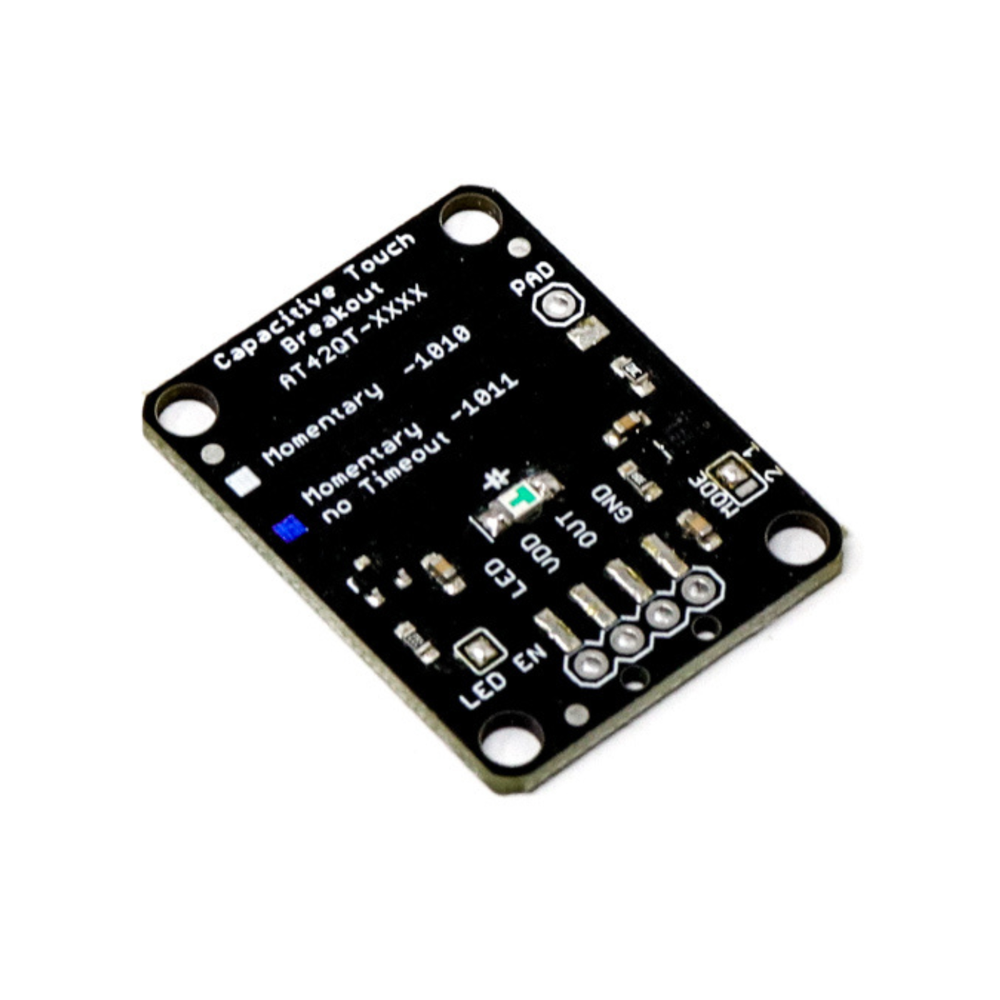

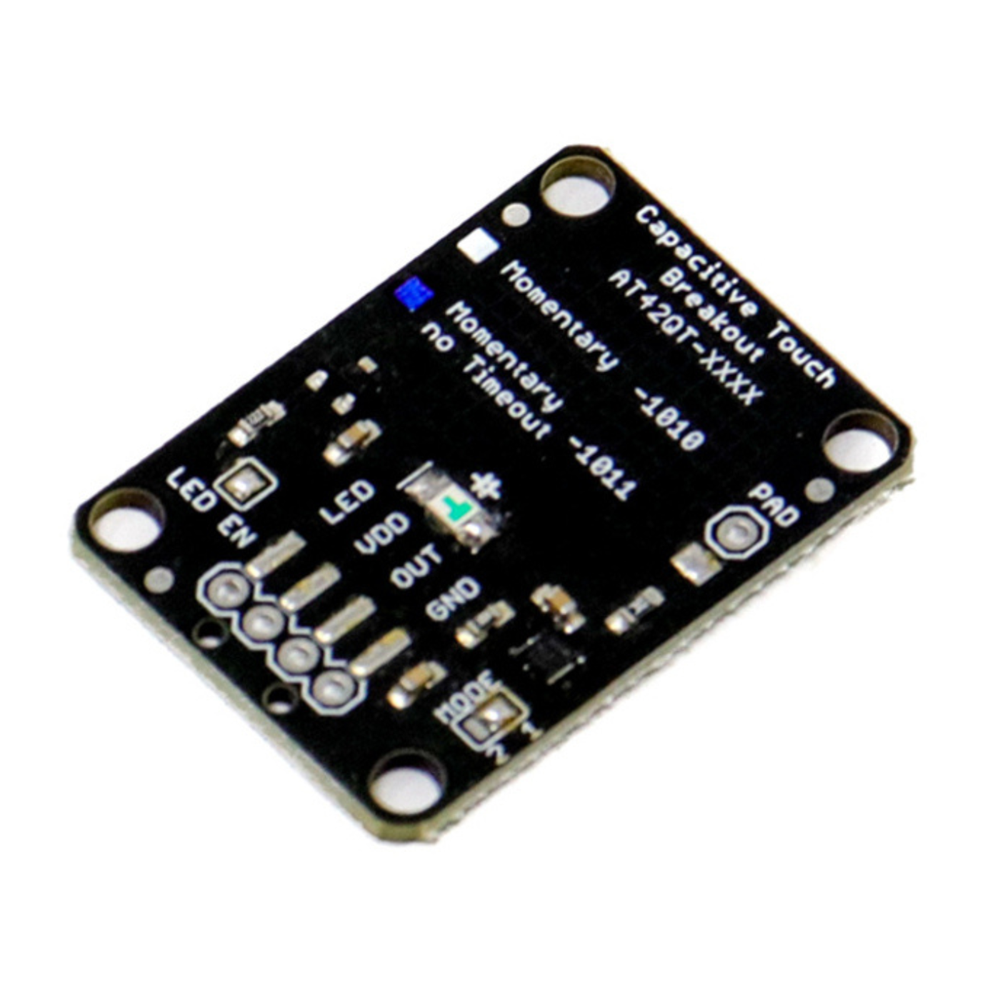

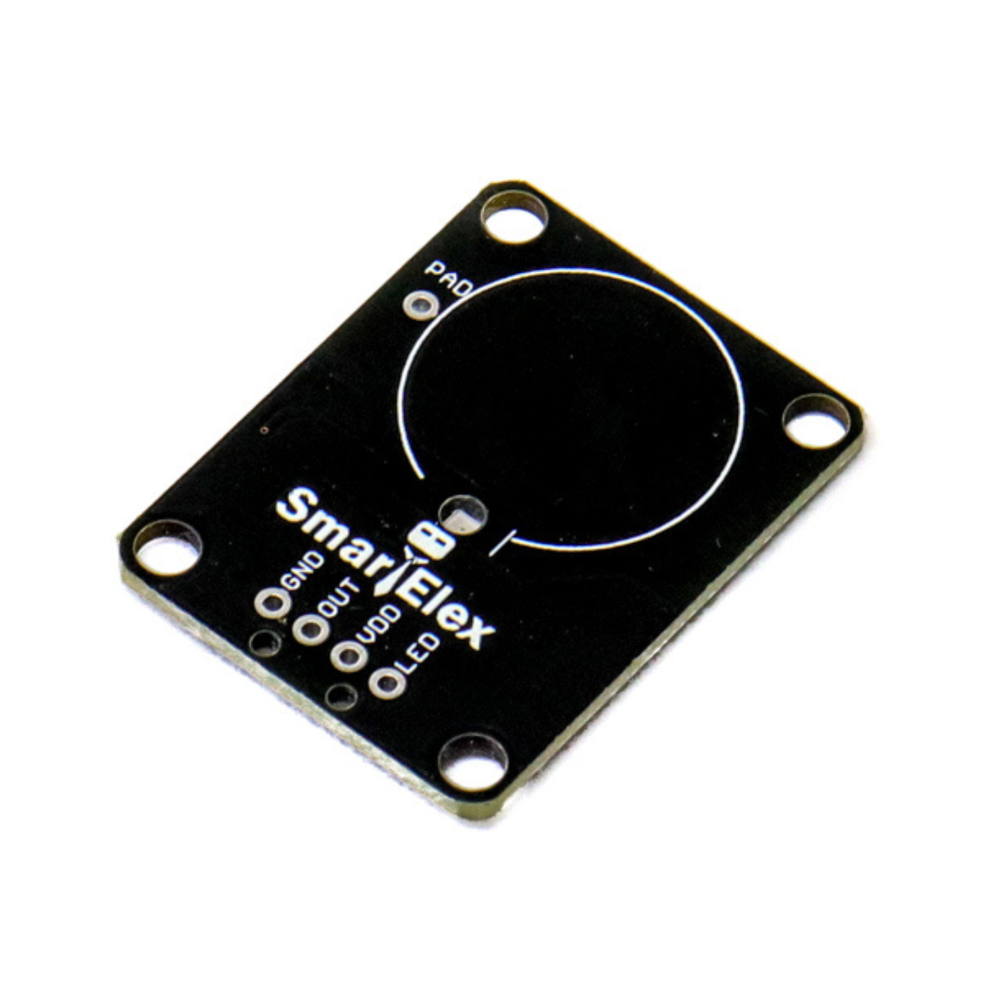

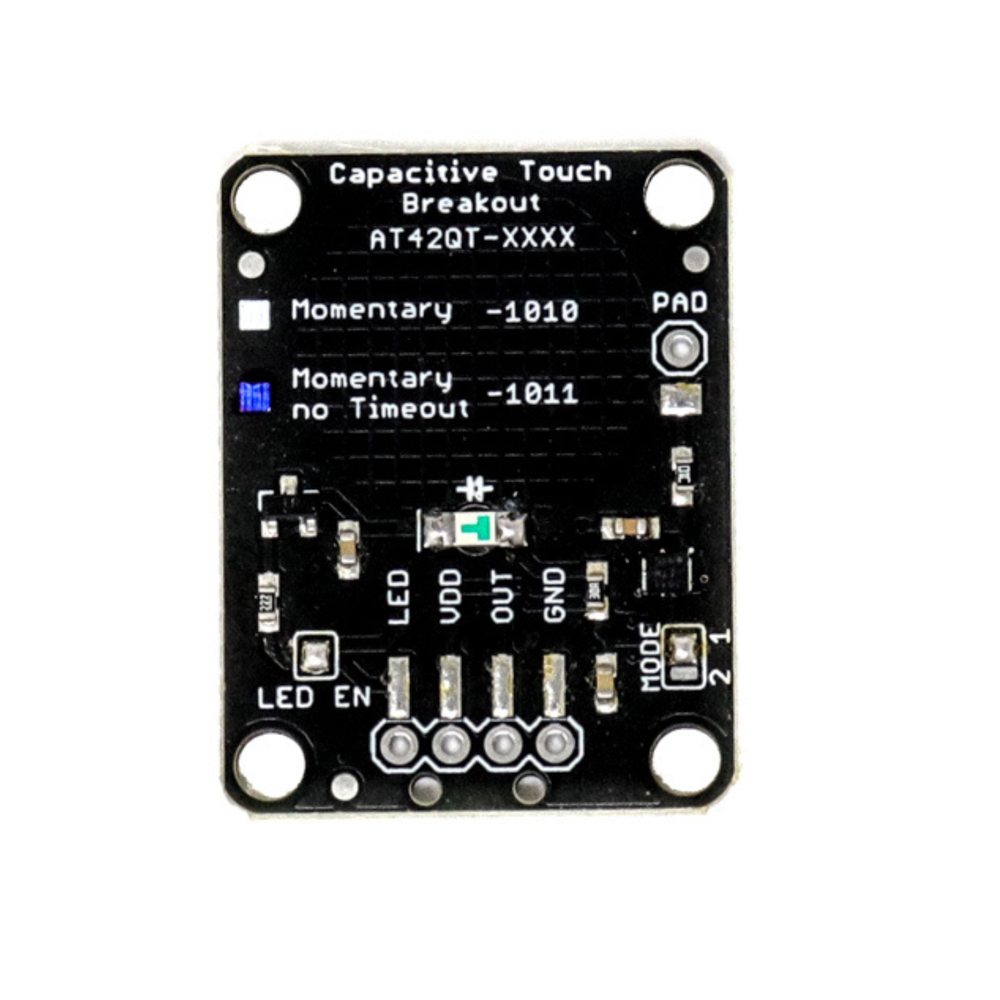

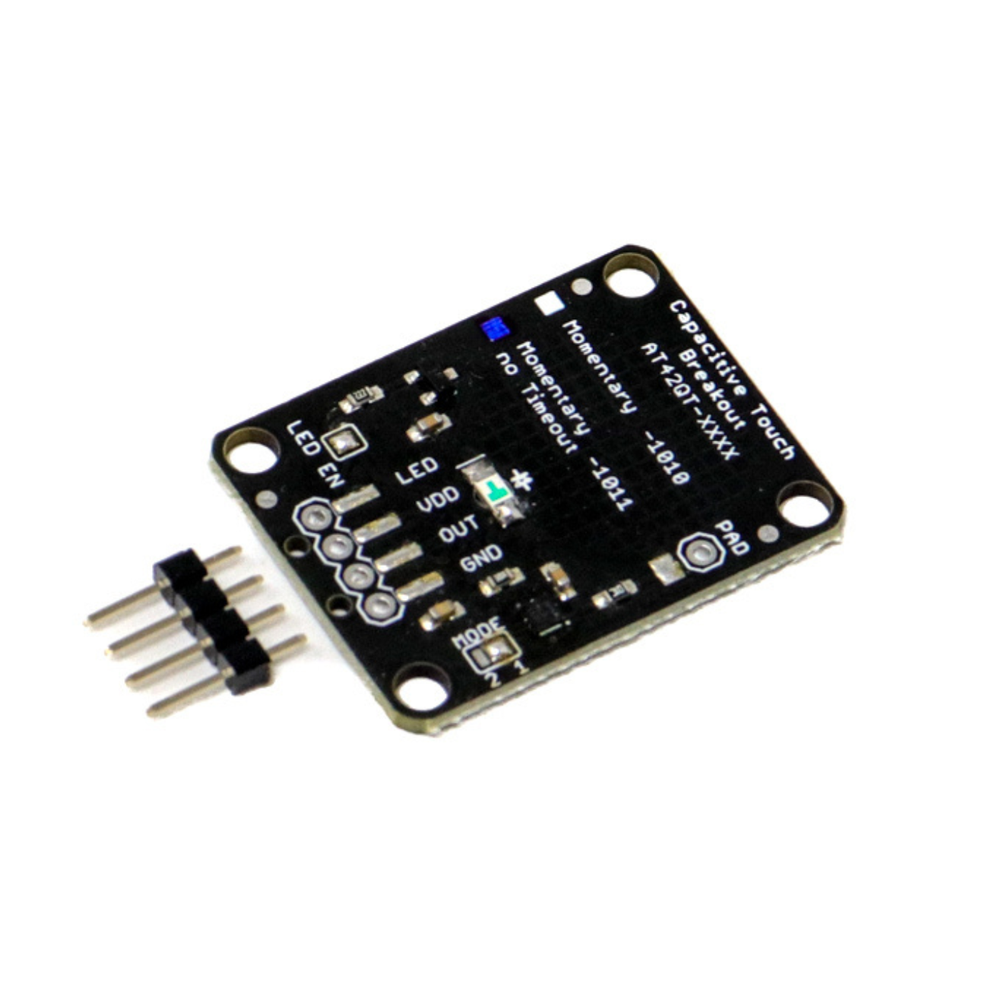

SmartElex AT42QT1011 Capacitive Touch Breakout - Buy Online in India

SmartElex AT42QT1011 Capacitive Touch Breakout

Rs 209/-
- 25%
Rs 209/-
Rs 279/-
Save Rs 70/-
๐Ÿช™
RC REWARDS Earn 2 RC Coins on this order
Incl. GST (No Hidden Charges)
Please hurry! Only 11 left in stock

Why Buy From Robocraze

Free Delivery Above โ‚น999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between โ‚น500 to โ‚น3,000

SKU: TIFCC0303
  • Single-channel Capacitive Touch Breakout designed for reliable touch detection
  • Based on the AT42QT1011 dedicated capacitive touch IC
  • Acts as a touch switch sensor breakout with digital HIGH/LOW output
  • Operating voltage range: 1.8V to 5V DC
  • Output stays HIGH as long as touch is detected (no internal timeout)
  • Onboard touch pad plus PAD pin for external electrode connection
  • Simple 3-pin interface: VCC, GND, OUT
  • Ideal for Arduino, Raspberry Pi, IoT, and DIY electronics projects
Robocraze Academy Limited Time Offer
SmartElex AT42QT1011 Capacitive Touch Breakout -Sensors -Pressure/Touch Sensors -Robocraze
SmartElex AT42QT1011 Capacitive Touch Breakout
Rs 279/- Rs 209/-

SmartElex AT42QT1011 Capacitive Touch Breakout

Rs 279/- Rs 209/-

SmartElex AT42QT1011 Capacitive Touch Breakout

The SmartElex AT42QT1011 Capacitive Touch Breakout is a compact and efficient touch switch sensor breakout designed for single-button capacitive touch applications. Powered by the AT42QT1011 IC, it continuously monitors a conductive touch pad and outputs a digital HIGH signal for the entire duration of contact, with no internal timeout limitation.

Operating seamlessly across 1.8V to 5V, this Capacitive Touch Breakout requires only power and ground to function, making it extremely beginner-friendly.

An additional PAD pin allows users to connect custom electrodes for flexible design integration, making it ideal for control panels, smart devices, and interactive electronics where precise and stable touch detection is essential.

Features:

  • Model: AT42QT1011.
  • Operating voltage ranges from 1.8 to 5 volts.
  • AT42QT1011 doesn't have an internal timeout.

Package Includes:

  • 1 x SmartElex AT42QT1011 Capacitive Touch Breakout

Specifications:

Model Capacitive Touch Breakout
Model No. AT42QT1011
Voltage Rating (V) 1.8V to 5V DC
PCB Size (L ร— W) 25.4 mm ร— 33.02 mm
Operation Mode Fast Mode: 200ยตA โ€“ 750ยตA
Low Power Mode: 15ยตA โ€“ 75ยตA

Warranty Coverage:

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only.

Warranty Void If:

In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we wonโ€™t offer refunds or replace the entire product.
