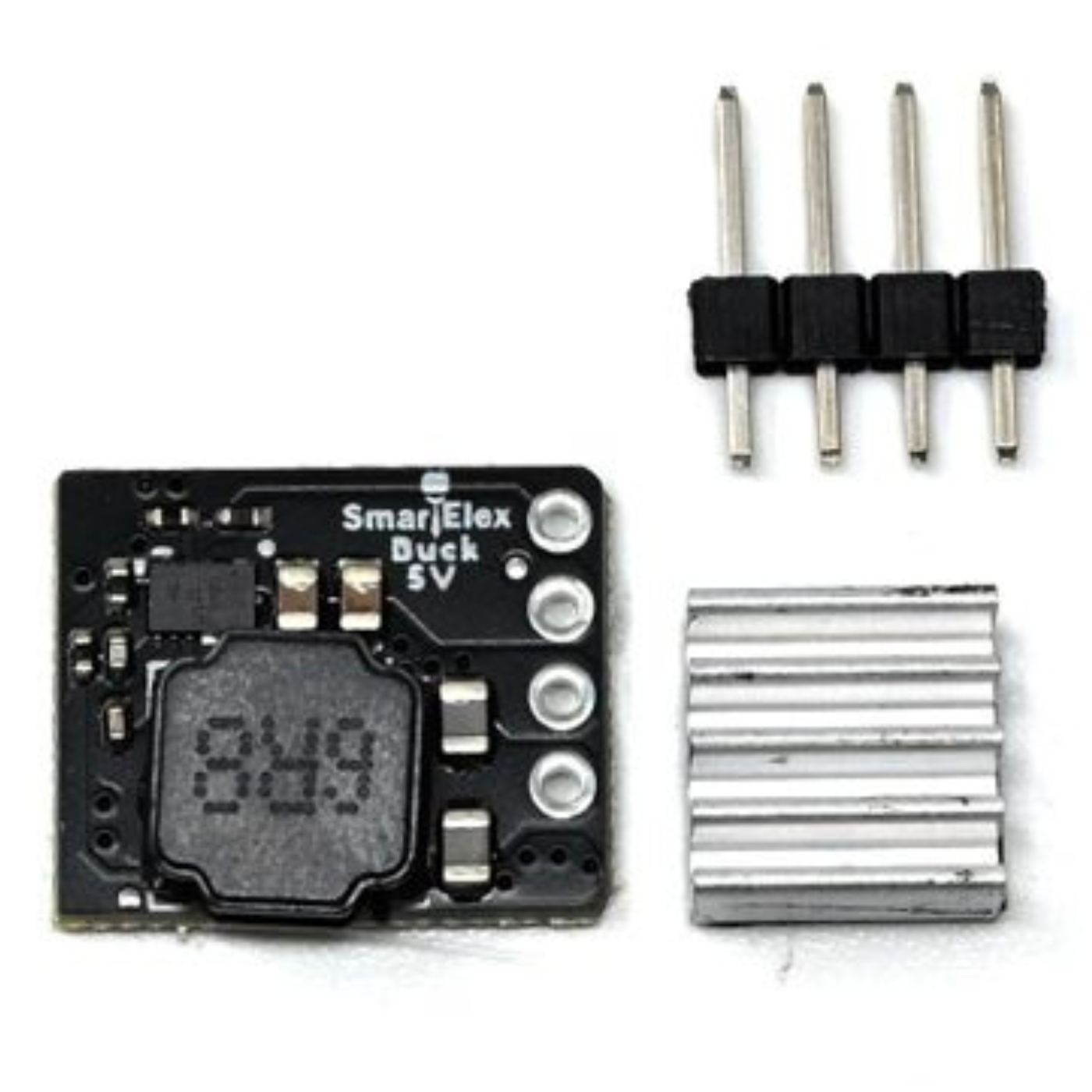

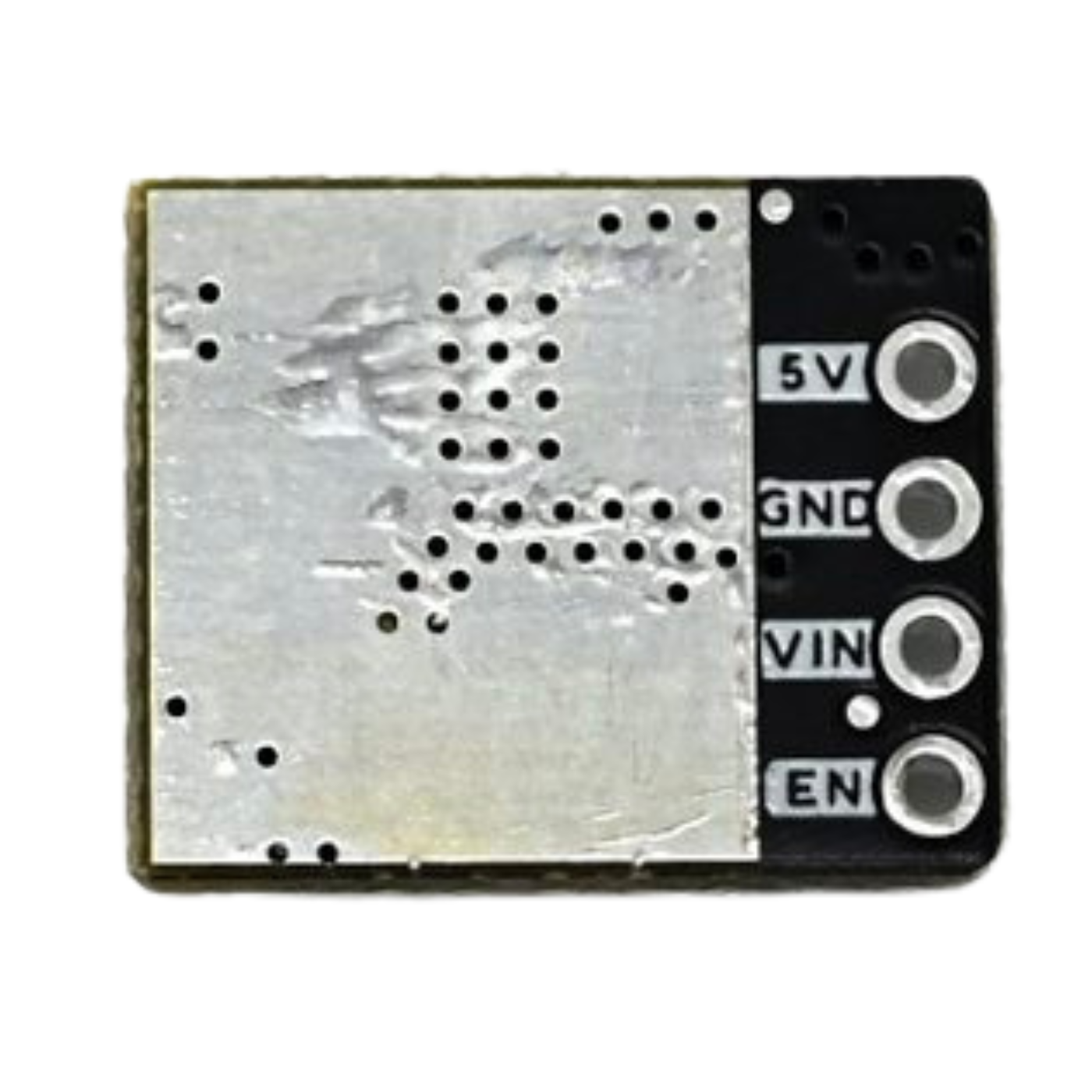

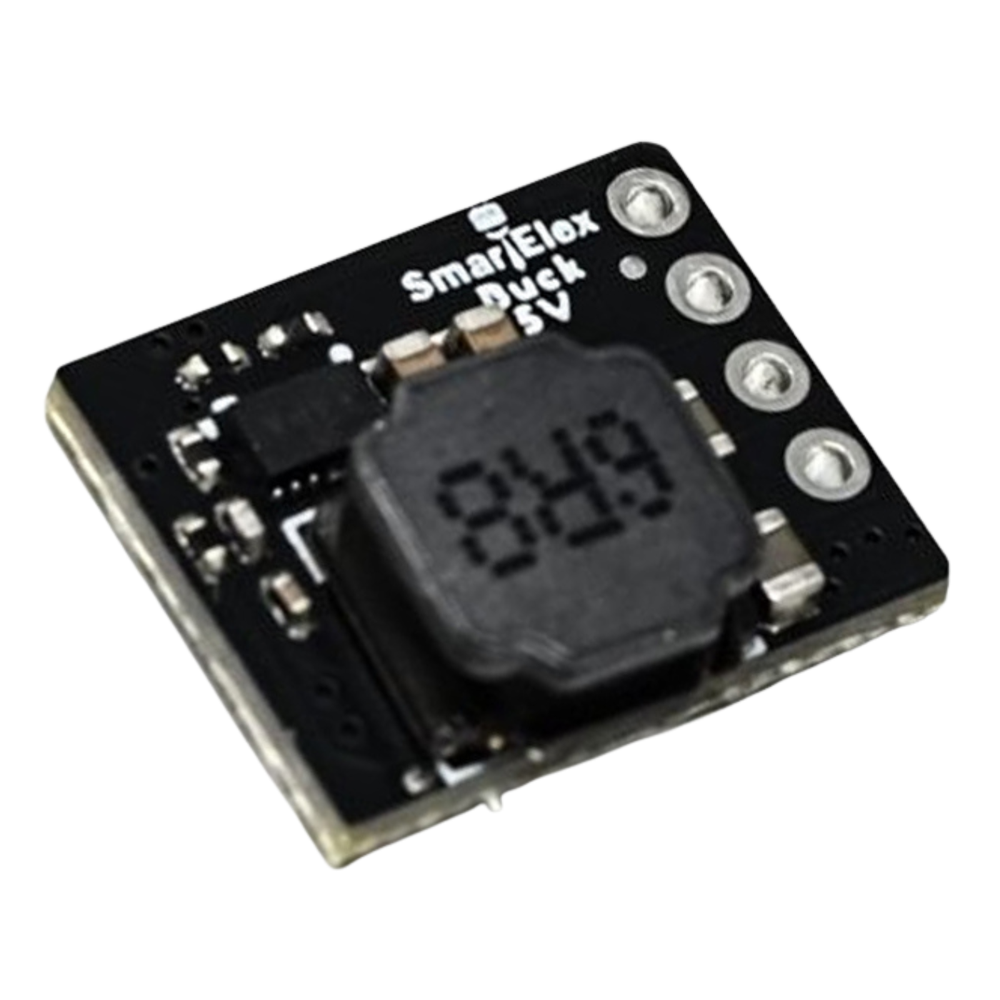

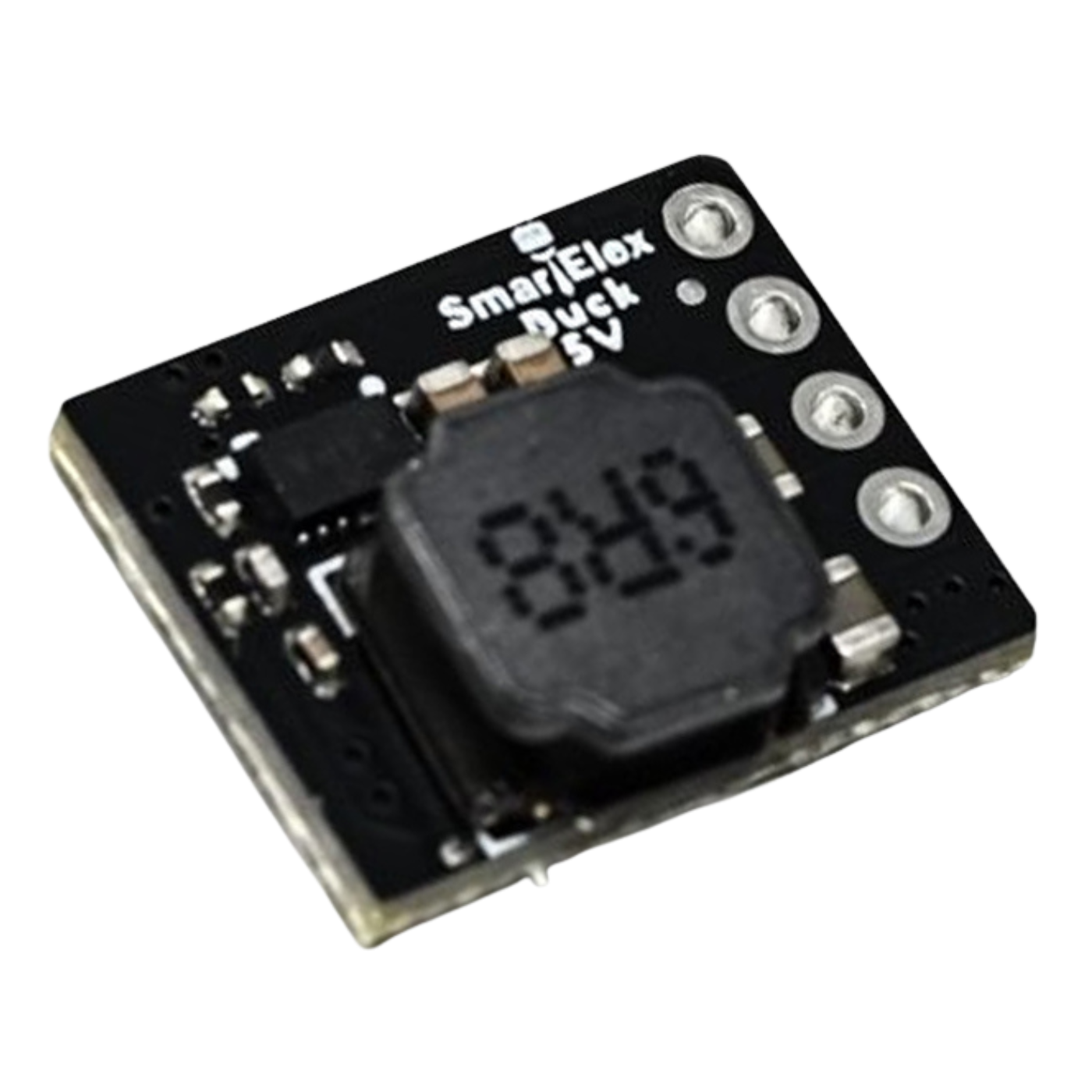

SmartElex AP63357 5V Buck Regulator Breakout Module
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability
The SmartElex AP63357 5V Buck Regulator Breakout Module is a compact and efficient DC-DC buck converter 5V designed to step down a wide input voltage range of 3.8V to 32V into a precise and stable 5V output.
Powered by the AP63357 IC, this synchronous buck regulator supports up to 3.5A output current, making it ideal for powering 5V microcontrollers, sensors, embedded systems, and IoT devices.
With integrated low-resistance MOSFETs (74mΩ high-side and 40mΩ low-side), the Buck Regulator ensures high efficiency, reduced heat loss, and reliable performance. Flexible power input options and a high-voltage enable pin further simplify integration into both prototype and permanent electronics projects.
| Item Type | Buck Regulator |
|---|---|
| Model Name | AP63357 |
| Input Voltage (V) | 3.8 to 32 |
| Output Voltage (V) | 5V |
| Max. Output Current (A) | 3.5 |
| Size (Inch) | 1 × 1 |
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only.
In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
