SmartElex Ai Thinker Ai M62 32S Development Kit
Let us know!
We'll try to match the price for you
Couldn't load pickup availability

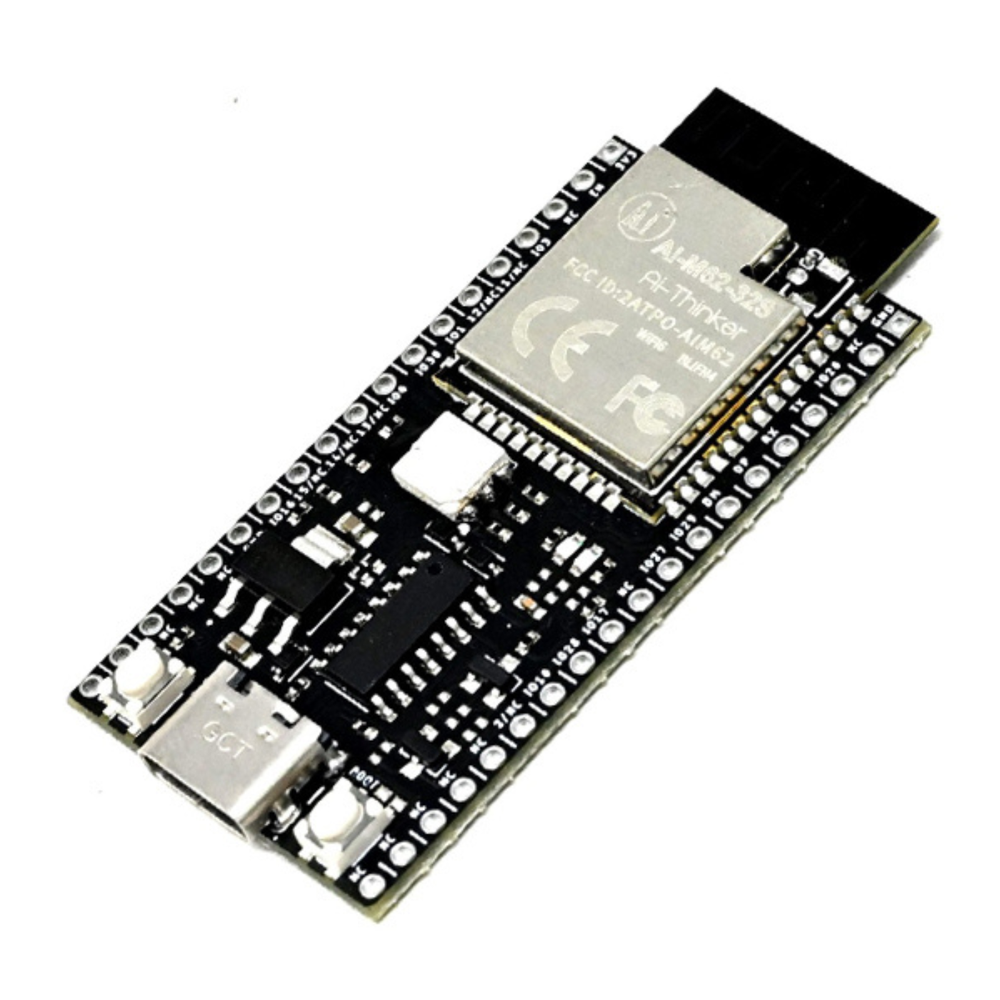

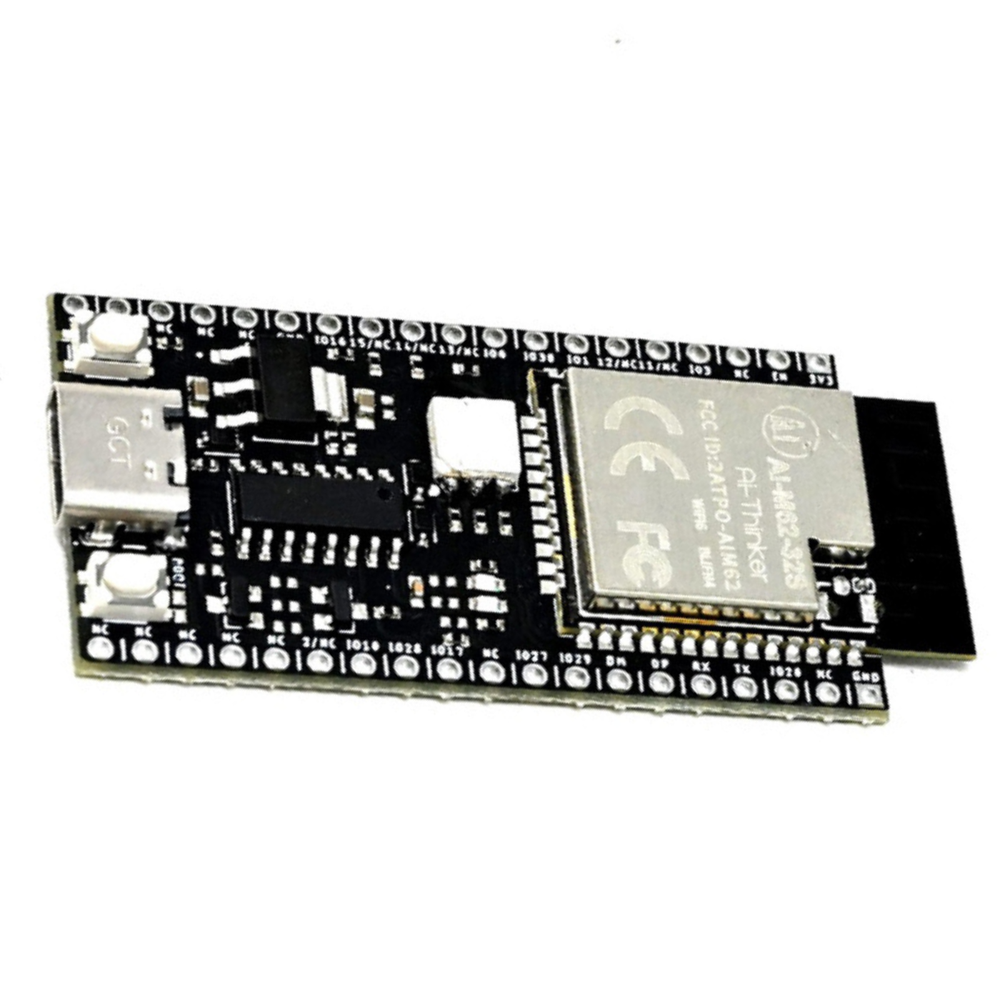

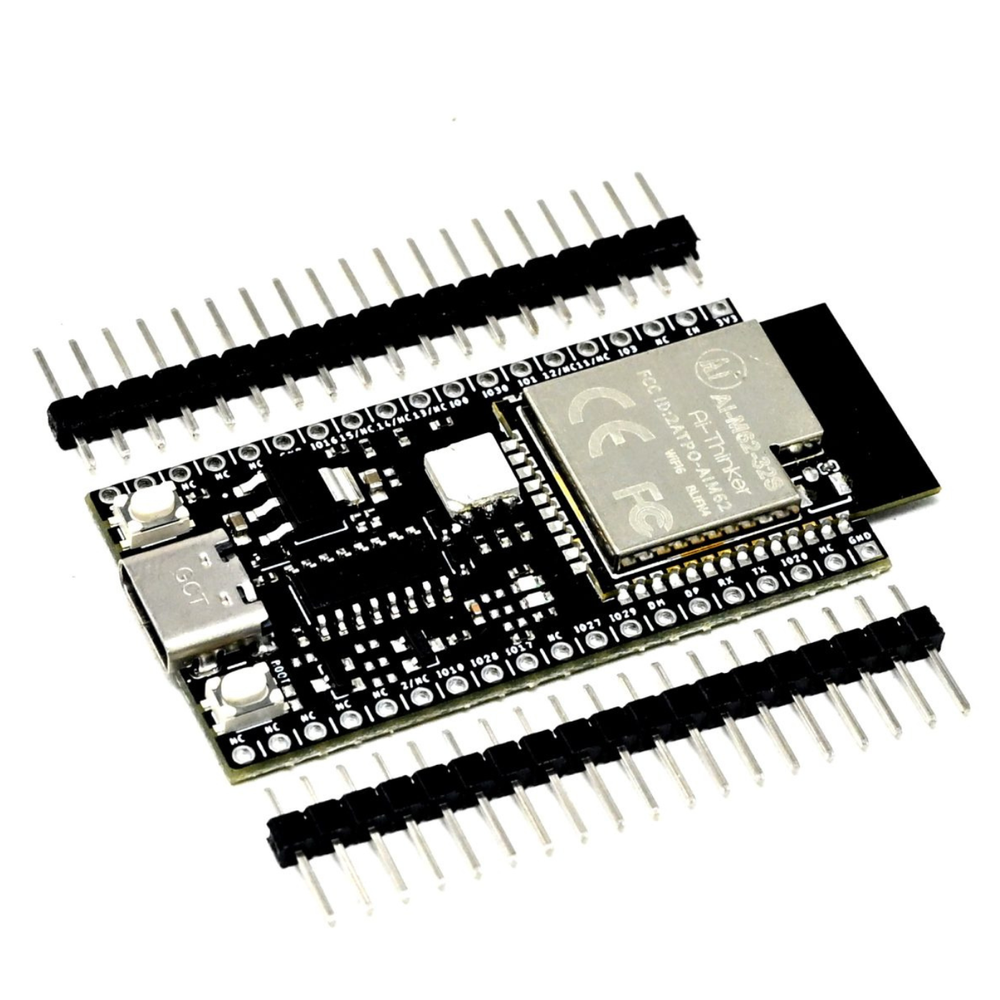

The SmartElex AI Thinker Ai-M62-32S Development Kit is a powerful and versatile solution designed for modern wireless and IoT applications. Built around the BL616 RISC-V CPU, it delivers high performance with a maximum operating frequency of 320 MHz, making it suitable for real-time data processing and edge computing.
This AI thinker modules platform supports Wi-Fi 6, BLE 5.3, and Thread protocol, ensuring fast, stable, and low-power connectivity. The Ai-M62-32S Development Kit features a wide range of interfaces including USB 2.0, SPI, UART, I2C, I2S, PWM, ADC, DAC, and GPIO, enabling seamless integration with sensors, displays, and peripherals.
With built-in hardware security engines supporting AES, SHA, PKA, and TRNG, along with secure boot and encrypted firmware startup, it meets strict security requirements for IoT deployments. This makes the Ai-M62-32S Development Kit an excellent choice for smart home systems, wearable electronics, multimedia devices, and next-generation IoT solutions.
| Item Type | Kit |
|---|---|
| Model Name | Ai-M62-32S |
| Frequency Rating | 2400 to 2483.5 MHz |
| Package | SMD-38 |
| Antenna | Onboard Antenna / IPEX Seat |
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -40°C to 125°C, < 90% RH |
| Power Supply | 2.97V to 3.6V, Supply Current ≥ 500mA |
| Interfaces | USB 2.0, SDU, SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO |
| I/O Pins | 18 |
| UART Baud Rate | Default 115200 bps |
| Security | WPS, WEP, WPA, WPA2, WPA3 |
