SmartElex ADXL345 Triple Axis Accelerometer | 3-Axis Sensor

SmartElex ADXL345 Triple-Axis Accelerometer Breakout | 3-Axis Digital Motion Sensor

Rs 357/-
- 16%
Rs 357/-
Rs 425/-
Save Rs 68/-
🪙
RC REWARDS Earn 3 RC Coins on this order
Incl. GST (No Hidden Charges)
Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000
SKU: TIFC00448
  • 3-axis digital accelerometer for measuring motion and acceleration
  • Supports selectable acceleration ranges from ±2g to ±16g
  • Provides high-resolution digital output through I2C or SPI
  • Includes tap, activity, inactivity and free-fall detection functions
  • Suitable for robotics, motion tracking, tilt sensing and navigation projects

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
+91

File(s) size limit is 20MB. Max 3 files.

Select Categories
CAPTCHA
Reload Captcha
Robocraze Academy Limited Time Offer
SmartElex ADXL345 Triple-Axis Accelerometer Breakout
SmartElex ADXL345 Triple-Axis Accelerometer Breakout | 3-Axis Digital Motion Sensor
Rs 425/- Rs 357/-
SmartElex ADXL345 Triple-Axis Accelerometer Breakout
SmartElex ADXL345 Triple-Axis Accelerometer Breakout
SmartElex ADXL345 Triple-Axis Accelerometer Breakout
SmartElex ADXL345 Triple-Axis Accelerometer Breakout

SmartElex ADXL345 Triple-Axis Accelerometer Breakout | 3-Axis Digital Motion Sensor

Rs 425/- Rs 357/-
Description

SmartElex ADXL345 Triple-Axis Accelerometer Breakout

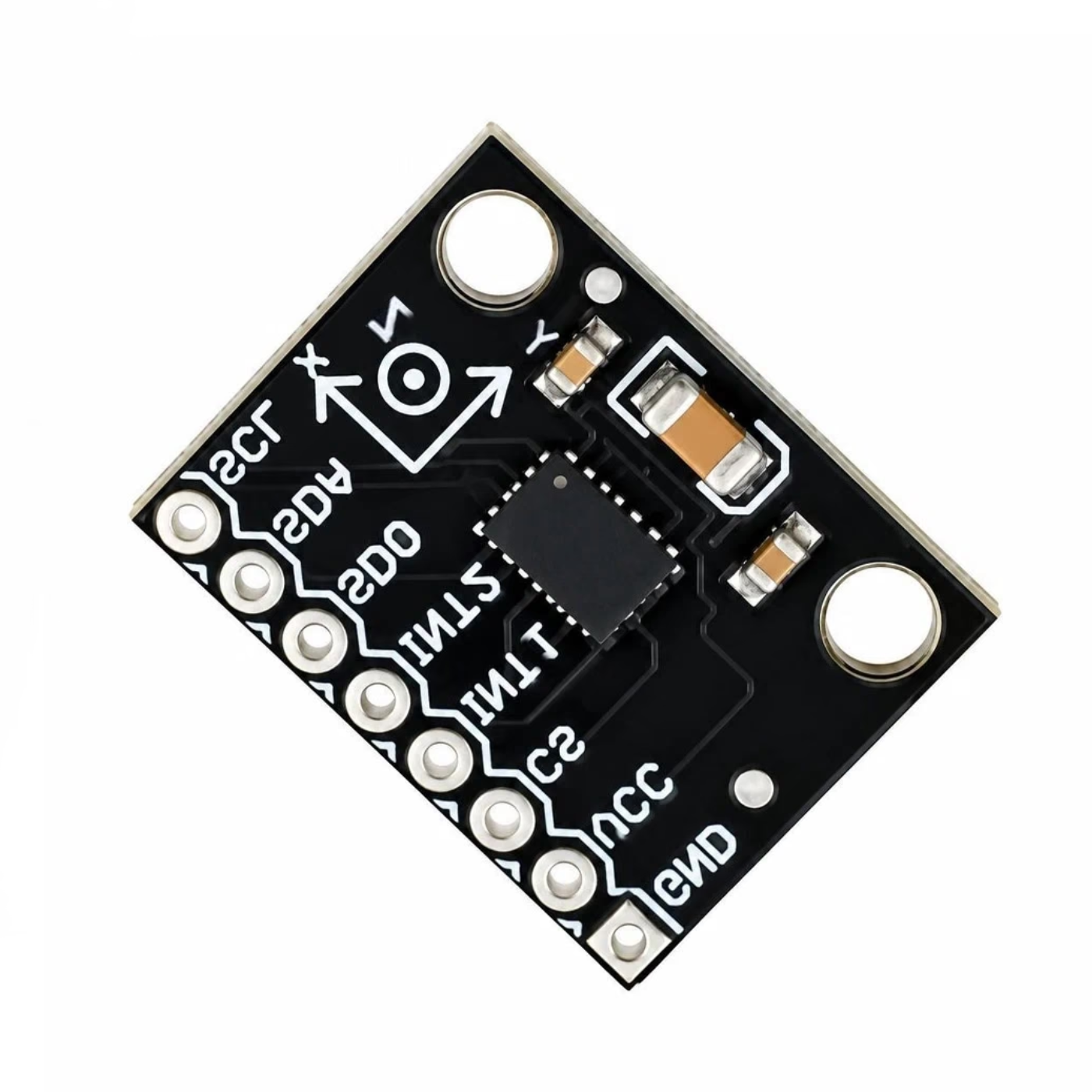

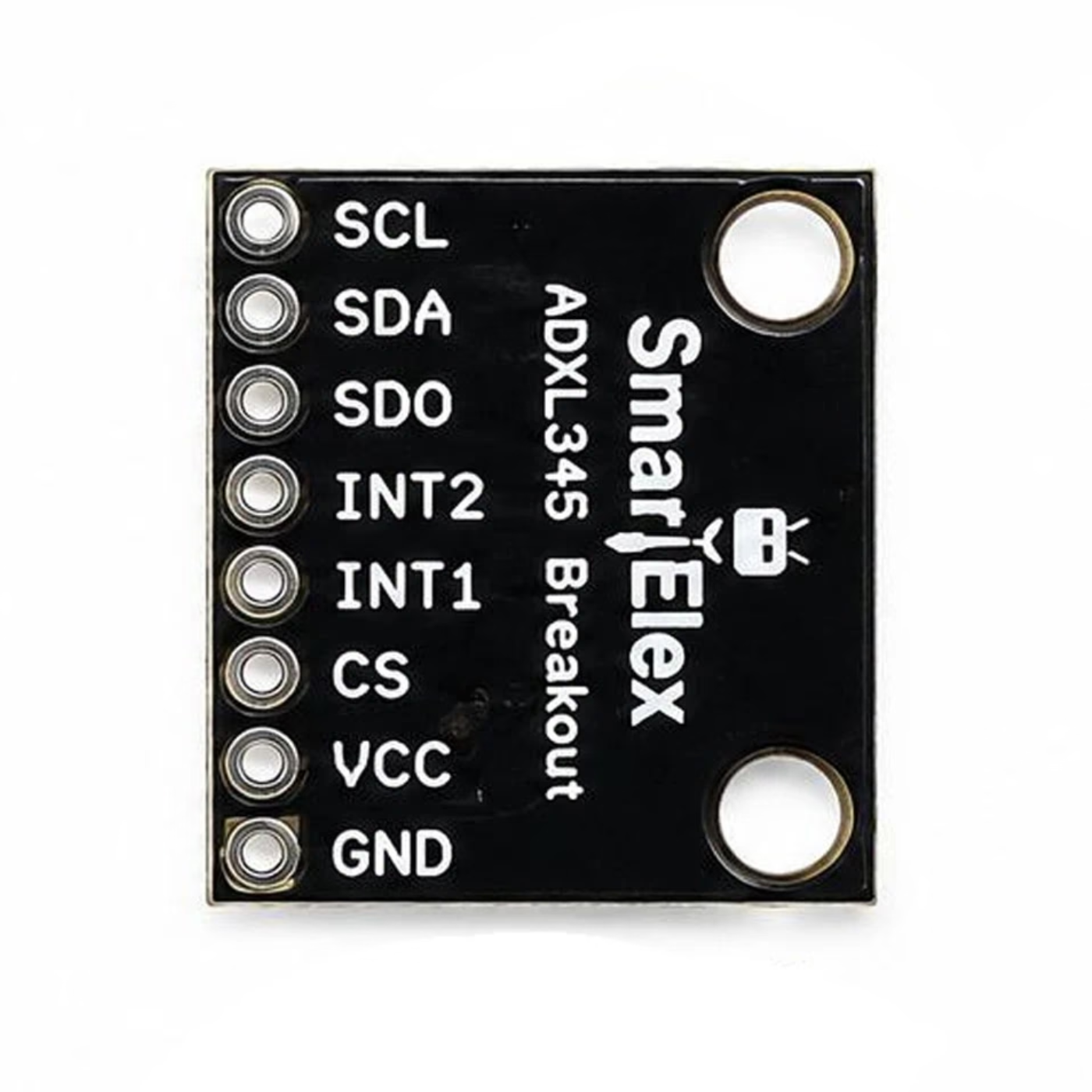

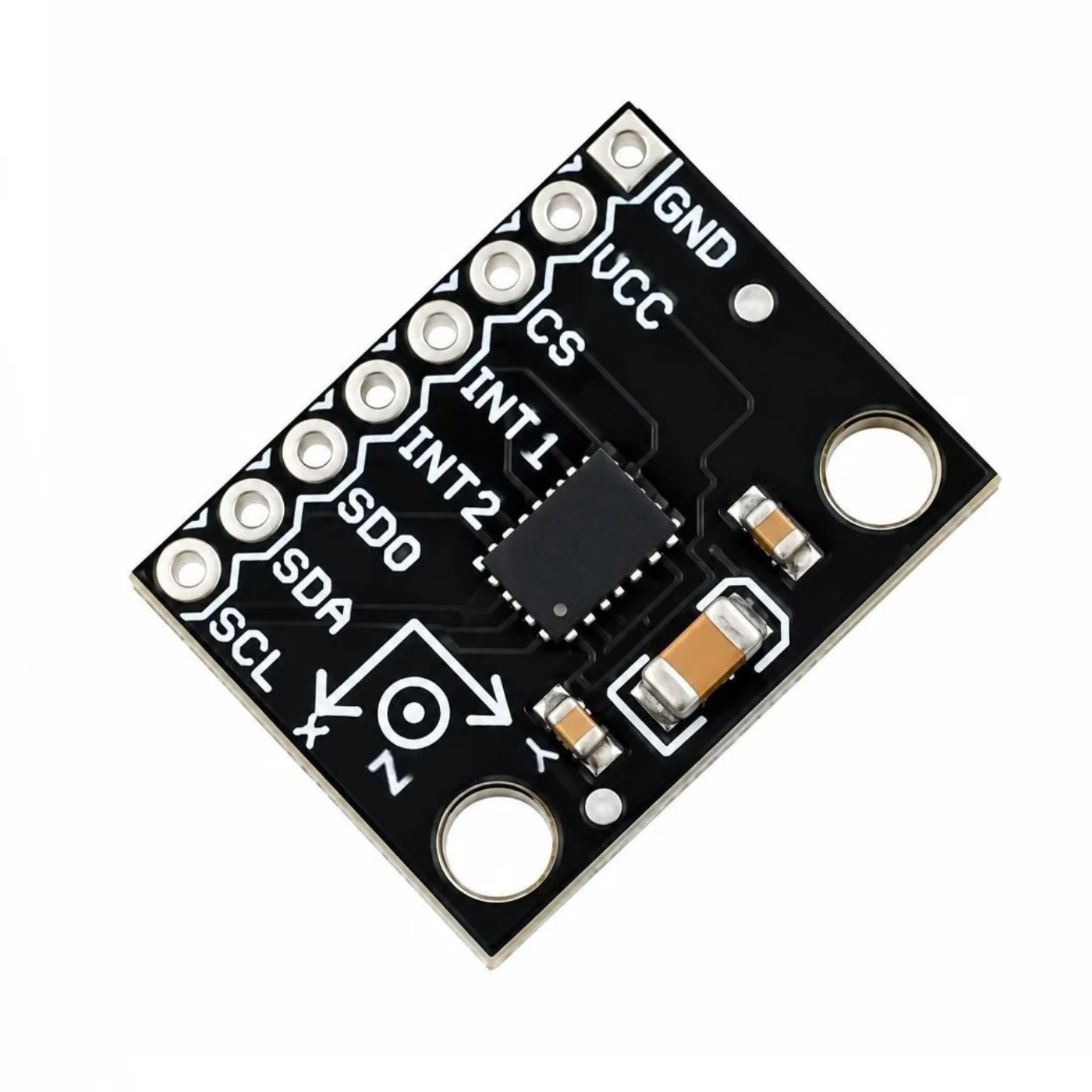

The SmartElex Triple Axis Accelerometer Breakout is based on the ADXL345, a low-power 3-axis digital accelerometer designed to measure acceleration and motion along the X, Y and Z axes. It supports selectable measurement ranges of ±2g, ±4g, ±8g and ±16g and provides digital data through I2C or SPI interfaces.

The ADXL345 also includes useful motion-detection functions such as single- and double-tap detection, activity/inactivity monitoring and free-fall detection. Its compact breakout format makes it suitable for robotics, motion tracking, tilt sensing, navigation and embedded electronics projects

Features

  • 3-Axis Acceleration Sensing: Measures acceleration along the X, Y and Z axes for motion, tilt and vibration detection.
  • Selectable Measurement Range: Supports ±2g, ±4g, ±8g and ±16g acceleration ranges for different sensing requirements.
  • High-Resolution Output: Provides up to 13-bit resolution in full-resolution mode while maintaining approximately 4mg/LSB sensitivity.
  • I2C & SPI Interfaces: Supports both I2C and SPI digital communication for flexible connection to microcontrollers and development boards.
  • Tap Detection: Supports single-tap and double-tap detection for interactive and motion-based applications.
  • Activity & Inactivity Detection: Detects movement or inactivity based on programmable acceleration thresholds.
  • Free-Fall Detection: Provides dedicated free-fall detection for applications requiring sudden-motion or drop detection.
  • 32-Level FIFO: Includes an integrated 32-level FIFO buffer to store motion data and reduce processor workload.
Specifications

Package Includes:

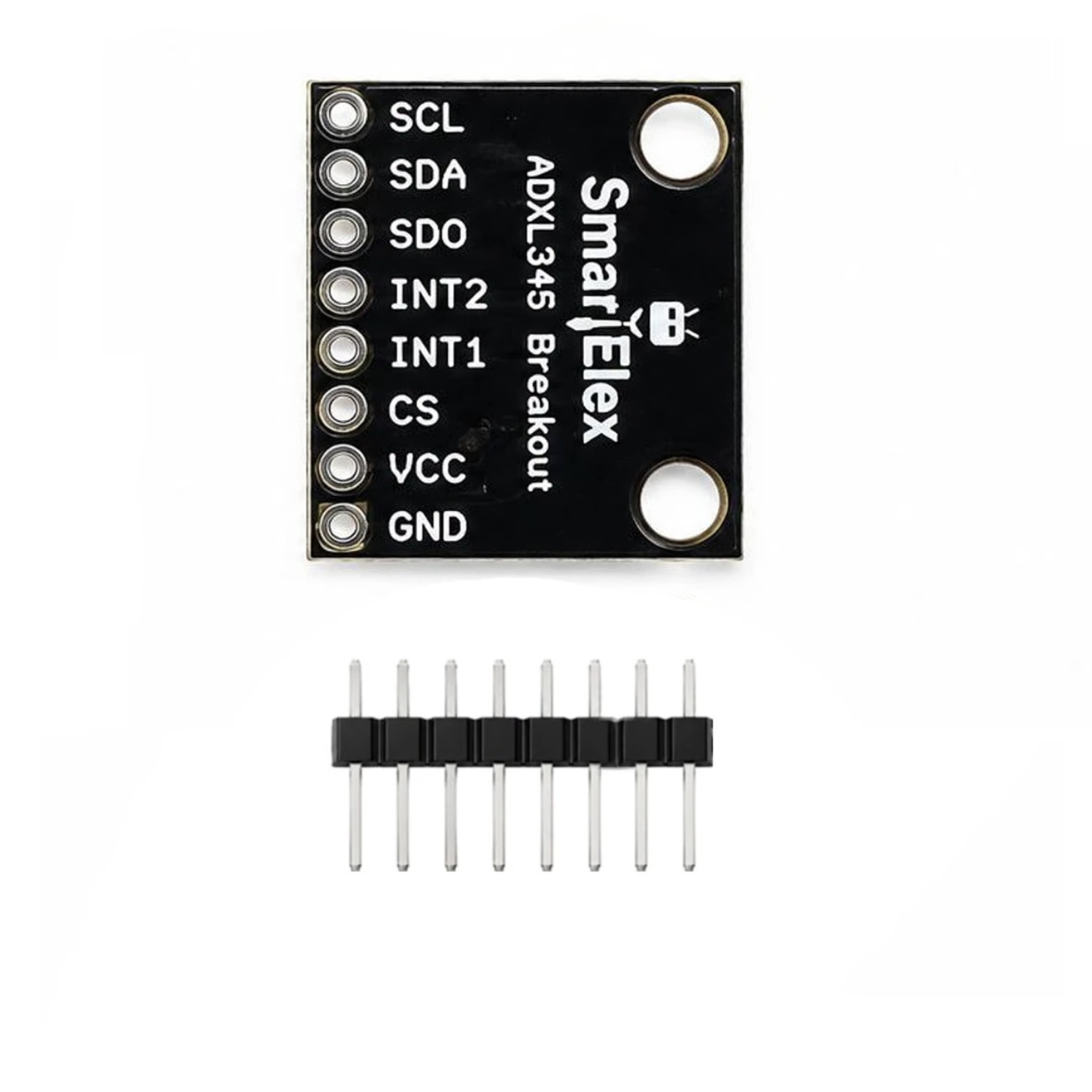

  • 1 x SmartElex  Triple Axis Accelerometer Breakout - ADXL345
  • 1 x 8-Pin Header

Specification

Specification Details
Item Type Triple Axis Accelerometer Breakout
IC Chip ADXL345
Sensor Type 3-Axis Digital Accelerometer
Sensing Axis X, Y, Z
Range ±2 g, ±4 g, ±8 g, ±16 g
Resolution Up to 13-bit
Digital Output 16-bit Two's Complement
SPI Mode 3-Wire / 4-Wire
I2C Address 0x53 (Default), 0x1D (Alternate)
Supply Voltage 2.0 V to 3.6 V
Output Data Rate 0.1 Hz to 3200 Hz
Buffer 32-Level FIFO
Length 20 mm
Width 15 mm
Weight 2 g
