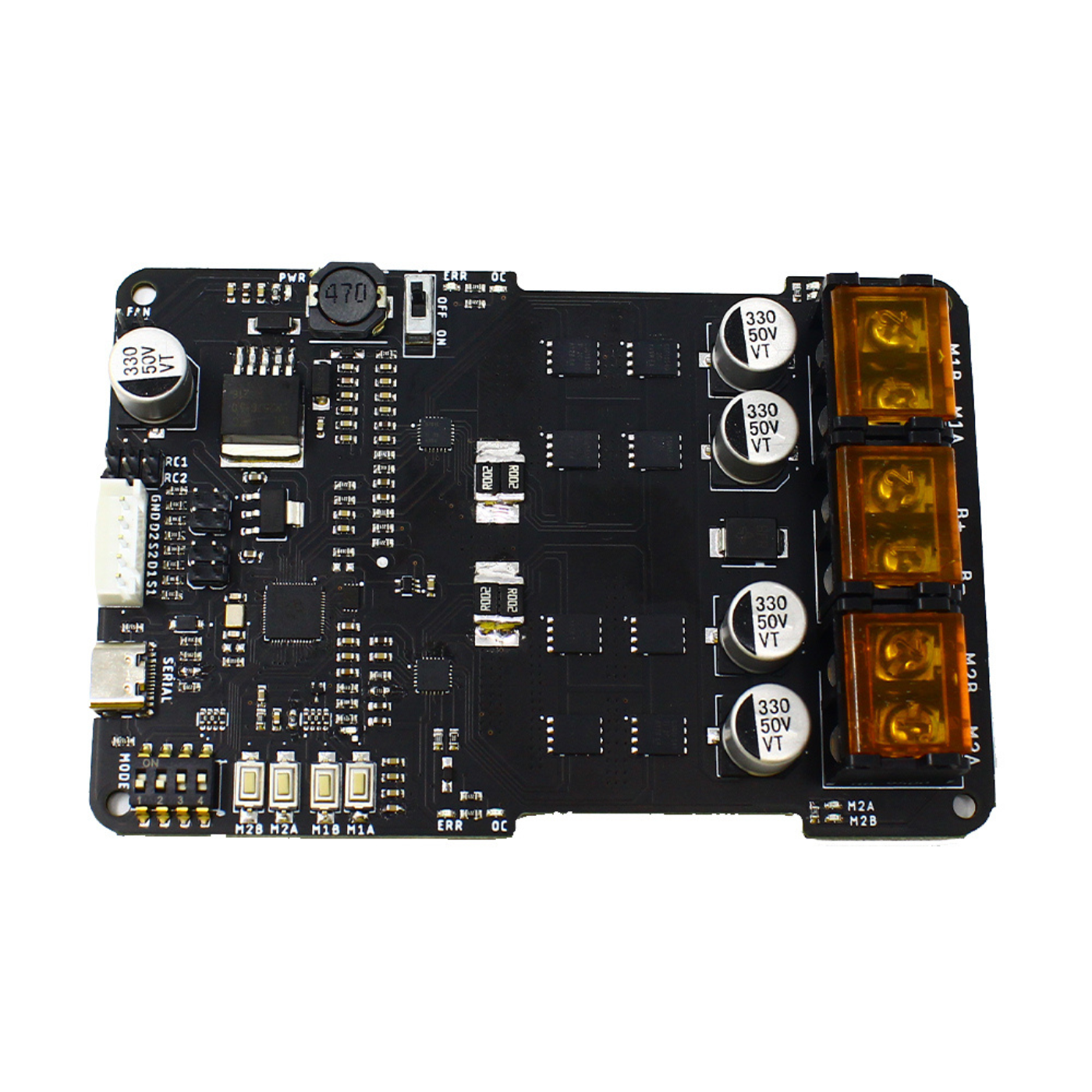

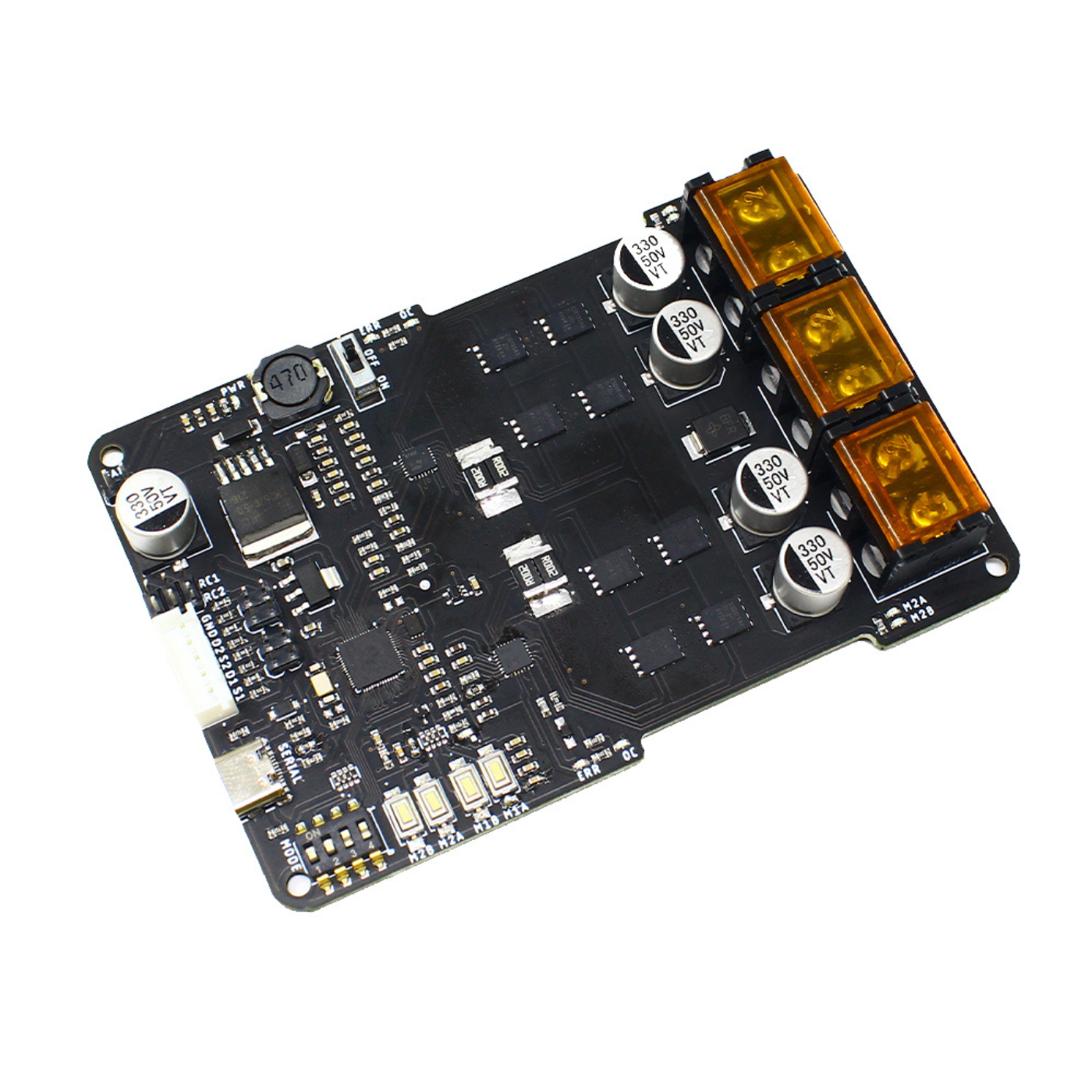

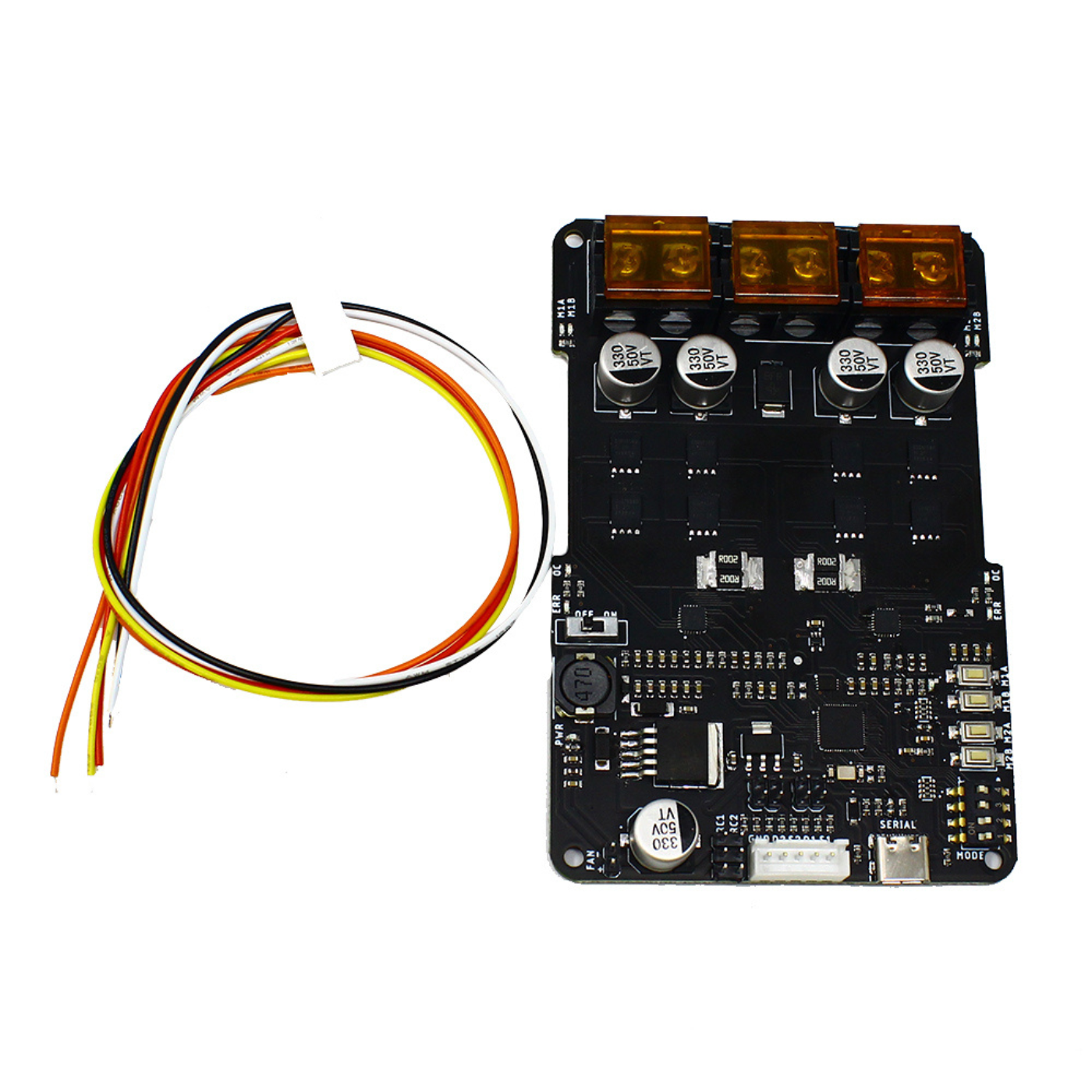

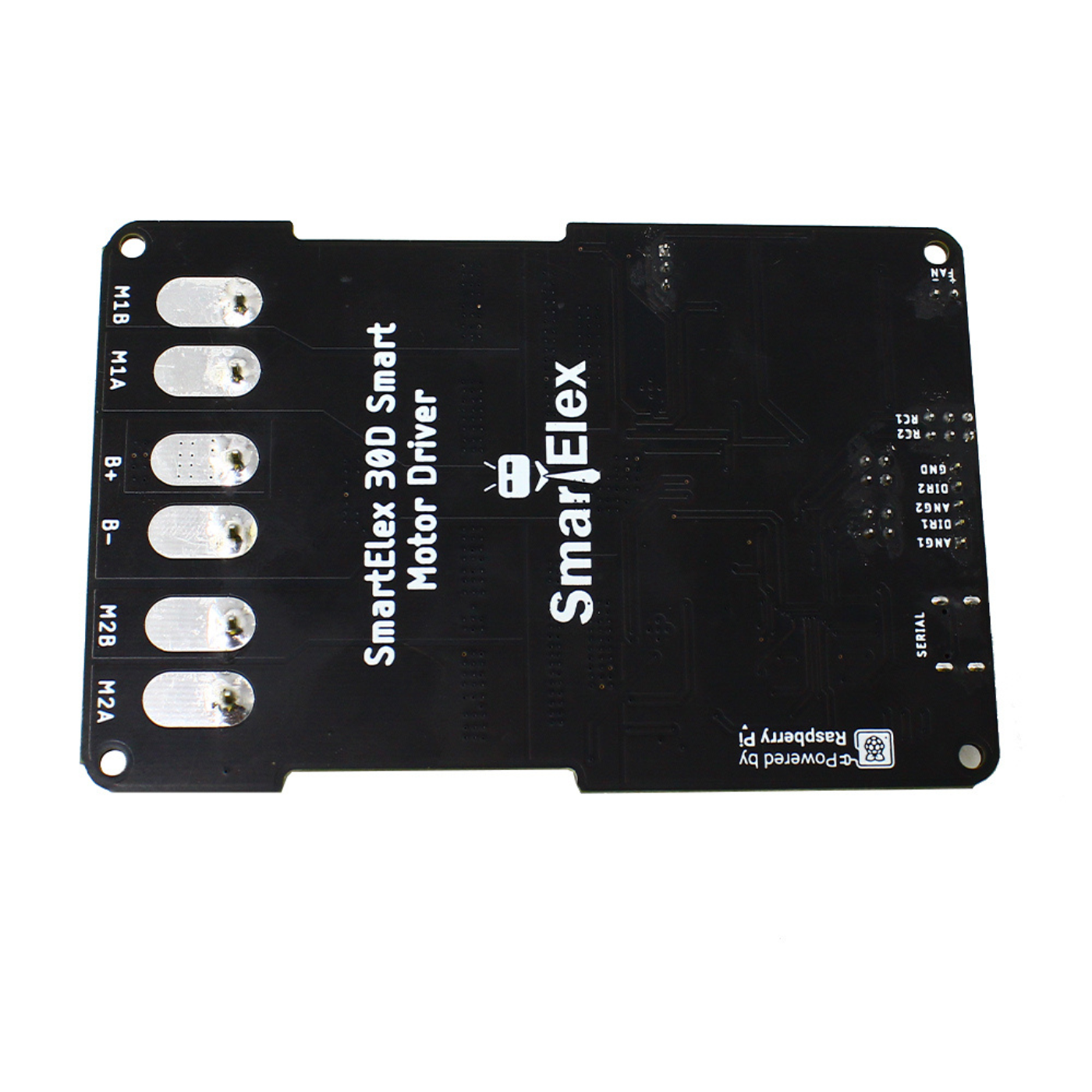

SmartElex 30D Dual Channel Motor Driver Powered by Raspberry Pi
Couldn't load pickup availability
The SmartElex 30D is a powerful and intelligent dual channel motor driver engineered for demanding robotics and automation applications. Designed to deliver 30A continuous and up to 85A peak current per channel, this smart motor driver offers impressive performance and versatility. It supports multiple input modes including RC, analog, PWM, and TTL serial communication, allowing you to integrate it effortlessly into a wide range of control systems. The 30D also includes mixed and independent operating modes, making it ideal for applications like differential drive robots, motorized vehicles, and mechatronic systems.
What truly sets the SmartElex 30D apart is its smart control and protection features. With onboard microcontroller intelligence, it actively monitors temperature and current to prevent damage. If the board temperature exceeds 80°C, motor speed is automatically reduced until it cools down, ensuring safe and consistent operation. Its MOSFETs operate at a 16kHz switching frequency for quiet, efficient performance. Designed for durability, flexibility, and ease of use, this Raspberry Pi-powered driver is the perfect choice for anyone looking to build reliable, high-power robotic systems.
| Specification | Details |
|---|---|
| Model | Smart Motor Driver |
| No. of Channels | 2 |
| Continuous Current (A) | 30 |
| Voltage Rating (V) | 7 to 28 |
| Driver Model | SmartElex 30D |
| Peak Current (A) | 85 |
| Frequency (Hz) | 490 |
| Operating Mode | 1. Radio Control (RC), 2. Microcontroller PWM, 3. Analog, 4. Serial Packetized |
| Overcurrent Protection (Y/N) | Yes |
| Thermal Protection (Y/N) | Yes |
| LED Indicator (Y/N) | Yes |

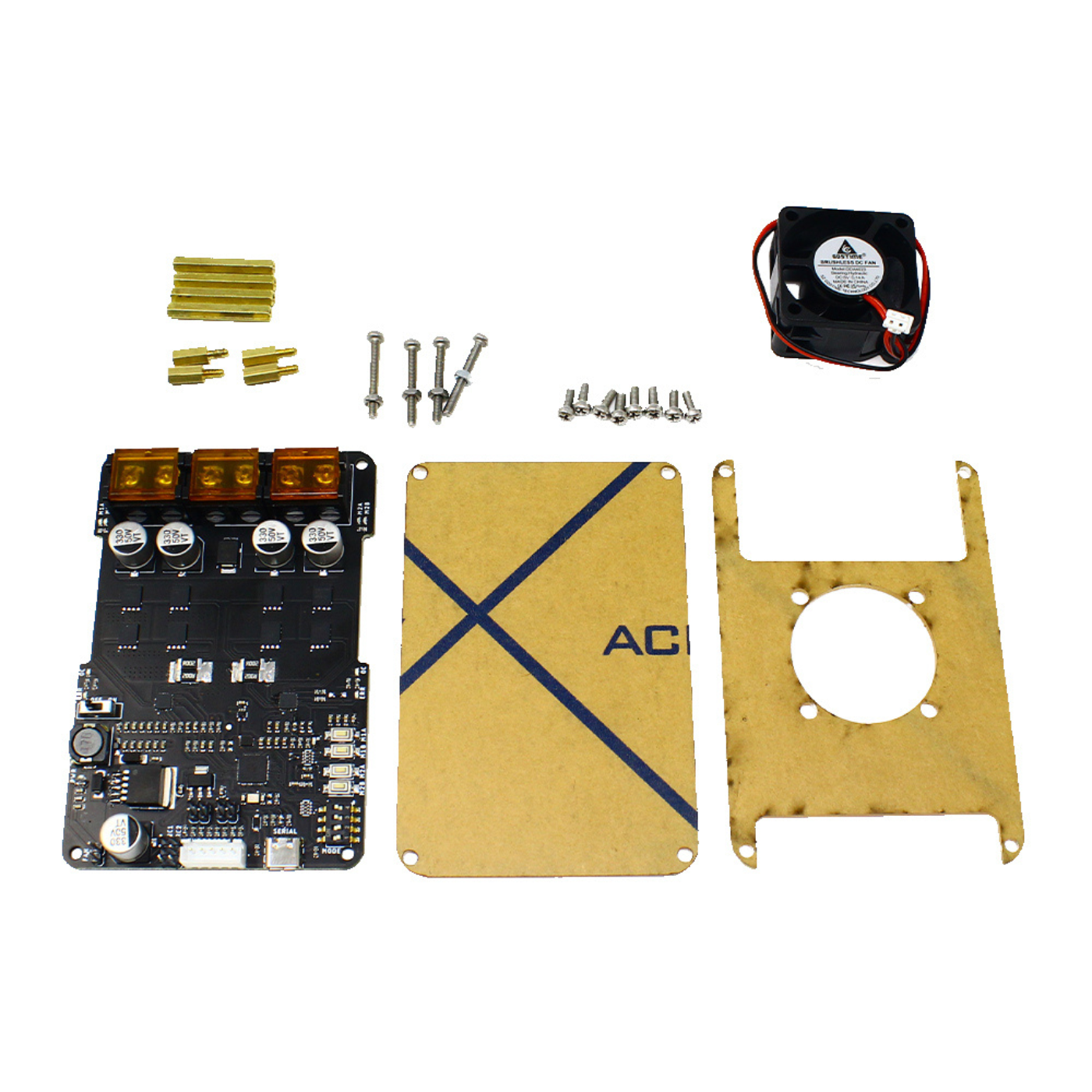

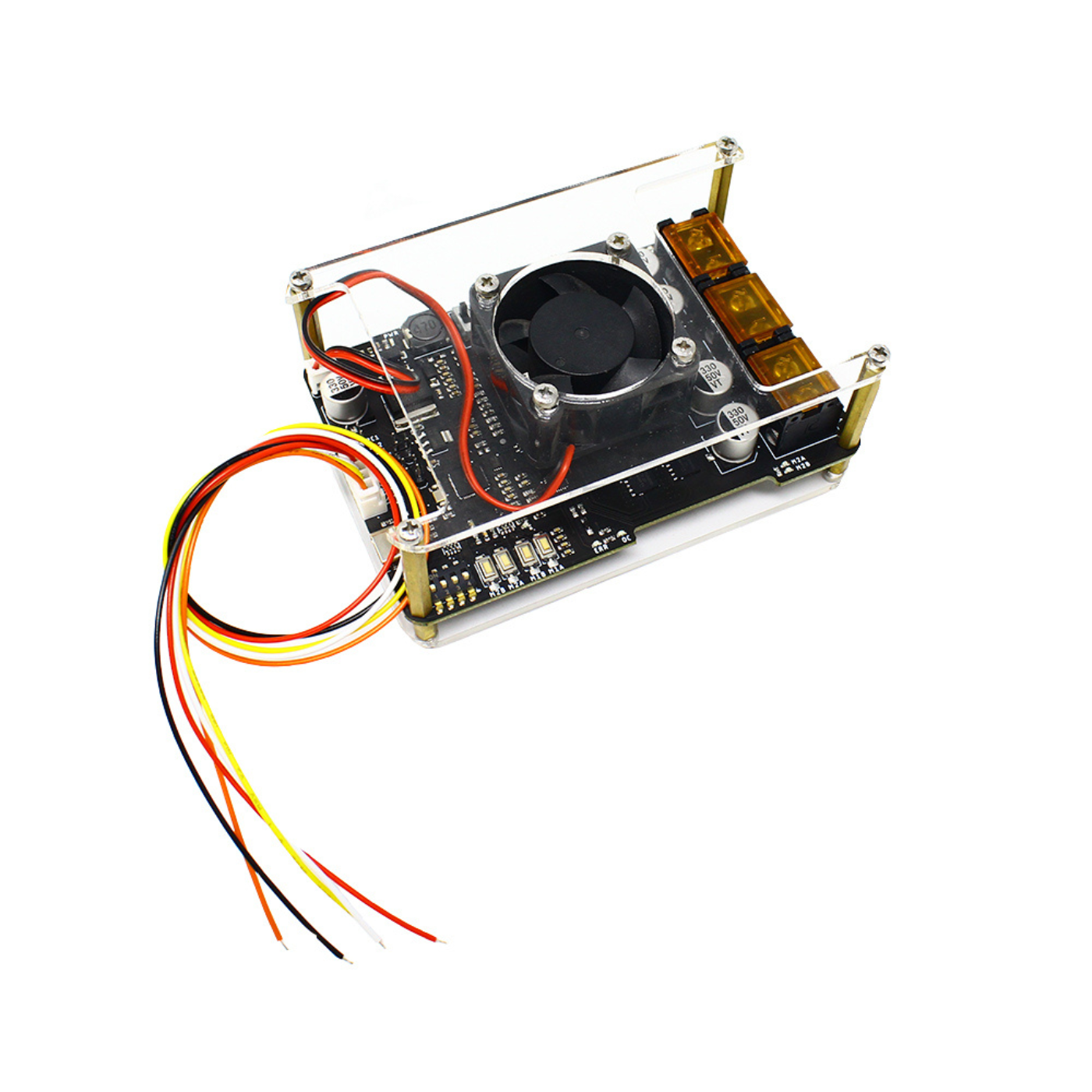

| Cooling Fan (Y/N) | Yes |
| Polarity Protection (Y/N) | No |
| Dimensions (L x W x H) mm | 115 x 76 x 52 |
| Weight (g) |
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only.
