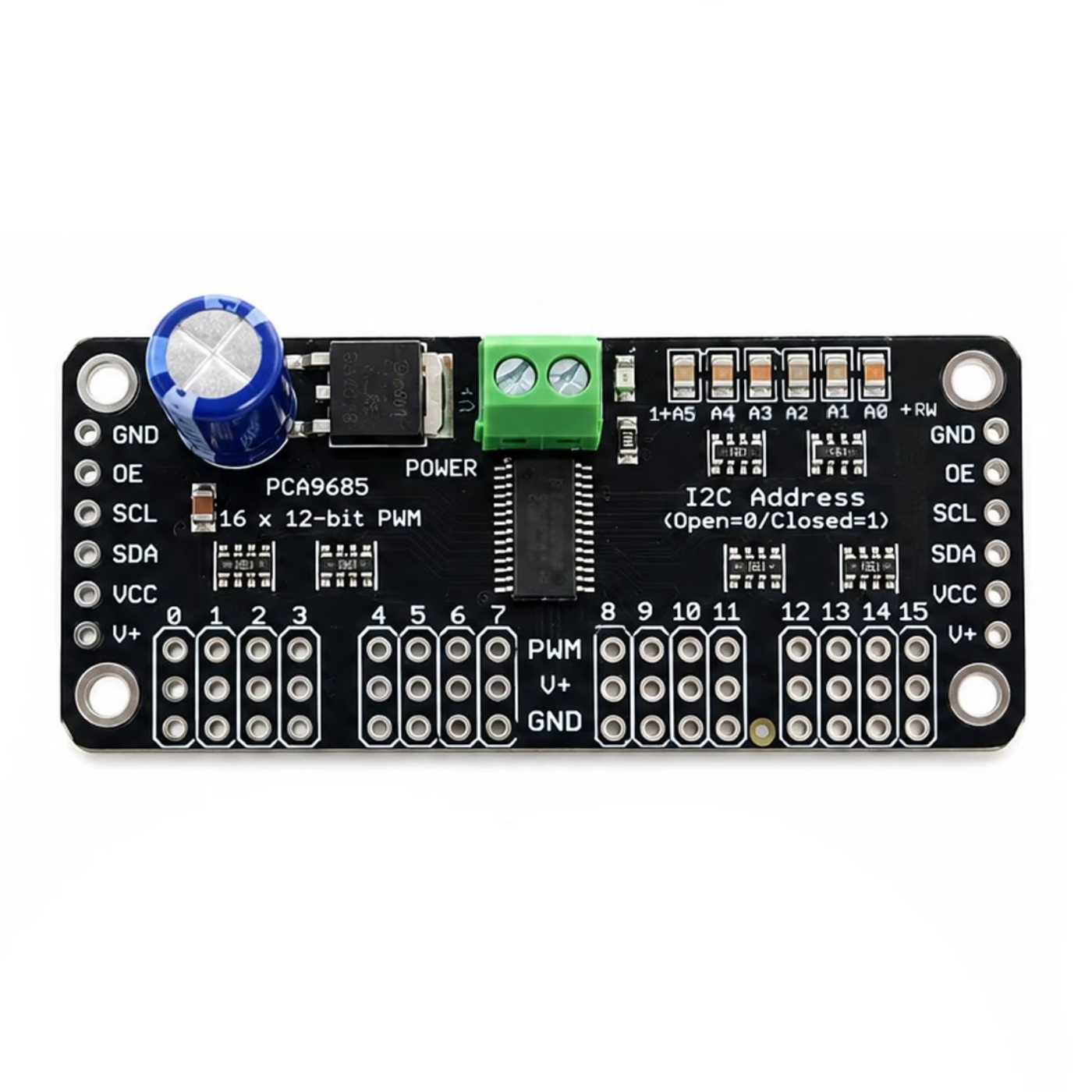

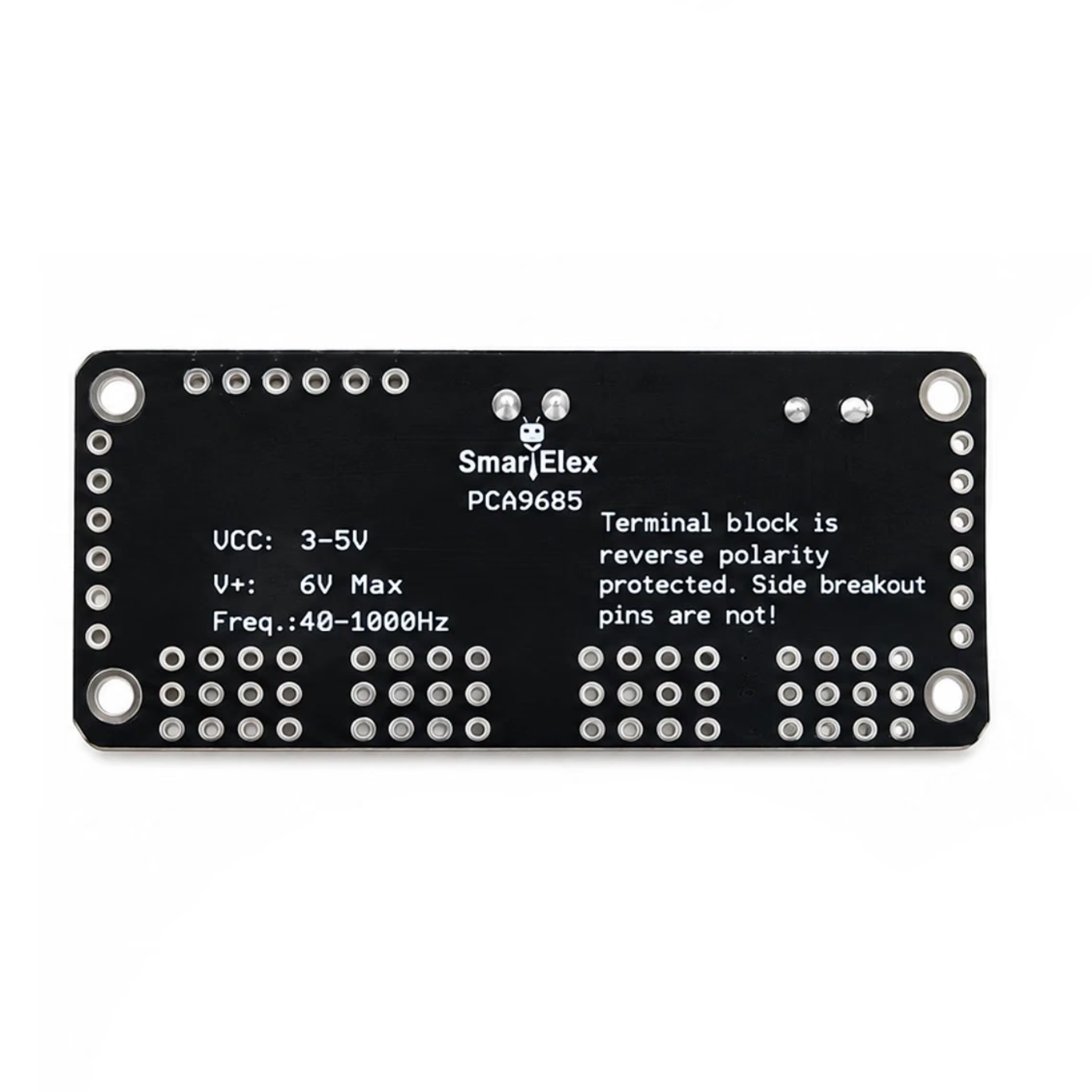

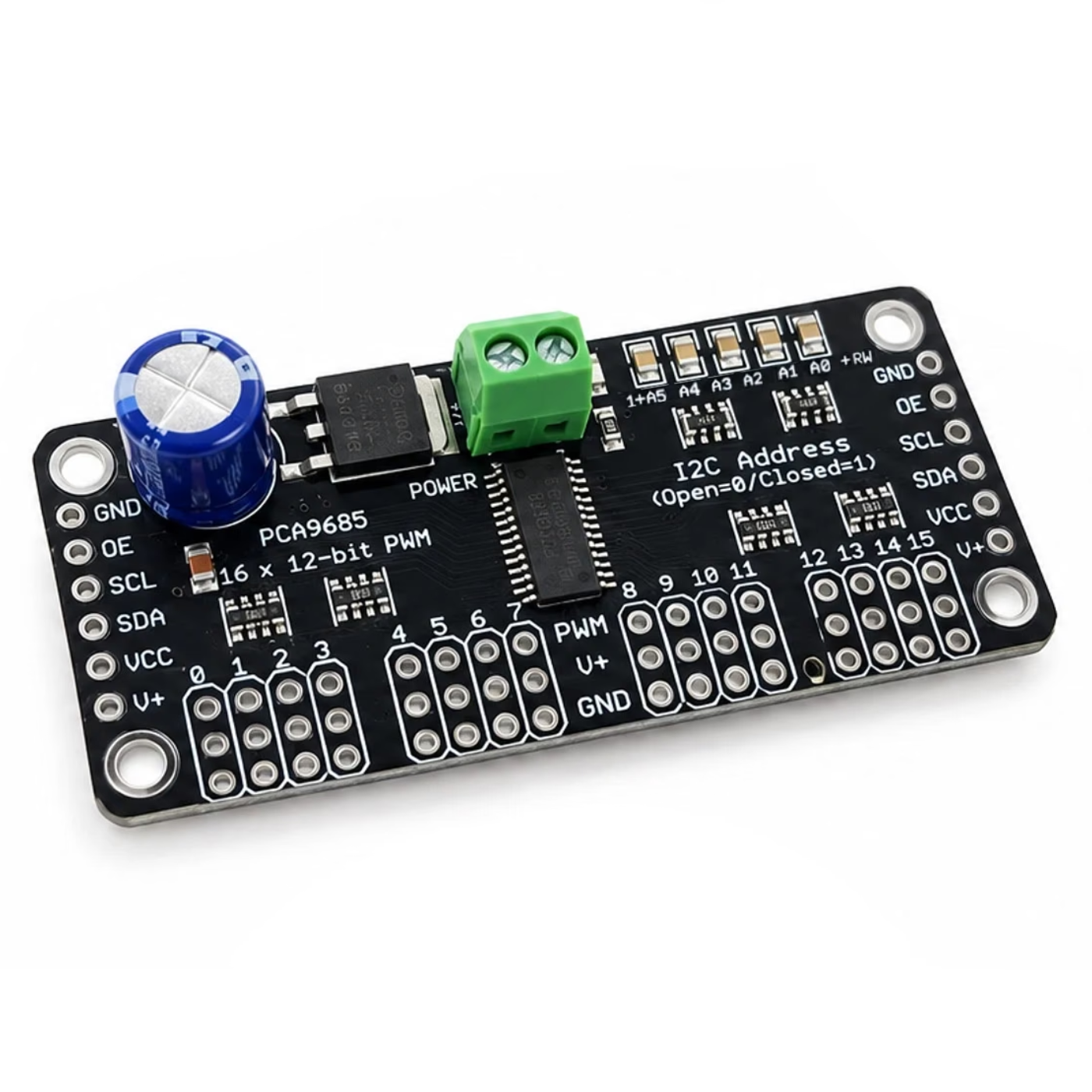

SmartElex 16-Channel 12-Bit PWM/Servo Driver

The SmartElex 16-Channel 12-Bit PWM/Servo Driver is based on the PCA9685 and provides 16 independently controlled PWM channels through a single I2C interface. Each channel offers 12-bit resolution with 4096 programmable steps, making the board suitable for precise control of servo motors, LEDs and other PWM-controlled devices.

The driver supports adjustable PWM frequency up to approximately 1.6kHz and includes an output-enable function for quickly disabling all outputs. It can be connected to Arduino, Raspberry Pi and other I2C-compatible controllers, making it useful for robotics, multi-servo systems, LED control and automation projects.

Features

16 PWM Channels: Provides 16 independently programmable PWM output channels for controlling multiple servos, LEDs and other PWM devices.
12-Bit Resolution: Each channel provides 4096 programmable PWM steps for precise output control.
I2C Interface: Uses the I2C communication interface, allowing multiple PWM channels to be controlled using only two communication lines.
Adjustable PWM Frequency: Supports programmable PWM frequencies from approximately 24Hz to 1.6kHz for flexible control applications.
Servo Control: Provides fine PWM control suitable for operating multiple hobby servo motors in robotics and automation projects.
Output Enable: Includes an output-enable function that can quickly disable all PWM outputs when required.
Push-Pull & Open-Drain Output: Supports configurable output modes for different PWM and control applications.
Wide Operating Voltage: The PCA9685 controller supports a 2.3–5.5V supply range with 5.5V-tolerant inputs.

Specifications

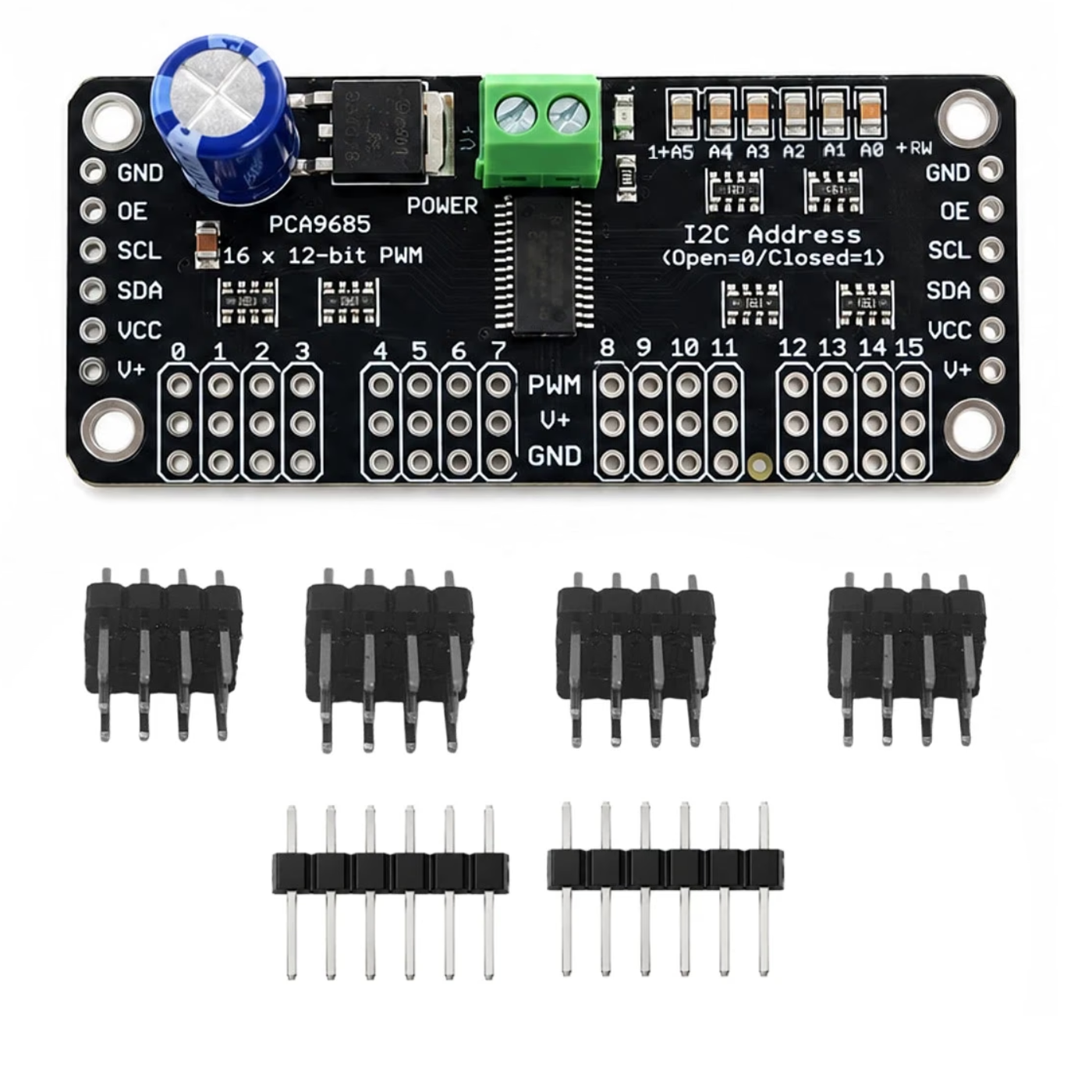

Package Includes:

1 x SmartElex 16-Channel 12-bit PWM/Servo Driver I2C interface PCA9685 for Arduino Raspberry Pi
2 x 6 pin male pin header
4 x (3X4) pin male pin header

Specification

Specification	Details
Model No. / Name	PCA9685
Interface	I2C
Logic Voltage	3.3 V or 5 V
Resolution	12-bit (4096 steps)
PWM Frequency	24–1600 Hz
Servo Motor Interface	50–60 Hz (Default Servo Frequency)
I2C Address	0x40 (Default)
Length	62 mm
Width	25 mm
Height	18 mm
Weight	12 g
