SLA 12VDC 6 Pin 30A SPDT High Power Relay Through Hole - Buy Online in India

SLA 12VDC 6 Pin 30A SPDT High Power Relay Through Hole

Rs 174/-
- 42%
Rs 174/-
Rs 299/-
Save Rs 125/-
Incl. GST (No Hidden Charges)
Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Free Delivery Above ₹999

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Purchase

Cash on Delivery
SKU: TIFRL0085

• The SLA 12VDC 6 Pin 30A High Power Relay features a 12V DC non-polarized coil and SPDT (1 Form C) contacts for high-current switching applications.

• Through-hole mounting and a 32 × 27.6mm package provide secure PCB installation for industrial and power control circuits.

• With a maximum switching current of 30A and switching voltage up to 250V AC, the relay is suitable for controlling heavy electrical loads.

• The SPDT contact arrangement supports both normally open and normally closed switching, enabling flexible circuit implementation.

• Electrical isolation between the control and load circuits helps improve reliability in high-power electronic systems.

• Suitable for industrial automation, automotive electronics, UPS systems, solar equipment, power management, and heavy-duty control applications.

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
+91

File(s) size limit is 20MB. Max 3 files.

Select Categories
CAPTCHA
Reload Captcha
Robocraze Academy Limited Time Offer
SLA 12VDC 6 Pin 30A SPDT High Power Relay Through Hole - Robocraze
SLA 12VDC 6 Pin 30A SPDT High Power Relay Through Hole
Rs 299/- Rs 174/-
SLA 12VDC 6 Pin 30A SPDT High Power Relay Through Hole - Robocraze
SLA 12VDC 6 Pin 30A SPDT High Power Relay Through Hole - Robocraze
SLA 12VDC 6 Pin 30A SPDT High Power Relay Through Hole - Robocraze
SLA 12VDC 6 Pin 30A SPDT High Power Relay Through Hole - Robocraze
SLA 12VDC 6 Pin 30A SPDT High Power Relay Through Hole - Robocraze

SLA 12VDC 6 Pin 30A SPDT High Power Relay Through Hole

Rs 299/- Rs 174/-
Description

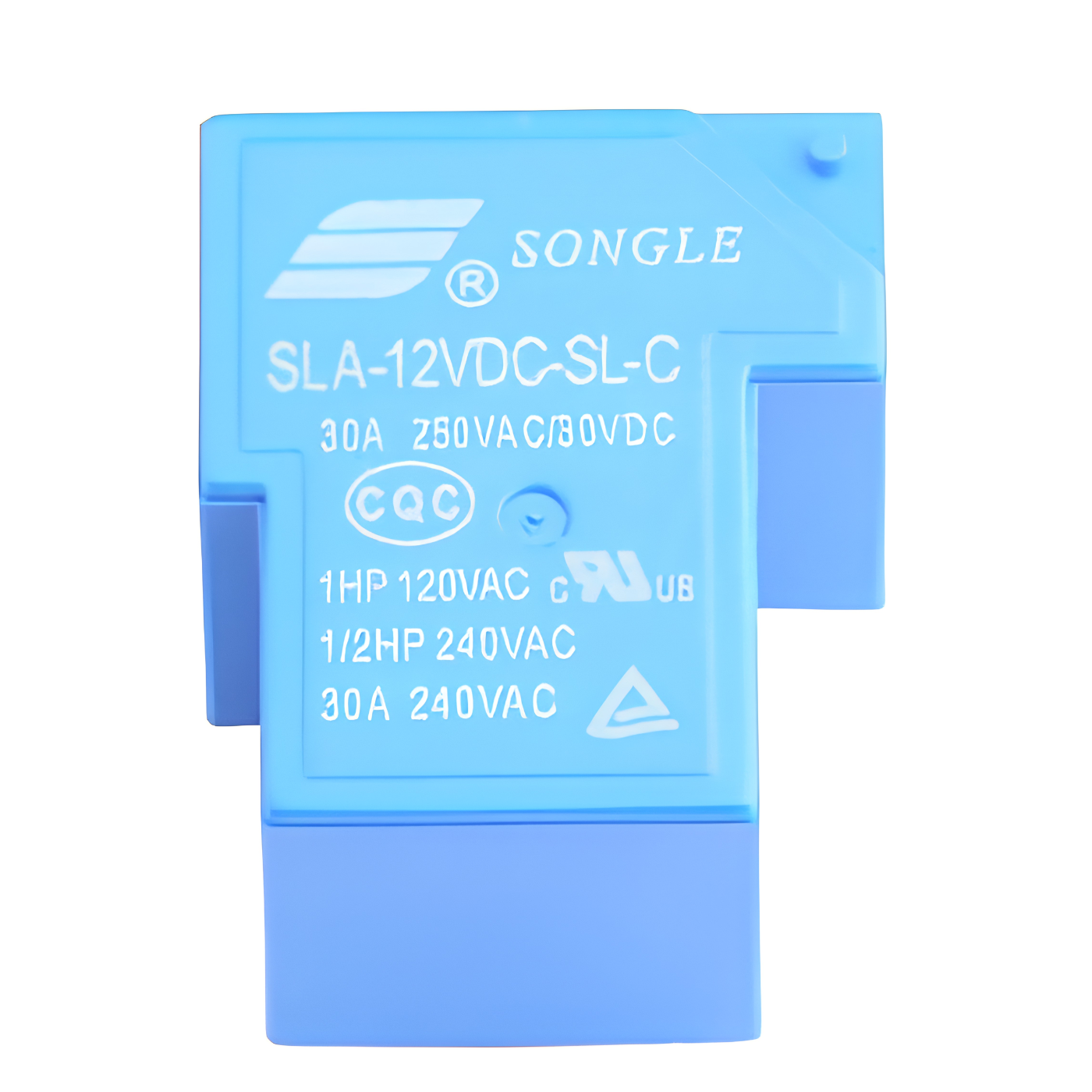

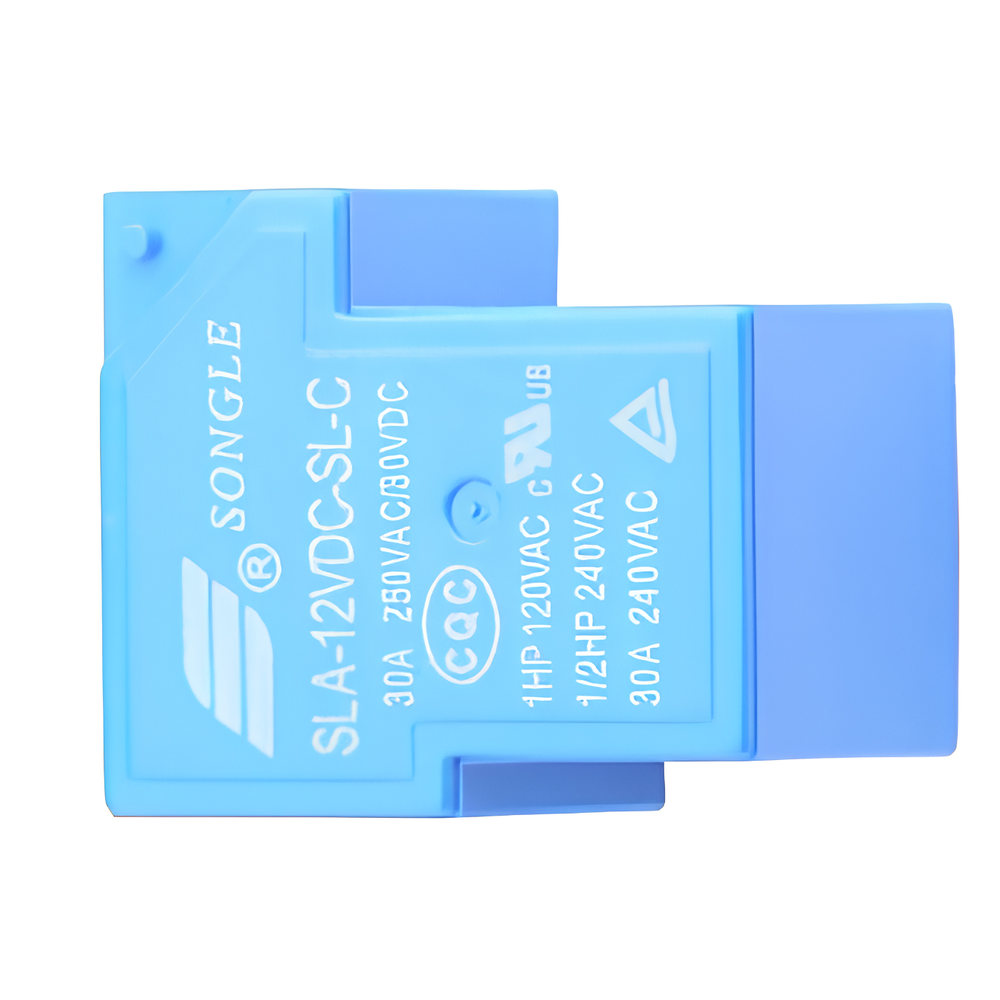

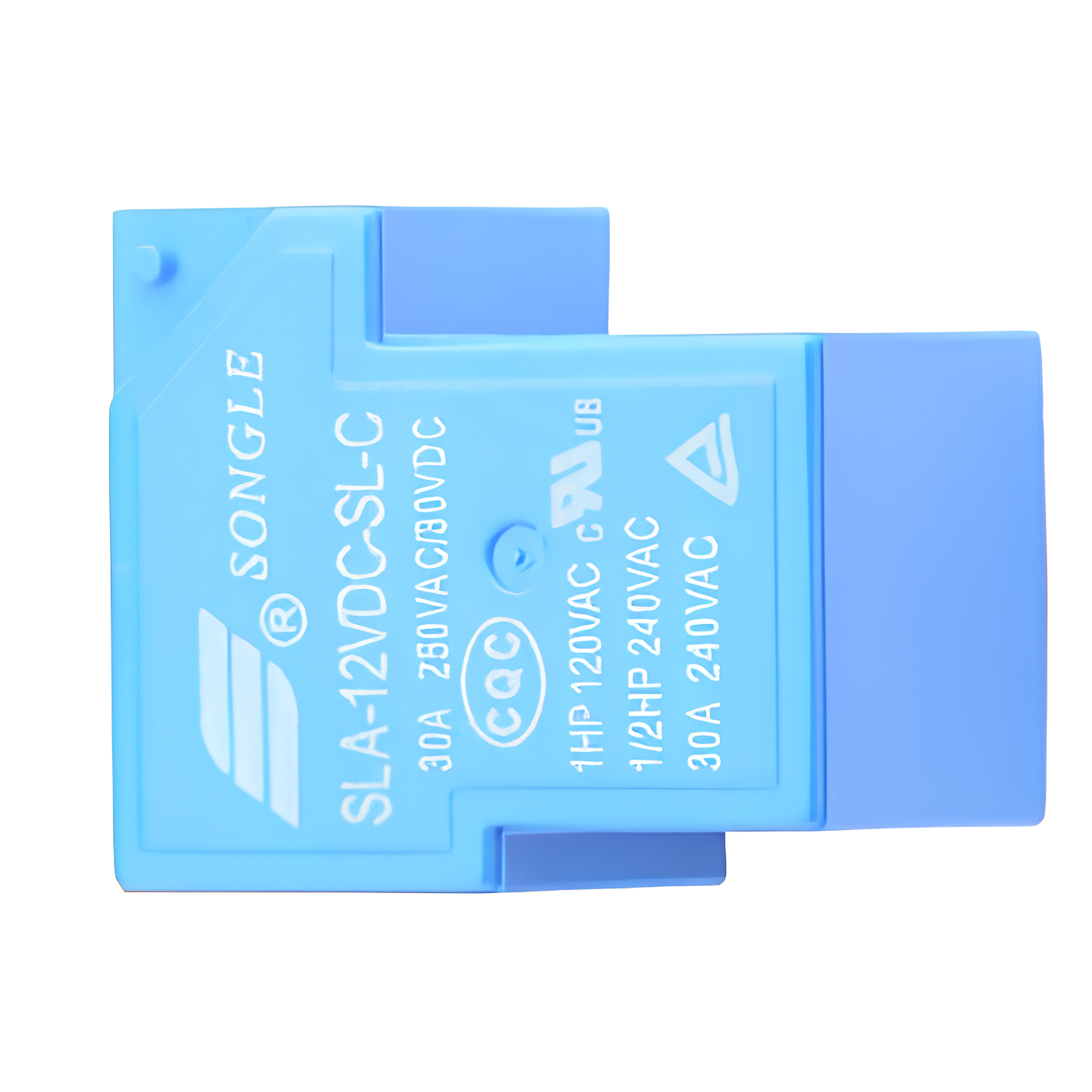

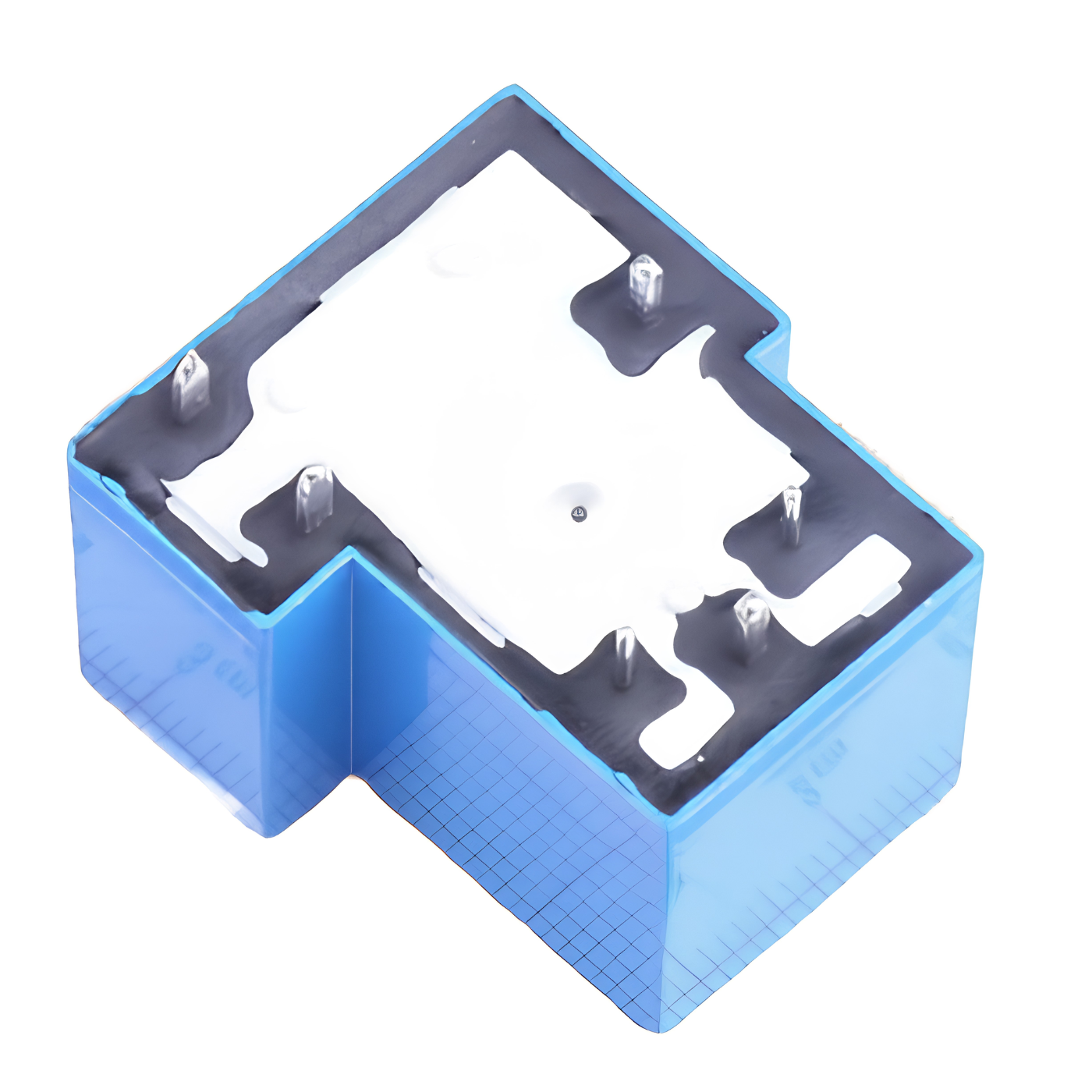

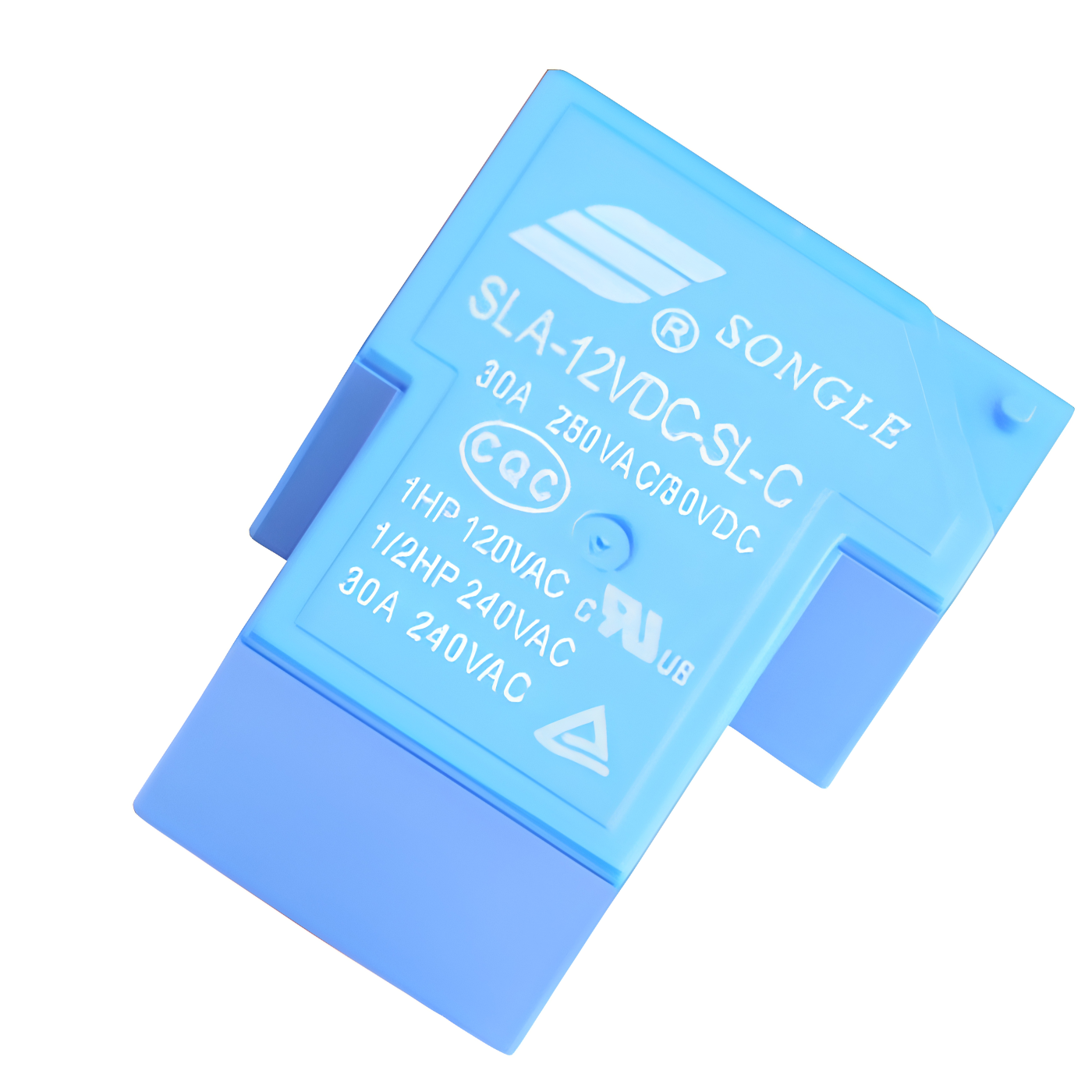

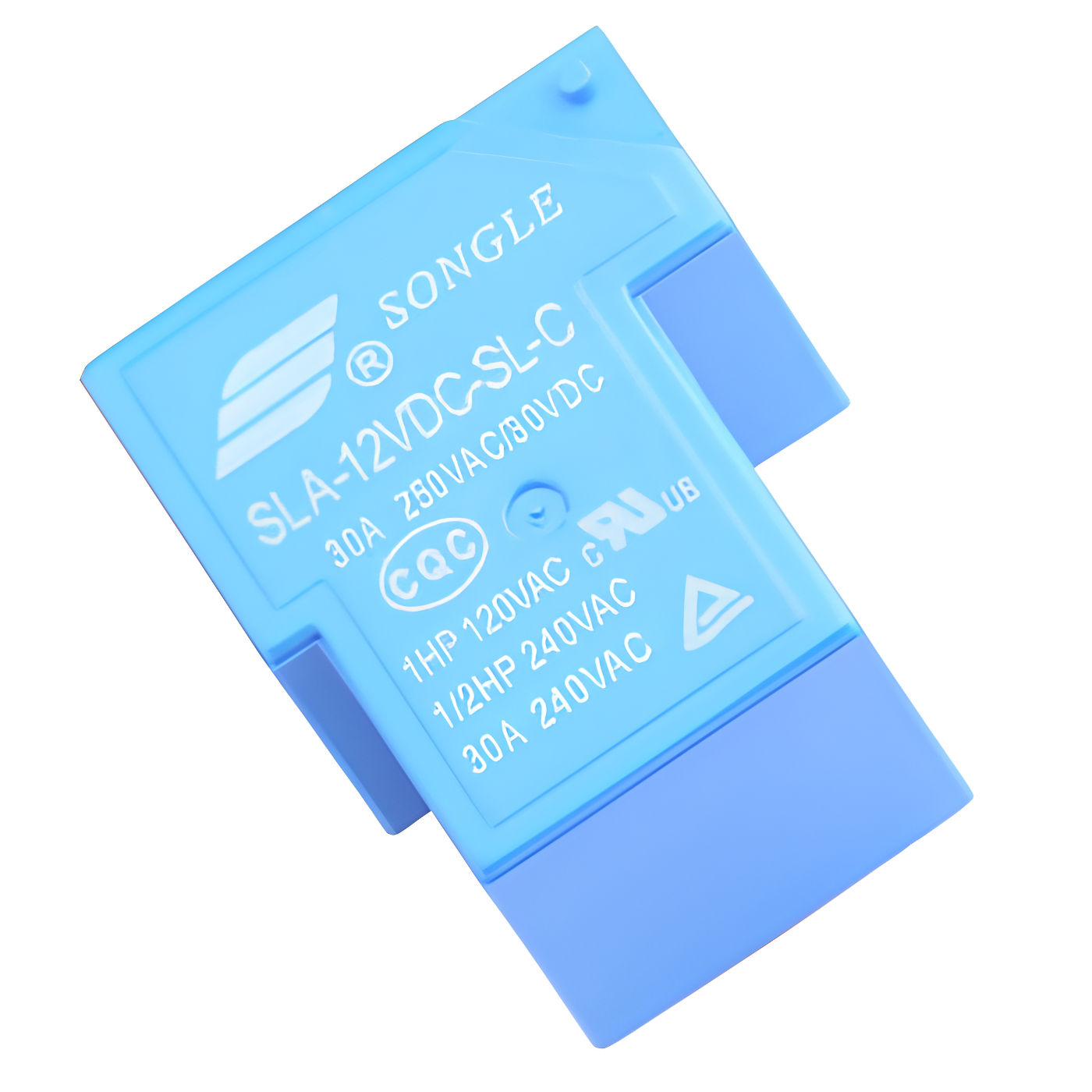

SLA 12VDC 6 Pin 30A SPDT High Power Relay Through Hole

The SLA 12VDC 6 Pin 30A High Power Relay is designed for reliable switching of high-current electrical loads in industrial, automotive, and power control applications. Featuring a 12V DC non-polarized coil and a Single Pole Double Throw (SPDT) 1 Form C contact configuration, the relay supports both normally open (NO) and normally closed (NC) switching, providing flexibility for a variety of circuit designs.

Built with a through-hole package measuring 32 × 27.6mm, the relay provides secure PCB mounting for applications that require dependable mechanical stability. With a maximum switching current of 30A and a maximum switching voltage of 250V AC, it is suitable for controlling motors, compressors, heaters, lighting systems, inverters, and other high-power electrical loads.

The relay is designed to provide electrical isolation between the control and load circuits while maintaining stable switching performance. Its robust construction, 6-pin configuration, and reliable operating characteristics make it suitable for industrial automation, UPS systems, solar power equipment, and other heavy-duty electronic applications.

Features:

• Supports a maximum switching current of 30A for high-power load control.

• Operates with a 12V DC non-polarized single coil.

• Features an SPDT (1 Form C) contact configuration for flexible switching.

• Provides normally open (NO) and normally closed (NC) contact operation.

• Uses a through-hole package for secure PCB mounting.

• Supports a maximum switching voltage of 250V AC.

• Offers a contact resistance of 100mΩ.

• Features a coil rated power of 900mW.

• Includes six connection pins for PCB installation.

• Provides an operate time of 10ms for switching applications.

• Suitable for industrial control, automotive, UPS, and power management systems.

• Designed for switching motors, compressors, heaters, lighting, and other heavy electrical loads

Specifications

Package Includes:

  • 1xSLA 12VDC 6 Pin 30A SPDT High Power Relay Through Hole

Specifications:

ParameterValue
BrandSongle Relay
ModelSLA-12VDC-SL-C
Product TypeHigh Power Relay
Coil Voltage12V DC
Contact FormSPDT (1 Form C)
Number of Pins6
Maximum Switching Current30A
Maximum Switching Voltage250V AC
PackageThrough Hole
Dimensions32 × 27.6mm
Coil TypeNon-Polarized Single Coil
Coil Rated Power900mW
Coil Resistance160Ω
Contact Resistance100mΩ
Operate Time10ms
