- This is SIM7670C 4G LM137 with Antenna(GSM 4G Foldable)- ADIY
- SIMCOM A7670C LTE module as the core component
- Supports LTE-FDD, LTE-TDD, and GSM frequency bands
- Controlled through AT commands for easy integration
- Includes a SIM card holder and SMA antenna connector
- Equipped with a DC power jack for power supply
- Offers RS232 interface for connectivity to computers or microcontrollers

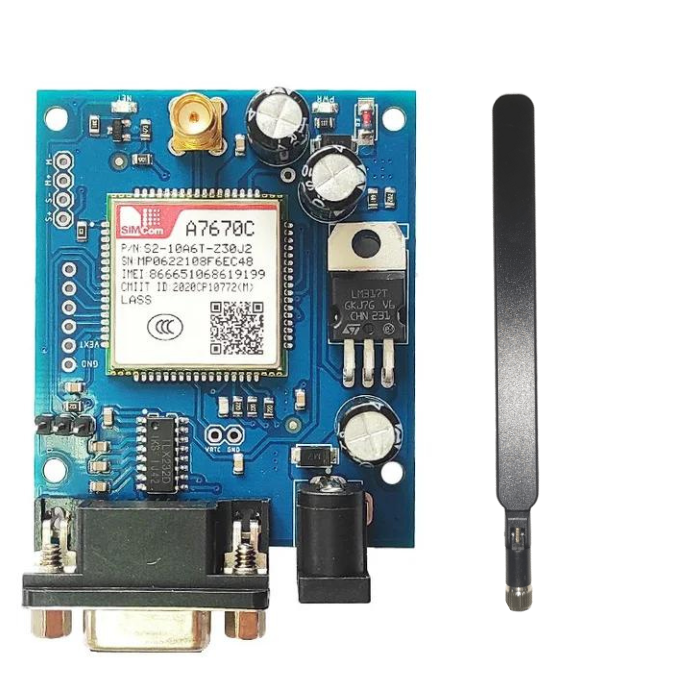

SIM7670C 4G LM137 with Antenna(GSM 4G Foldable)- ADIY

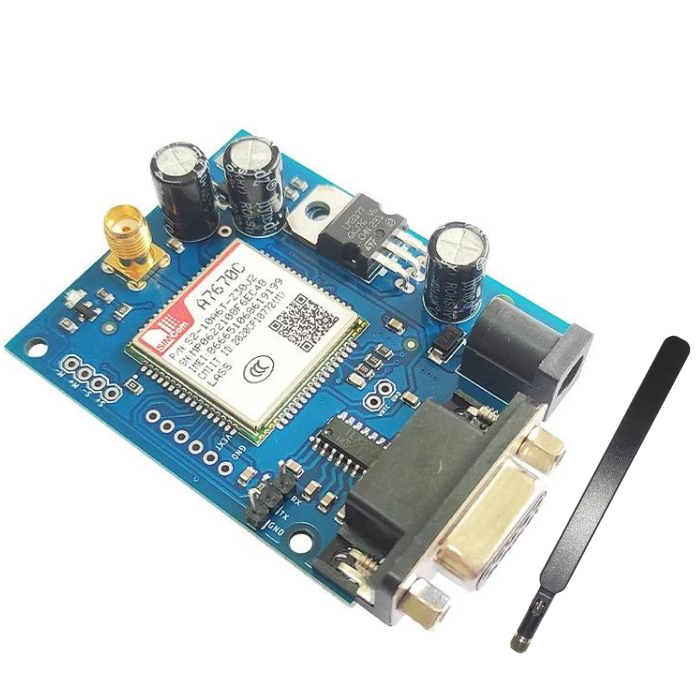

The ADIY 4G LTE modem is equipped with a SIM card socket, an SMA antenna connector, a DC power jack, and an RS232 interface. It supports various wireless communication modes including LTE-TDD, LTE-FDD, GSM, GPRS, and EDGE.
This board is centered around the SIMCOM A7670C LTE module and is furnished with an RS232 interface. The RS232 interface allows for effortless connectivity to a computer or laptop using a USB to Serial connector, or to a microcontroller using an RS232 to TTL converter. Additionally, a 3-pin header provides access to a 1.8V level UART interface, enabling direct interfacing with microcontrollers. Communication with the A7670C module is achieved through the utilization of AT commands.
Pinout:

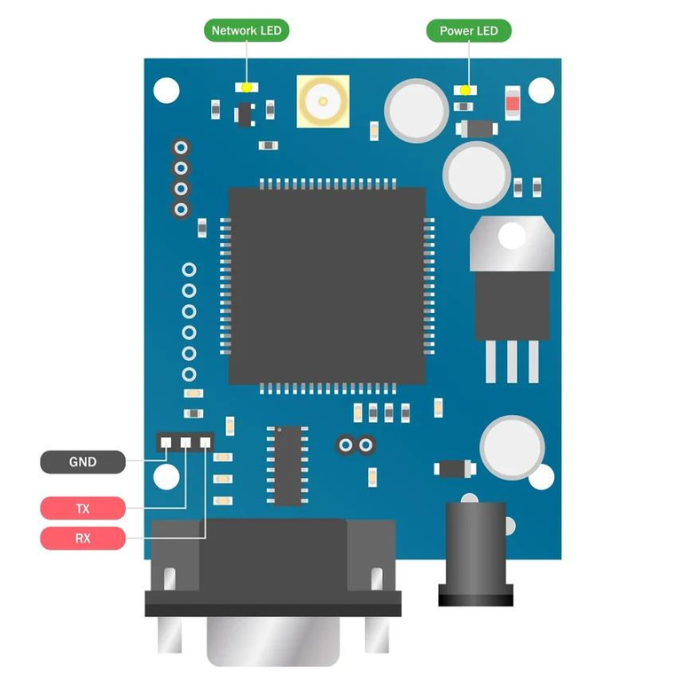

Pinout Of SIM7670C 4G LM137
Features:
- Serial interface
- Based on the SIMCOM A7670C LTE modem
- Supports LTE-FDD, LTE-TDD, and GSM frequency bands
- Controlled via AT commands

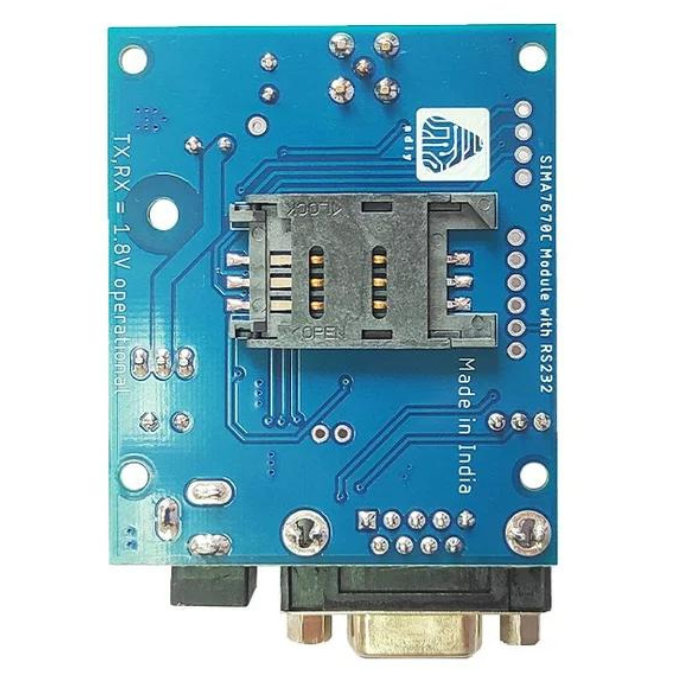

- SIM card holder included
- SMA antenna connector
- DC power jack
- RS232 interface
- Suitable for LTE and GSM networks
- Maximum downlink rate of 10Mbps
- Abundant software functions such as FOTA, LBS, and SSL
- RS232 DB9 Connector interface
- SMA connector for external antenna
- 1.8V UART header
Package Includes:
- 1 x SIM7670C 4G LM137 with Antenna(GSM 4G Foldable)- ADIY
Specifications:
| Input Voltage | 7-12V DC |
| Module | A7670C by SIMCOM |
| Frequency Bands |
LTE-FDD : B1/B3/B5/B8 LTE-TDD : B34/B38/B39/B40/B41 GSM: 900/1800MHz |
| Temperature GNSS |
-40°C~85°C |
| Size |
70x46.2x14.4mm |
