SIM A7670C 4G LTE Development Board with 4G Antenna
SIM A7670C 4G LTE Development Board with 4G Antenna
Low stock: 4 left
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Up to 10Mbps LTE speeds
- Low power use (<10mA in sleep mode)
- Connects via USB or TTL
- Includes 4G antenna with UFL connector
- Works with Windows, Linux, Android

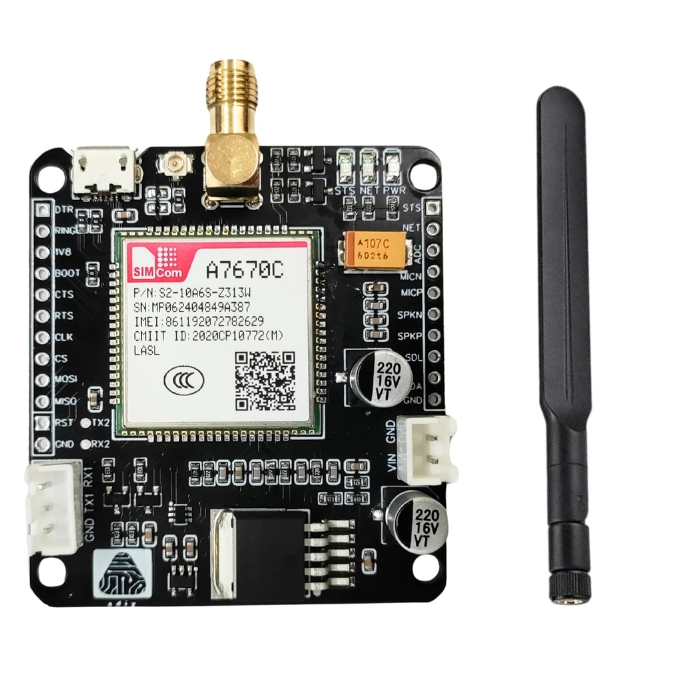

SIM A7670C 4G LTE Development Board with 4G Antennaneeds
Need a boost for your LTE projects? Check out the SIM A7670C 4G LTE Development Board with 4G Antenna!
This board gives you fast LTE speeds—up to 10Mbps down and 5Mbps up. It’s compact and easy to connect to your computer with USB or TTL converters. Also, it is need very little power when in sleep mode, which is ideal for battery-powered applications.

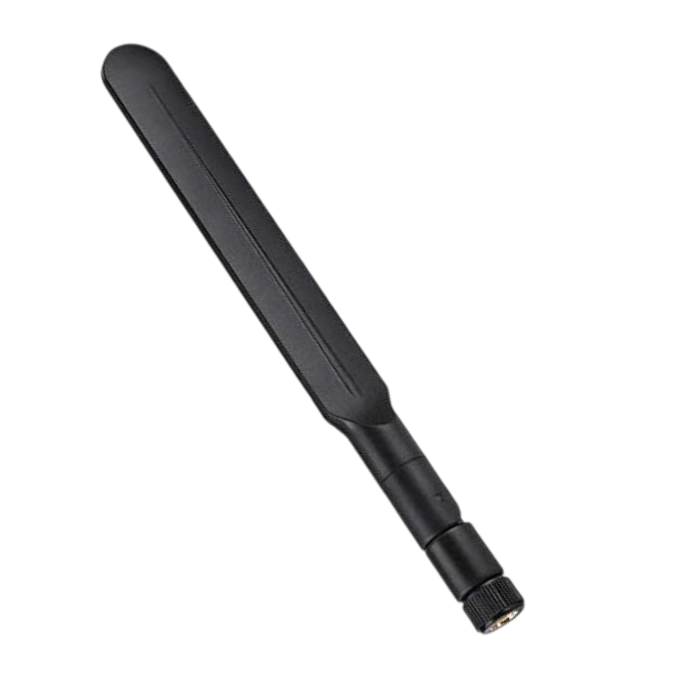

The included 4G antenna provides a stronger signal and connects effortlessly via the UFL connector. If you're working on routers, surveillance systems, or other remote settings, this combination keeps everything going smoothly.
Package Includes
- 1x SIM A7670C 4G LTE Development Board (LM39302)
- 1x GSM 4G Foldable Antenna
Specifications
| Component | Specification |
|---|---|
| SIM A7670C 4G LTE Development Board | Supports LTE-TDD and LTE-FDD networks; 10Mbps downlink, 5Mbps uplink |
| Power Consumption | Sleep Mode: <10mA |
| Connectivity | USB, TTL converters; UFL connector for antenna |
| Operating Systems | Windows, Linux, Android |
| 4G Antenna | Connects via UFL; boosts signal strength |
| Interfaces | UART, SIM, ADC, Audio MIC/SPK, I2C, USB_BOOT, Network Status, Module Status |
