SHT41 16bit I2C Digital Humidity and Temperature Sensor Probe -7Semi

SHT41 16bit I2C Digital Humidity and Temperature Sensor Probe -7Semi

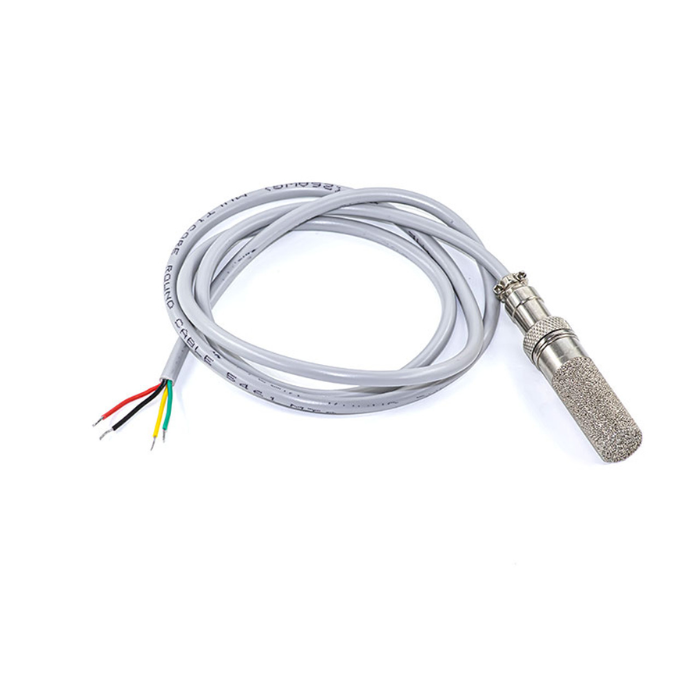

The SHT41 16bit I2C Digital Humidity and Temperature Sensor Probe by 7Semi is a cutting-edge solution for high-accuracy environmental monitoring. Engineered for precision, it offers outstanding temperature and humidity readings with an accuracy of ±0.2°C and ±1.8% RH respectively.

Designed for durability, it features a stainless-steel porous housing and a waterproof yet breathable membrane that achieves an IP65 rating—ensuring protection without sacrificing measurement integrity. The sensor communicates via a low-power I2C interface (default address 0x44), making it suitable for embedded and battery-operated applications.

With built-in NIST traceability, full calibration, and variable power heating, the SHT41 excels even in harsh environments like condensing, high-pressure, or corrosive conditions. It’s the ideal choice for HVAC systems, weather stations, industrial automation, and sensitive medical-grade equipment.

Features:

• Exceptional measurement Accuracy: ±0.2°C temperature and ±1.8% RH humidity provides consistent results in diverse situations.

• Wide Operating Range: Supports 0-100% relative humidity and temperatures ranging from -40°C to +125°C, making it appropriate for tough environmental applications.

• Advanced Protective Housing: The stainless-steel porous shell has pore diameters ranging from 5 to 120 microns, ensuring great filtering efficiency and durability.

• Integrated Heater with Variable Power Levels: Improves reliability in high humidity or condensation-prone environments.

• Waterproof and Breathable Membrane: Allows air and humidity to move through while preventing liquid ingress—ideal for high-moisture conditions.

• Digital I2C Interface (Address: 0x44): Provides rapid and stable communication with microcontrollers and embedded devices.

• Low power consumption: Suitable for portable and battery-powered solutions, with a typical 3.3V (1.7-3.6V range).

• NIST Traceable and Fully Calibrated: Each sensor is individually factory calibrated and tested, with a unique serial number tracing.

• Corrosion and High-Temperature Resistance: Works well in acidic, alkaline, dusty, and high-pressure conditions (up to 150 bar).

• Long-Term Stability and Durability: Performs consistently over time in severe and demanding situations.

• Seamless Integration: The Mini Round Shell (MRS) connector, combined with a 1-meter cable, allows for simple and dependable installation across multiple platforms.

Package Includes:

• 1 x SHT41 16bit I2C Digital Humidity and Temperature Sensor Probe -7Semi

Specifications:
