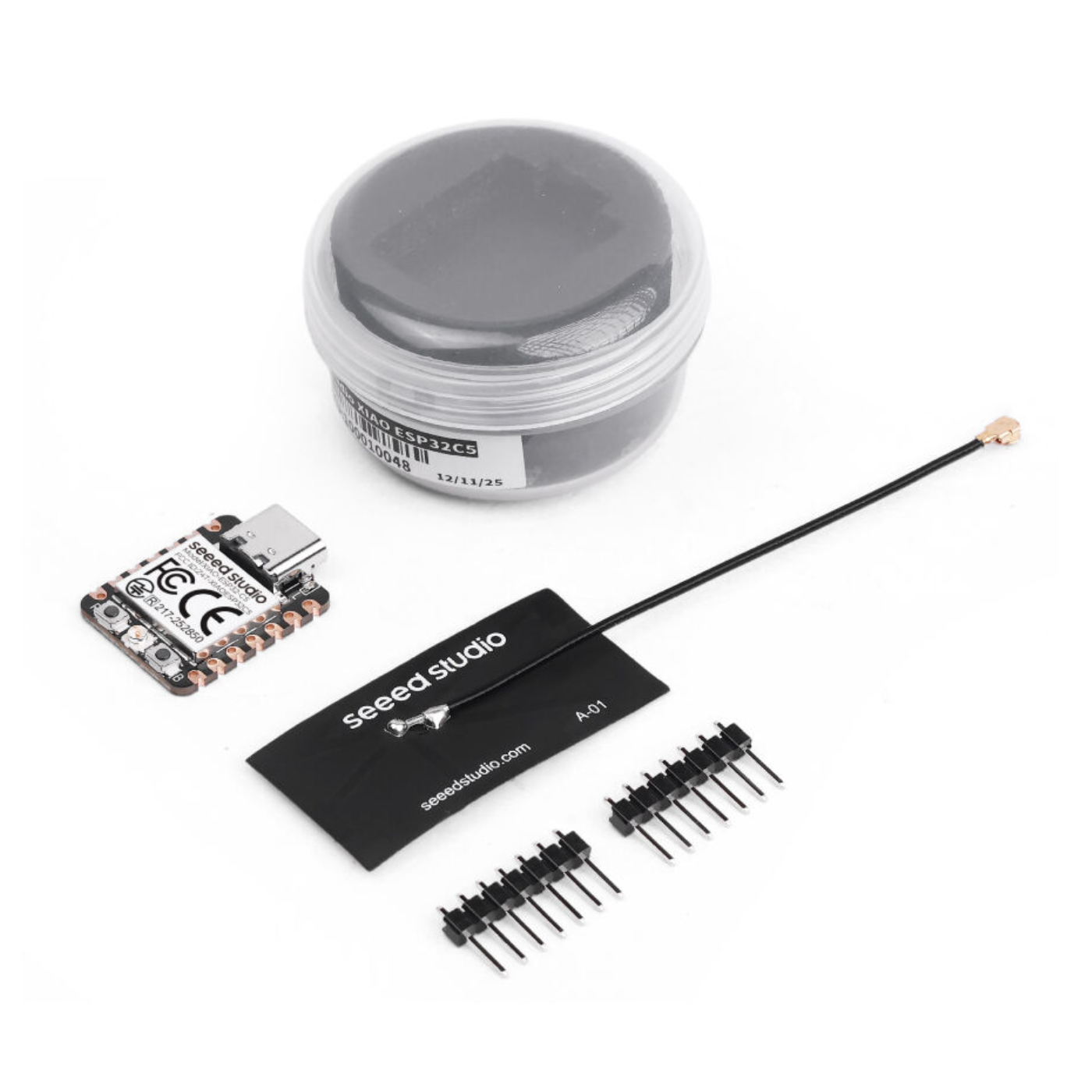

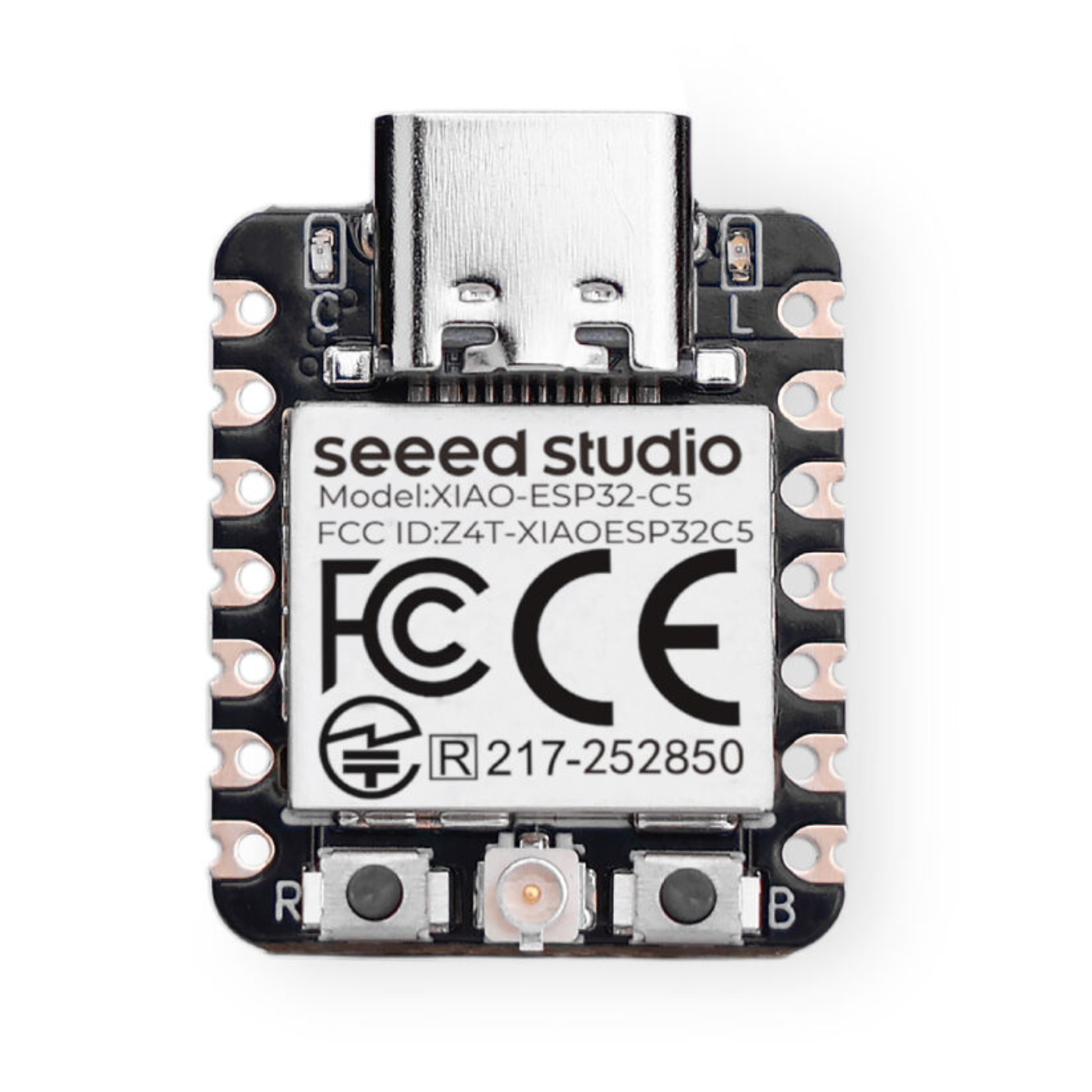

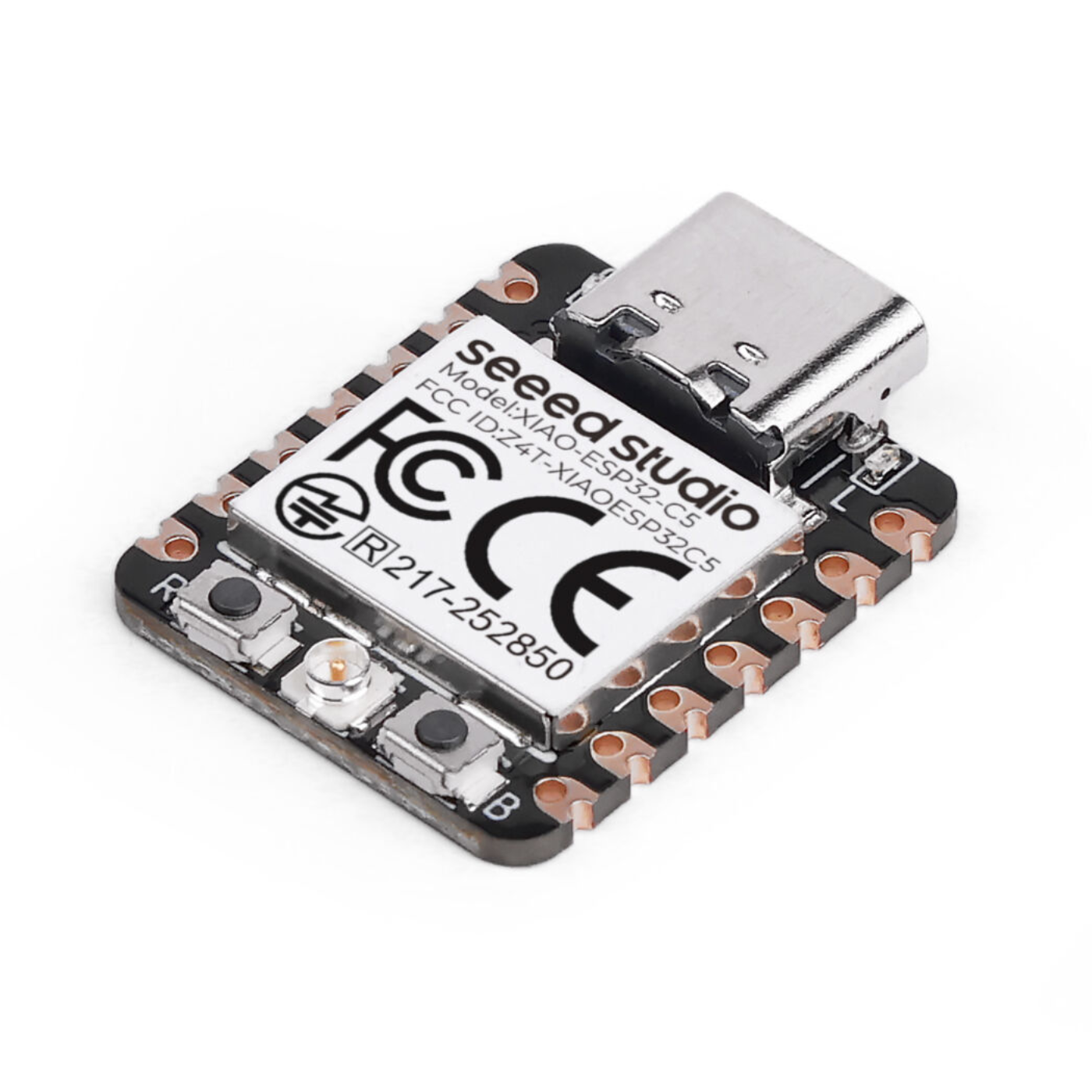

The Seeed Studio XIAO ESP32-C5 WiFi 6 Development Board is a compact and versatile development board designed for modern IoT, wireless, and embedded applications. Powered by the ESP32-C5 32-bit RISC-V processor running at up to 240 MHz, it delivers reliable processing performance while supporting 2.4 GHz and 5 GHz dual-band Wi-Fi 6, Bluetooth 5 LE, and IEEE 802.15.4 connectivity for Zigbee and Thread applications.
With 8 MB Flash and 8 MB PSRAM, along with I2C, SPI, UART, GPIO, PWM, ADC, and JTAG interfaces, the XIAO ESP32-C5 provides plenty of flexibility for developers and makers. Its ultra-compact 21 × 17.8 mm XIAO form factor is ideal for space-constrained IoT devices, smart home projects, wearables, robotics, wireless sensors, and other connected applications.
Support for platforms such as Arduino, PlatformIO, MicroPython, and ESP-IDF also makes the XIAO ESP32-C5 development board a practical choice for both prototyping and advanced embedded development.
| Specification | Details |
|---|---|
| Product | Seeed Studio XIAO ESP32-C5 |
| Chipset | ESP32-C5HR8 |
| Processor | High-performance 32-bit RISC-V single-core processor, up to 240 MHz; low-power 32-bit RISC-V core up to 48 MHz |
| SRAM | 384 KB |
| PSRAM | 8 MB |
| Flash Memory | 8 MB |
| GPIO Pins | 11 × GPIO |
| Analog Input | 1 × Analog Pin + 4 × Analog Pads on the reverse side |
| I2C | 1 × I2C |
| UART | 1 × UART |
| SPI | 1 × SPI |

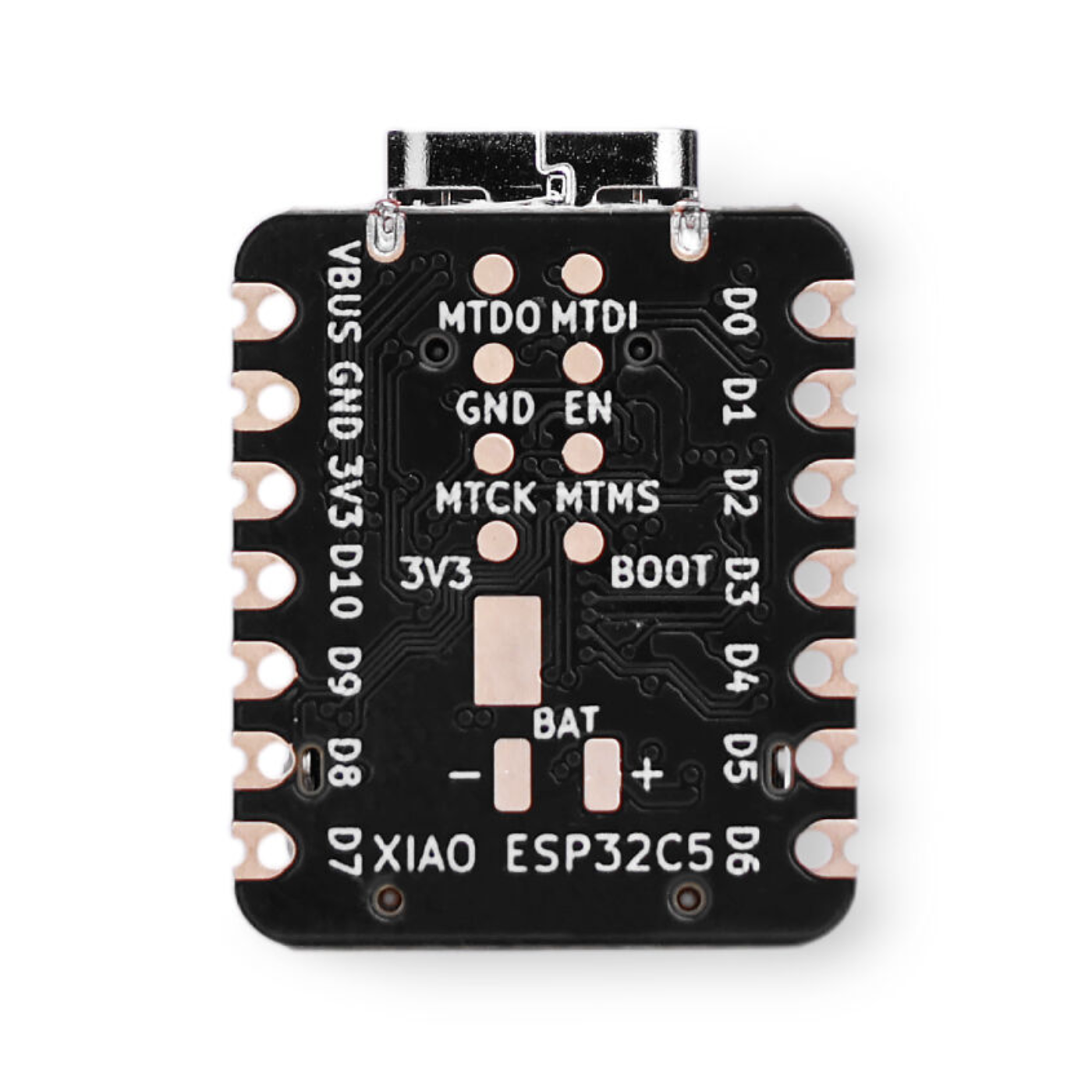

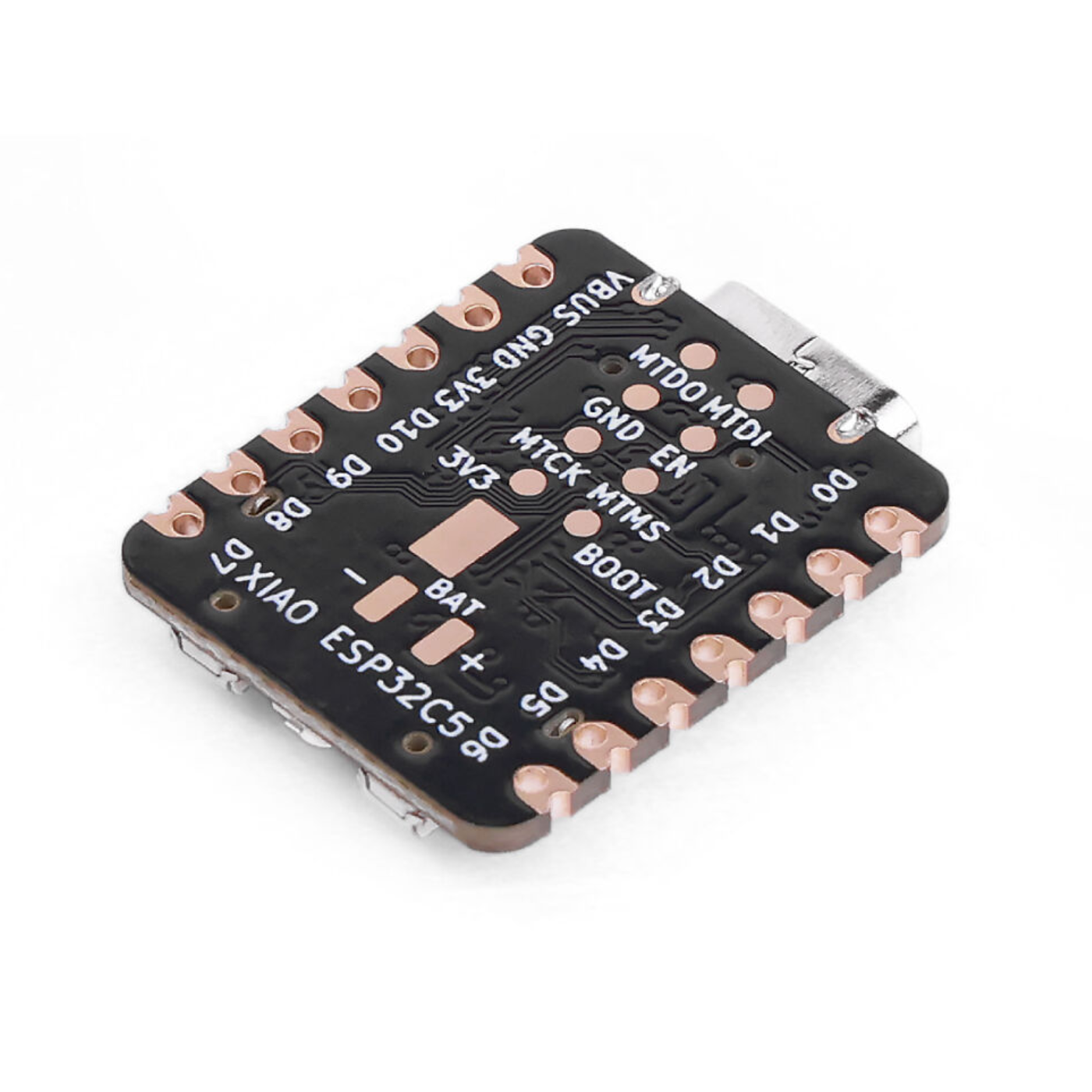

| JTAG | 1 × JTAG (pads on the reverse side) |
| User LED | 1 × Green User LED |
| Charge LED | 1 × Battery Charging Indicator |
| Buttons | 1 × Reset Button, 1 × Boot Button |
| Antenna Connector | 1 × U.FL Connector |
| Antenna | 2.4 GHz FPC Antenna, 2.9 dBi |
| Wi-Fi | 2.4 GHz & 5 GHz Dual-Band Wi-Fi 6 (802.11ax) |
| Bluetooth | Bluetooth 5 LE |
| Zigbee | Supported |
| Thread | Supported (IEEE 802.15.4) |
| USB Power Input | USB Type-C, 5V DC |
| Battery Input | 3.7V |
| Deep Sleep – USB Power | Typically 375 µA |
| Deep Sleep – Battery Power | Typically 15 µA |
| Working Temperature | 0°C to 85°C |

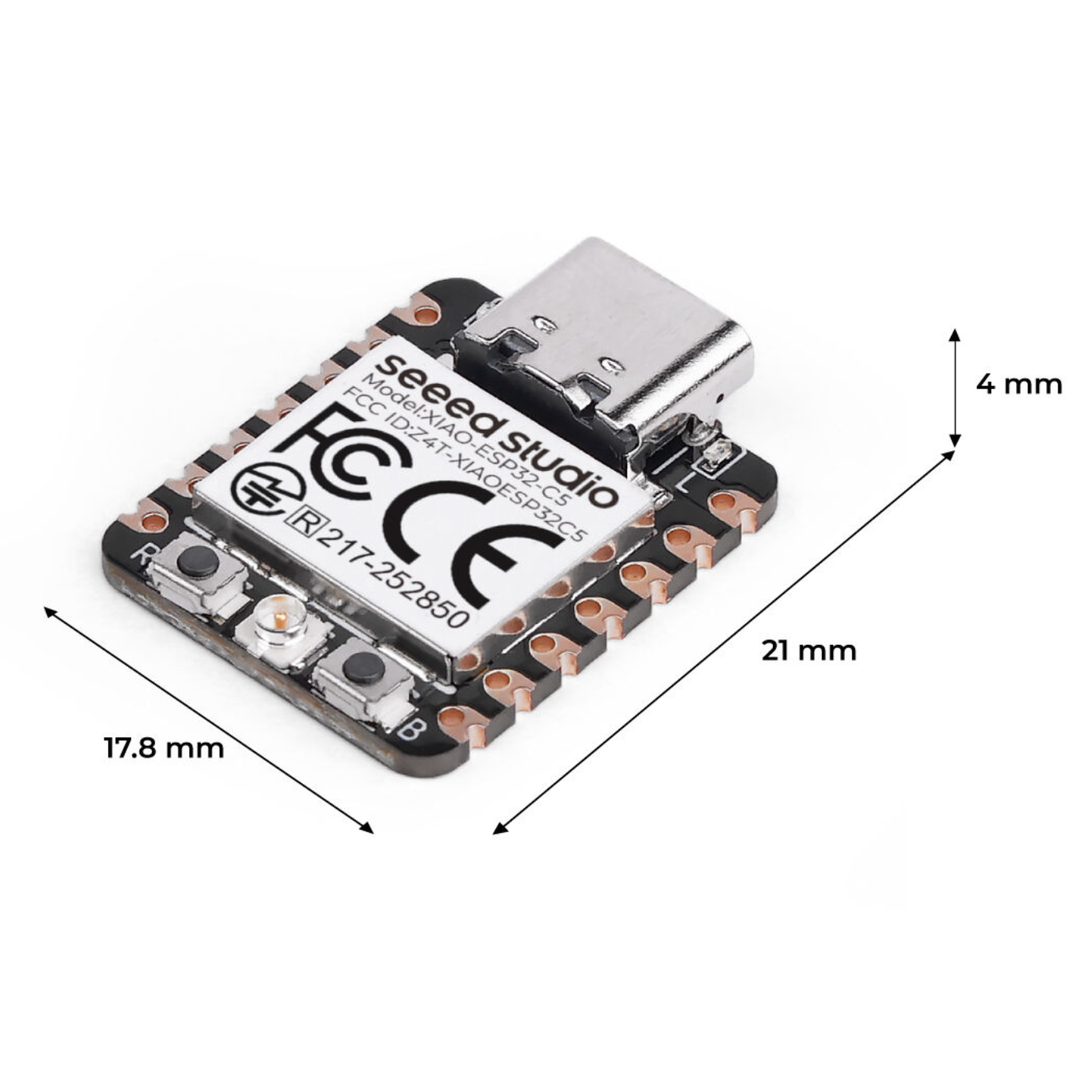

| Dimensions | 21 × 17.8 mm |
This product comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.
