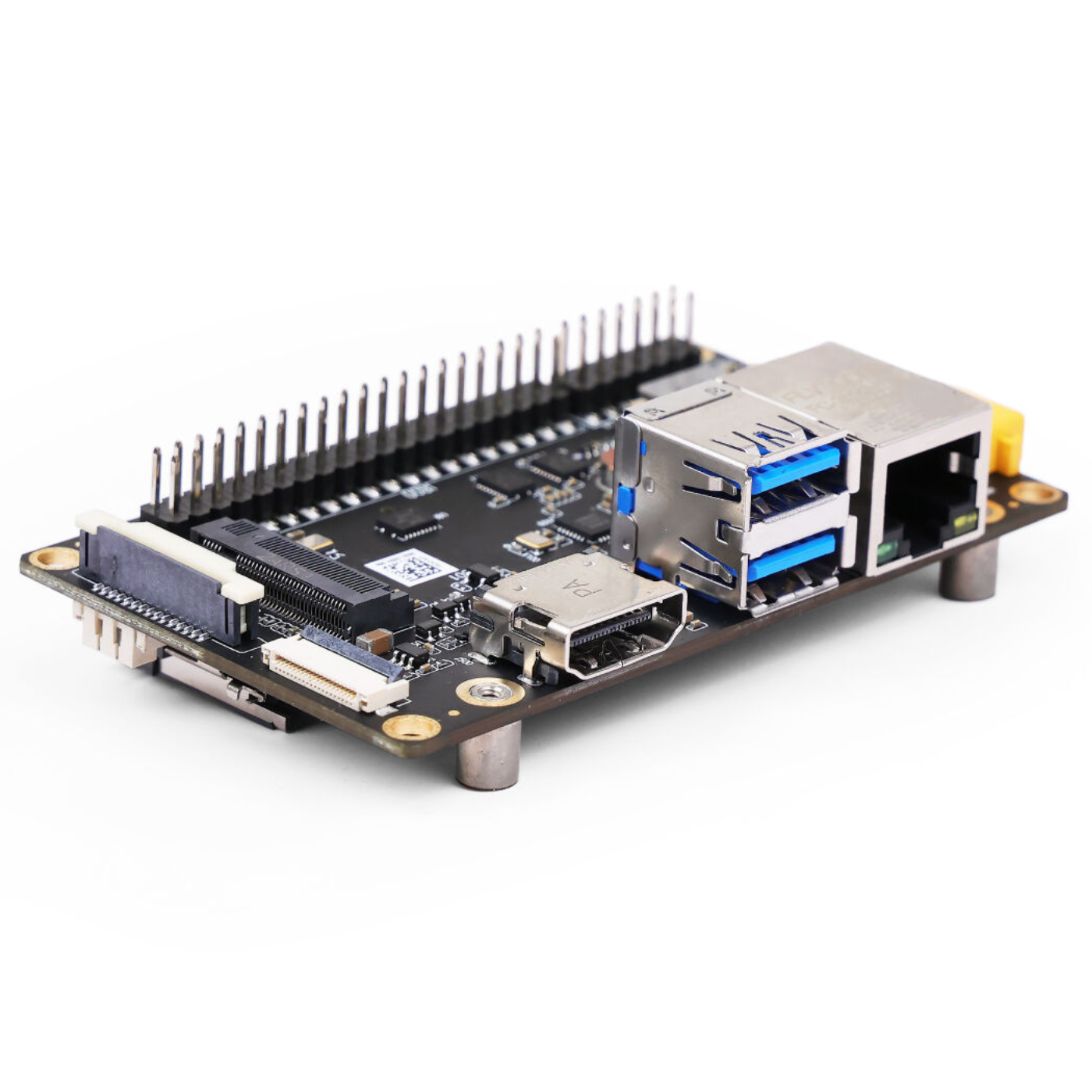

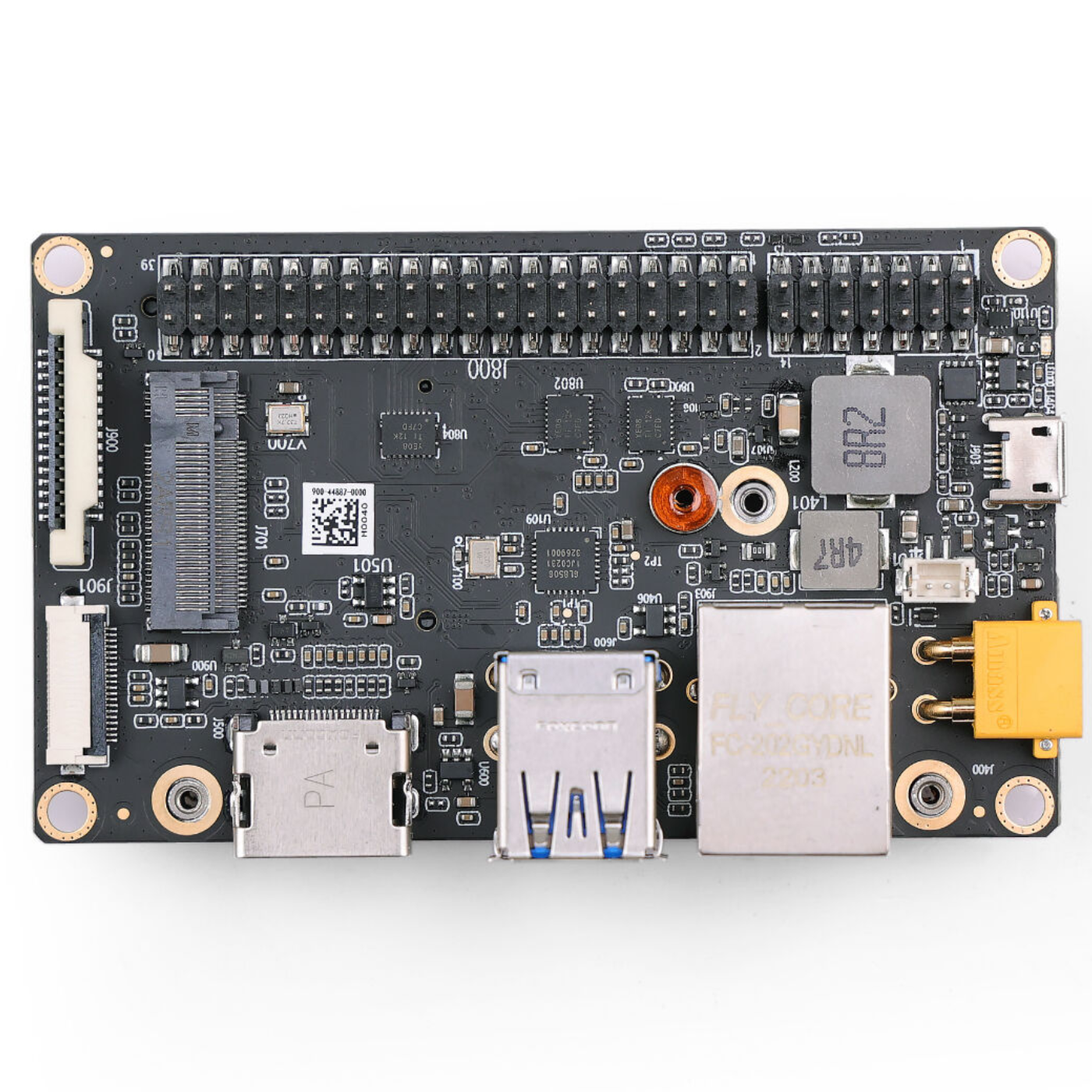

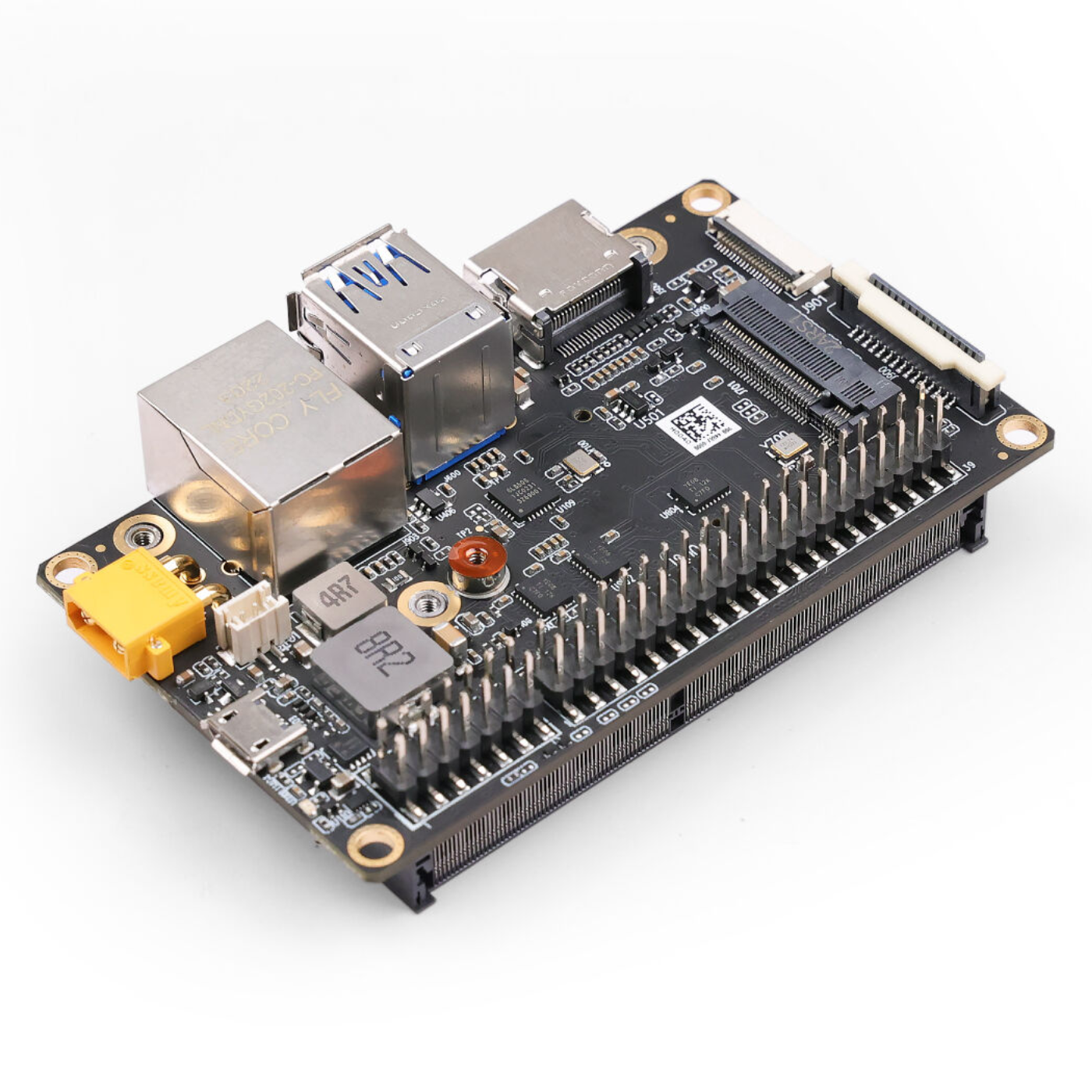

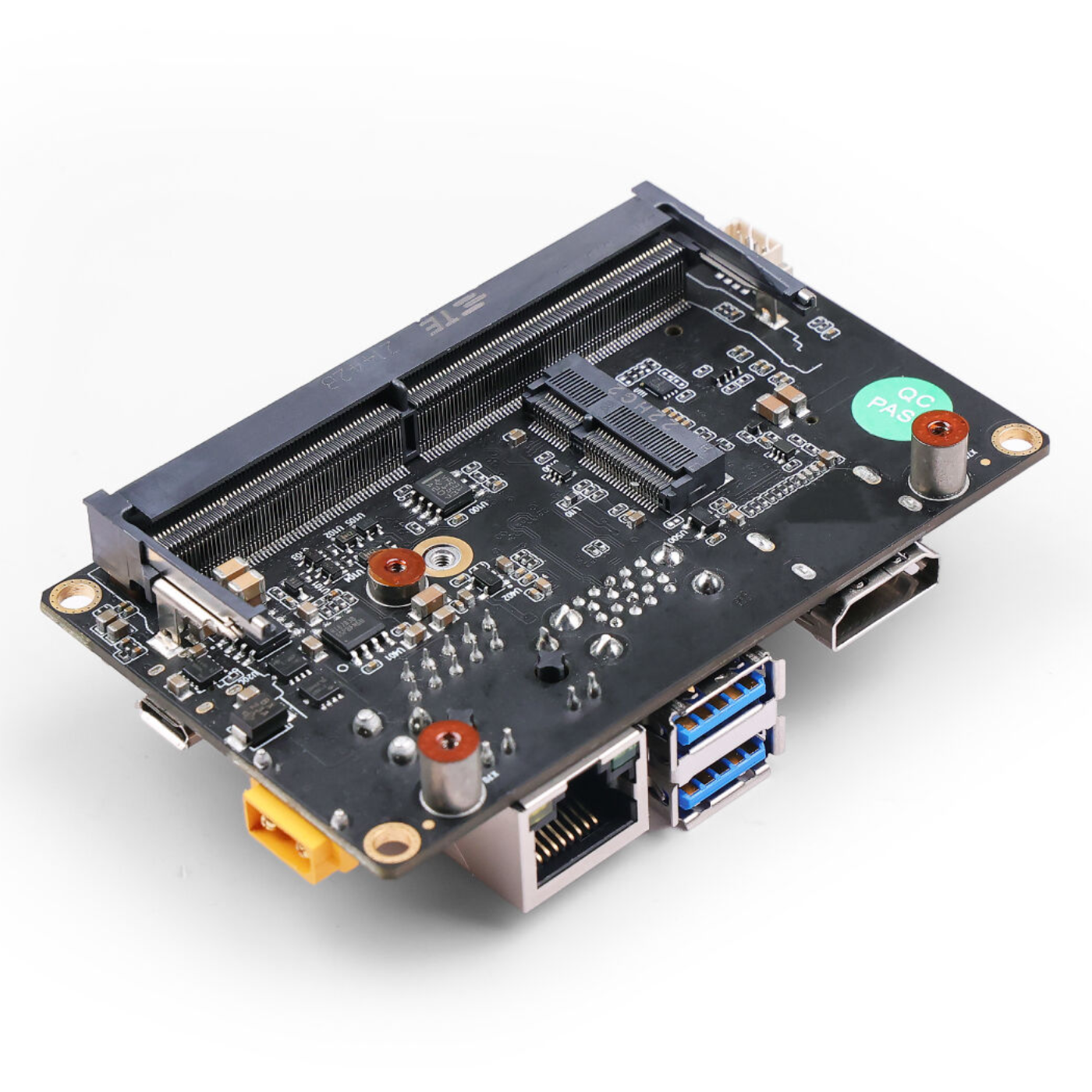

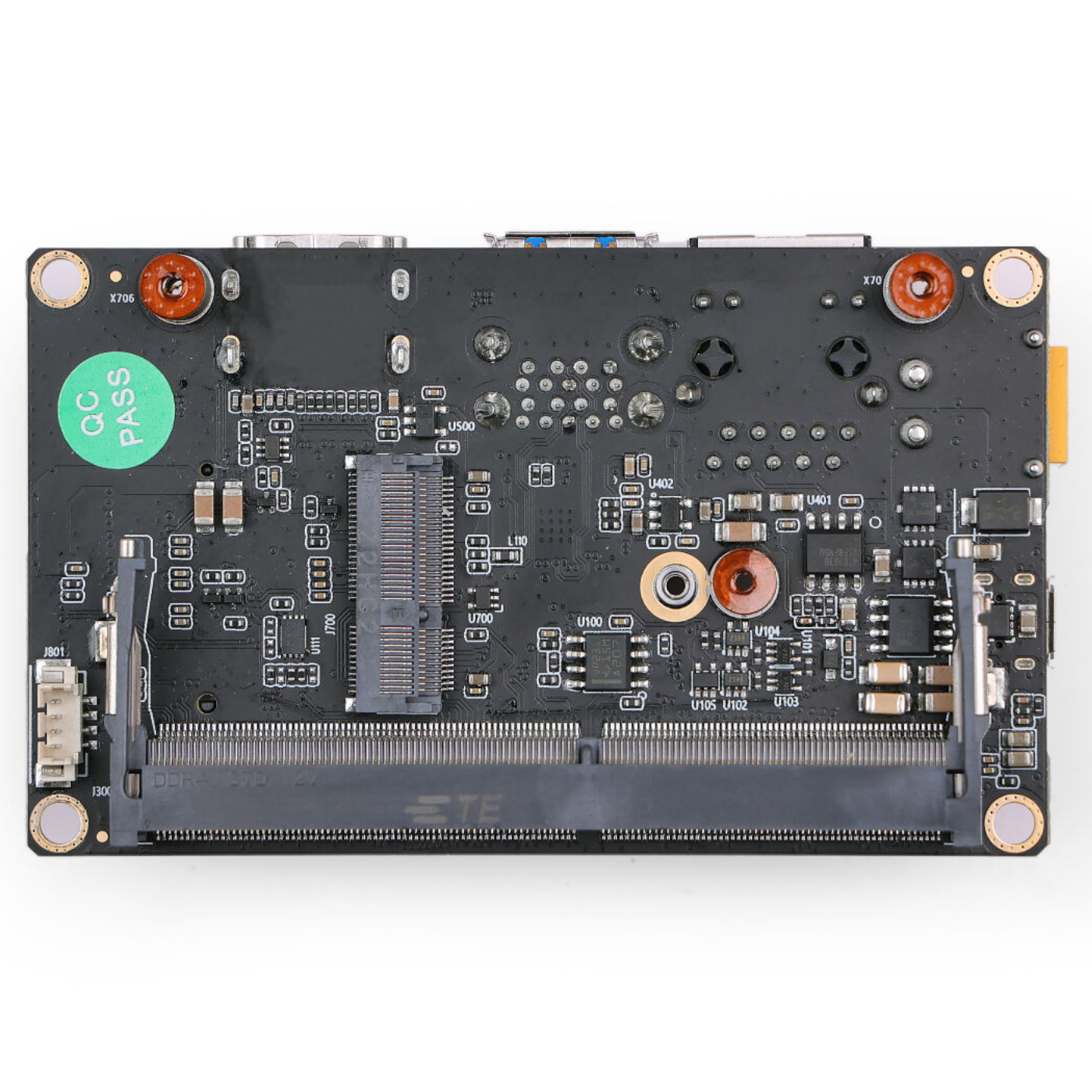

The Seeed Studio A603 Carrier Board for Jetson Orin™ NX/Orin™ Nano is a powerful and versatile extension board designed to maximize the performance of NVIDIA’s Jetson modules.
Equipped with a GbE port, M.2 Key M for SSD storage, and M.2 Key E for WiFi/Bluetooth connectivity, it ensures seamless integration for data-intensive applications.
With MIPI CSI and HDMI support, the carrier board enables high-quality video capture and display, making it ideal for AI vision projects.
It also includes 4x USB ports, a built-in cooling fan, and RTC functionality, all powered by a flexible 9–20V input.
Its compact and space-saving design allows easy integration into a wide range of edge computing and embedded AI solutions.
| Component | Specification |
|---|---|
| Carrier Board | Compatible with Jetson Orin™ NX / Orin™ Nano |
| Storage | 1x M.2 Key M 2242 interface for NVMe SSD |
| Networking — Ethernet | 1x Gigabit Ethernet (10/100/1000M) |
| M.2 Key E | 1x M.2 Key E PCIe 2230 (for WiFi/Bluetooth) |
| I/O — USB | 2x USB 3.0 Type-A (integrated USB 2.0) 1x USB 3.0 0.5mm pitch 20P ZIF 1x USB 2.0 Micro-AB |
| Camera | 1x 15-pin MIPI CSI connector |
| Display | 1x HDMI |
| Fan | 1x Fan connector (5V, PWM) |
| Multifunctional Port | 1x 40-pin expansion header (2x I2C, 1x UART, 1x I2S, 2x SPI) 1x 14-pin header (1x UART, 1x CAN) |
| RTC | 1x RTC socket (rechargeable 3V lithium battery connector) |
| Power | 9–20V DC, up to 7A |

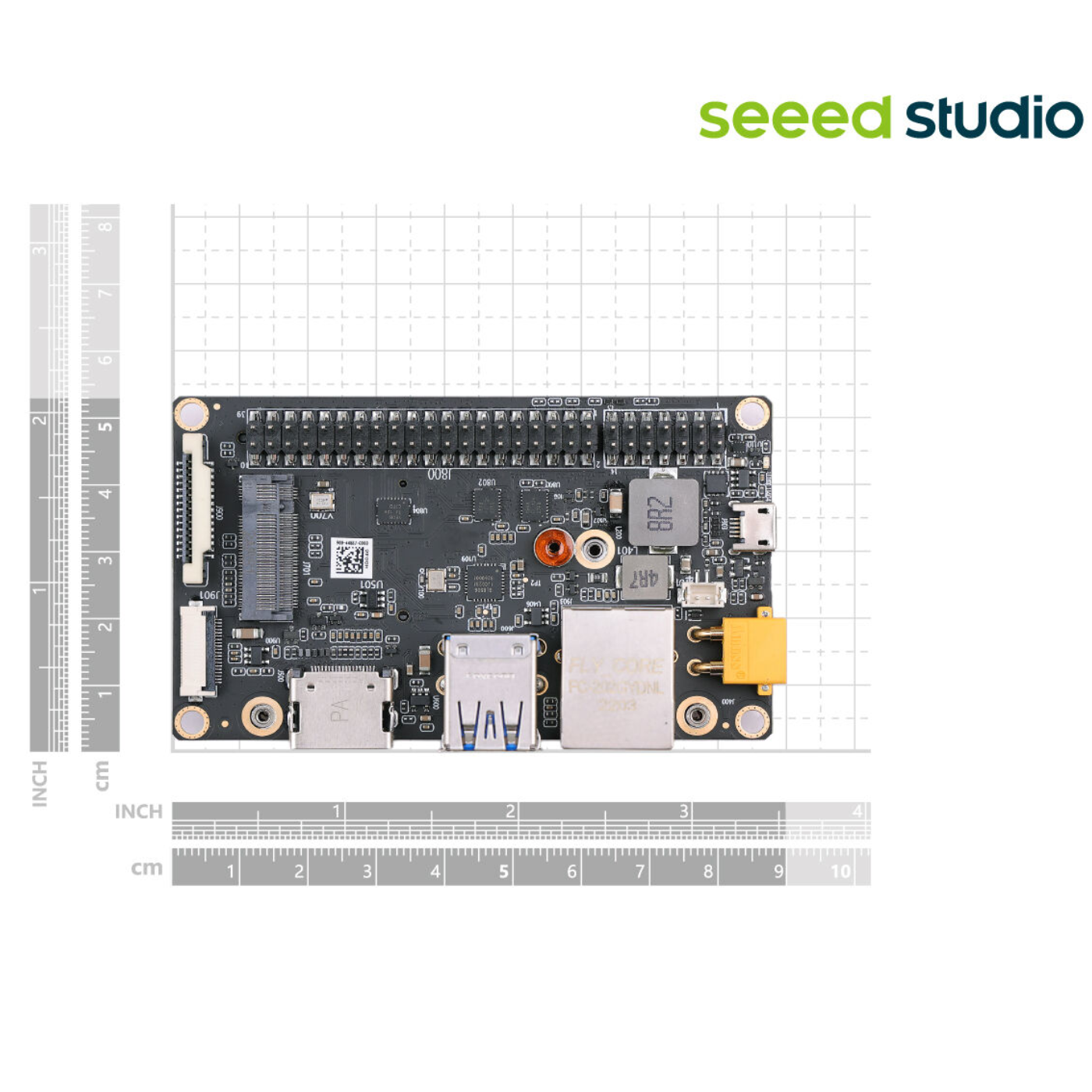

| Mechanical (W × D × H) | 87 mm × 52 mm |
| Operating Temperature | -25°C to 65°C |
