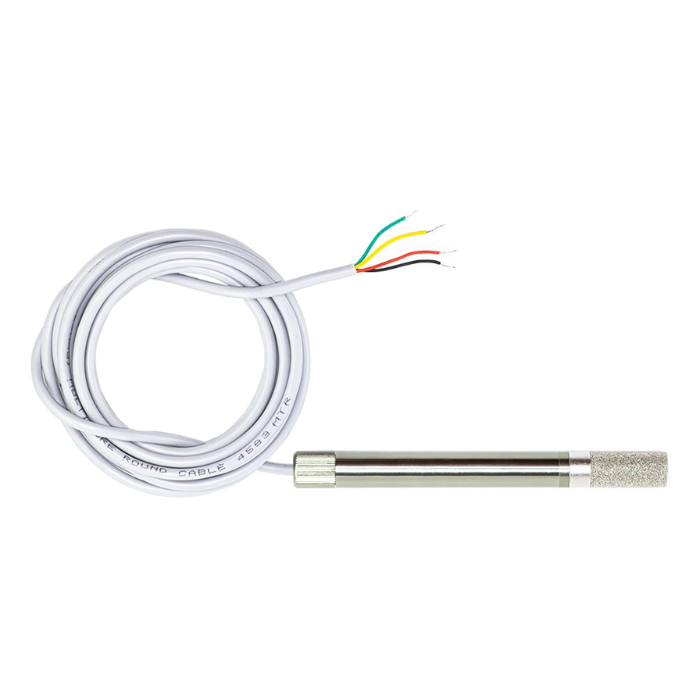

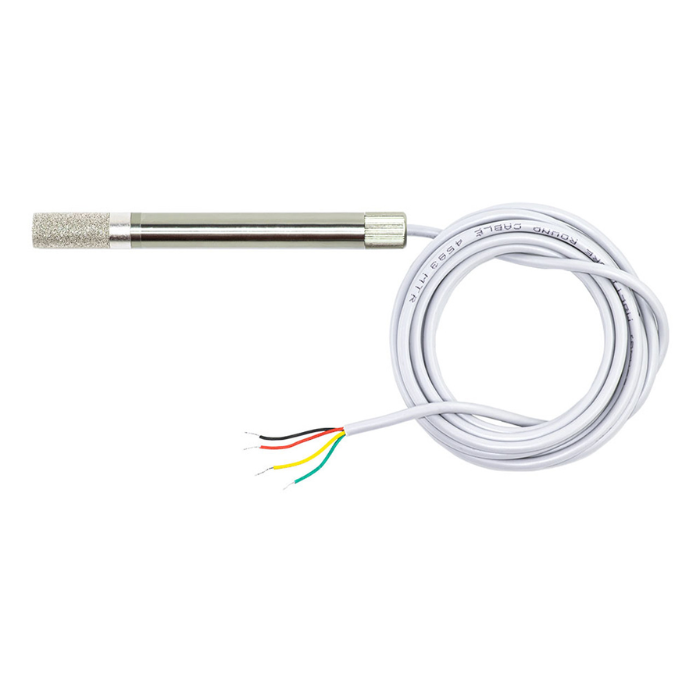

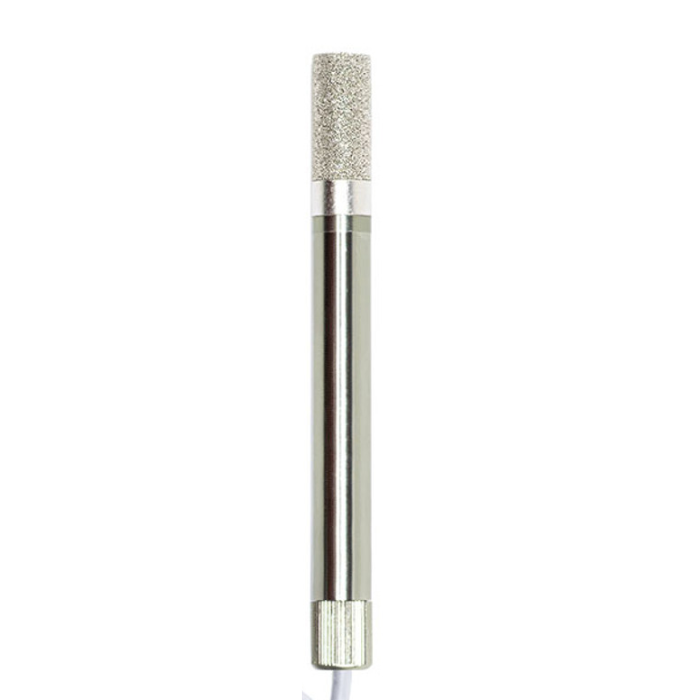

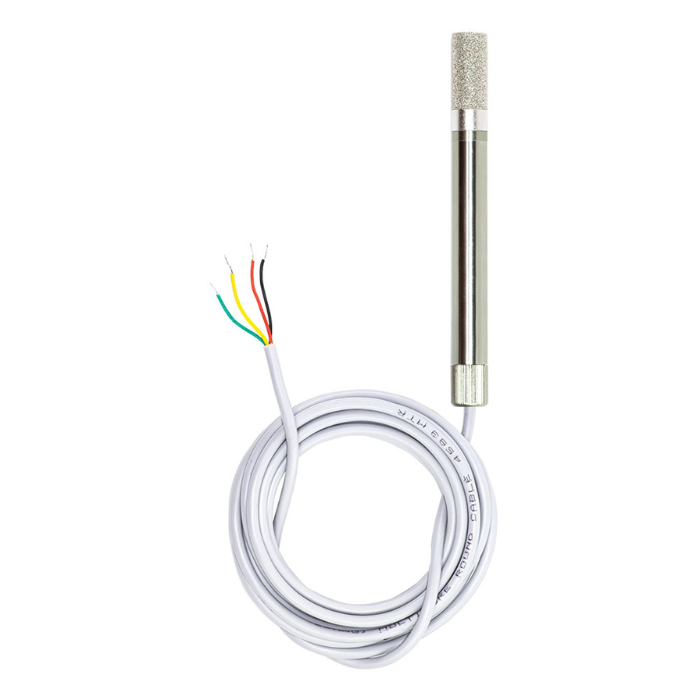

RS485 Industrial Grade Temperature & Humidity Sensor Probe -7Semi
RS485 Industrial Grade Temperature & Humidity Sensor Probe -7Semi
Low stock: 5 left
Couldn't load pickup availability
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Industrial-grade RS485 temperature & humidity sensor probe
- Equipped with high-precision SHT45 sensor
- RS485 Modbus RTU digital output for seamless integration
- Wide operating range: -40°C to 125°C, 0% to 100% RH
- Waterproof, dust-proof, and breathable aluminum alloy enclosure
- Ideal for SCADA, PLCs, HVAC, and environmental monitoring
- Includes 1-meter cable for flexible installation
RS485 Industrial Grade Temperature & Humidity Sensor Probe -7Semi
The RS485 Industrial Grade Temperature & Humidity Sensor Probe from 7Semi is a robust and high-precision solution designed for demanding industrial applications.
Featuring the advanced SHT45 sensor, it delivers accurate and stable environmental data through a reliable RS485 Modbus RTU interface, making it ideal for integration into SCADA systems, PLCs, HVAC setups, and environmental monitoring platforms.
Its durable aluminum alloy housing is waterproof, breathable, and dust-proof, ensuring consistent performance even in harsh conditions.
With a wide temperature range of -40°C to 125°C and 0% to 100% RH humidity measurement, this sensor is built for extreme environments. The included 1-meter cable allows for convenient installation in remote or difficult-to-access locations.
Features:
-
High-Accuracy Sensing: Built on the sophisticated SHT45 sensor for precise temperature and humidity readings.
-
RS485 Modbus RTU Output: Enables straightforward interaction with industrial control systems and data recorders.
-
Wide Operating Range: Measures temperature from -40°C to 125°C, humidity from 0% to 100% RH.
-
Durable Construction: Aluminum alloy casing with waterproof, dust-proof, and breathable design
-
Long-Term Stability: Optimized for continuous usage in difficult conditions without losing accuracy.
-
Flexible Power Supply: Supports 9-60V DC input, compatible with many industrial configurations.
-
Configurable Communication: DIP switch for Modbus address and baud rate change.
- 2-Meter Cable Length: Allows for flexible mounting and installation in various locations.
Package Includes:
- 1 x RS485 Industrial Grade Temperature & Humidity Sensor Probe -7Semi
Specifications:
| Specification | Details |
|---|---|
| Brand | 7Semi |
| Temperature Measurement Range | -40 ~ 125°C |
| Humidity Measurement Range | 0 ~ 100% RH |
| Temperature Accuracy | ±0.1°C (25°C) |
| Humidity Accuracy | ±1% RH (25°C) |
| Power Supply Voltage | 9–60 V |
| Probe Size | 200mm (L) × 15.7mm (D) / 7.87 × 0.62 inch |
| Output Signal | RS485 signal |
| Communication Protocol | Standard MODBUS RTU protocol |
| Baud Rate | 9600 (default); configurable to 19200, 38400, 115200 |
| Display Resolution | Temperature: 0.1°C; Humidity: 1% RH |
| Cable Length | 2 Meter |
