- This is RDS5160 60KG Servo motor
- CNC aluminium middle Shell for rugged use
- Dual ball bearings for smooth operation and long life
- High-performance digital standard servo offers higher accuracy compared to standard servos
- High-precision metal gears with hard anodizing for high torque applications

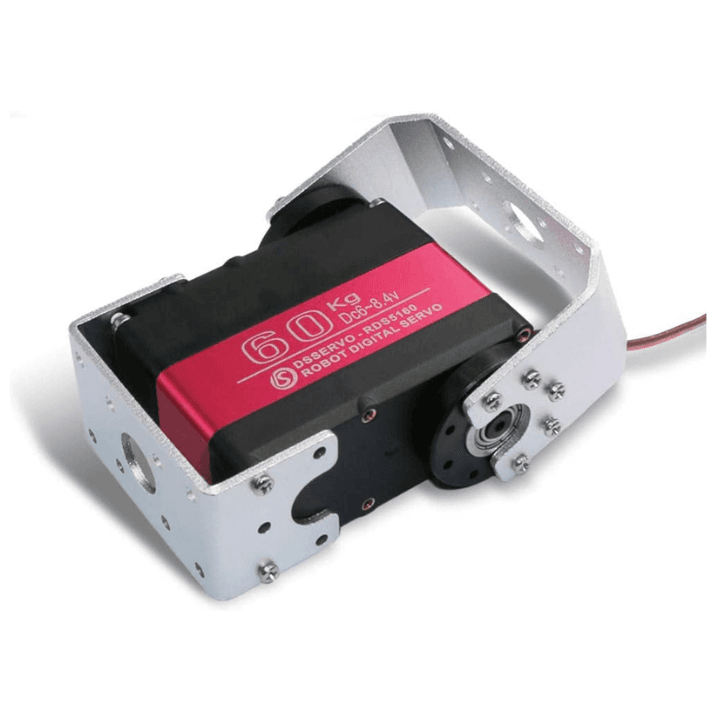

Robot Servo 60kg RDS5160 Metal Gear Digital servo Motor 180 Degree with Clamp
The DS5160 is a high-quality servo motor with a torque of up to 60kg. Suitable for high torque applications such as Robot Arms, Grippers, Flap Control in RC Planes, Steering Control in RC Cars, or as a general-purpose mechanical actuator. The improved DS5160 Servo has a higher torque and speed than the standard DS5160 Servo. These servos have metal gear and a tough construction. They provide high reliability, stability, simple installation, low noise, low vibration, smooth operation, and long life.
Note: The best use voltage is 7.4v. It is recommended to use 2s battery for power supply (6v-8.4v)
Package Includes:
- 1 x Robot Servo 60kg RDS5160 Metal Gear Digital servo Motor with Clamp
Specifications:
| Model | DS516060KG |
| Operating Voltage | 6.0-8.4V DC |
| Angle | 180 degree |
| Operating Speed @ 6V | 0.17 sec/60° |
| Operating Speed @ 7.4V | 0.15 sec/60° |
| Operating Speed @ 8.4V | 0.13 sec/60° |
| Stall Torque @ 6.0V | 58 kg/cm |
| Stall Torque @ 7.4V | 65 kg/cm |
| Stall Torque @ 8.4V | 70 kg/cm |
| Signal Dead Band | 3μs |
| Weight | 162 g (2.12 oz) |
| Motor Type | DC Motor |
| Gear Type | Copper & Aluminum |
| Working frequence | 1520μs / 333hz |
| Size | 65*30*48mm |
| Bearing | Double bearing |
| Gear | 18T |
