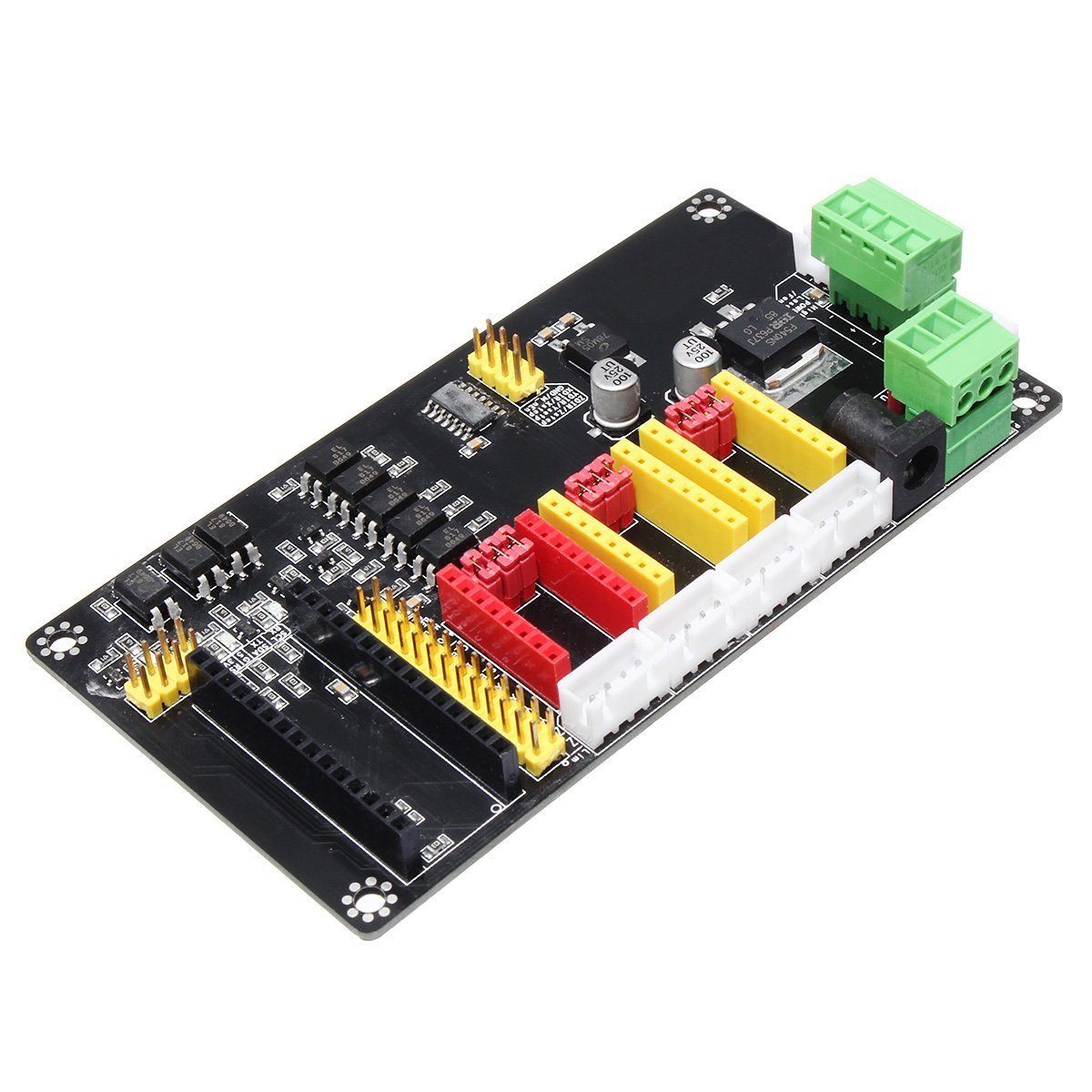

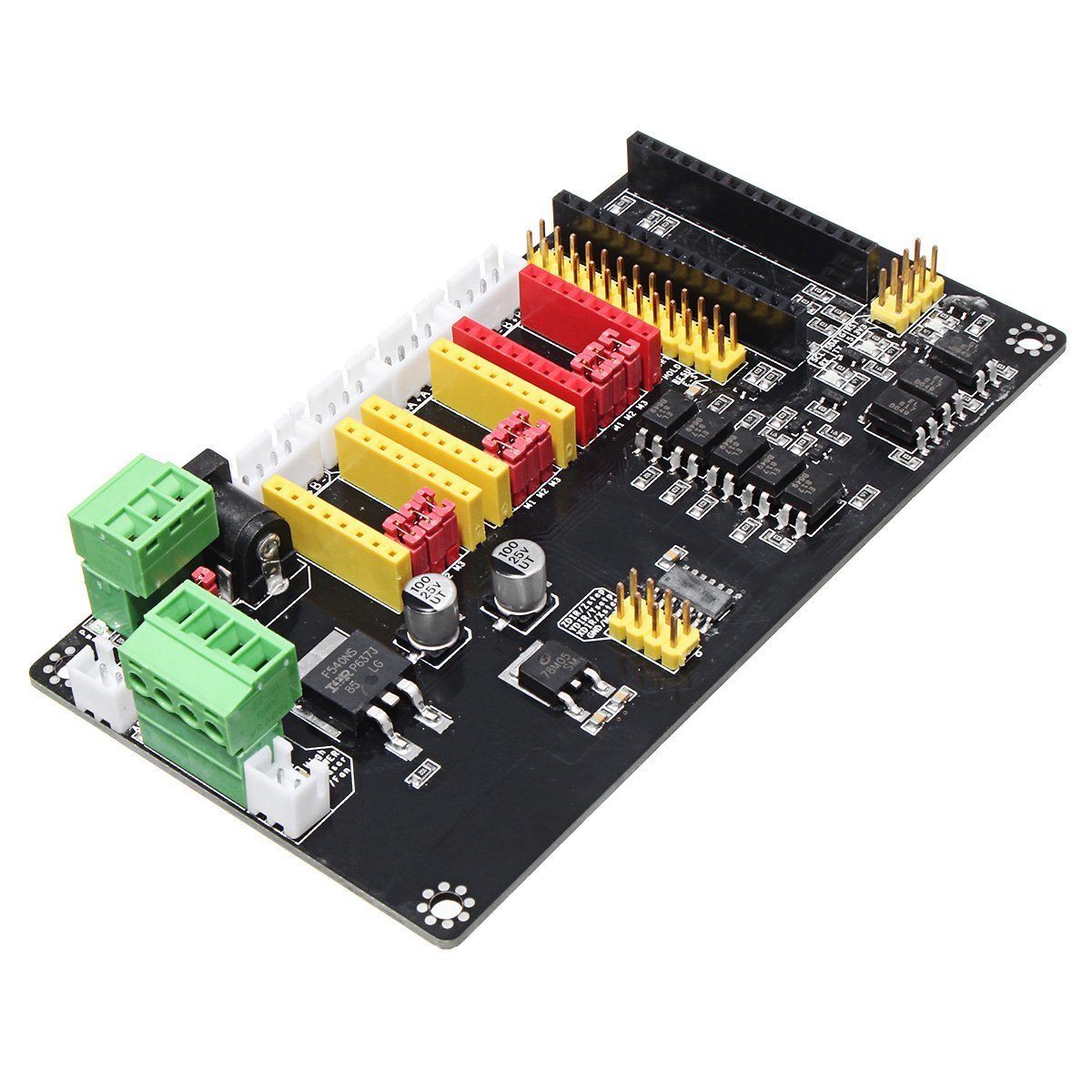

- This is CNC Three Axis Stepper Motor Drive Controller Motherboard compatible with Arduino Nano Shield For 3D Printers.
- The board features provision for onboard mounting of Nano Arduino Board and two A4988 driver Stepper Motor Driver Modules.
- This shield is used to power and control stepper motors using A4988 Stepper Motor Driver Module.
- The board has 12V DC power jack which provides supply to the motors.
- This CNC Three Axis Stepper Motor Drive Electronic Control Panel W/ Nano Arduino Shield For 3D Printer Supports adjusting Laser Power; Weak light function, Optical coupling isolation, Anti-jamming.
3-Axis USB CNC Arduino Nano Controller A4988 Stepper Motor Driver Board
Engraving Electronic Control Panel Material: PCB Model: LBA-B-V4 Dimension: 120*65mm Pitch size: 112*57mm Laser Power: 100mW to 5W Axis: XYZ Three Axis Power Supply: 12V Stepper Motor Power: Max 2 Limit Switch: 6 CH(X+ X- Y+ Y- Z+ Z-) Support For: A4988 Driver
Function:
- Supporting adjusting Laser Power
- Weak light function
- Optical coupling isolation
- Anti- jamming
- Support for high power laser
- Miniature master software support
- The latest CNC firmware
- Gold plated pins
- Limit switch
- Motor subdivision
- External relay and so on.
Package Includes:
- 1 x 3-Axis USB CNC Arduino Nano Controller A4988 Stepper Motor Driver Board
Specifications:
| Model | LBA-B-V4 |
| Dimensions | 120 x 65mm |
| Pitch Dimensions | 112 x 57mm |
| Laser Power | 100MW-5W |
| Power Supply | 12V |
| Number of Axes | XYZ Triaxial( Z-axis is not open accounts) |
| Stepper Motor | 4-Wire 2-Phase, 6-Wire 2-Phase |
| Motor Subdivision | 4x, 8x, 16x |
| Limit switches | X1 X2 Y1 Y2 Z1 Z2 six way limit |
| Motor power | Single-motor Largest 2A |
