RG1602A-IIC(P) Blue LCD Display with I2C PCF8574T
Let us know!
We'll try to match the price for you
Couldn't load pickup availability

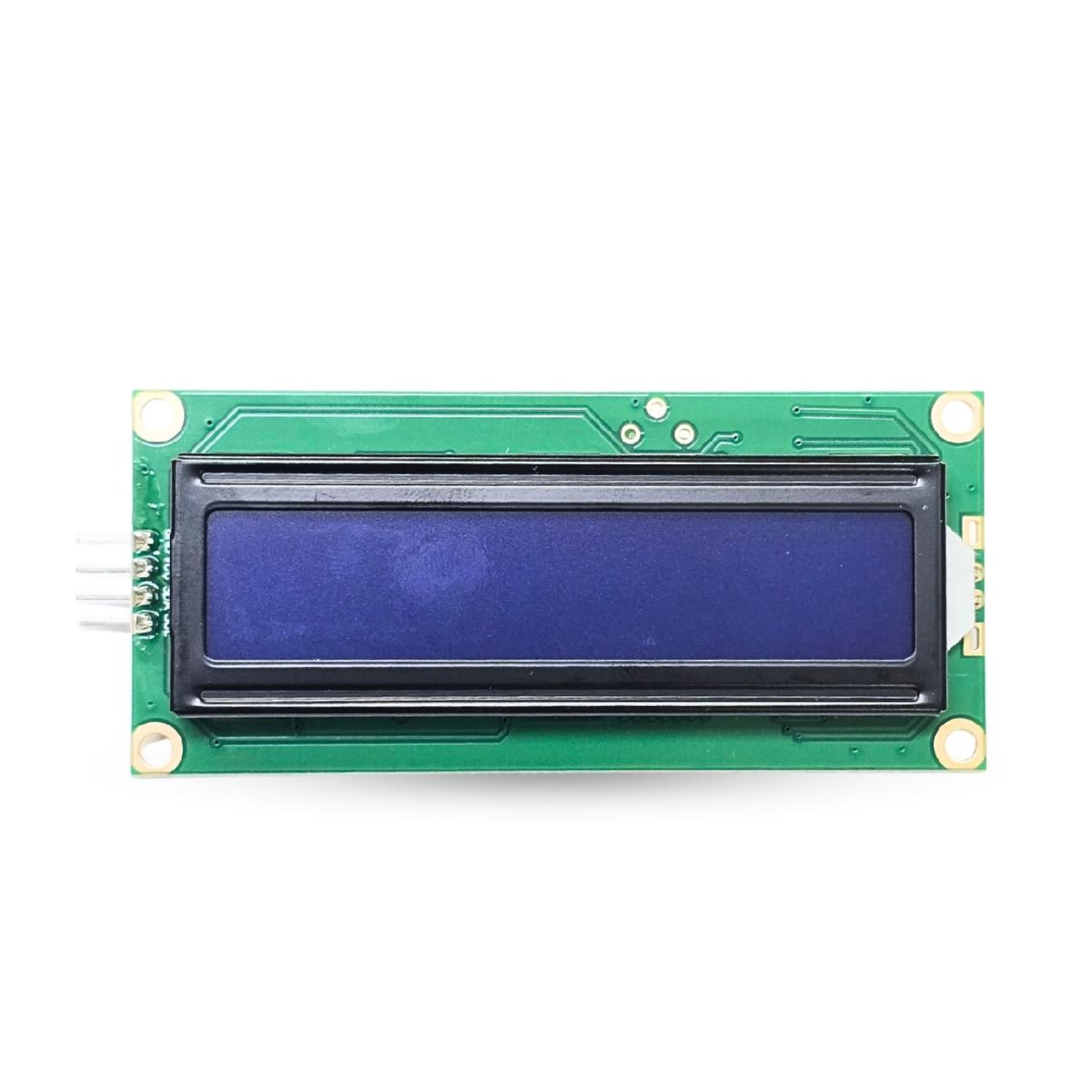

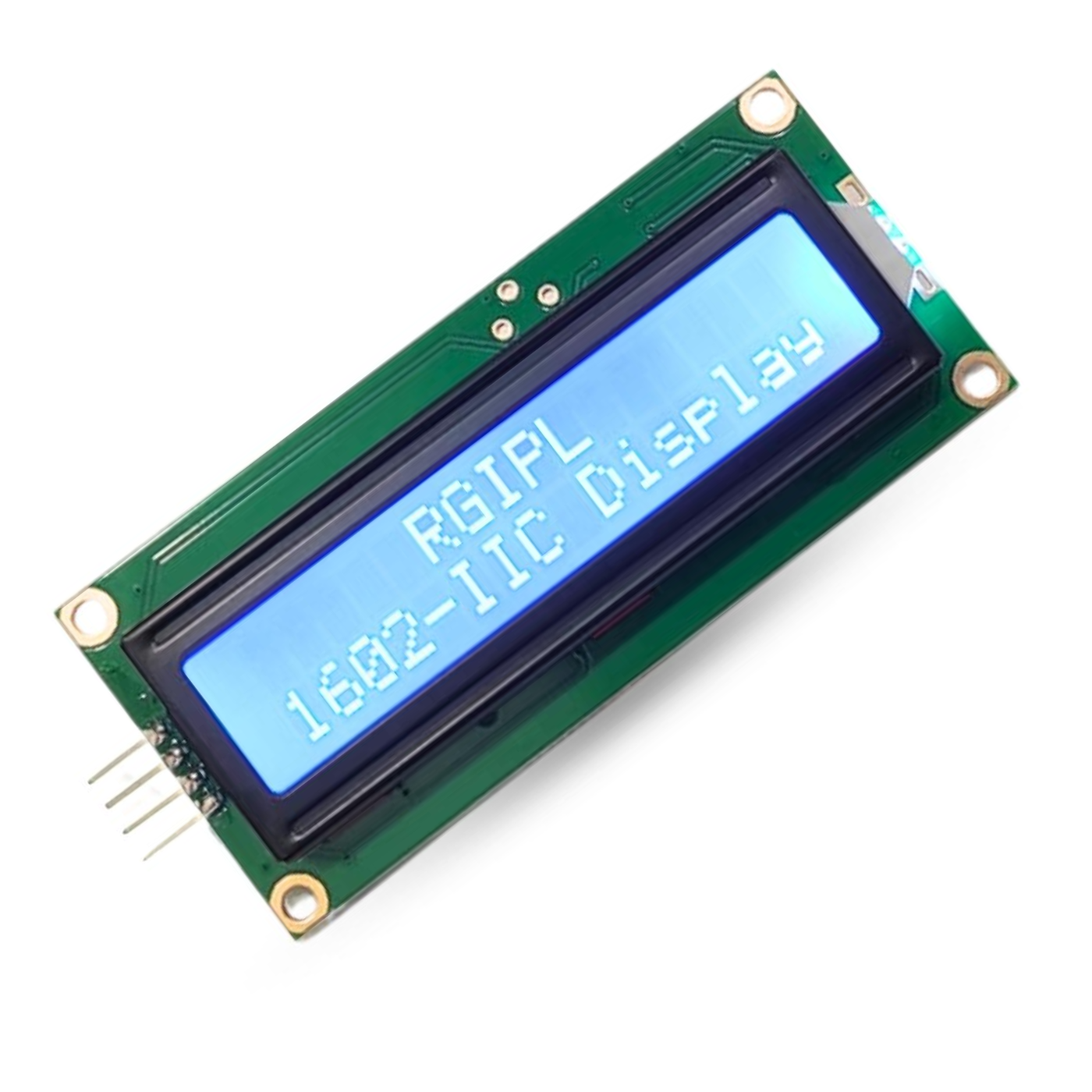

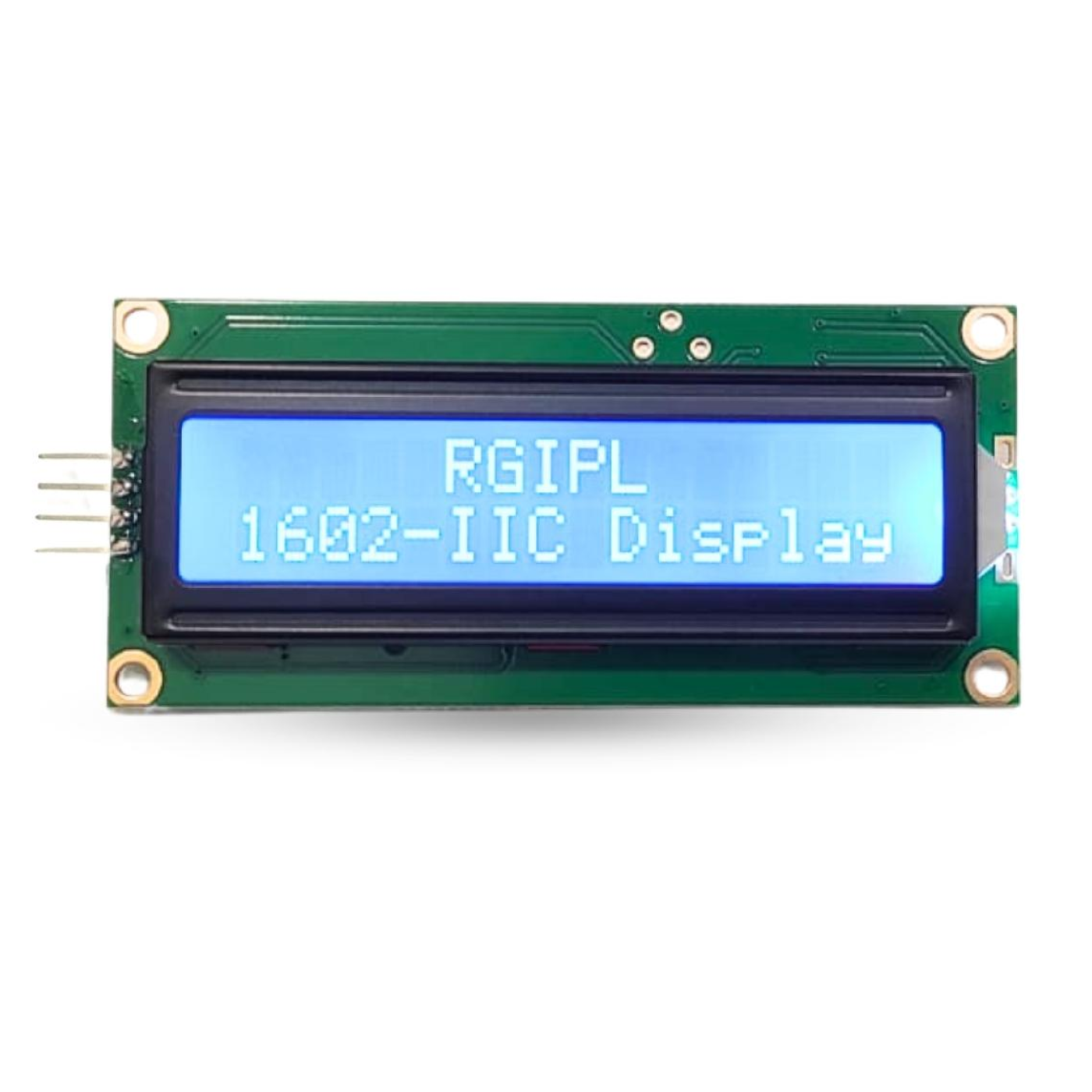

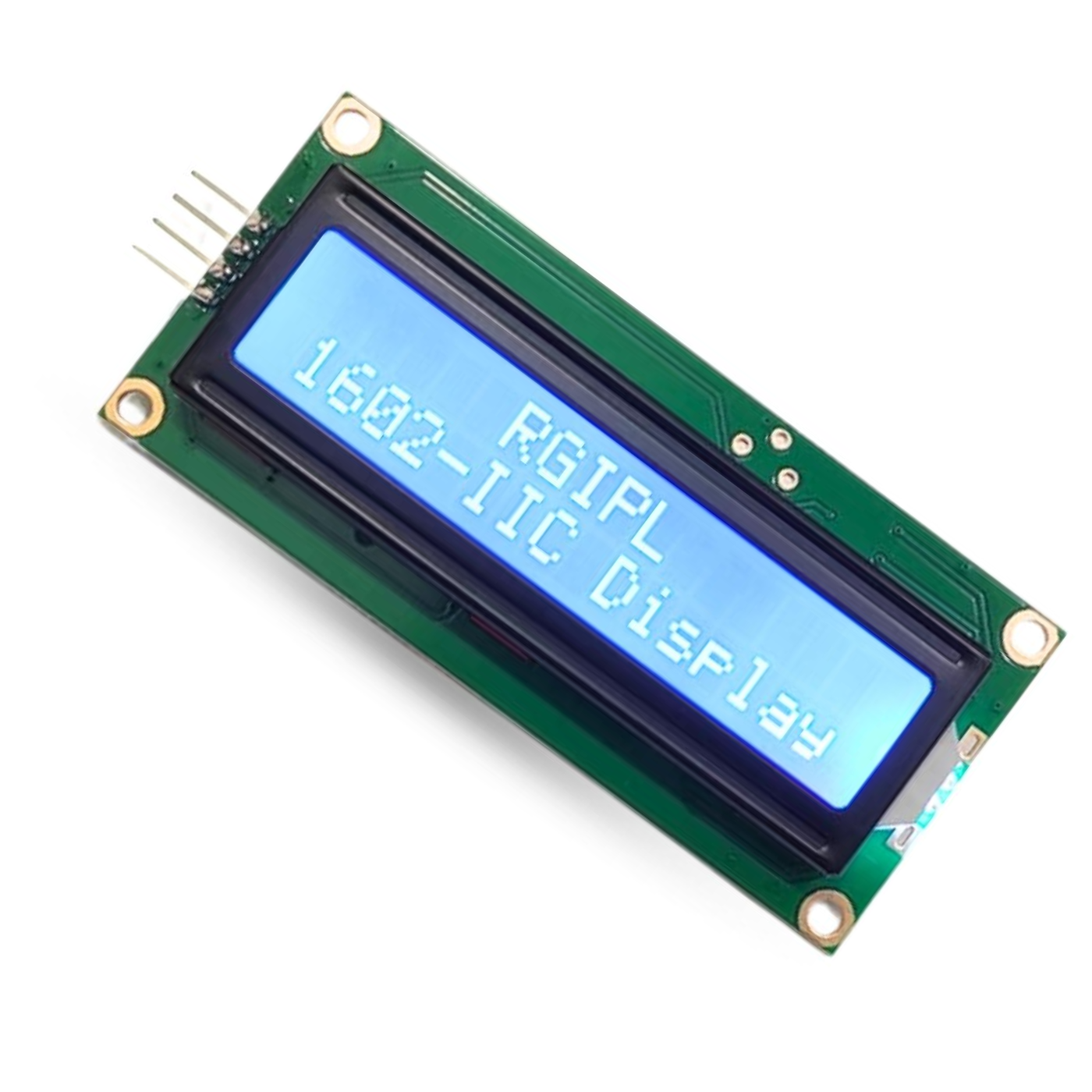

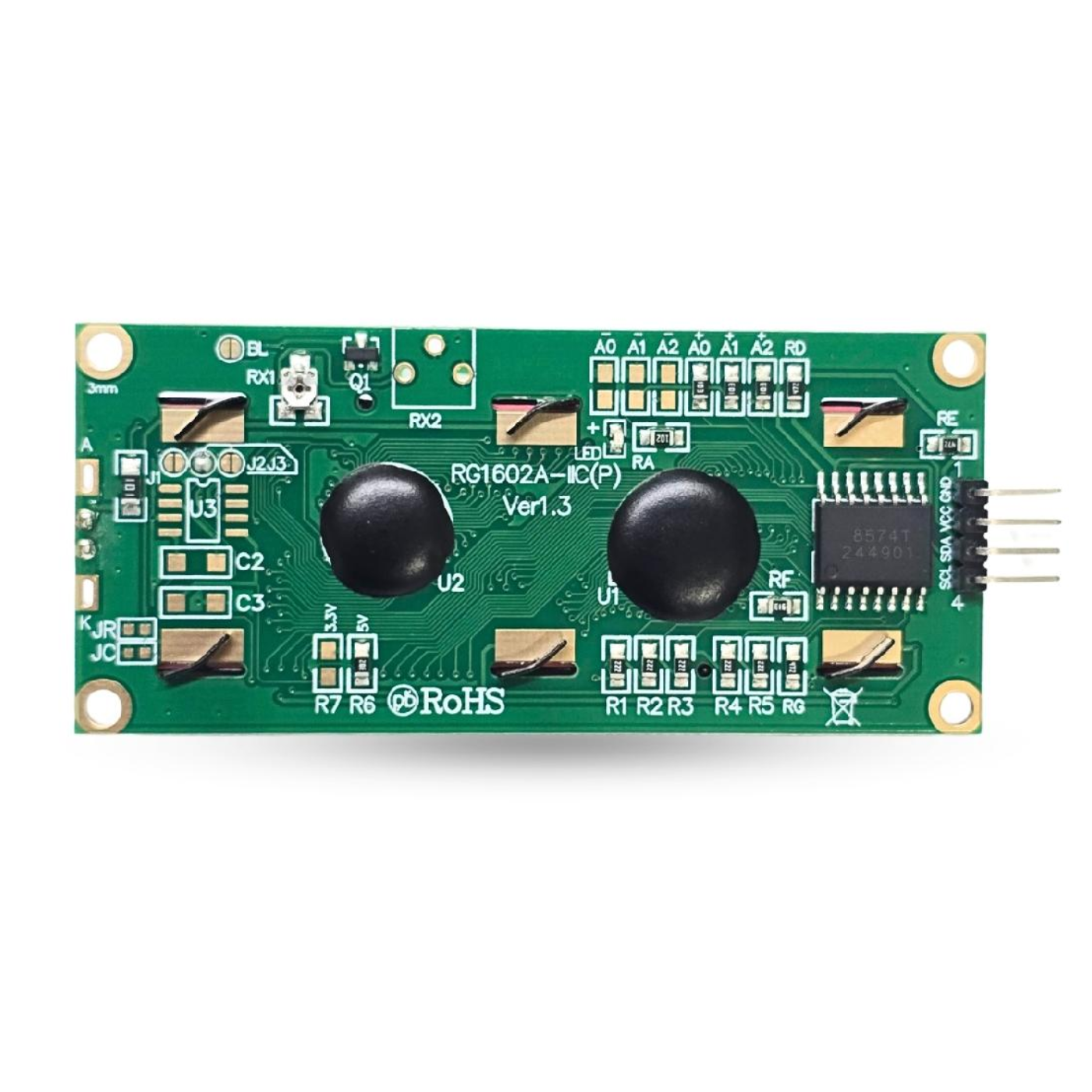

The RG1602A-IIC(P) Blue LCD Display with I2C (PCF8574T) is a compact 16x2 character display module designed for embedded systems, robotics, automation, and microcontroller-based projects. The module integrates a PCF8574T I2C interface adapter that simplifies wiring requirements by reducing the number of microcontroller pins needed for LCD communication.
Featuring a blue STN negative display with white character backlight, the module provides clear text visibility for displaying sensor readings, system status, menus, measurements, and device information in electronics applications. The integrated I2C interface uses only four connections: VCC, GND, SDA, and SCL, making it suitable for projects with limited GPIO availability.
Designed for students, makers, embedded developers, robotics enthusiasts, and electronics engineers, the display module supports compatibility with popular development platforms including Arduino Uno, Mega, Nano, ESP8266, ESP32, STM32, Raspberry Pi, and other I2C-enabled controllers. The onboard potentiometer allows convenient contrast adjustment for improved display readability.
The module is suitable for smart home systems, IoT devices, automation panels, industrial monitoring, DIY electronics projects, robotics systems, and educational embedded applications requiring compact alphanumeric display functionality.
| Parameter | Details |
|---|---|
| Product Name | RG1602A-IIC(P) Blue LCD Display With I2C (PCF8574T) |
| Display Type | 16x2 Character LCD |
| Display Color | Blue Backlight with White Characters |
| Interface Type | I2C |
| Controller IC | PCF8574T + ST7066U |
| Operating Voltage | 5V DC |
| Communication Pins | VCC, GND, SDA, SCL |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
| Application Type | Embedded Display Module |
