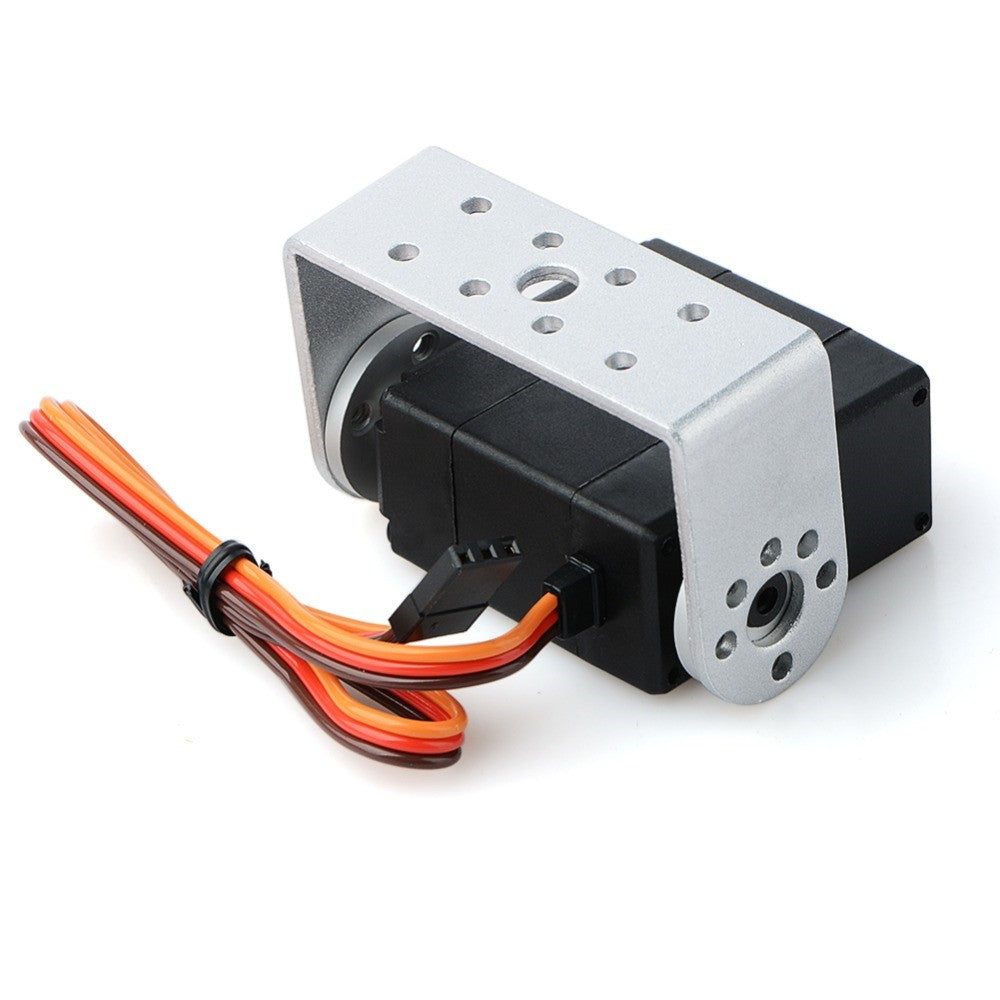

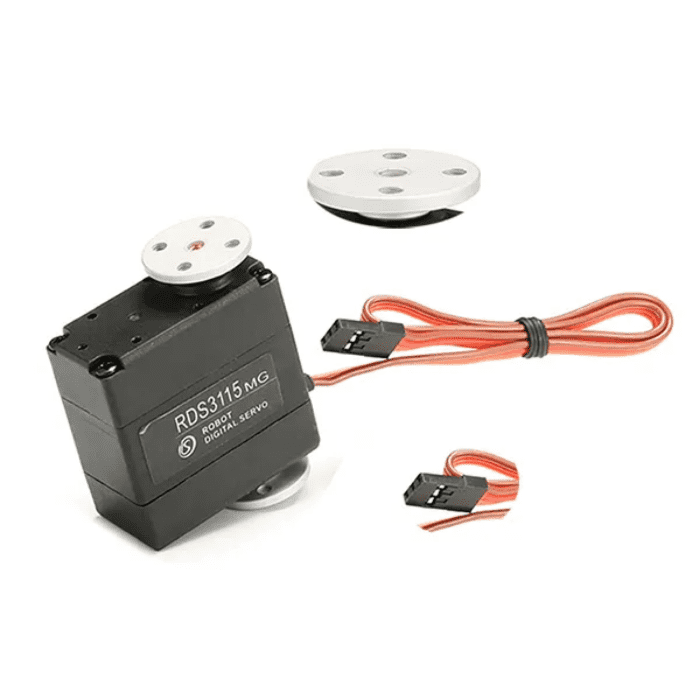

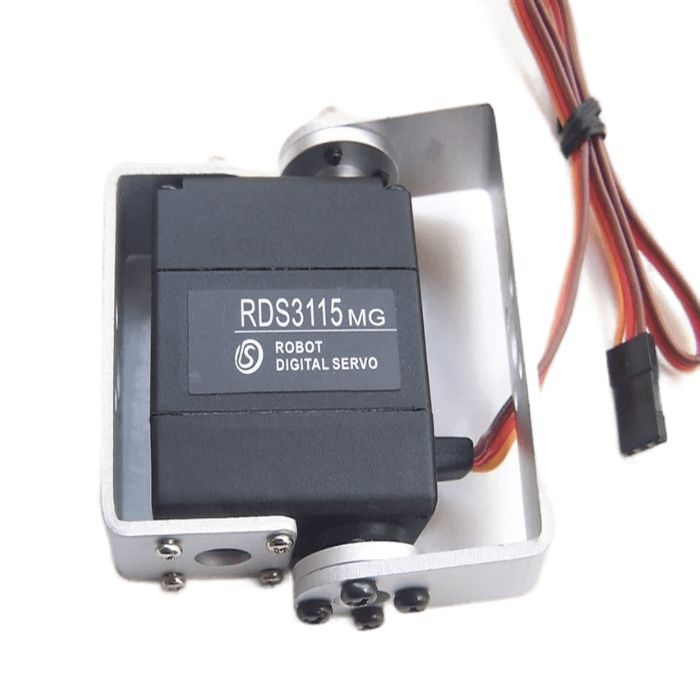

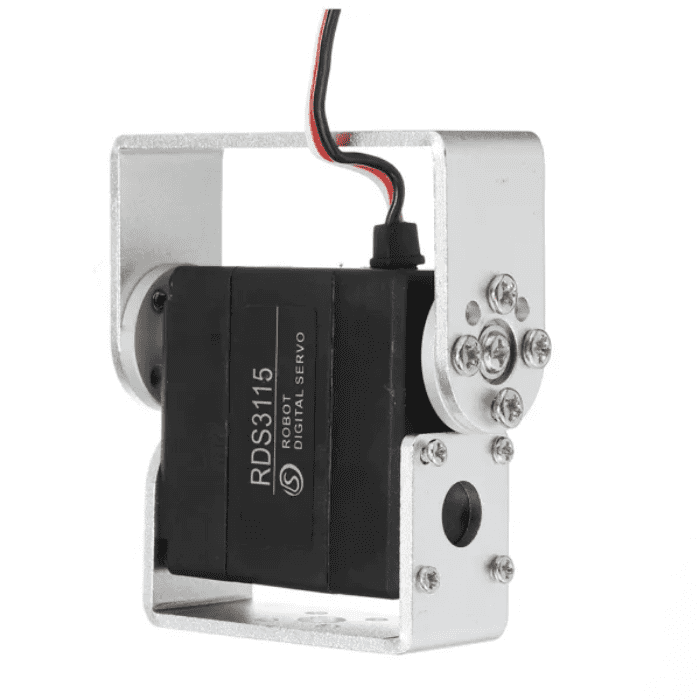

RDS3115MG 15KG Large Torque 180 Degree Servo Motor with Brackets

RDS3115MG 15KG Large Torque 180 Degree Servo Motor with Brackets

Regular price Rs. 1,115
Regular price Rs. 2,198 Sale price Rs. 1,115
Sale Sold out 49% off Best Price Guaranteed
You save Rs. 1,083 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 10 hours and 22 minutes.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • This is RDS3115MG 15KG Large Torque 180 Degree Servo with Brackets
  • Dual-shaft Metal Gear 180 Degree Controllable Rotation
  • This has high-performance standard digital servo
  • This servo motor is used for RC robot, Robotic Arm etc.
  • This has low operating noise, good linearity
  • This Servo control with MCU
Trust Badge 1 Trust Badge 2 Trust Badge 3

RDS3115MG 15KG Large Torque 180 Degree Servo Motor with Brackets

This is a high-performance standard digital servo used for RC robots with low operating noise, You can control this servo motor with Arduino which is connect by jumper wires and powered by battery.

It has an operating voltage of 4.8-7.2VDC.  Equipped with strong copper & aluminum gears, CNC aluminium middle Shell. Professional servo kit easy to design and do all kinds of robot DIY

Features:

  • High-performance standard digital servo
  • Used for RC robot Low operating noise, good linearity
  • Servo control with MCU
  • Durable Metal Gear

Package Includes:

  • 1 x RDS3115MG 15KG Large Torque 180 Degree Servo Motor with Brackets

Specifications:

Operating Voltage DC 4.8-7.2v
Operating speed  0.16 sec/60 at 4.8v and  0.14 sec/60 at 6.0v
Operating Angle 180 Degree
Dimensions 40 x 20 x 40.5mm
Weight 60g

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details
Trust Badge 1 Trust Badge 2 Trust Badge 3

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

ADDITIONAL RESOURCES

1. What is Dual Axis Servo Motor?

  • The RDS3115MG 2-axis servo motor with bracket is stable and has fast response time. It features high linearity, accuracy with precision potentiometer, stability, low noise and waterproof. Perfect for RC Robot Arm Model DIY Baja Car 1/10  Crawler PWM Arduino DIY Project, CNC Machine, etc. The15kg large torque 180 degree servo is less noise with durable metal gear, double ball bearing, MOSFT drive programmable digital amplifier and bottom axial mounting hole.

2. What are the uses and Applications of Dual Axis Servo Motor RDS3115MG with Brackets?

  • Applications of Dual Axis Servo Motor RDS3115MG with Brackets:
    •  RC Robot Arm Model
    • DIY Baja Car
    • 1/10  Crawler
    • PWM Arduino Projects
    • DIY Project
    • CNC Machine

3. Which type of servo motor rotates from 0 to a maximum of 180 degrees it can be used in applications like a robotic arm?

  • This RDS3115MG high torque dual shaft servo motor, can rotate 0 - 180 degrees and can be used in applications like robotic arm.
