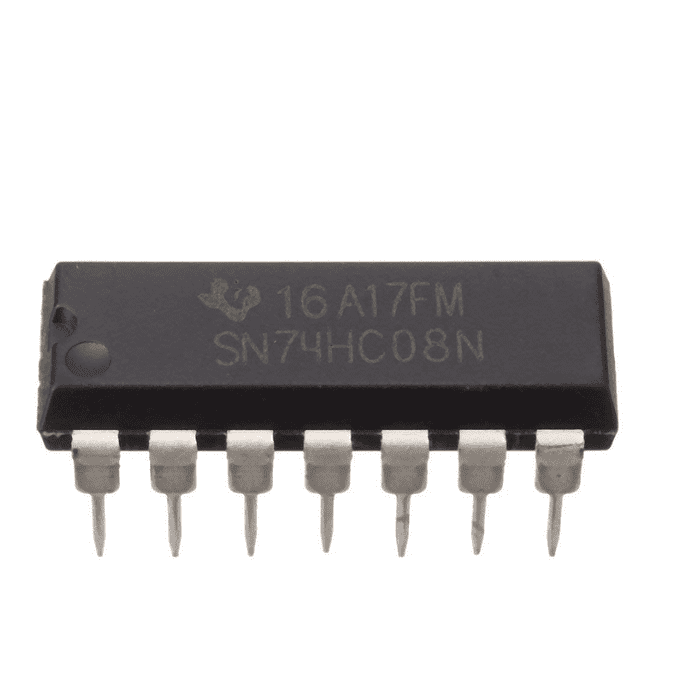

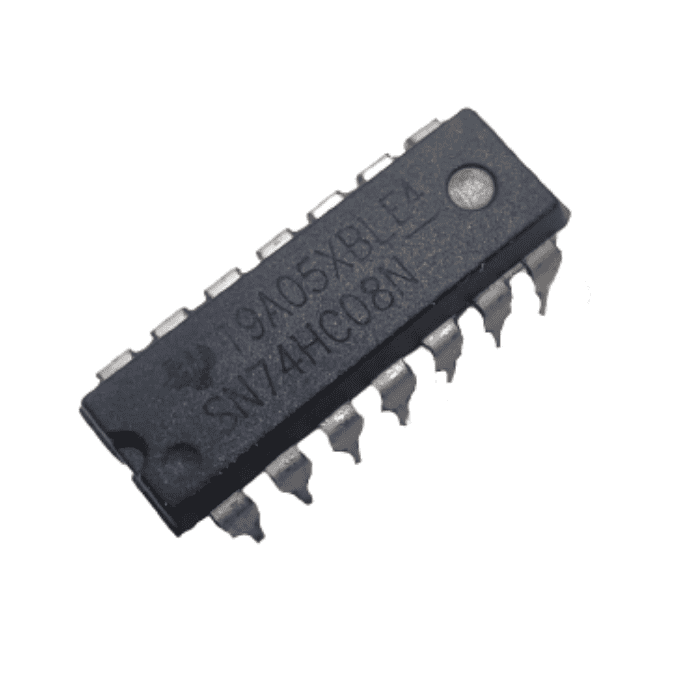

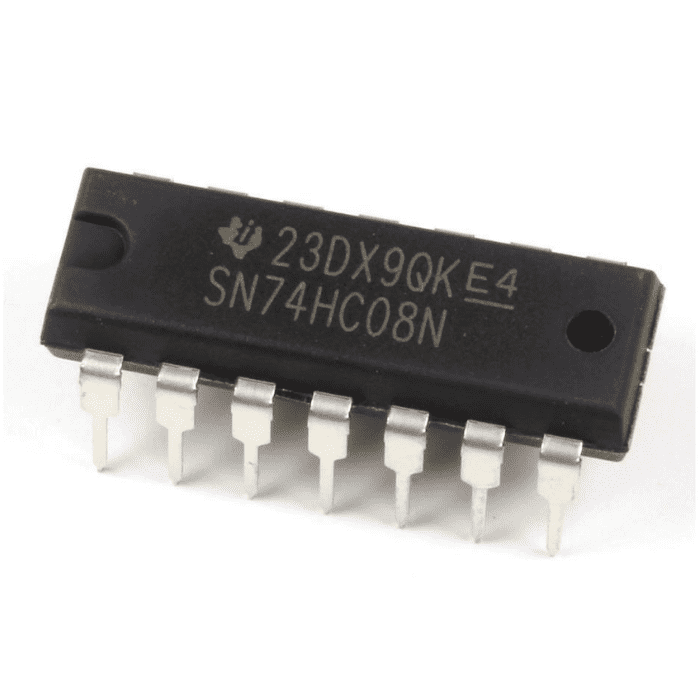

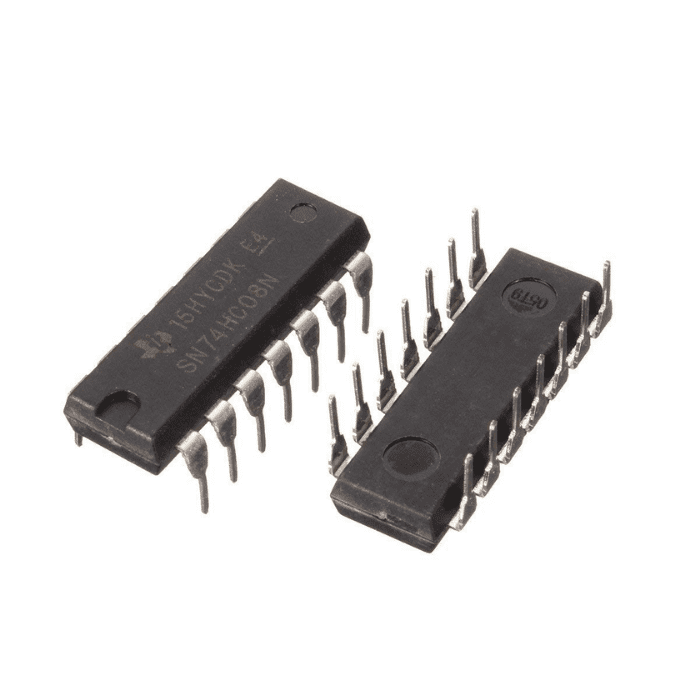

74HC08 - Quad 2-Input AND Gate IC
74HC08 - Quad 2-Input AND Gate IC
Regular price
Rs. 13
Regular price
Rs. 22
Sale price
Rs. 13
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 13 hours and 51 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is 4 AND gates in a 14-Pin DIP Package.
- Outputs Directly Interface to CMOS, NMOS and TTL
- Large Operating Voltage Range and Wide Operating Conditions
- Voltage Rating of this IC is 2.0V to 6.0V.
74HC08 - Quad 2-Input AND Gate IC
The 74HC Series 74HC08 is Quad 2-Input AND Gate 14 Pin IC. The 74HC08 provides 4 independent 2-input AND gates with standard push-pull outputs. The device is designed for operation with a power supply range of 2.0V to 6.0V. It utilizes advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits.
The HC08 has buffered outputs, providing high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and the ground.
check out : Dual 2-to-4 line Decoder/Demultiplexer IC - 74HC139
Pinout:
Pinout Of 74HC08 IC
Package Includes:
- 1 x IC-74HC08
Specifications:
| Type | DIP Bipolar |
| Voltage Rating | 2.0 to 6.0V |
| Temperature Rating | 0 to 70Deg C |
| Number of pins | 14 |
| Mounting | Through Hole |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
ADDITIONAL RESOURCES
1. What is 74HC08 IC?
- The 74HC08 is a quad 2-input AND gate 14-pin integrated circuit. The 74HC08 has four independent 2-input AND gates with push-pull outputs. The device is intended for use with a power supply voltage range of 2.0V to 6.0V.
2. How many AND gates are there in IC 7408 quadruple 2-input AND gates?
- The 7408 is a QUAD 2-Input AND gates and contains four independent gates each of which performs the logic AND function. It comes in a 14-Pin DIP Package.
