Plantower PMS5003 PM2.5 Air Quality Sensor
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability

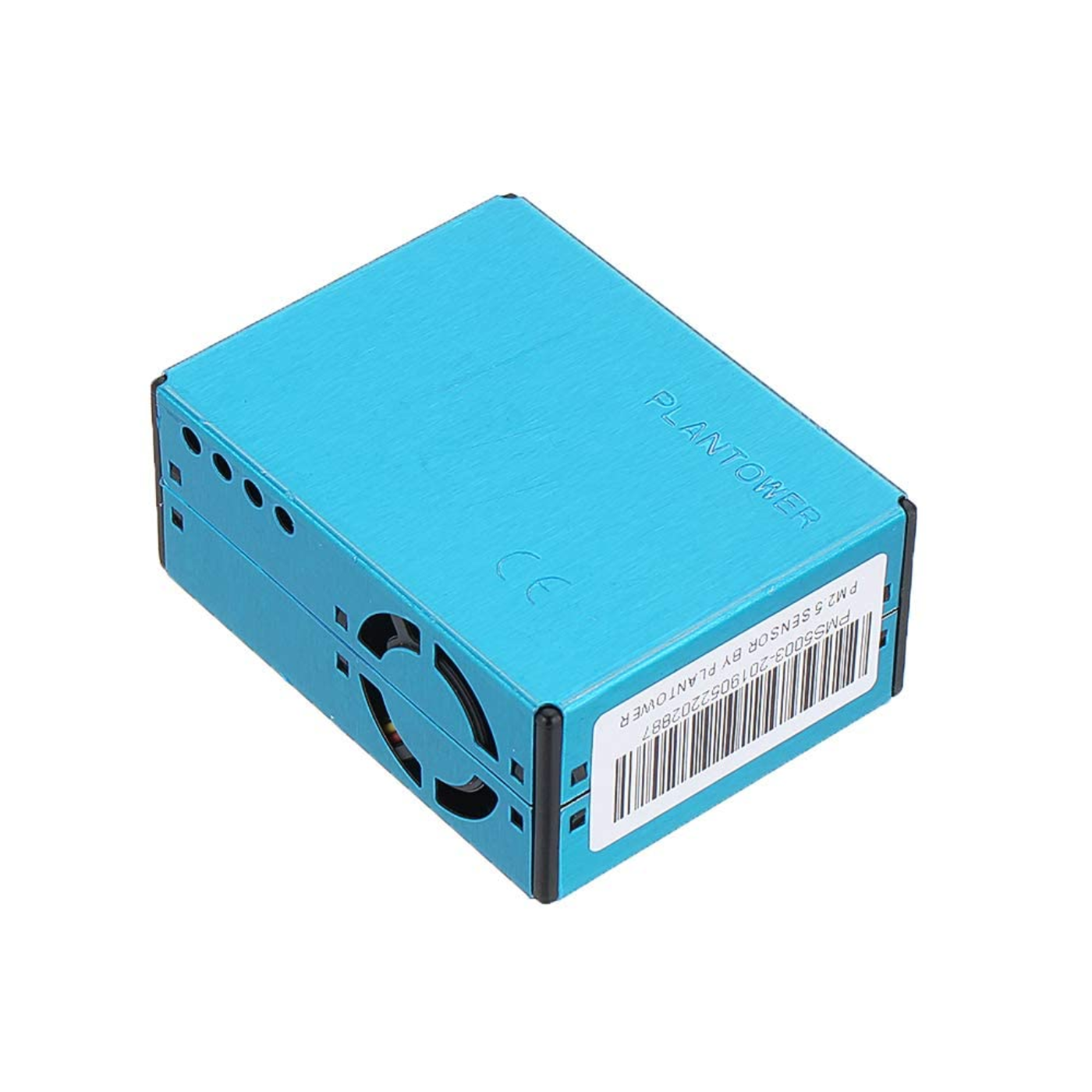

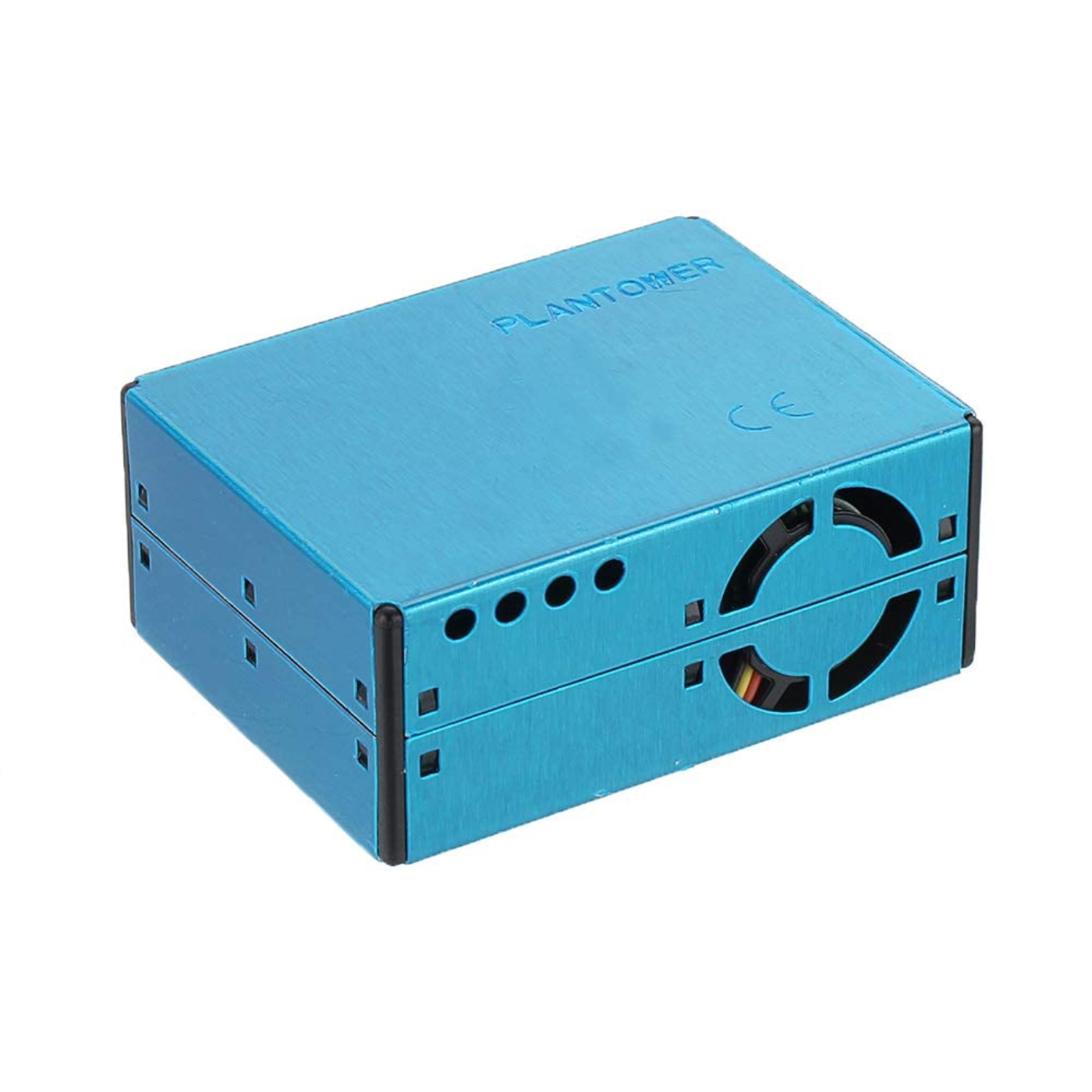

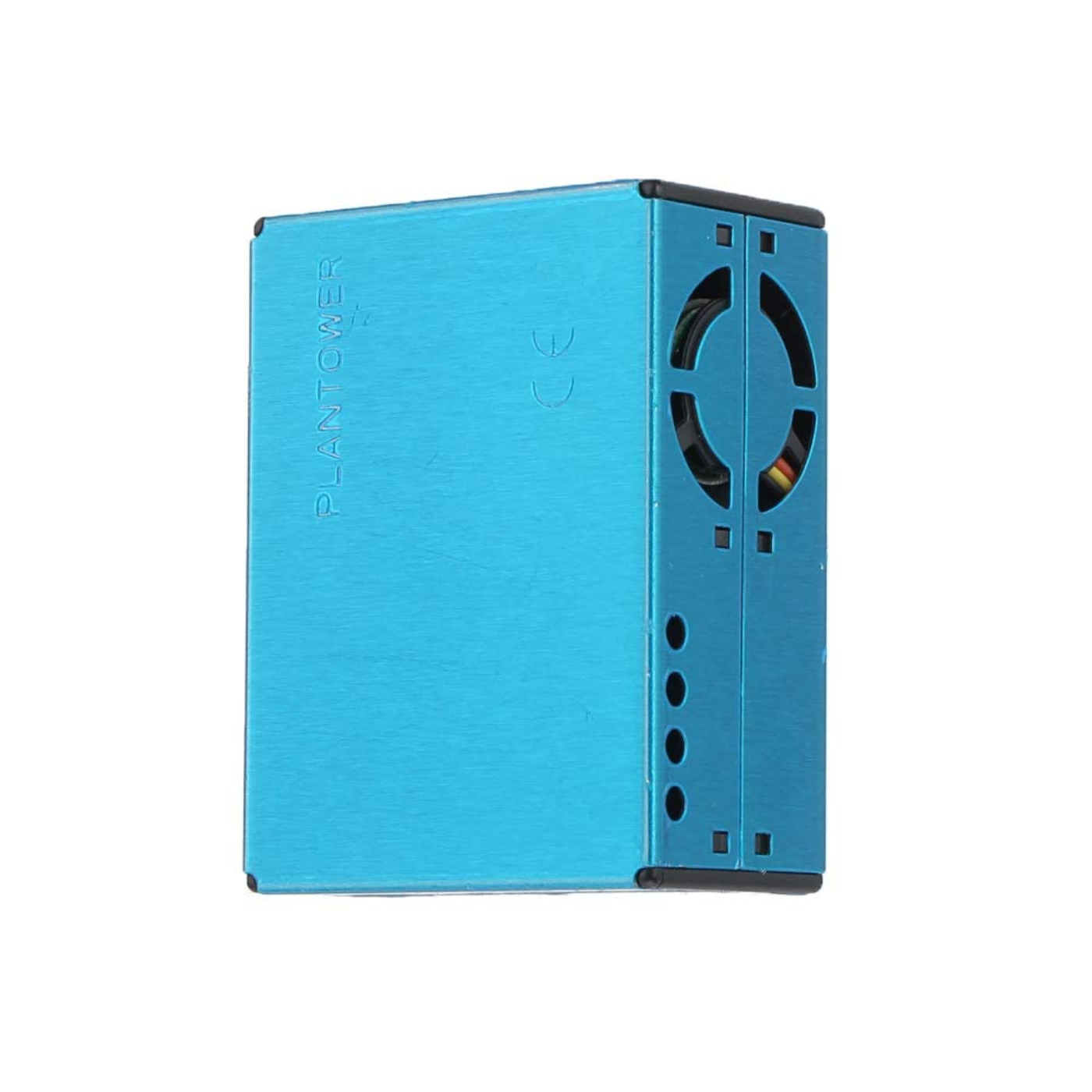

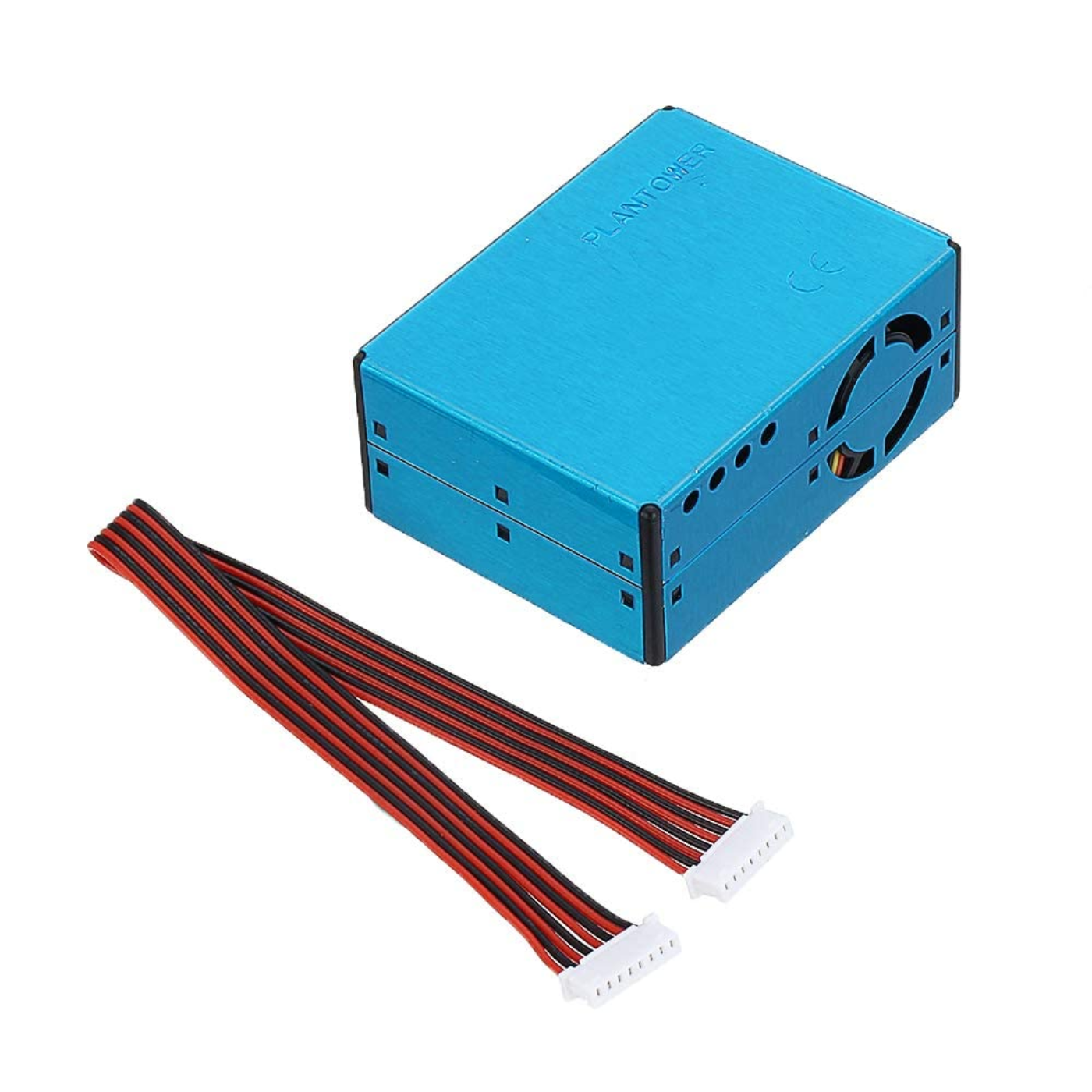

PMS5003 PM2.5 Air Quality Sensor is a high-precision laser-based particle detection sensor designed for real-time air quality monitoring applications. Using advanced laser scattering technology, it accurately detects and measures PM1.0, PM2.5, and PM10 particle concentrations in the air. Its compact design and reliable digital output make it ideal for smart home systems, environmental monitoring, IoT devices, and embedded electronics projects.
Designed for stable and efficient performance, the PMS5003 sensor provides fast response time and high sensitivity for detecting fine airborne particles. It supports UART communication for easy integration with microcontrollers and development boards. Suitable for air purifiers, pollution monitoring systems, and DIY air quality projects, this sensor ensures accurate and dependable environmental data collection.
| Product Type | Air Quality Sensor |
| Model | PMS5003 |
| Technology | Laser Scattering |
| Detection Range | PM1.0, PM2.5, PM10 |
| Particle Size Detection | 0.3 μm to 10 μm |
| Operating Voltage | 4.5 V to 5.5 V |
| Active Current | ≤100 mA |
| Standby Current | ≤10 mA |
| Interface | UART Digital Output |
| Response Time | <10 Seconds |
| Working Temperature | -10°C to +60°C |
| Dimensions | 50 x 38 x 21 mm |
